COOLING FAN CONTROL

EC-1101

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Parts Location

INFOID:0000000004404407

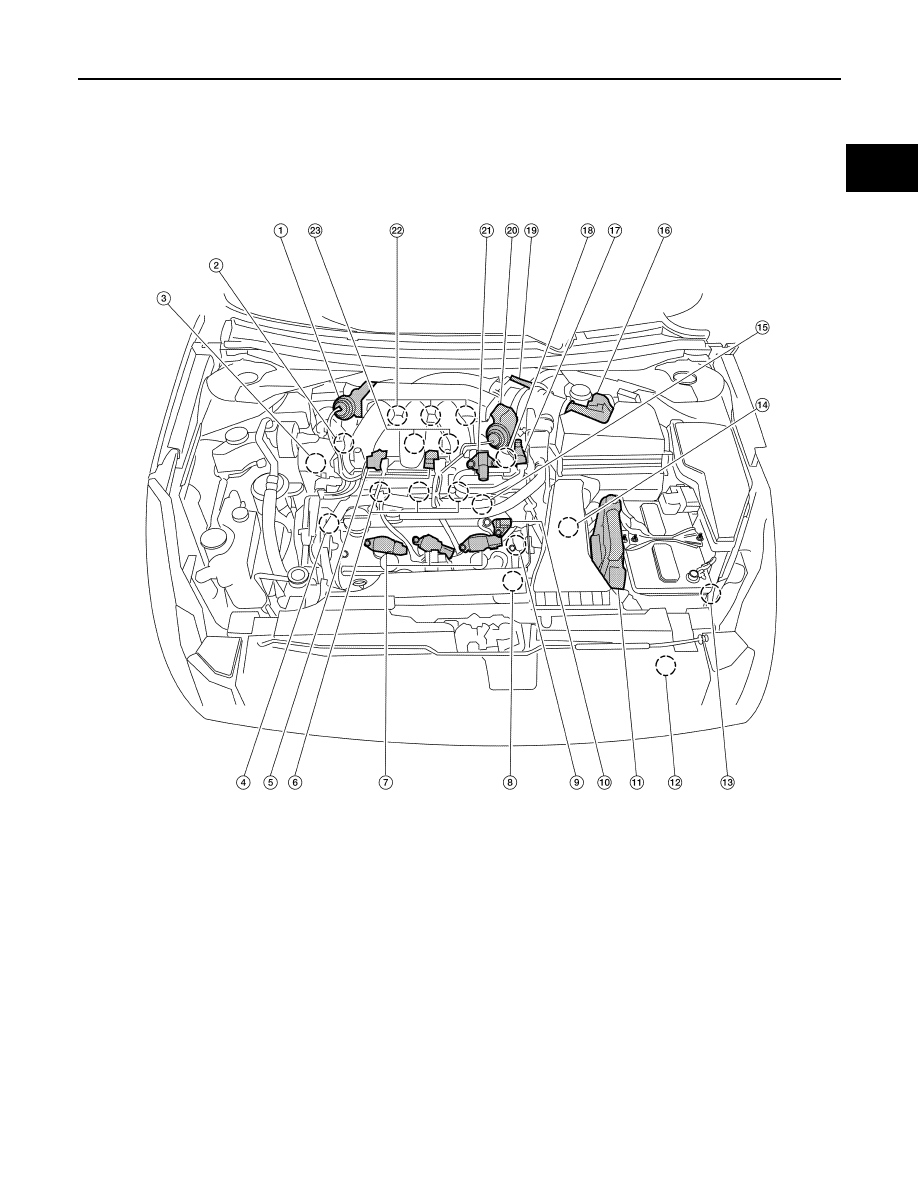

1.

Power valve actuator 1

2.

Intake valve timing control solenoid
valve (bank 1)

3.

Power steering pressure sensor

4.

Intake valve timing control solenoid
valve (bank 2)

5.

VIAS control solenoid valves 1 and 2 6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor)
and spark plug (bank 2)

8.

Crankshaft position sensor (POS)

9.

Engine coolant temperature sensor

10. Camshaft position sensor (PHASE)

(bank 2)

11. ECM

12. Refrigerant pressure sensor

13. Battery current sensor

14. PNP switch

15. Condenser-2

16. Mass air flow sensor (with intake air

temperature sensor)

17. EVAP service port

18. Camshaft position sensor (PHASE)

(bank 1)

19. Electric throttle control actuator

20. Power valve actuator 2

21. EVAP canister purge volume control

solenoid valve

22. Ignition coil (with power transistor)

and spark plug (bank 1)

23. Knock sensor

ALBIA0110ZZ

EC-1102

< FUNCTION DIAGNOSIS >

[VQ35DE]

COOLING FAN CONTROL

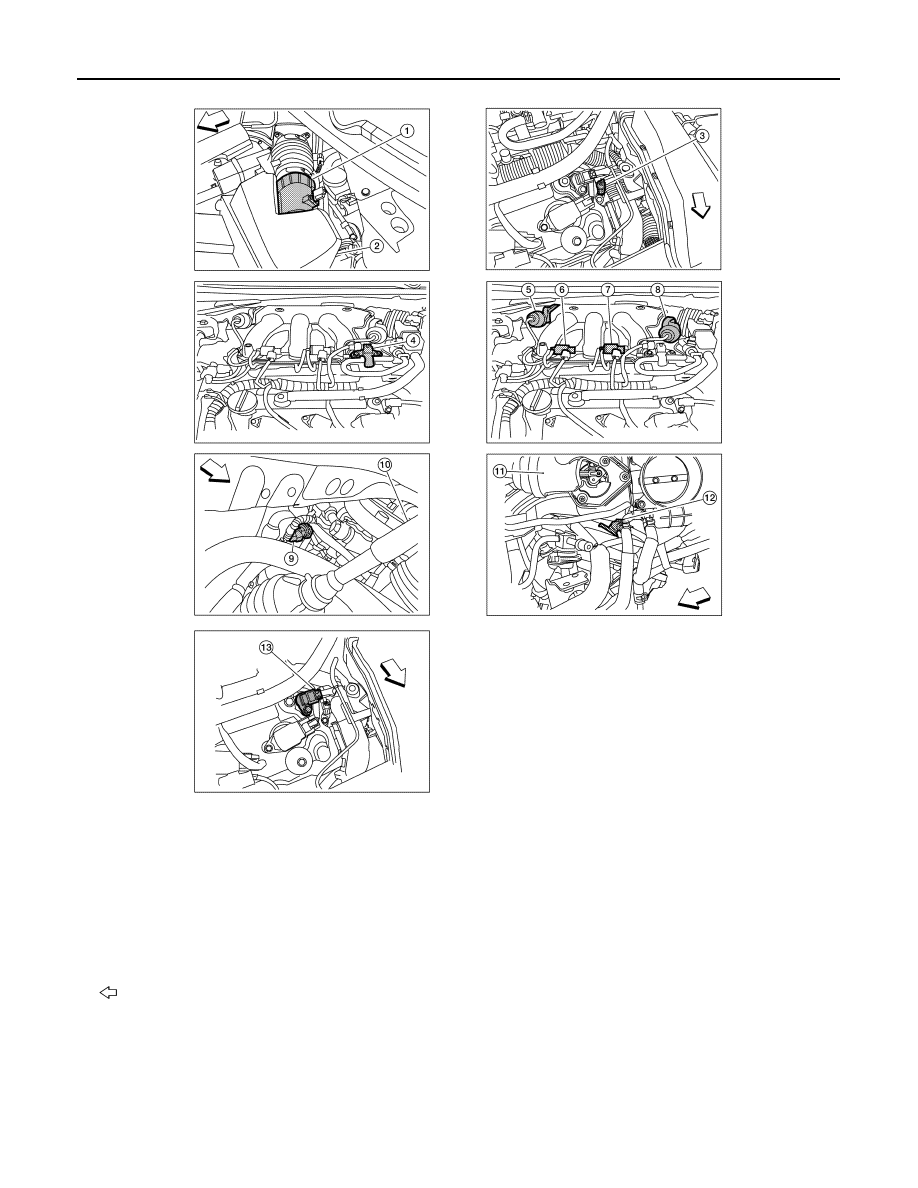

1.

Mas air flow sensor (with intake air
temperature sensor)

2.

Air cleaner case

3.

Engine coolant temperature sensor

4.

EVAP canister purge volume control
solenoid valve

5.

Power valve actuator 1

6.

VIAS control solenoid valve 1

7.

VIAS control solenoid valve 2

8.

Power valve actuator 2

9.

Power steering pressure sensor

10. Tie rod (RH)

11. Power valve actuator 2

12. Camshaft position sensor (PHASE)

(bank 1)

13. Camshaft position sensor (PHASE)

(bank 2)
: Vehicle front

ALBIA0101ZZ

COOLING FAN CONTROL

EC-1103

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JMBIA1832GB

ALBIA0102ZZ

EC-1104

< FUNCTION DIAGNOSIS >

[VQ35DE]

COOLING FAN CONTROL

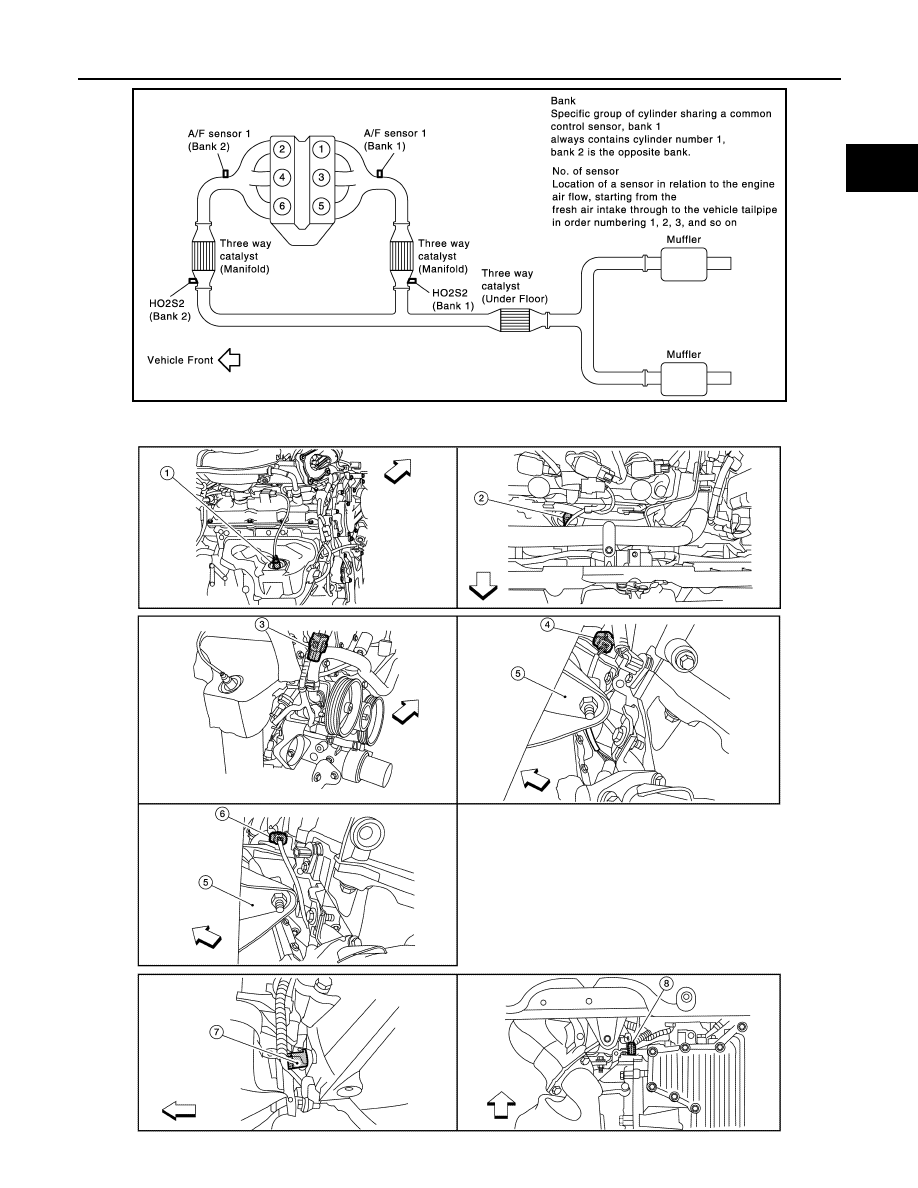

1.

A/F sensor 1 (bank 1)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector

4.

HO2S2 (bank 2) harness connector
(CVT models)

5.

Front engine mount

6.

HO2S2 (bank 2) harness connector
(M/T models)

7.

Crankshaft position sensor (POS)
(M/T models)

8.

Crankshaft position sensor (POS)
(CVT models)

: Vehicle front

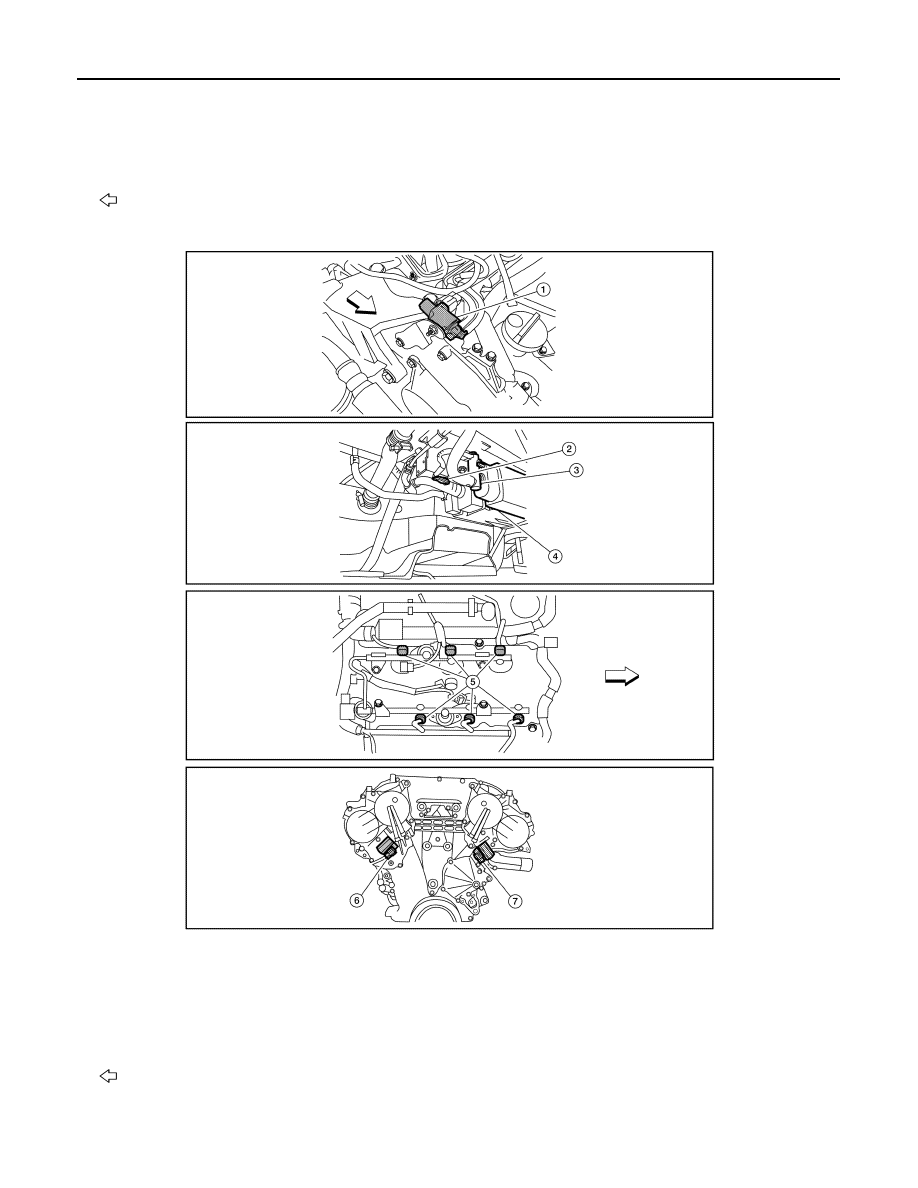

1.

Electronic controlled engine mount
control solenoid valve

2.

EVAP control system pressure sen-
sor

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Injector harness connector

6.

Intake valve timing control solenoid
valve (bank 1)

7.

Intake valve timing control solenoid
valve (bank 2)
: Vehicle front

ALBIA0103ZZ
