AIR CONDITIONING CUT CONTROL

EC-1089

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

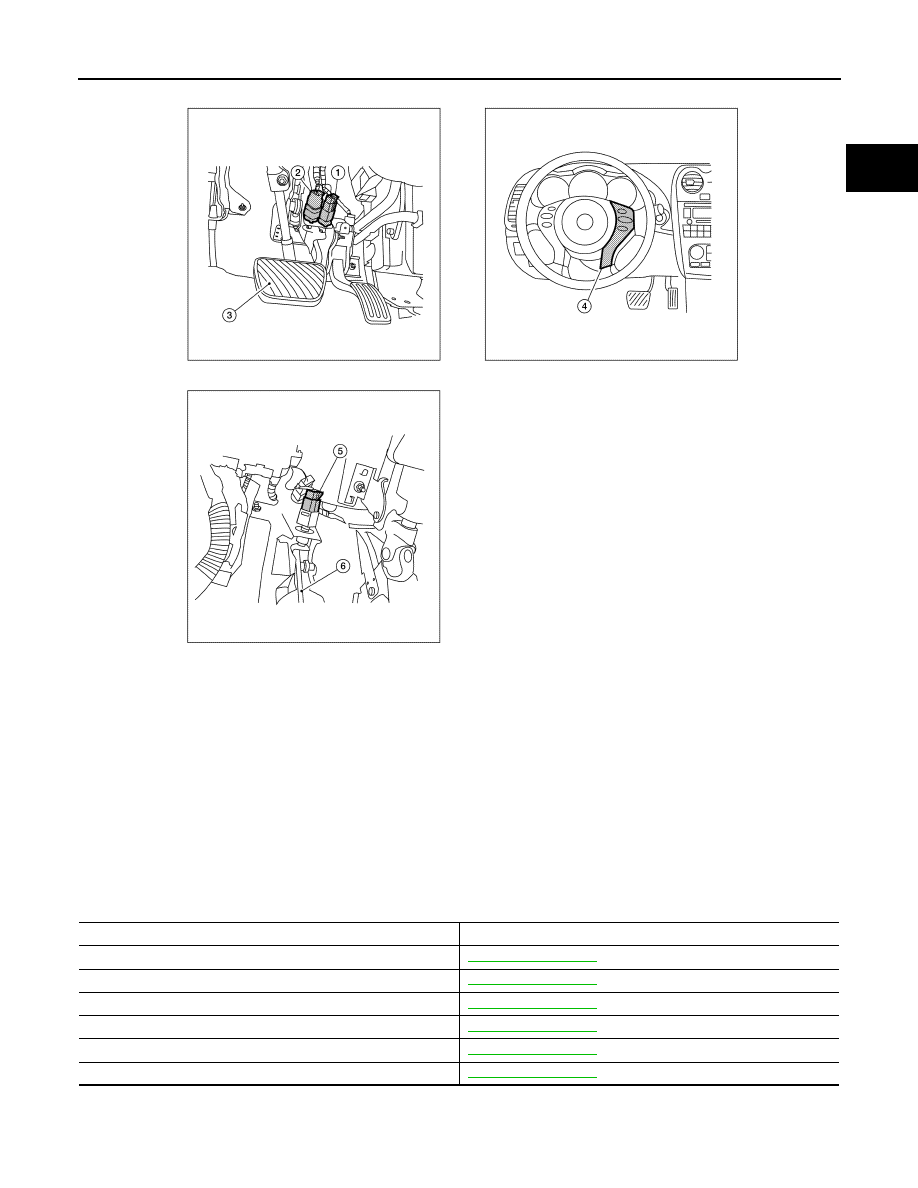

Component Description

INFOID:0000000004361976

1.

ASCD brake switch

2.

Stop lamp switch

3.

Brake pedal

4.

ASCD steering switch

5.

ASCD clutch switch (M/T models)

6.

Clutch pedal

ALBIA0105ZZ

Component

Reference

Accelerator pedal position sensor

EC-1448, "Description"

Camshaft position sensor (PHASE)

EC-1296, "Description"

Crankshaft position sensor (POS)

EC-1292, "Description"

Engine coolant temperature sensor

EC-1210, "Description"

Power steering pressure sensor

EC-1371, "Description"

Refrigerant pressure sensor

EC-1503, "Description"

EC-1090

< FUNCTION DIAGNOSIS >

[VQ35DE]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

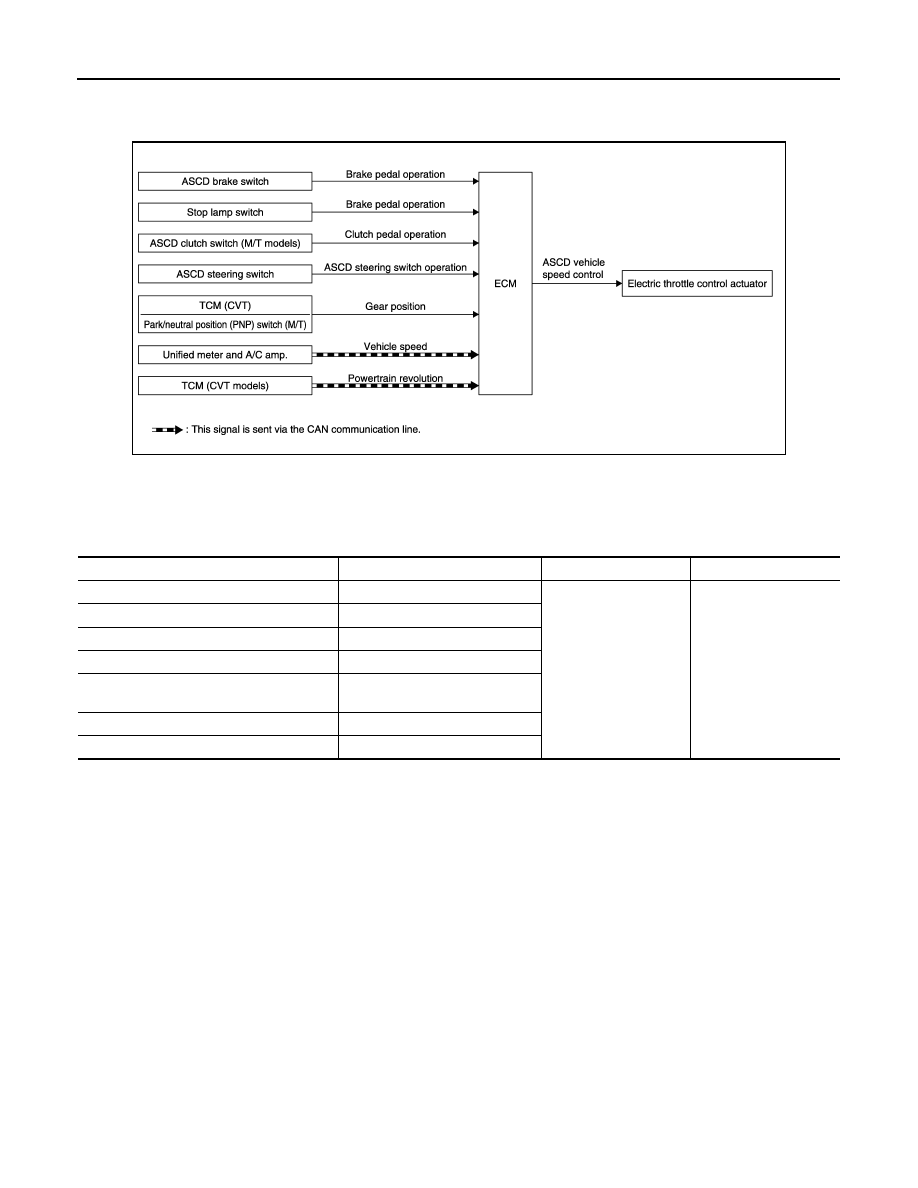

System Diagram

INFOID:0000000004361977

System Description

INFOID:0000000004361978

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM via the CAN communication line

BASIC ASCD SYSTEM

Refer to Owner's Manual for ASCD operating instructions.

Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed

without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/

h (25 MPH) and 144 km/h (89 MPH).

ECM controls throttle angle of electric throttle control actuator to regulate engine speed.

The ASCD operation status is indicated by two indicators (CRUISE and SET on the information display) on the

combination meter. If any malfunction occurs in the ASCD system, SET indicator blinks and ASCD control is

deactivated.

NOTE:

Always drive vehicle in a safe manner according to traffic conditions and obey all traffic laws.

SET OPERATION

Press MAIN switch. (CRUISE is indicated on the information display.)

When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89

MPH), press SET/COAST switch. (Then SET is indicated on the information display in combination meter.)

ACCELERATE OPERATION

If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until

the switch is released or vehicle speed reaches maximum speed controlled by the system.

And then ASCD will maintain the new set speed.

JMBIA1968GB

Sensor

Input signal to ECM

ECM function

Actuator

ASCD brake switch

Brake pedal operation

ASCD vehicle speed
control

Electric throttle control
actuator

Stop lamp switch

Brake pedal operation

ASCD clutch switch

Brake pedal operation

ASCD steering switch

ASCD steering switch operation

TCM (CVT)
Park/neutral position (PNP) switch (M/T)

Gear position

Unified meter and A/C amp.

Vehicle speed*

TCM (CVT)

Powertrain revolution*

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-1091

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CANCEL OPERATION

When any of following conditions exist, cruise operation will be canceled.

• CANCEL switch is pressed

• More than 2 switches on ASCD steering switch are pressed at the same time (Set speed will be cleared)

• Brake pedal is depressed

• Selector lever position is changed to N, P or R (CVT models)

• Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed

• TCS system is operated

• CVT control system has a malfunction. Refer to

EC-1423, "Description"

.

When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform

the driver by blinking indicators.

• Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE indicator may

blink slowly.

When the engine coolant temperature decreases to the normal operating temperature, CRUISE indicator will

stop blinking and the cruise operation will be able to work by pressing SET/COAST switch or RESUME/

ACCELERATE switch.

• Malfunction for some self-diagnoses regarding ASCD control: SET indicator will blink quickly.

If MAIN switch is turned to OFF while ASCD is activated, all of ASCD operations will be canceled and vehicle

speed memory will be erased.

COAST OPERATION

When the SET/COAST switch is pressed during cruise control driving, decrease vehicle set speed until the

switch is released. And then ASCD will maintain the new set speed.

RESUME OPERATION

When the RESUME/ACCELERATE switch is pressed after canceling operation other than pressing the MAIN

switch, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition must meet

following conditions.

• Brake pedal is released

• Clutch pedal is released (M/T models)

• Selector lever position is other than P and N (CVT models)

• Vehicle speed is greater than 40 km/h (25 MPH) and less than 144 km/h (89 MPH)

EC-1092

< FUNCTION DIAGNOSIS >

[VQ35DE]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

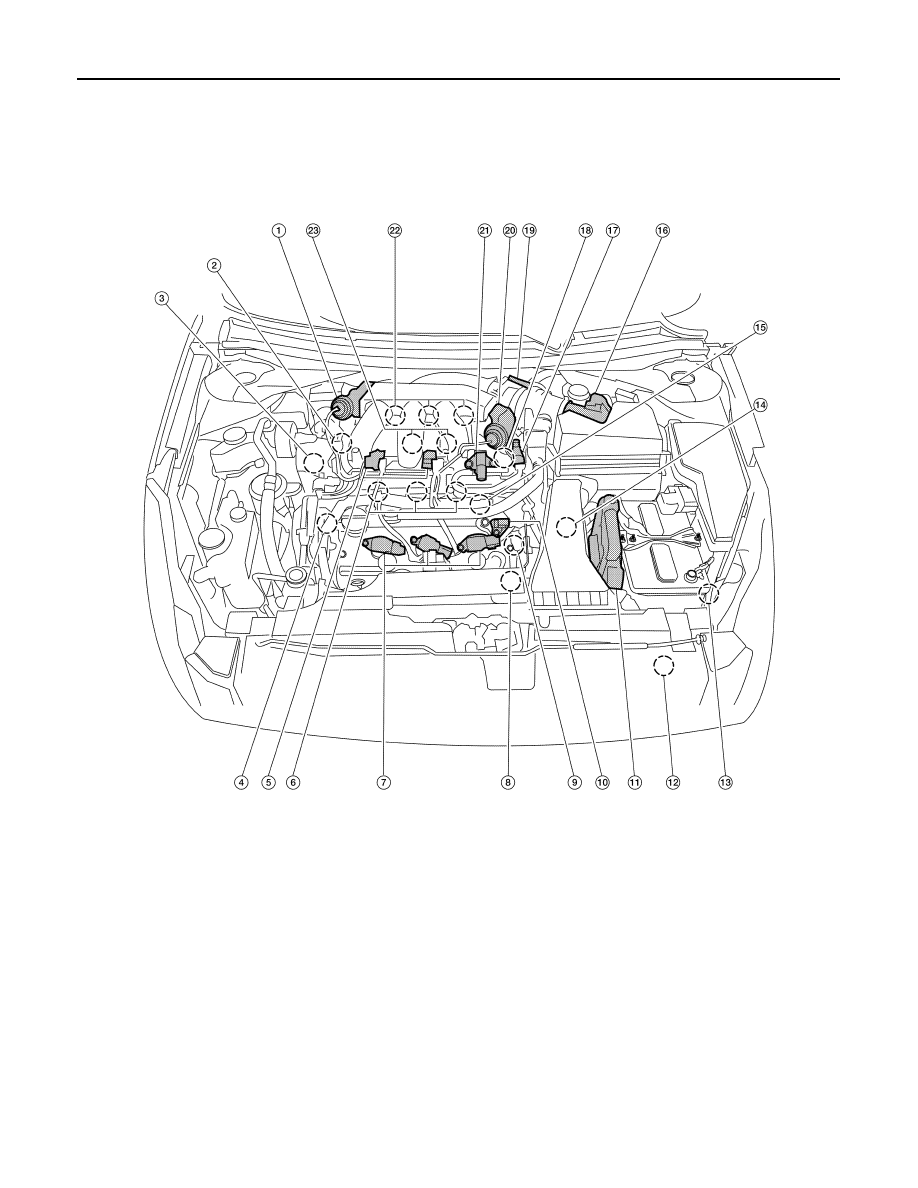

Component Parts Location

INFOID:0000000004404406

1.

Power valve actuator 1

2.

Intake valve timing control solenoid
valve (bank 1)

3.

Power steering pressure sensor

4.

Intake valve timing control solenoid
valve (bank 2)

5.

VIAS control solenoid valves 1 and 2 6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor)
and spark plug (bank 2)

8.

Crankshaft position sensor (POS)

9.

Engine coolant temperature sensor

10. Camshaft position sensor (PHASE)

(bank 2)

11. ECM

12. Refrigerant pressure sensor

13. Battery current sensor

14. PNP switch

15. Condenser-2

16. Mass air flow sensor (with intake air

temperature sensor)

17. EVAP service port

18. Camshaft position sensor (PHASE)

(bank 1)

19. Electric throttle control actuator

20. Power valve actuator 2

21. EVAP canister purge volume control

solenoid valve

22. Ignition coil (with power transistor)

and spark plug (bank 1)

23. Knock sensor

ALBIA0110ZZ
