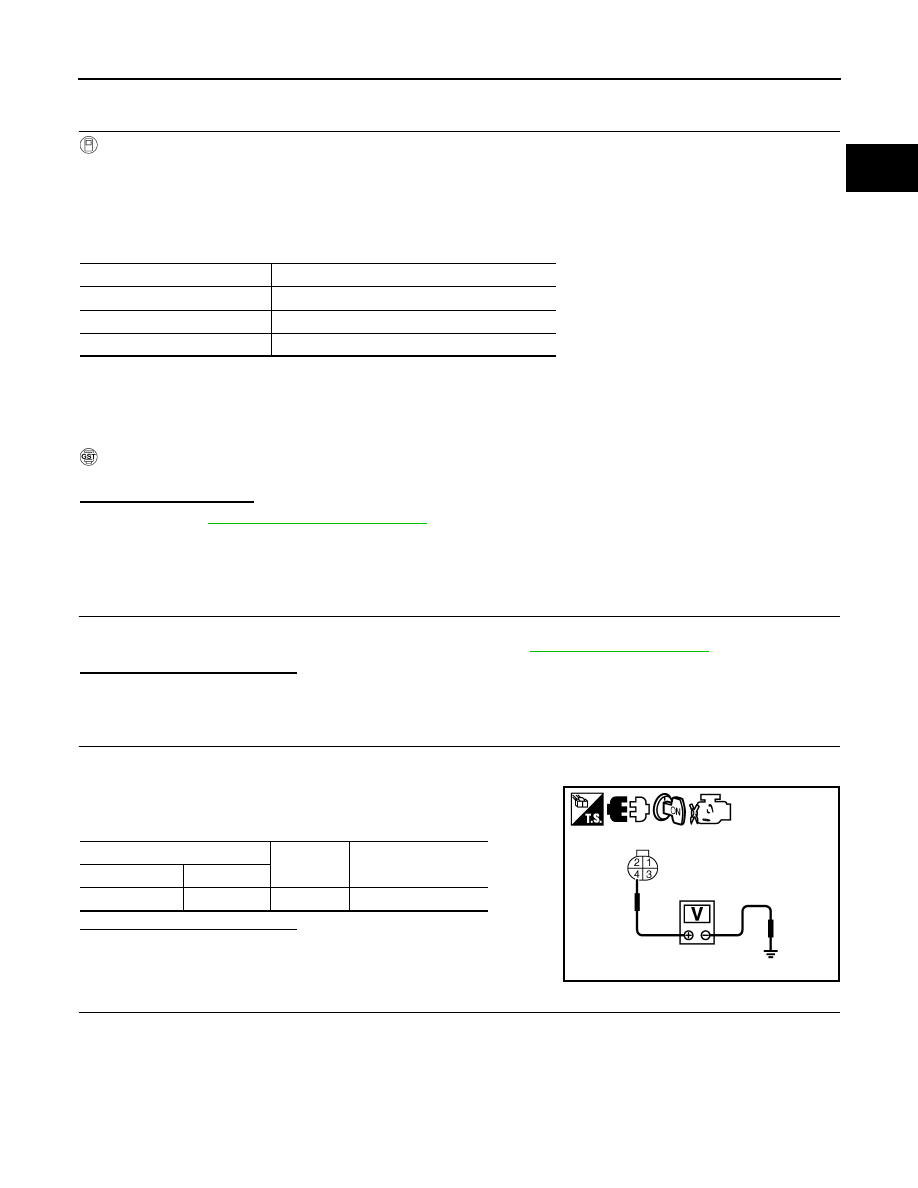

P0131 A/F SENSOR 1

EC-729

< COMPONENT DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE

 With CONSULT-III

1. Turn ignition switch OFF, wait at least 10 seconds and then restart engine.

2. Drive and accelerate vehicle to more than 40 km/h (25 MPH) within 20 seconds after restarting engine.

CAUTION:

Always drive vehicle at a safe speed.

3. Maintain the following conditions for about 20 consecutive seconds.

NOTE:

• Keep the accelerator pedal as steady as possible during the cruising.

• If this procedure is not completed within 1 minute after restarting engine at step 1, return to step

1.

4. Check 1st trip DTC.

 With GST

Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?

YES

>> Go to

EC-729, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004349704

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1. Disconnect A/F sensor 1 harness connector.

2. Turn ignition switch ON.

3. Check the voltage between A/F sensor 1 harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

• IPDM E/R harness connector F10

• 15A fuse (No. 37)

• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

ENG SPEED

1,000 - 3,200 rpm

VHCL SPEED SE

More than 40 km/h (25 mph)

B/FUEL SCHDL

1.5 - 9.0 msec

Shift lever

Suitable position

A/F sensor 1

Ground

Voltage

Connector

Terminal

F44

4

Ground

Battery voltage

PBIB3308E

EC-730

< COMPONENT DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

P0131 A/F SENSOR 1

4.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.

4. Check the continuity between A/F sensor 1 harness connector or ECM harness connector and ground.

5. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTERMITTENT INCIDENT

Perform

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace.

6.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace air fuel ratio (A/F) sensor 1.

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using oxygen sensor thread cleaner tool

[commercial service tool: (J-43897-18) or J43897-12] and approved anti-seize lubricant (commercial

service tool).

>> INSPECTION END

A/F sensor 1

ECM

Continuity

Connector

Terminal

Connector

Terminal

F44

1

F13

45

Existed

2

49

A/F sensor 1

ECM

Ground

Continuity

Connector

Terminal

Connector

Terminal

F44

1

F13

45

Ground

Not existed

2

49

P0132 A/F SENSOR 1

EC-731

< COMPONENT DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

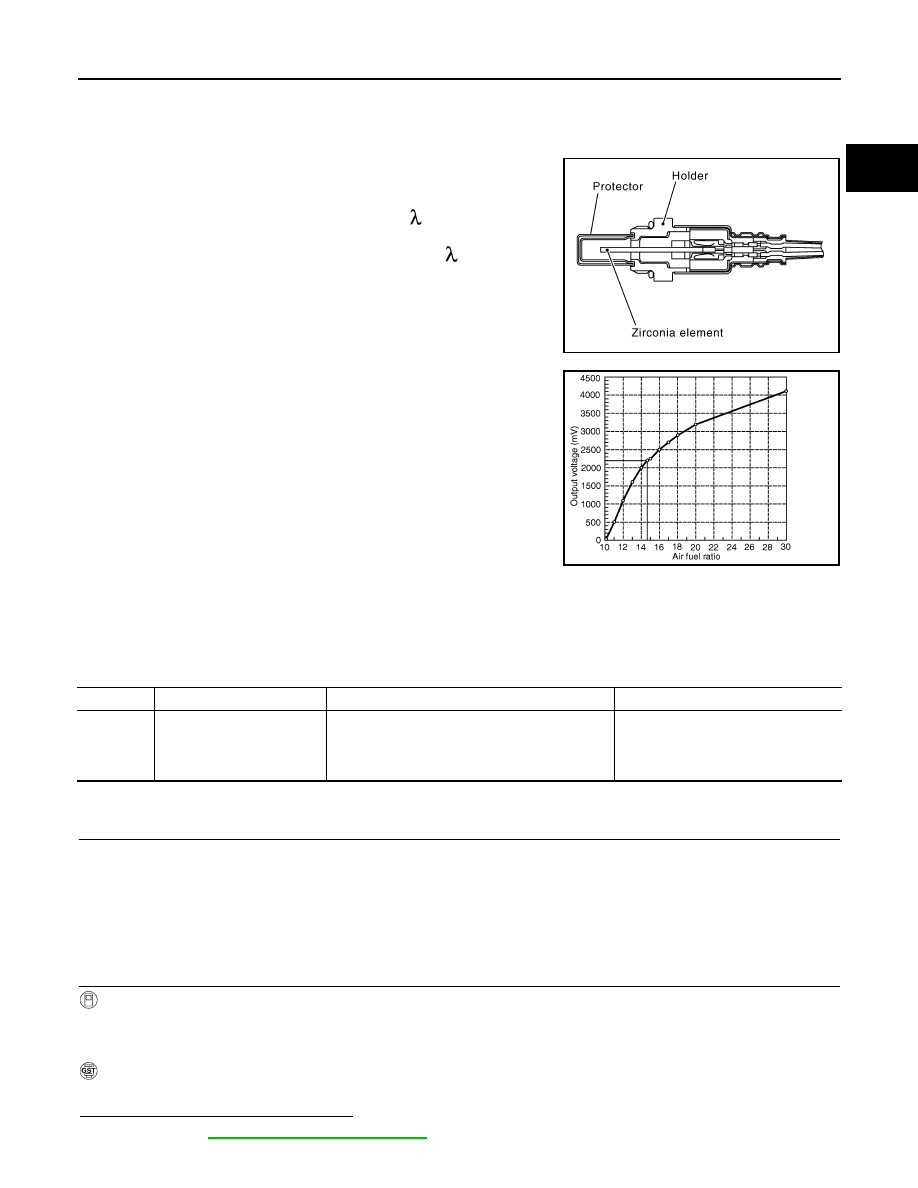

P0132 A/F SENSOR 1

Description

INFOID:0000000004349705

The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-

sor. The sensor element of the A/F sensor 1 is composed an elec-

trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the

lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range.

The exhaust gas components diffuse through the diffusion layer at

the sensor cell. An electrode layer is applied voltage, and this current

relative oxygen density in lean. Also this current relative hydrocar-

bon density in rich.

Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this

electrode layer of current. In addition, a heater is integrated in the

sensor to ensure the required operating temperature of about 800

°C

(1,472

°F).

DTC Logic

INFOID:0000000004349706

DTC DETECTION LOGIC

To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1

signal is not inordinately high.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.

>> GO TO 2.

2.

CHECK A/F SENSOR FUNCTION

 With CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Select “A/F SEN1 (B1)” in “DATA MONITOR” mode with CONSULT-III.

3. Check “A/F SEN1 (B1)” indication.

 With GST

Follow the procedure “With CONSULT-IIII” above.
Is the indication constantly approx. 5V?

YES

>> Go to

EC-732, "Diagnosis Procedure"

.

JMBIA0112GB

PBIB3354E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P0132

Air fuel ratio (A/F) sensor 1
circuit high voltage

• The A/F signal computed by ECM from the A/F

sensor 1 signal is constantly approx. 5V.

• Harness or connectors

(The A/F sensor 1 circuit is open or
shorted.)

• A/F sensor 1

EC-732

< COMPONENT DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

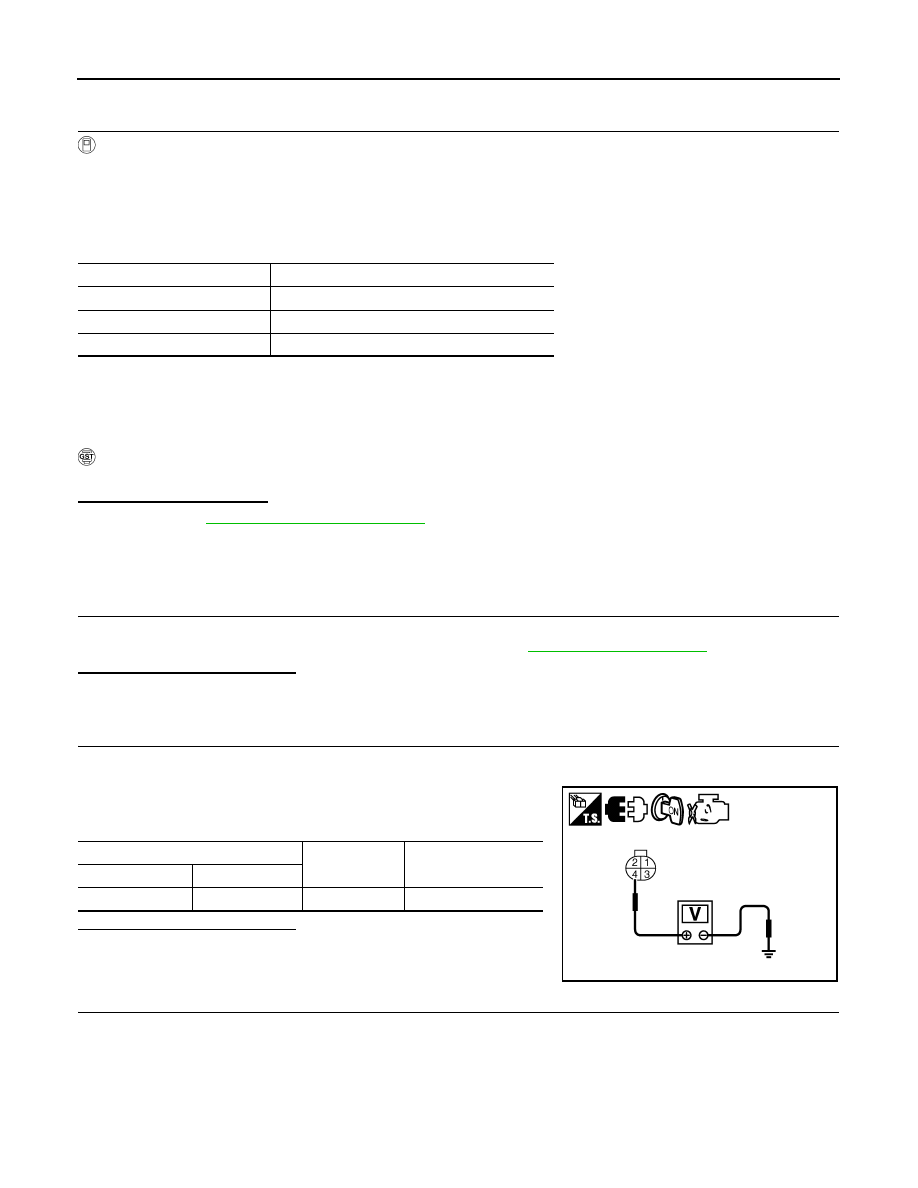

P0132 A/F SENSOR 1

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE

 With CONSULT-III

1. Turn ignition switch OFF, wait at least 10 seconds and then restart engine.

2. Drive and accelerate vehicle to more than 40 km/h (25 MPH) within 20 seconds after restarting engine.

CAUTION:

Always drive vehicle at a safe speed.

3. Maintain the following conditions for about 20 consecutive seconds.

NOTE:

• Keep the accelerator pedal as steady as possible during the cruising.

• If this procedure is not completed within 1 minute after restarting engine at step 1, return to step

1.

4. Check 1st trip DTC.

 With GST

Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC is detected?

YES

>> Go to

EC-732, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004349707

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1. Disconnect A/F sensor 1 harness connector.

2. Turn ignition switch ON.

3. Check the voltage between A/F sensor 1 harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

• IPDM E/R harness connector F10

• 15A fuse (No. 37)

• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

ENG SPEED

1,000 - 3,200 rpm

VHCL SPEED SE

More than 40 km/h (25 mph)

B/FUEL SCHDL

1.5 - 9.0 msec

Shift lever

Suitable position

A/F sensor 1

Ground

Voltage

Connector

Terminal

F44

4

Ground

Battery voltage

PBIB3308E
