ECM

EC-529

< ECU DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

INPUT SPD SEN/CIRC

P0715

0715

—

2

×

TM-313

VEH SPD SEN/CIR AT*

5

P0720

0720

—

2

×

TM-318

TCC SOLENOID/CIRC

P0740

0740

—

2

×

TM-324

A/T TCC S/V FNCTN

P0744

0744

—

2

×

TM-327

L/PRESS SOL/CIRC

P0745

0745

—

2

×

TM-329

PRS CNT SOL/A FCTN

P0746

0746

—

1

×

TM-331

PRS CNT SOL/B FCTN

P0776

0776

—

2

×

TM-333

PRS CNT SOL/B CIRC

P0778

0778

—

2

×

TM-336

TR PRS SENS/A CIRC

P0840

0840

—

2

×

TM-341

P-N POS SW/CIRCUIT

P0850

0850

—

2

×

EC-365

CLOSED LOOP-B1

P1148

1148

—

1

×

EC-368

ENG OVER TEMP

P1217

1217

—

1

×

EC-369

CTP LEARNING-B1

P1225

1225

—

2

—

EC-373

CTP LEARNING-B1

P1226

1226

—

2

—

EC-375

COLD START CONTROL

P1421

1421

—

2

×

EC-377

BAT CURRENT SENSOR

P1550

1550

—

2

—

EC-379

BAT CURRENT SENSOR

P1551

1551

—

2

—

EC-382

BAT CURRENT SENSOR

P1552

1552

—

2

—

EC-382

BAT CURRENT SENSOR

P1553

1553

—

2

—

EC-385

BAT CURRENT SENSOR

P1554

1554

—

2

—

EC-388

ASCD SW

P1564

1564

—

1

—

EC-391

ASCD BRAKE SW

P1572

1572

—

1

—

EC-394

ASCD VHL SPD SEN

P1574

1574

—

1

—

EC-402

LOCK MODE

P1610

1610

—

2

—

SEC-64



(Coupe)

SEC-263

 (Se-

dan)

ID DISCORD, IMMU-ECM

P1611

1611

—

2

—

SEC-68



(Coupe)

SEC-267

 (Se-

dan)

CHAIN OF ECM-IMMU

P1612

1612

—

2

—

SEC-69



(Coupe)

SEC-268

 (Se-

dan)

DIFFERENCE OF KEY

P1615

1615

—

2

—

SEC-67



(Coupe)

SEC-266

 (Se-

dan)

IN PULY SPEED

P1715

1715

—

2

—

EC-404

LU-SLCT SOL/CIRC

P1740

1740

—

2

×

TM-358

STEP MOTOR CIRC

P1777

1777

—

1

×

TM-361

STEP MOTOR FNCT

P1778

1778

—

2

×

TM-364

BRAKE SW/CIRCUIT

P1805

1805

—

2

—

EC-406

TUMBLE CONT/V

P2004

2004

—

2

×

EC-409

TUMBLE POS SEN

P2014

2014

—

2

×

EC-414

Items

 (CONSULT-III screen terms)

DTC*

1

SRT code

Trip

MIL

Reference page

CONSULT-III

GST*

2

ECM*

3

EC-530

< ECU DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

ECM

*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: The troubleshooting for this DTC needs CONSULT-III.
*5: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.
*6: SRT code will not be set if the self-diagnostic result is NG.
*7: When the ECM is in the mode of displaying SRT status, MIL may flash. For the details, refer to “How to Display SRT Status”.
*7: When erasing this DTC, always use CONSULT-III or GST.

How to Set SRT Code

INFOID:0000000004349555

To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each

diagnosis may require a long period of actual driving under various conditions.

WITH CONSULT-III

Perform corresponding DTC CONFIRMATION PROCEDURE one by one based on Performance Priority in

the table on “SRT Item”.

WITHOUT CONSULT-III

The most efficient driving pattern in which SRT codes can be properly set is explained below. The driving pat-

tern should be performed one or more times to set all SRT codes.

ETC MOT PWR-B1

P2100

2100

—

1

×

EC-417

ETC FNCTN/CIRC-B1

P2101

2101

—

1

×

EC-419

ETC MOT PWR

P2103

2103

—

1

×

EC-417

ETC MOT-B1

P2118

2118

—

1

×

EC-423

ETC ACTR-B1

P2119

2119

—

1

×

EC-425

APP SEN 1/CIRC

P2122

2122

—

1

×

EC-427

APP SEN 1/CIRC

P2123

2123

—

1

×

EC-427

APP SEN 2/CIRC

P2127

2127

—

1

×

EC-430

APP SEN 2/CIRC

P2128

2128

—

1

×

EC-430

TP SENSOR-B1

P2135

2135

—

1

×

EC-434

APP SENSOR

P2138

2138

—

1

×

EC-438

HC ADS CATALYST-B1

P2423

2423

—

2

×

EC-442

A/F SENSOR1 (B1)

P2A00

2A00

—

2

×

EC-446

Items

 (CONSULT-III screen terms)

DTC*

1

SRT code

Trip

MIL

Reference page

CONSULT-III

GST*

2

ECM*

3

ECM

EC-531

< ECU DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DRIVING PATTERN

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-

est.

Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within

zone A.

*: Normal conditions refer to the following:

JMBIA1020GB

EC-532

< ECU DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

ECM

• Sea level

• Flat road

• Ambient air temperature: 20 - 30

°C (68 - 86°F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°C (68 - 86°F)], diagno-

sis may also be performed.

Pattern 1:

• The engine is started at the engine coolant temperature of

−10 to 35°C (14 to 95°F)

(where the voltage between the ECM terminal 46 and ground is 3.0 - 4.3V).

• The engine must be operated at idle speed until the engine coolant temperature is greater than 70

°C

(158

°F) (where the voltage between the ECM terminal 46 and ground is lower than 1.4V).

• The engine is started at the fuel tank temperature of warmer than 0

°C (32°F) (where the voltage

between the ECM terminal 95 and ground is less than 4.1V).

Pattern 2:

• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

Pattern 3:

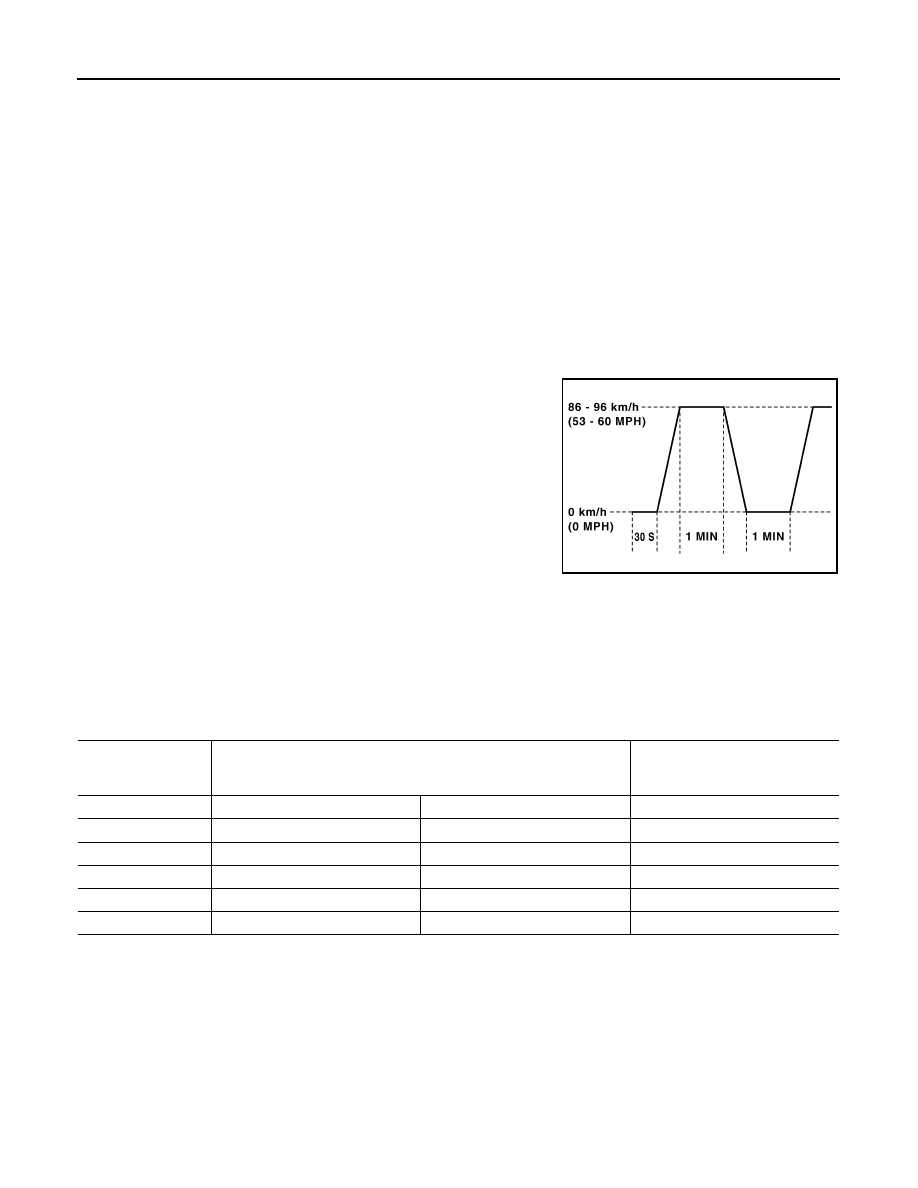

• Operate vehicle following the driving pattern shown in the figure.

• Release the accelerator pedal during decelerating vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

Pattern 4:

• The accelerator pedal must be held very steady during steady-

state driving.

• If the accelerator pedal is moved, the test must be conducted all

over again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56

MPH), then release the accelerator pedal and keep it released for

more than 10 seconds. Depress the accelerator pedal until vehicle

speed is 90 km/h (56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

Suggested Transmission Gear Position for CVT Models

Set the selector lever in the D position.

Suggested Upshift Speeds for M/T Models

Shown below are suggested vehicle speeds for shifting into a higher gear. These suggestions relate to fuel

economy and vehicle performance. Actual upshift speeds will vary according to road conditions, the weather

and individual driving habits.

Test Value and Test Limit

INFOID:0000000004351801

The following is the information specified in Service $06 of SAE J1979.

The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while

being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the

maximum or minimum value and is compared with the test value being monitored.

These data (test value and test limit) are specified by On Board Monitor ID(OBDMID), Test ID (TID), Unit and

Scaling ID and can be displayed on the GST screen.

The items of the test value and test limit will be displayed with GST screen which items are provided by the

ECM. (eg., if bank 2 is not applied on this vehicle, only the items of bank 1 are displayed)

PBIB2244E

For normal acceleration in low altitude areas

[less than 1,219 m (4,000 ft)]:

For quick acceleration in low alti-

tude areas and high altitude areas

[over 1,219 m (4,000 ft)]:

Gear change

ACCEL shift position km/h (MPH)

CRUISE shift point km/h (MPH)

km/h (MPH)

1st to 2nd

24 (15)

13 (8)

13 (8)

2nd to 3rd

40 (25)

27 (17)

27 (17)

3rd to 4th

53 (33)

40 (25)

40 (25)

4th to 5th

71 (44)

58 (36)

58 (36)

5th to 6th

82 (51)

82 (51)

82 (51)
