P2004 TUMBLE CONTROL VALVE

EC-413

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

14.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace intake manifold adapter.

NO

>> Repair or replace harness or connectors.

Component Inspection

INFOID:0000000004349462

1.

CHECK TUMBLE CONTROL VALVE

 With CONSULT-III

1. Turn ignition switch OFF.

2. Remove intake manifold adapter. Refer to

EM-26, "Removal and Installation"

.

3. Visually check the valve for damage and check if foreign matter is caught between the valve and the

housing.

4. Connect tumble control valve actuator harness connector.

5. Turn ignition switch ON.

6. Perform “TUMBLE CONTROL VALVE” in “ACTIVE TEST” mode with CONSULT-III.

7. Touch “ON/OFF” and check that the valve opens and closes.

 Without CONSULT-III

1. Turn ignition switch OFF.

2. Remove intake manifold adapter. Refer to

EM-26, "Removal and Installation"

.

3. Visually check the valve for damage and check if foreign matter is caught between the valve and the

housing.

4. Supply tumble control valve actuator terminals with battery voltage within 2 seconds and check operation.

CAUTION:

Do not apply 12V DC continuously for 30 seconds or more. Doing so may result in damage to the

coil in tumble control valve motor.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace intake manifold adaptor.

Tumble control valve actuator

Operation

Terminal

(+)

(-)

4

5

Open

5

4

Close

EC-414

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

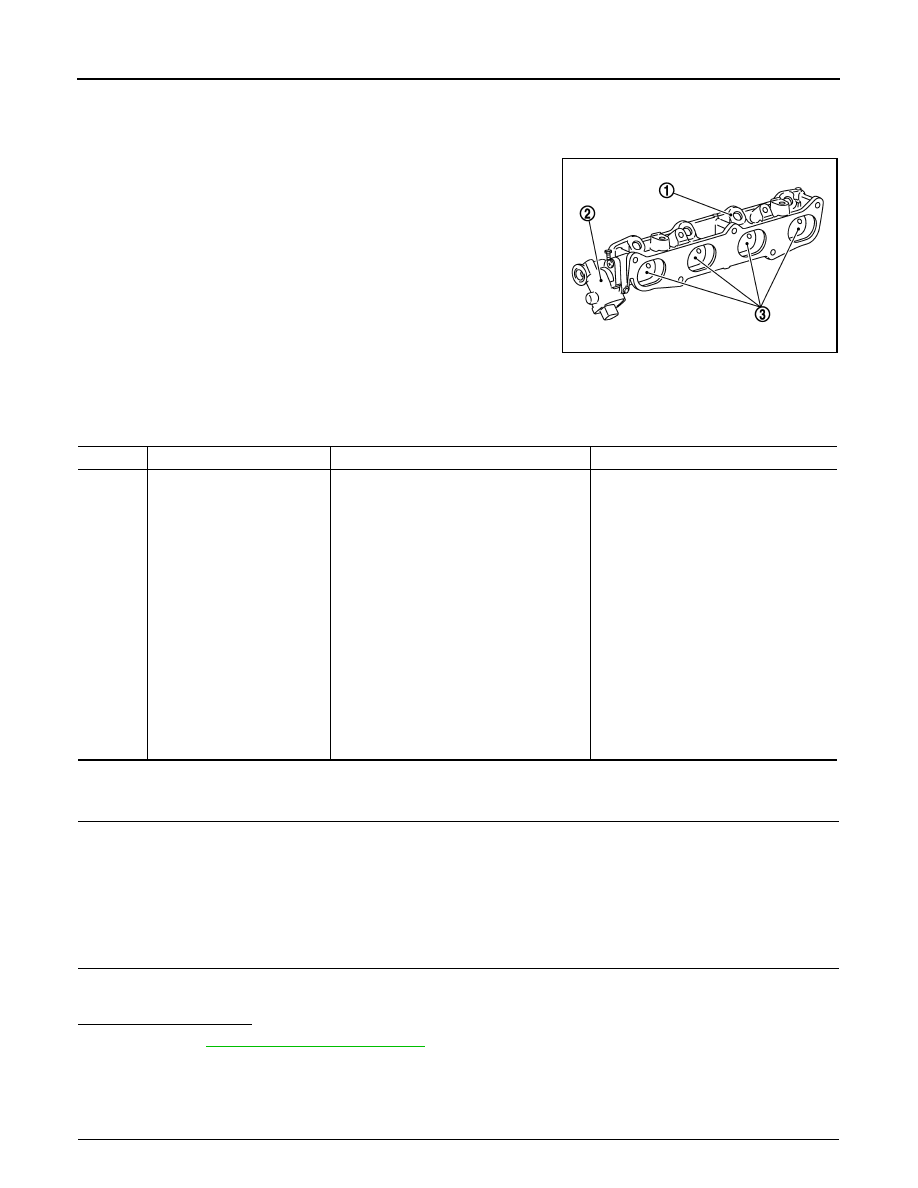

P2014 TUMBLE CONTROL VALVE POSITION SENSOR

P2014 TUMBLE CONTROL VALVE POSITION SENSOR

Description

INFOID:0000000004349463

Tumble control valve position sensor is built into the tumble control

valve actuator (2).

The sensor consists of a permanent magnet and Hall IC. It senses

the valve shaft movement and feeds the voltage signals to the ECM.

DTC Logic

INFOID:0000000004349464

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for 5 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-414, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004349465

1.

CHECK GROUND CONNECTION

1

: Intake manifold adapter

3

: Tumble control valve

JMBIA0117ZZ

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2014

Tumble control valve position
sensor circuit

An excessively low or high voltage from the
sensor is sent to ECM.

• Harness or connectors

(Tumble control valve position sensor
circuit is open or shorted.)
(Accelerator pedal position sensor 2 cir-
cuit is shorted.)
[Crankshaft position sensor (POS) cir-
cuit is shorted.]
(EVAP control system pressure sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)

• Tumble control valve actuator

(Tumble control valve position sensor)

• Accelerator pedal position sensor

(APP sensor 2)

• Crankshaft position sensor (POS)
• EVAP control system pressure sensor
• Refrigerant pressure sensor

P2014 TUMBLE CONTROL VALVE POSITION SENSOR

EC-415

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

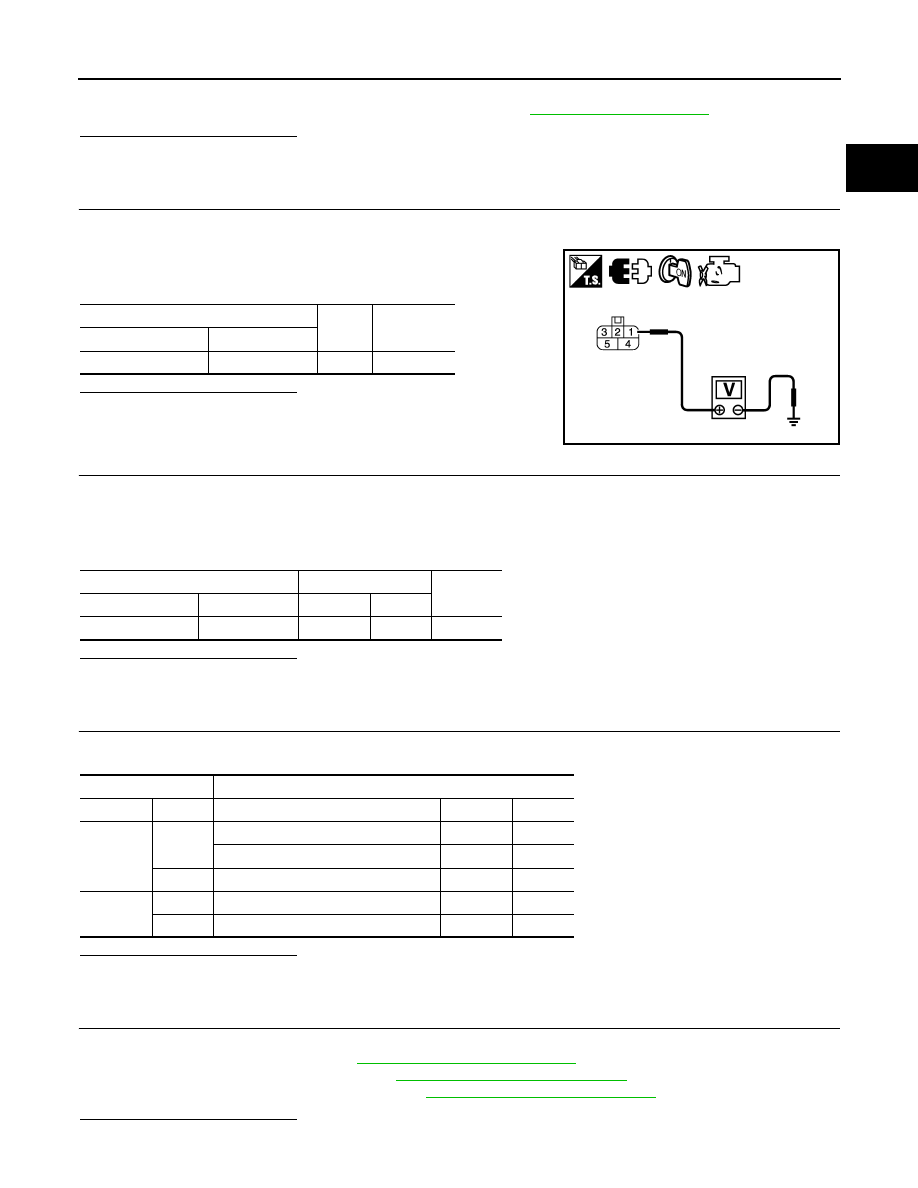

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR POWER SUPPLY CIRCUIT-I

1. Reconnect ECM harness connector disconnected.

2. Turn ignition switch ON.

3. Check the voltage between tumble control valve actuator har-

ness connector and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 3.

3.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit.

4.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair short to ground or short to power in harness or connectors.

5.

CHECK COMPONENTS

Check the following.

• Refrigerant pressure sensor (Refer to

EC-482, "Diagnosis Procedure"

.)

• Crankshaft position sensor (POS) (Refer to

EC-281, "Component Inspection"

.)

• EVAP control system pressure sensor (Refer to

EC-318, "Component Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 6.

Tumble control valve actuator

Ground

Voltage

Connector

Terminal

F43

1

Ground

Approx. 5 V

JMBIA1606ZZ

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

1

F13

72

Existed

ECM

Sensor

Connector Terminal

Name

Connector Terminal

F13

72

Tumble control valve actuator

F43

1

Refrigerant pressure sensor

E219

1

76

CKP sensor (POS)

F30

1

E10

87

APP sensor

E40

6

91

EVAP control system pressure sensor

B41

3

EC-416

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

P2014 TUMBLE CONTROL VALVE POSITION SENSOR

NO

>> Replace malfunctioning components.

6.

CHECK APP SENSOR

Refer to

EC-429, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 7.

7.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1. Replace accelerator pedal assembly.

2. Go to

EC-429, "Special Repair Requirement"

.

>> INSPECTION END

8.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND

SHORT
1. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace intake manifold adapter.

NO

>> Repair or replace harness or connectors.

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

2

F13

52

Existed

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

3

F13

54

Existed
