BRM-34

< ON-VEHICLE REPAIR >

[COUPE]

REPLACEMENT OPERATIONS

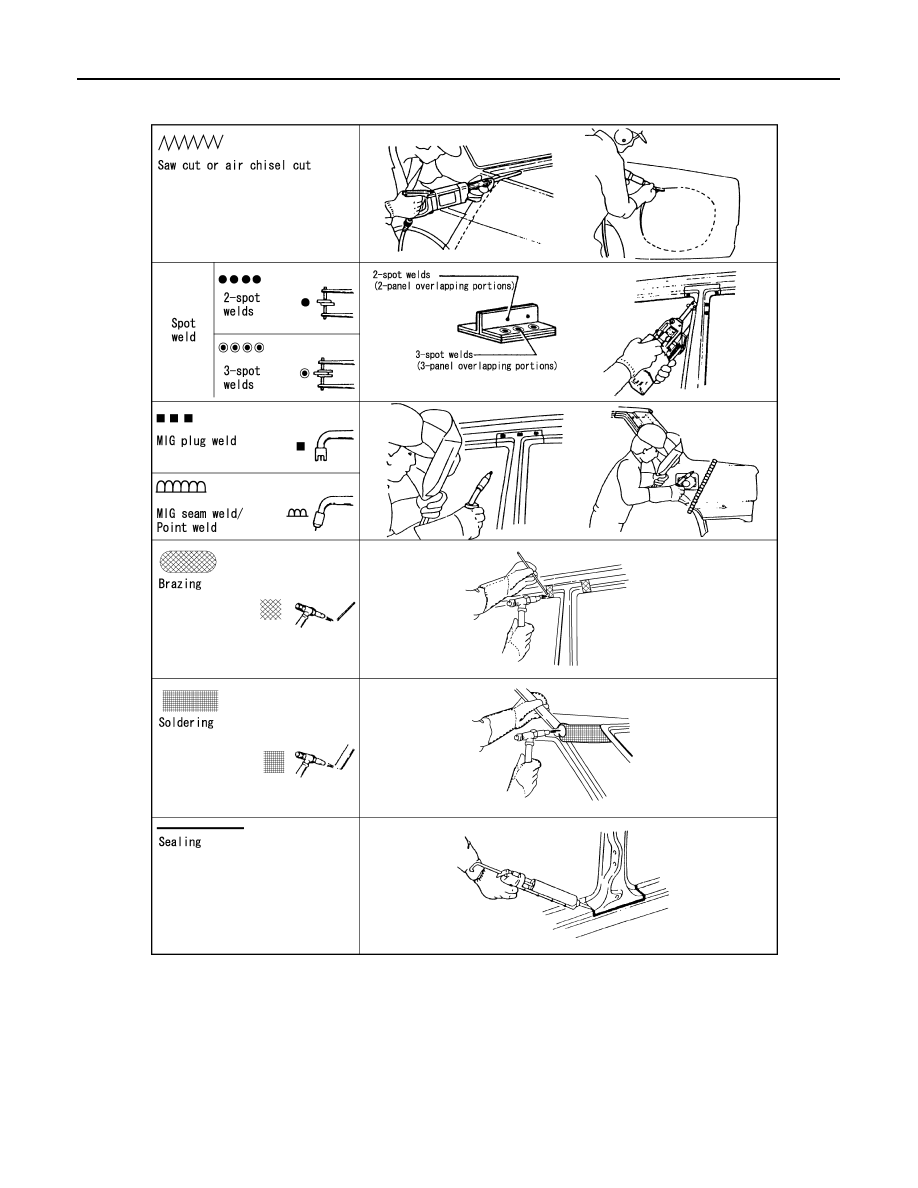

The symbols used in this section for cutting and welding / brazing operations are shown below.

PIIA0149E

REPLACEMENT OPERATIONS

BRM-35

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

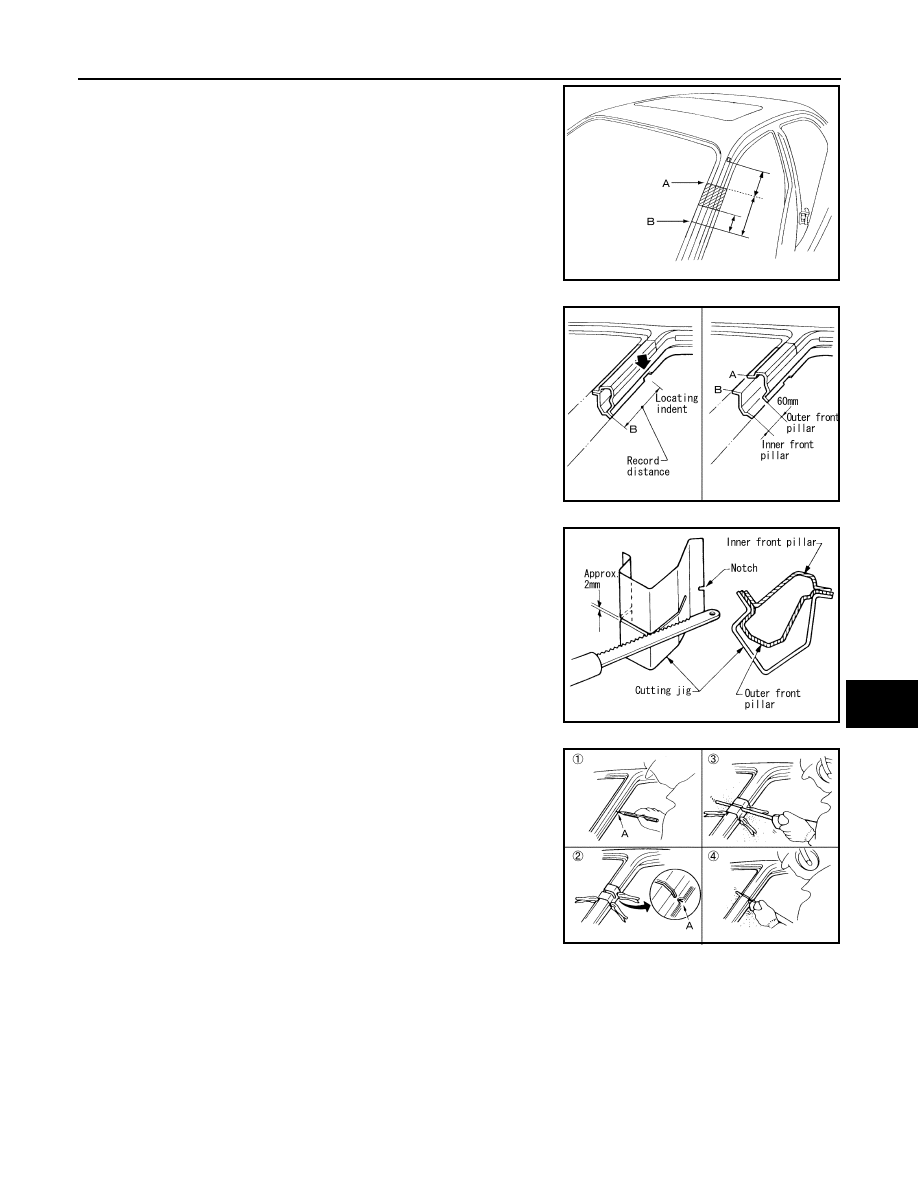

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at

position A due to the construction of the vehicle. Refer to the front

pillar section.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer

front pillar over 60 mm above inner front pillar cut position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit service part to be accurately cut at joint position.

• An example of cutting operation using a cutting jig is as follows.

1. Mark cutting lines.

A: Cut position of outer pillar

B: Cut position of inner pillar

2. Align cutting line with notch on jig. Clamp jig to pillar.

3. Cut outer pillar along groove of jig. (At position A)

4. Remove jig and cut remaining portions.

5. Cut inner pillar at position B in same manner.

PIIA0150E

PIIA0151E

PIIA0152E

PIIA0153E

BRM-36

< ON-VEHICLE REPAIR >

[COUPE]

REPLACEMENT OPERATIONS

Hoodledge

INFOID:0000000004205863

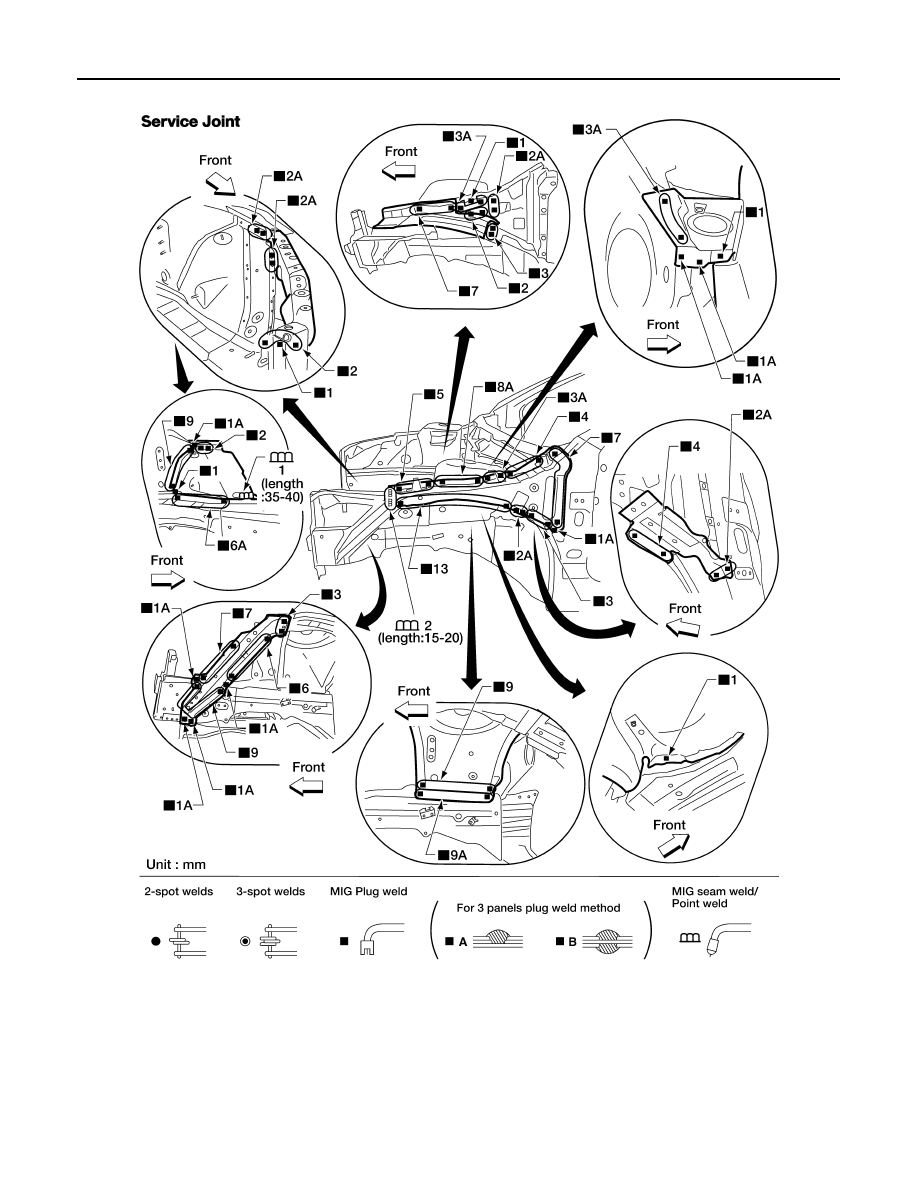

Front Side Member Front Assembly

INFOID:0000000004205864

• Work after the hoodledge has been removed.

ALKIA0719GB

Change parts

z

Front strut housing (LH)

z

Upper front hoodledge

z

Hoodledge reinforcement

z

Hoodledge connector

z

Radiator core support upper

z

Hoodledge reinforcement rear

REPLACEMENT OPERATIONS

BRM-37

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

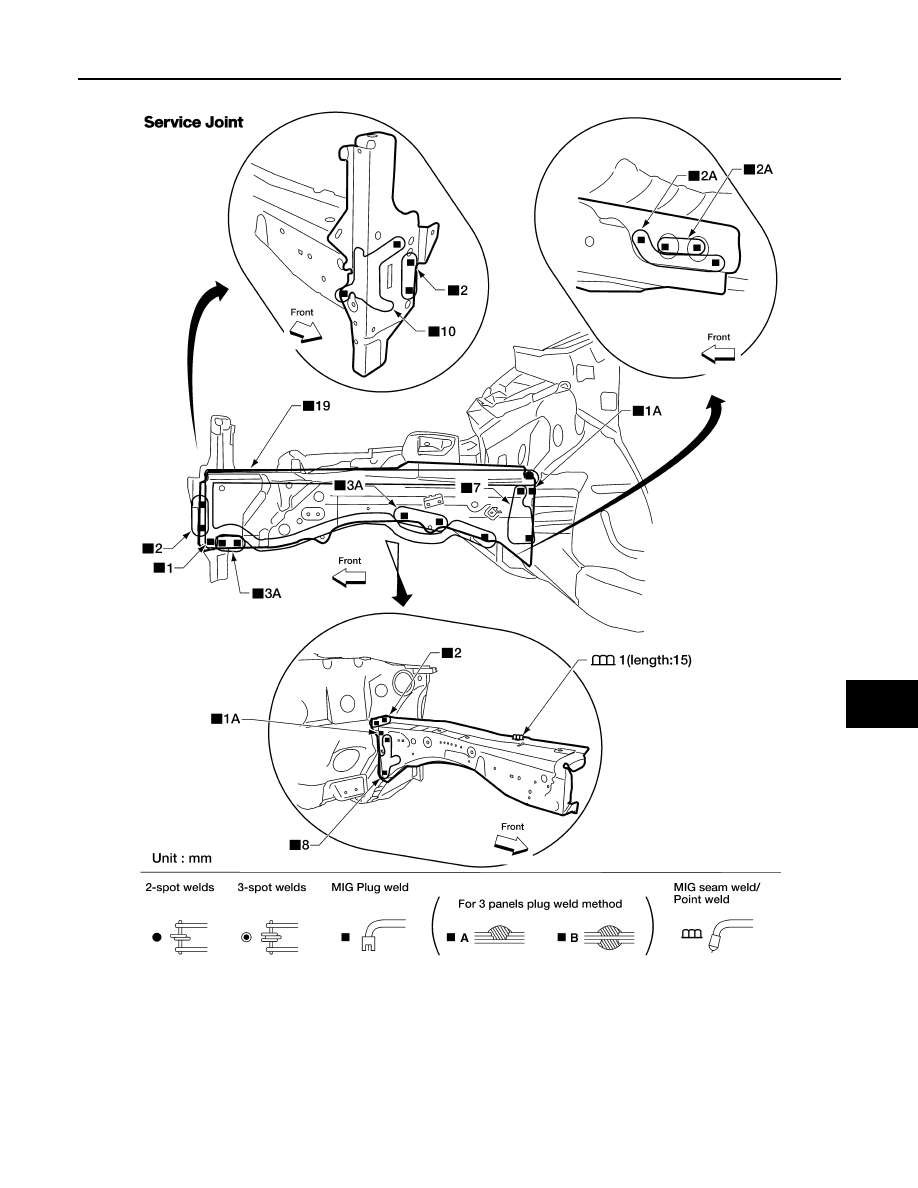

Change parts

z

Front side member front assembly

z

Front side member front closing plate

z

Radiator core side support

ALKIA0720GB
