BODY COMPONENT PARTS

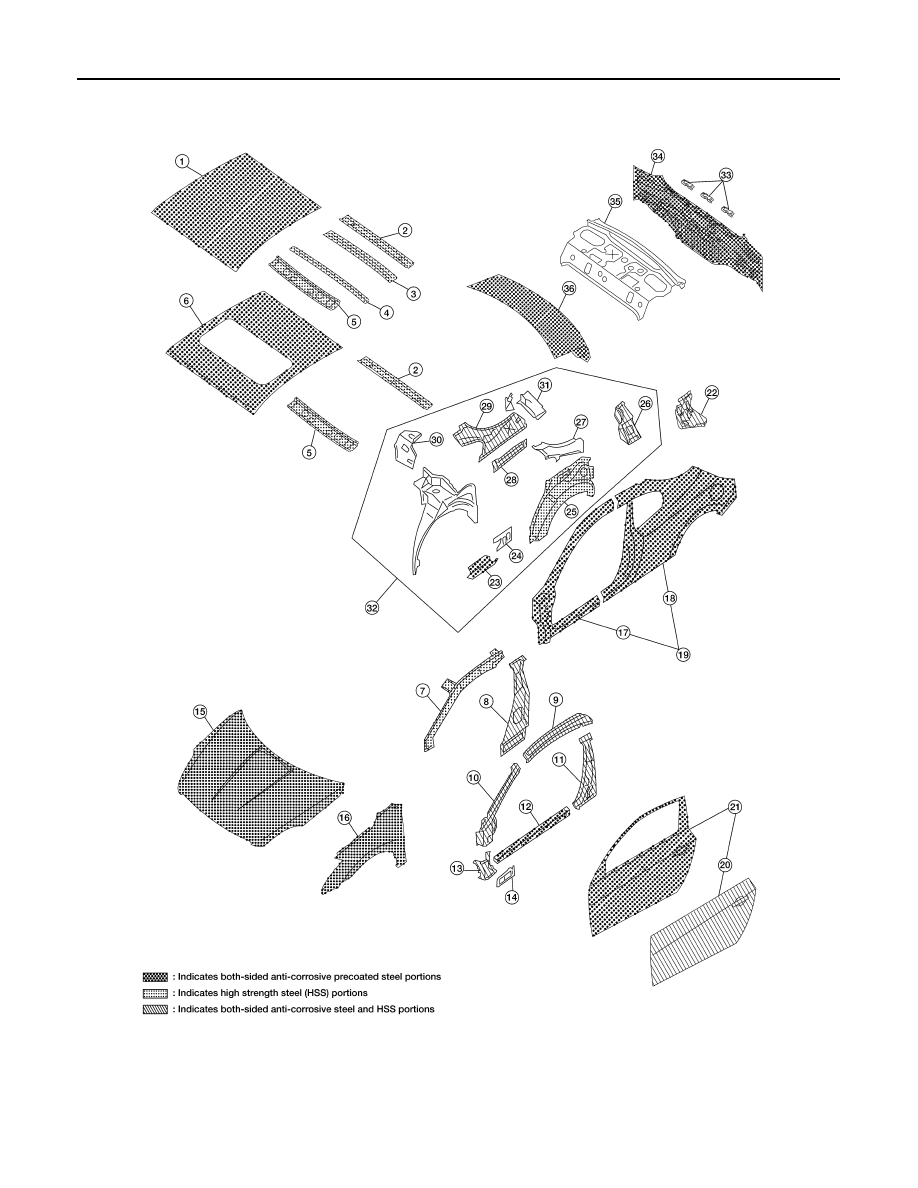

Body Component Parts

INFOID:0000000004205847

1.

Roof panel assembly

2.

Rear roof rail assembly

3.

Center roof bow

4.

Front roof bow

5.

Front roof rail assembly

6.

Sun roof panel assembly

7.

Front pillar inner reinforcement (RH,
LH)

8.

Inner lock pillar (RH, LH)

9.

Outer upper roof side rail (RH, LH)

ALKIA0793GB

BODY COMPONENT PARTS

BRM-11

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

10. Hinge pillar upper reinforcement

(RH, LH)

11. Lock pillar reinforcement (RH, LH)

12. Outer sill reinforcement (RH, LH)

13. Hinge pillar lower reinforcement

(RH, LH)

14. Front pillar lower reinforcement (RH,

LH)

15. Hood assembly

16. Front fender (RH, LH)

17. Front portion of body side outer (RH,

LH)

18. Rear fender portion of body side out-

er (RH, LH)

19. Body side outer (RH, LH)

20. Front door outer (RH, LH)

21. Front door assembly (RH, LH)

22. Rear combination lamp base (RH,

LH)

23. Rear outer sill reinforcement (RH,

LH)

24. Rear wheel outer front extension

(RH, LH)

25. Rear wheel outer RH, LH)

26. Rear pillar inner reinforcement B

(RH, LH)

27. Rear pillar inner reinforcement A

(RH, LH)

28. Inner rear pillar lower (RH, LH)

29. Rear pillar inner (RH, LH)

30. Rear seat back side support (RH,

LH)

31. Rear side upper reinforcement (RH,

LH)

32. Rear wheel inner reinforcement as-

sembly (RH, LH)

33. Rear bumper fascia brackets

34. Rear panel assembly

35. Parcel shelf assembly

36. Trunk lid assembly

BRM-12

< ON-VEHICLE REPAIR >

[COUPE]

CORROSION PROTECTION

CORROSION PROTECTION

Description

INFOID:0000000004205848

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

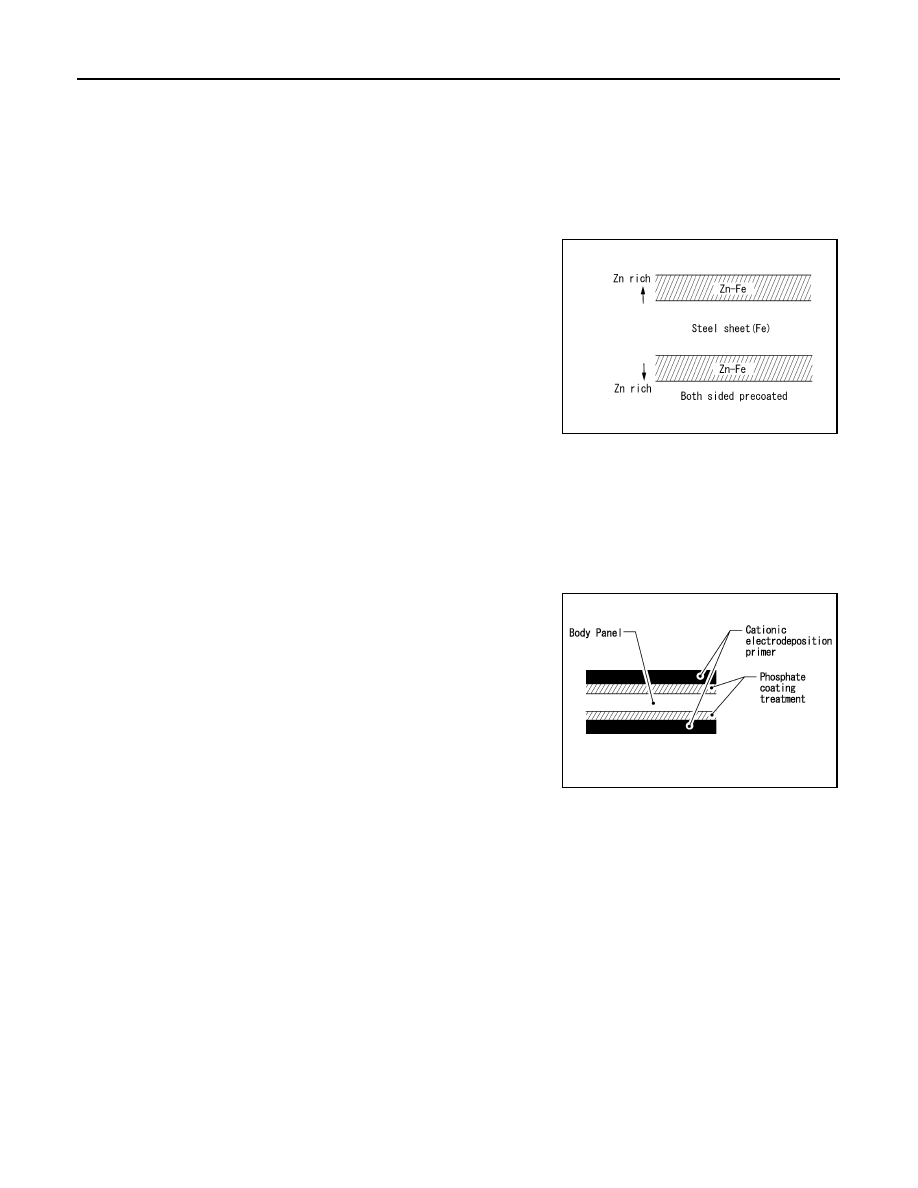

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition primer, which provide excellent corrosion pro-

tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-

INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built

into the vehicle at the factory.

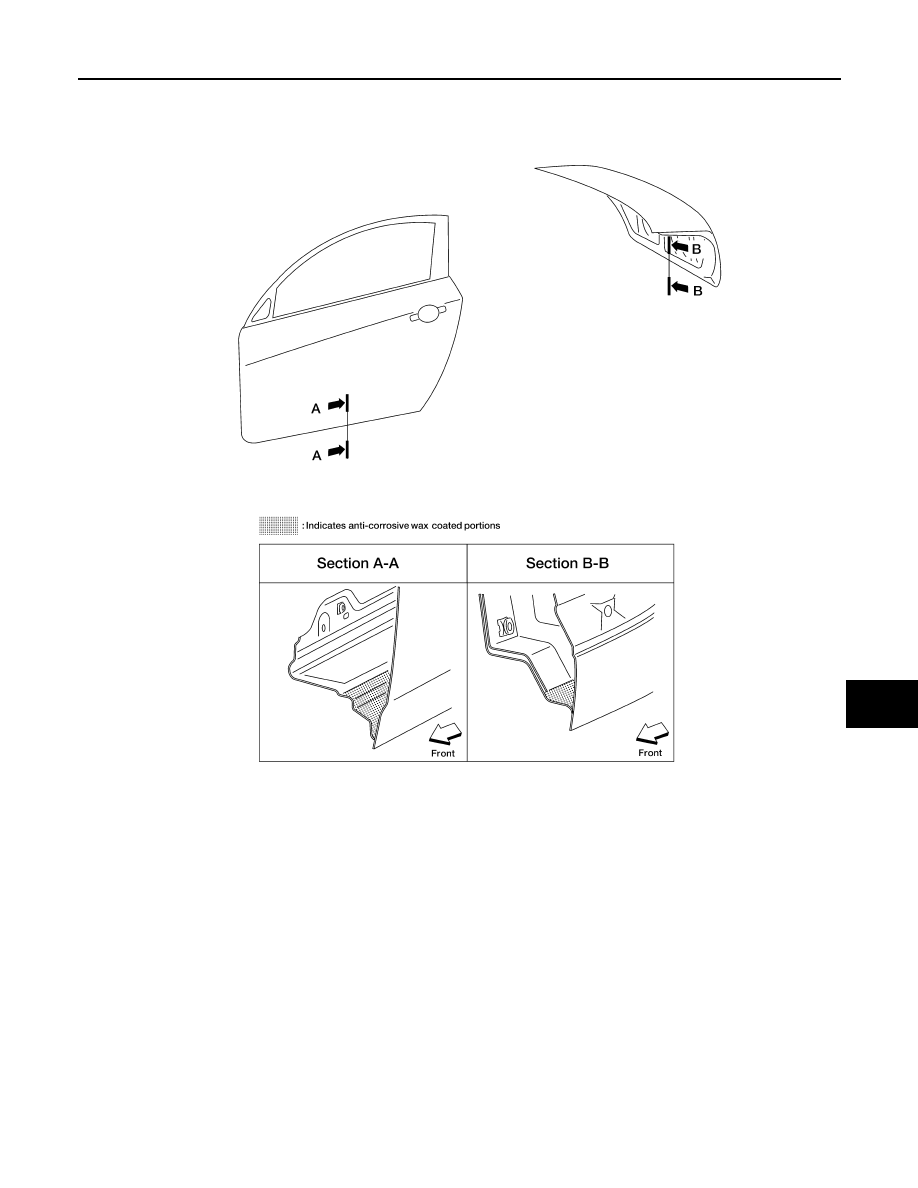

Anti-Corrosive Wax

INFOID:0000000004205849

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

SIIA2294E

PIIA0095E

CORROSION PROTECTION

BRM-13

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf

life.

Undercoating

INFOID:0000000004205850

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1. Do not apply undercoating to any place unless specified (such as the areas above the muffler and three

way catalyst which are subjected to heat).

2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
