TM-432

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

CONTROL DEVICE

Inspection and Adjustment

INFOID:0000000004202006

INSPECTION

1. Place selector lever in “P” position, and turn ignition switch ON (engine stop).
2. Make sure that selector lever can be shifted to other than “P” position when brake pedal is depressed.

Also make sure that selector lever can be shifted from “P” position only when brake pedal is depressed.

3. Move the selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm the selector lever stops at each position with the feel of engagement when it is moved through all

the positions. Check that the actual position of the selector lever matches the position shown by the shift

position indicator and the manual lever on the transaxle.

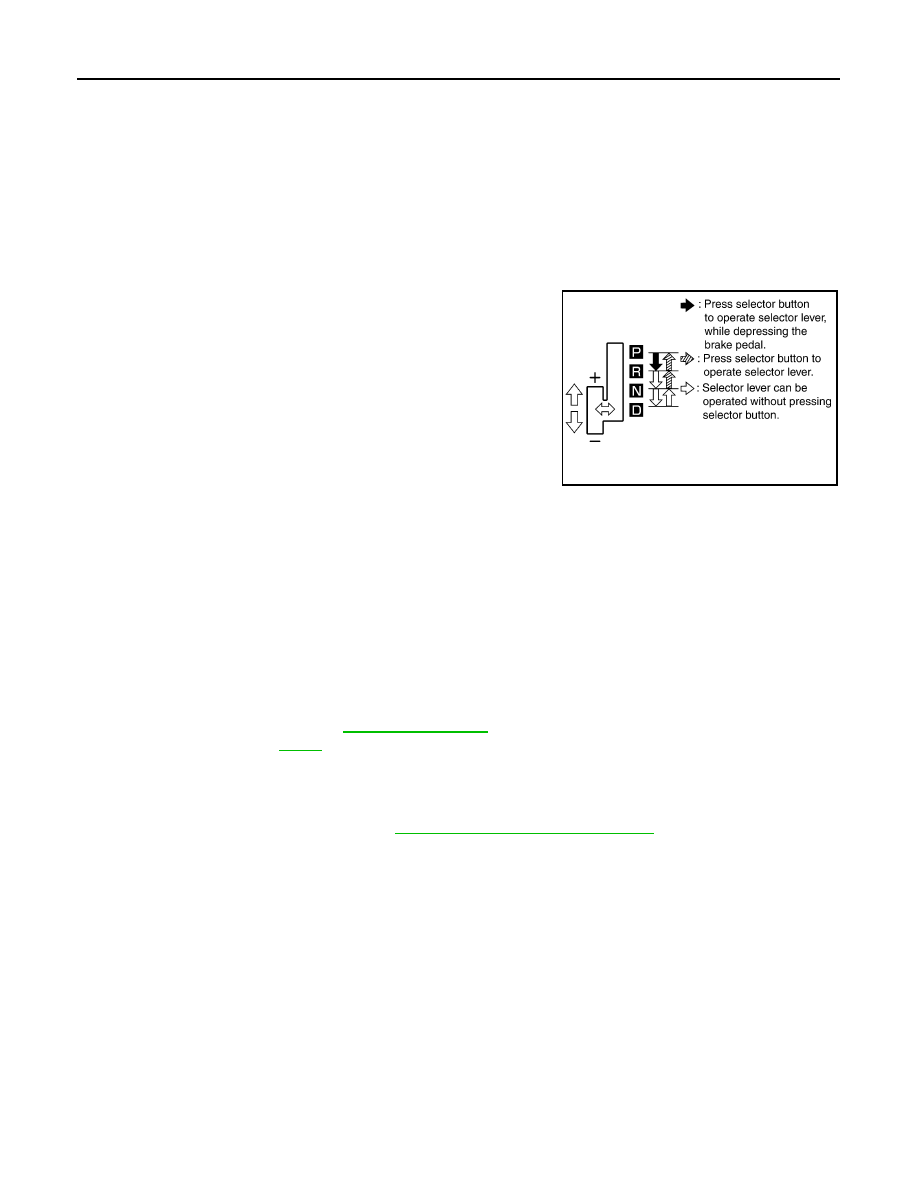

5. The method of operating the selector lever to individual posi-

tions correctly should be as shown.

6. When selector button is pressed in “P”, “R”, or “N” position with-

out applying forward/backward force to selector lever, check but-

ton operation for sticking.

7. Confirm the back-up lamps illuminate only when selector lever is

placed in the “R” position. Confirm the back-up lamps do not illu-

minate when the selector lever is pushed toward the “R” position

when in the “P” or “N” position.

8. Confirm the engine can only be started with the selector lever in

the “P” and “N” positions.

9. Make sure transaxle is locked completely in “P” position.
10. When selector lever is set to manual shift gate, make sure that manual mode is displayed on combination

meter.

Shift selector lever to “+” and “-” sides, and check that set shift position changes.

ADJUSTMENT

CAUTION:

Apply parking brake before adjustment.
1. Loosen the control cable nut.
2. Place the manual lever and the selector lever in “P” position.
3. Tighten control cable nut to specified torque.

CAUTION:

Secure the manual lever when tightening control cable nut. Make sure the manual lever stays in

the "P" position.

4. Check the operation of the CVT. Refer to

TM-432, "Inspection and Adjustment"

.

SCIA6760E

Control cable nut: Refer to

TM-433, "Exploded

View"

.

CONTROL CABLE

TM-433

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

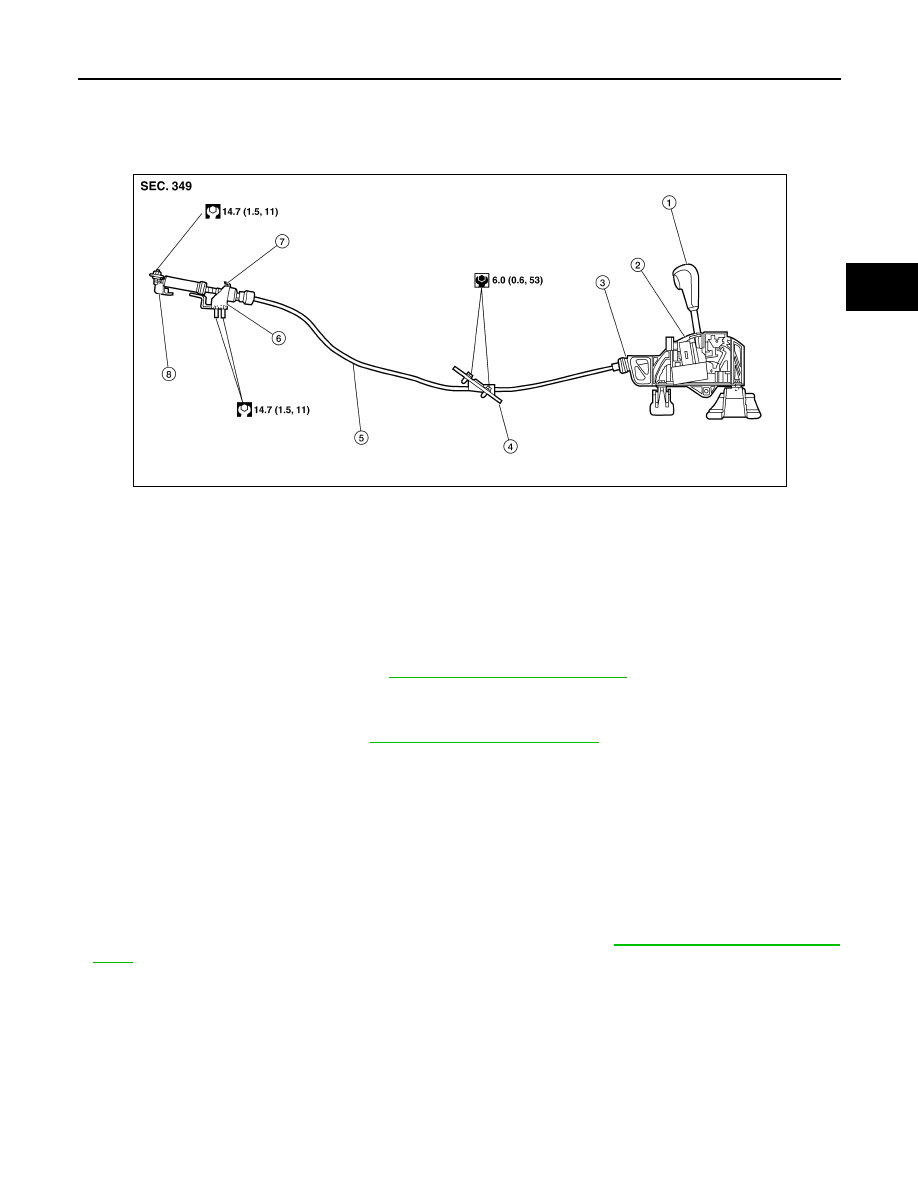

CONTROL CABLE

Exploded View

INFOID:0000000004202007

Removal and Installation

INFOID:0000000004202008

REMOVAL

1. Shift control lever to "P".
2. Remove the air filter assembly. Refer to

EM-25, "Removal and Installation"

.

3. Remove the control cable nut and control cable form the manual lever.
4. Remove the lock plate and the control cable from the bracket.
5. Remove the center console. Refer to

IP-12, "Removal and Installation"

.

6. Remove the bracket covering the retainer grommet.
7. Remove the retainer grommet bolts and the retainer grommet.
8. Remove the control cable from the control device assembly.
9. Remove the control cable from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• When installing the control cable to the control device assembly, make sure that the control cable socket is

fully pressed into the control device assembly, and the control cable end is fully pressed in with the ribbed

surface facing upward.

• After installation is complete, adjust and check the CVT position. Refer to

TM-432, "Inspection and Adjust-

ment"

.

1.

Control lever

2.

Control device assembly

3.

Control cable socket

4.

Retainer grommet

5.

Control cable

6.

Bracket

7.

Lock plate

8.

Manual lever

ALDIA0027GB

TM-434

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

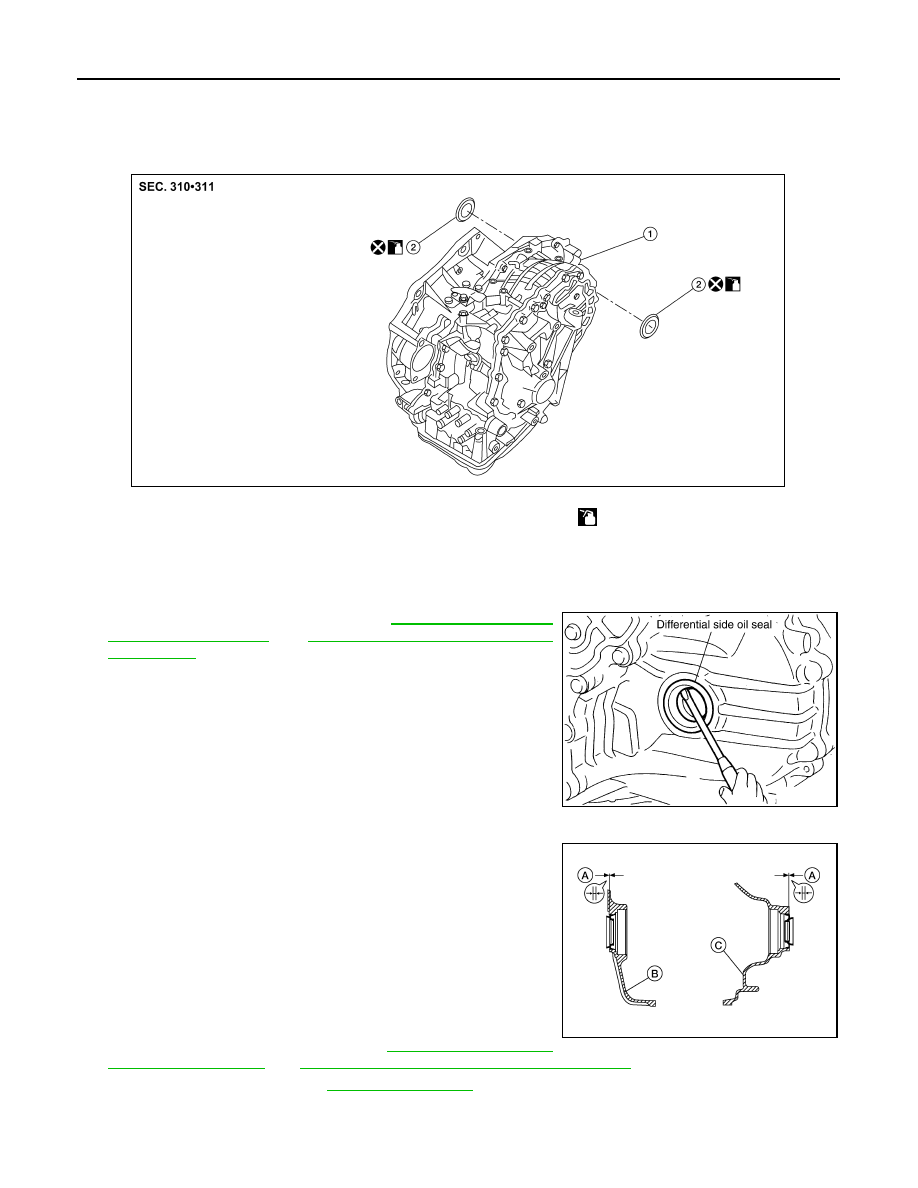

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000004202009

Removal and Installation

INFOID:0000000004202010

REMOVAL

1. Remove drive shaft assembly. Refer to

FAX-11, "Removal and

Installation (Left Side)"

 and

FAX-12, "Removal and Installation

(Right Side)"

.

2. Remove the differential side oil seal using suitable tool

CAUTION:

Do not scratch transaxle case or converter housing.

INSTALLATION

1. Drive the new differential side oil seal into the transaxle case

side (B) and converter housing side (C) until it is flush using

Tool.

CAUTION:

• Do not reuse differential side oil seals.

• Apply specified NISSAN CVT fluid to side oil seals.

2. Install drive shaft assembly. Refer to

FAX-11, "Removal and

Installation (Left Side)"

 and

FAX-12, "Removal and Installation (Right Side)"

.

3. Check CVT fluid level. Refer to

TM-416, "Inspection"

.

1.

CVT assembly

2.

Differential side oil seal

:NISSAN CVT Fluid NS-2

ALDIA0047GB

SCIA2412E

Tool number

: KV38100300 ( — )

Dimension A

: 1.8

± 0.5 mm (0.071 ± 0.020 in)

WCIA0598E

AIR BREATHER HOSE

TM-435

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

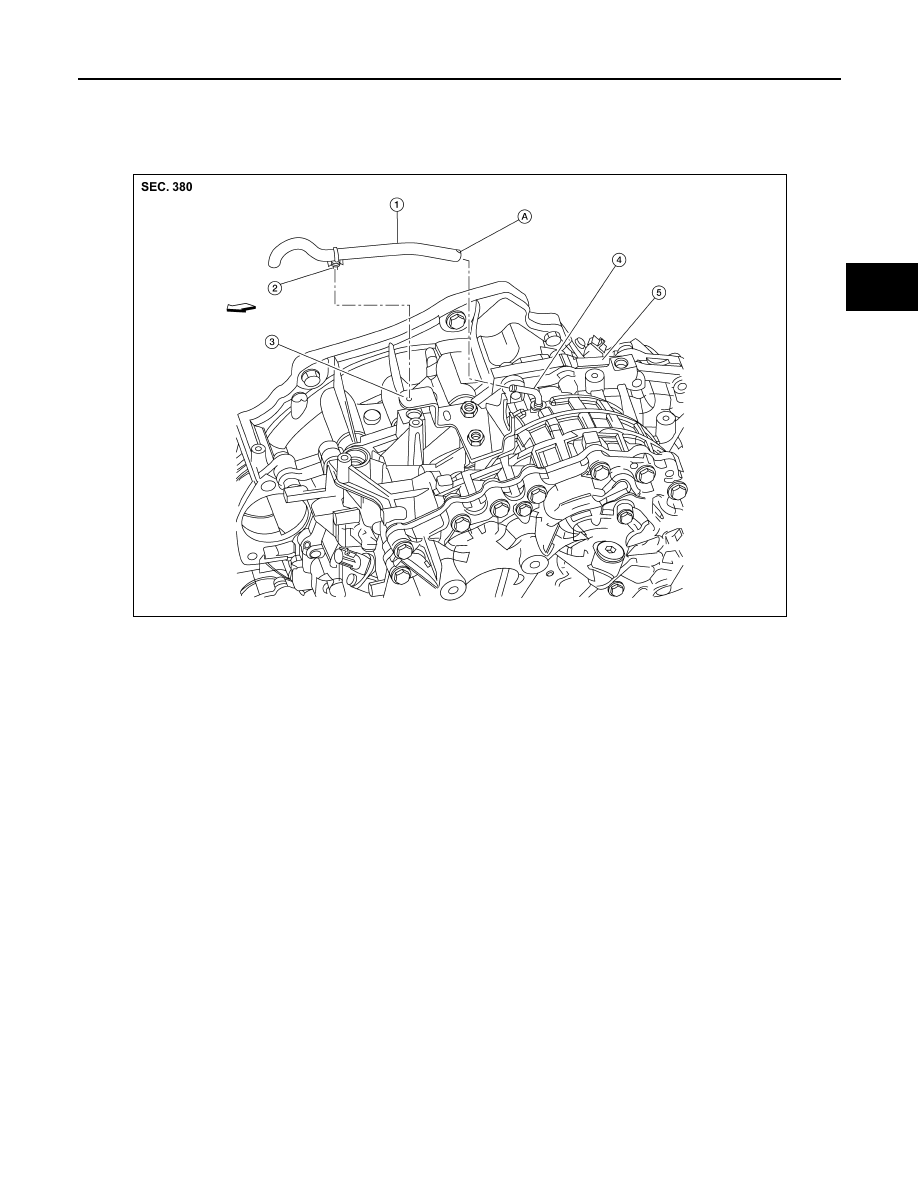

AIR BREATHER HOSE

Exploded View

INFOID:0000000004202011

Removal and Installation

INFOID:0000000004202012

Refer to the figure for removal and installation.

CAUTION:

• Install air breather hose with paint mark facing upward.

• Insert air breather hose a minimum of 17mm (0.67 in) onto air breather tube (to end of air breather

tubes radius end).

• Install air breather hose to bracket by fully inserting the clip.

• Make sure there are no pinched or restricted areas on air breather hose caused by bending or wind-

ing when installing it.

1.

Air breather hose

2.

Clip

3.

Bracket

4.

Air breather tube

5.

CVT assembly

A.

Paint mark

⇐: Front
