TM-312

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

P0710 CVT FLUID TEMPERATURE SENSOR

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-430, "Exploded View"

.

NO

>> Repair or replace damaged parts.

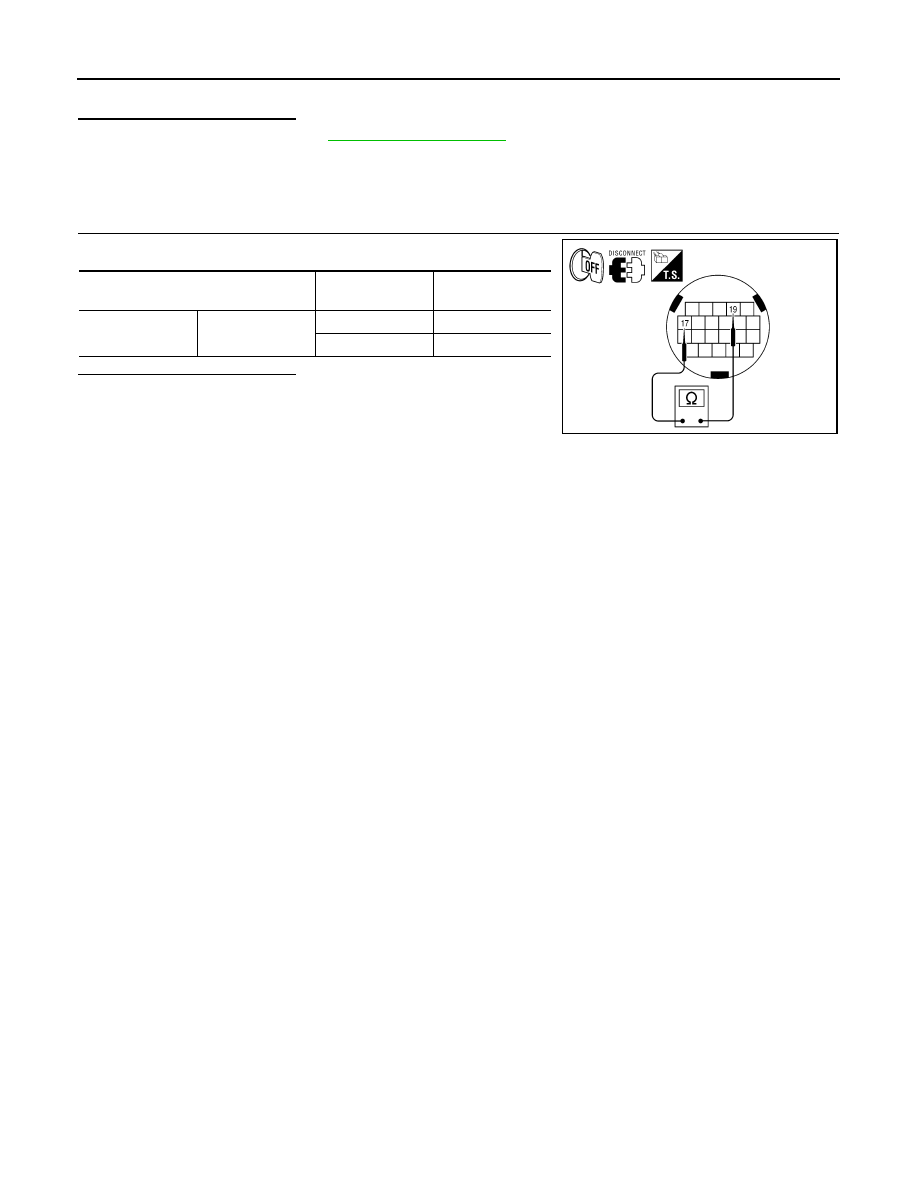

Component Inspection (CVT Fluid Temperature Sensor)

INFOID:0000000004201879

1.

CHECK CVT FLUID TEMPERATURE SENSOR

Check resistance between CVT unit terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Perform “SELF-DIAG RESULTS” mode for “TRANS-

MISSION”.

CVT unit terminal

Temperature

°C

(

°F)

Resistance (Ap-

prox.)

17

19

20 (68)

6.5 k

Ω

80 (176)

0.9 k

Ω

AWDIA0098ZZ

P0715 INPUT SPEED SENSOR (PRI SPEED SENSOR)

TM-313

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P0715 INPUT SPEED SENSOR (PRI SPEED SENSOR)

Description

INFOID:0000000004201880

The input speed sensor (primary speed sensor) detects the primary pulley revolution speed and sends a sig-

nal to the TCM.

DTC Logic

INFOID:0000000004201881

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “DTC CONFIRMATION PROCEDURE” has been previously performed, always turn ignition switch OFF.

Then wait at least 10 seconds before performing the next test.

1.

CHECK DTC DETECTION

With CONSULT-III

1. Turn ignition switch ON.

2. Select “DATA MONITOR”.

3. Start engine and maintain the following conditions for at least 5 consecutive seconds.

With GST

Follow the procedure “With CONSULT-III”.
Is “P0715 INPUT SPD SEN/CIRC” detected?

YES

>> Go to

TM-313, "Diagnosis Procedure"

.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

Diagnosis Procedure

INFOID:0000000004201882

1.

CHECK INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)

With CONSULT-III

DTC

Item

(CONSULT-III screen term)

Malfunction is detected when...

Possible cause

P0715

INPUT SPD SEN/CIRC

• Input speed sensor (primary speed sen-

sor) signal is not input due to an open cir-
cuit.

• An unexpected signal is input when vehi-

cle is being driven.

• Harness or connectors

(Sensor circuit is open or shorted.)

• Input speed sensor (primary speed sen-

sor)

VEHICLE SPEED

: 10 km/h (6 MPH) or more

ACC PEDAL OPEN

: More than 1.0/8

RANGE

: “D” position

ENG SPEED

: 450 rpm or more

Driving location

: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.

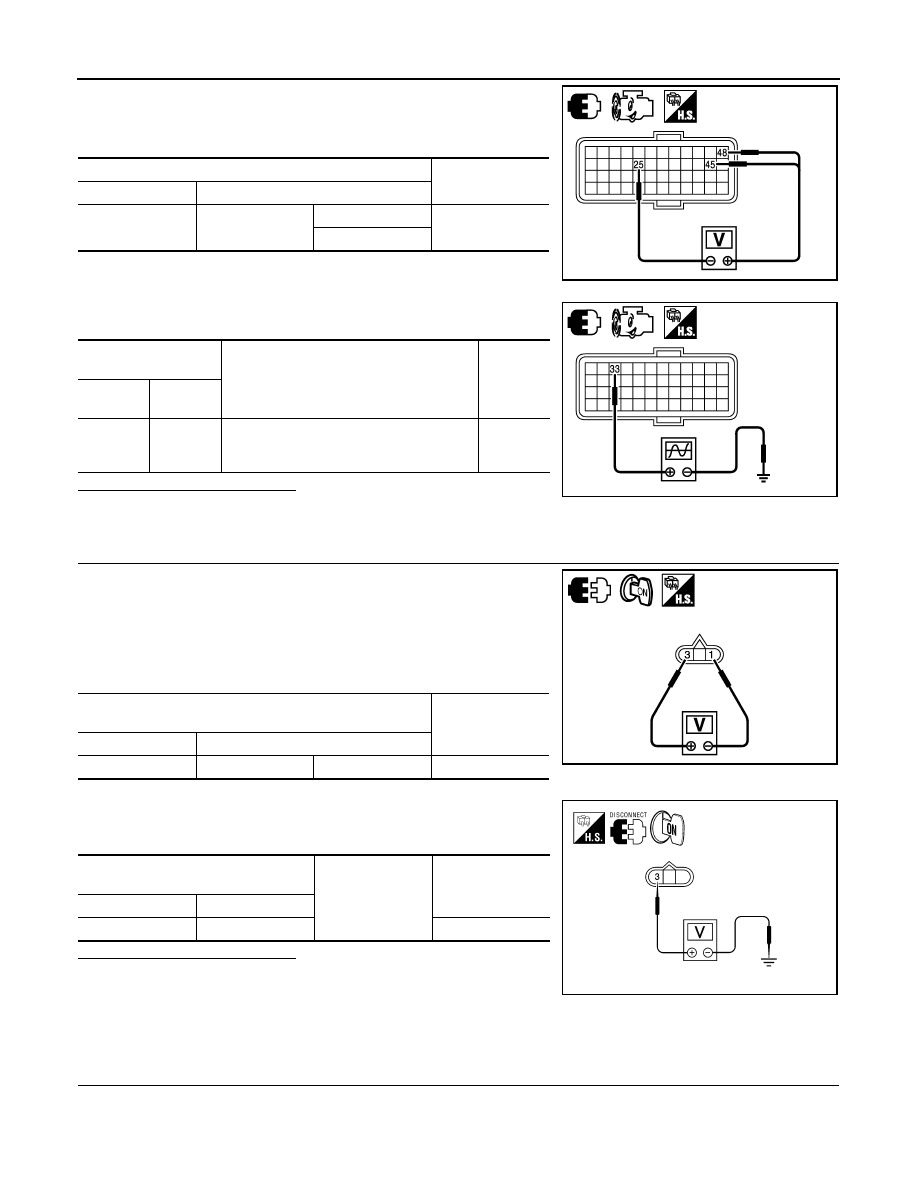

TM-314

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

P0715 INPUT SPEED SENSOR (PRI SPEED SENSOR)

1. Start engine.

2. Check voltage between TCM harness connector F16 terminal

25, 46 and 25, 48.

3. If OK, check pulse when vehicle cruises.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 2.

2.

CHECK POWER AND SENSOR GROUND

1. Turn ignition switch OFF.

2. Disconnect input speed sensor (primary speed sensor) harness

connector.

3. Turn ignition switch ON.

4. Check voltage between input speed sensor (primary speed sen-

sor) harness connector F8 terminal 1 and 3.

5. Check voltage between input speed sensor (primary speed sen-

sor) harness connector F8 terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO-1 >> Battery voltage is not supplied between terminals 1 and

3, terminal 3 and ground: GO TO 6.

NO-2 >> Battery voltage is not supplied between terminals 1 and 3 only: GO TO 8.

3.

CHECK HARNESS BETWEEN TCM AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) (SEN-

SOR GROUND)

TCM harness connector

Voltage (Approx.)

Connector

Terminal

F16

25

46

Battery voltage

48

JPDIA0988ZZ

TCM harness connec-

tor

Condition

Data (Ap-

prox.)

Connec-

tor

Terminal

F16

33

When running at 20 km/h (12 MPH) in “M

1

”

position, use the CONSULT-III pulse fre-
quency measuring function.

730 Hz

JPDIA0989ZZ

Input speed sensor (primary speed sensor) harness connec-

tor

Voltage (Approx.)

Connector

Terminal

F8

1

3

Battery voltage

JPDIA0983ZZ

Input speed sensor (primary speed sen-

sor) harness connector

Ground

Voltage (Approx.)

Connector

Terminal

F8

3

Battery voltage

AWDIA0108ZZ

P0715 INPUT SPEED SENSOR (PRI SPEED SENSOR)

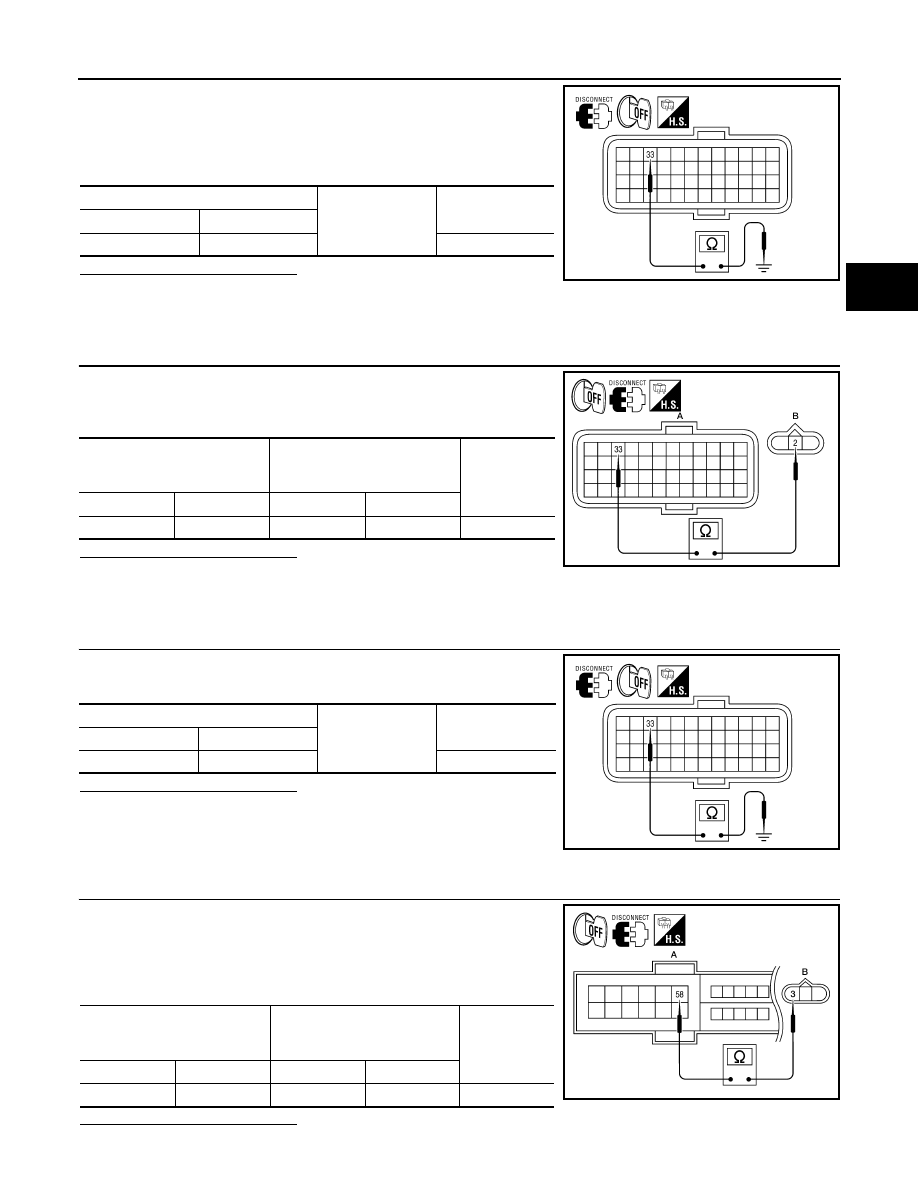

TM-315

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1. Turn ignition switch OFF.

2. Disconnect TCM harness connector and CVT unit harness con-

nector.

3. Check continuity between TCM harness connector F16 terminal

33 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK HARNESS BETWEEN TCM AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) (PART

1)

Check continuity between TCM harness connector F16 (A) terminal

33 and input speed sensor (primary speed sensor) harness connec-

tor F8 (B) terminal 2.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace damaged parts.

5.

CHECK HARNESS BETWEEN TCM AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) (PART

2)

Check continuity between TCM harness connector F16 terminal 33

and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace damaged parts.

6.

CHECK HARNESS BETWEEN IPDM E/R AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)

(POWER) (PART 1)

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connector F10.

3. Check continuity between IPDM E/R harness connector F10 ter-

minal 58 and input speed sensor (primary speed sensor) har-

ness connector F8 terminal 3.

Is the inspection result normal?

TCM vehicle side harness connector

Ground

Continuity

Connector

Terminal

F16

33

Not existed

AWDIA0104ZZ

TCM harness connector

Input speed sensor (primary

speed sensor) harness connec-

tor

Continuity

Connector

Terminal

Connector

Terminal

F16 (A)

33

F8 (B)

2

Existed

AWDIA0172ZZ

TCM harness connector

Ground

Continuity

Connector

Terminal

F16

33

Not existed

AWDIA0104ZZ

IPDM E/R harness connector

Input speed sensor (primary

speed sensor) harness connec-

tor

Continuity

Connector

Terminal

Connector

Terminal

F10 (A)

58

F8 (B)

3

Existed

AWDIA0112ZZ
