TM-236

< PRECAUTION >

[CVT: RE0F09B]

PRECAUTIONS

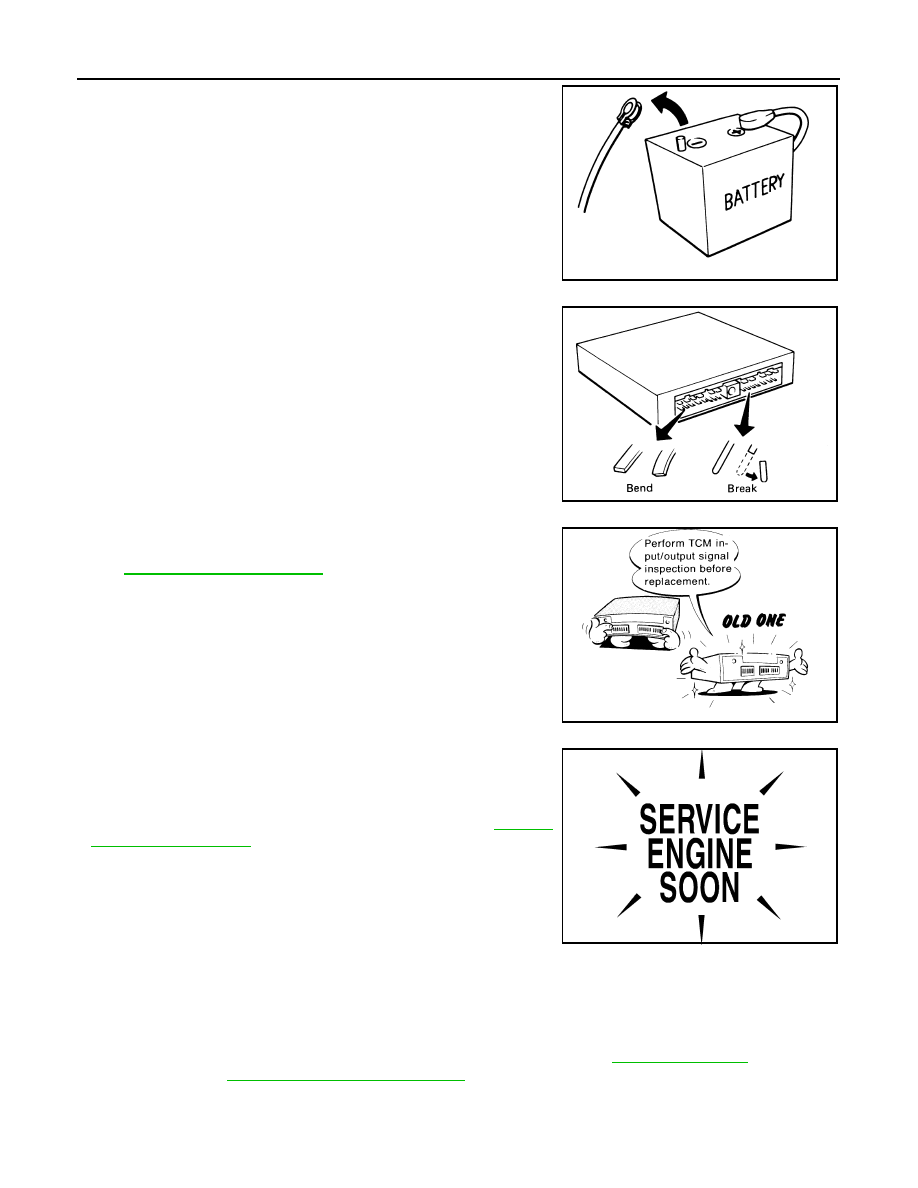

• Before connecting or disconnecting the TCM harness connec-

tor, turn ignition switch OFF and disconnect negative battery

cable. Because battery voltage is applied to TCM even if igni-

tion switch is turned OFF.

• When connecting or disconnecting pin connectors into or

from TCM, take care not to damage pin terminals (bend or

break).

When connecting pin connectors make sure that there are not

any bends or breaks on TCM pin terminal.

• Before replacing TCM, perform TCM input/output signal

inspection and make sure whether TCM functions properly or

not.

TM-197, "Reference Value"

.

• After performing each TROUBLE DIAGNOSIS, perform “DTC

Confirmation Procedure”.

If the repair is completed the DTC should not be displayed in

the “DTC Confirmation Procedure”.

• Always use the specified brand of CVT fluid. Refer to

TM-261,

"General Specification"

.

• Use lint-free paper, not cloth rags, during work.

• After replacing the CVT fluid, dispose of the waste oil using the

methods prescribed by law, ordinance, etc.

Service Notice or Precaution

INFOID:0000000004201787

CVT FLUID COOLER SERVICE

If CVT fluid contains friction material (clutches, brakes, etc.), or if a CVT is replaced, inspect and clean the

CVT fluid cooler mounted in the radiator or replace the radiator. Flush cooler lines using cleaning solvent and

compressed air after repair. For CVT fluid cooler cleaning procedure, refer to

TM-242, "Cleaning"

. For radiator

replacement, refer to

CO-38, "Removal and Installation"

.

OBD-II SELF-DIAGNOSIS

SEF289H

SEF291H

MEF040DA

SEF217U

PRECAUTIONS

TM-237

< PRECAUTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• CVT self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through

the blinking pattern of the malfunction indicator lamp (MIL). Refer to the table on

TM-119, "CONSULT-III

Function (TRANSMISSION)"

 for the indicator used to display each self-diagnostic result.

• The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM memo-

ries.

Always perform the procedure on

TM-117, "Diagnosis Description"

 to complete the repair and avoid

unnecessary blinking of the MIL.

For details of OBD-II, refer to

TM-117, "Diagnosis Description"

.

• Certain systems and components, especially those related to OBD, may use the new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-58, "Description"

(Coupe) or

PG-129, "Description"

 (Sedan).

ATFTEMP COUNT Conversion Table

INFOID:0000000004201788

ATFTEMP COUNT

Temperature

°C (°F)

ATFTEMP COUNT

Temperature

°C (°F)

4

–30 (–22)

177

90 (194)

8

–20 (–4)

183

95 (203)

13

–10 (14)

190

100 (212)

17

–5 (23)

196

105 (221)

21

0 (32)

201

110 (230)

27

5 (41)

206

115 (239)

32

10 (50)

210

120 (248)

39

15 (59)

214

125 (257)

47

20 (68)

218

130 (266)

55

25 (77)

221

135 (275)

64

30 (86)

224

140 (284)

73

35 (95)

227

145 (293)

83

40 (104)

229

150 (302)

93

45 (113)

231

155 (311)

104

50 (122)

233

160 (320)

114

55 (131)

235

165 (329)

124

60 (140)

236

170 (338)

134

65 (149)

238

175 (347)

143

70 (158)

239

180 (356)

152

75 (167)

241

190 (374)

161

80 (176)

243

200 (392)

169

85 (185)

TM-238

< PREPARATION >

[CVT: RE0F09B]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000004201789

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000004201790

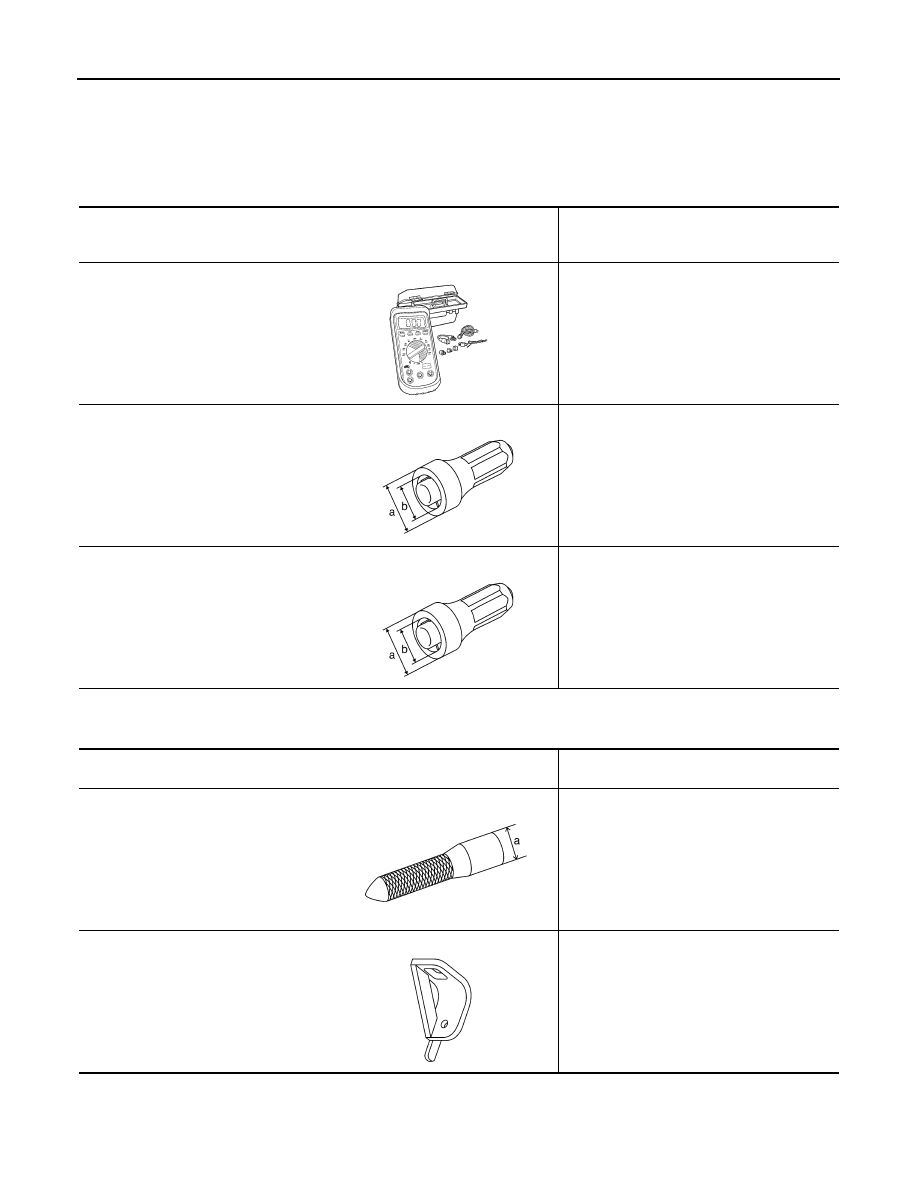

Tool number
(Kent-Moore No.)
Tool name

Description

(OTC3492)
Oil pressure gauge set

Measuring line pressure

(J-47244)
Drift

Installing differential side oil seal
•  Transaxle case side (left)
a: 65.83 mm (2.59 in) dia.
b: 53.85 mm (2.12 in) dia.

ST33400001
(J-47005)
Drift

Installing differential side oil seal
•  Converter housing side (right)
a: 69.85 mm (2.75 in) dia.
b: 49.53 mm (1.95 in) dia.

SCIA7531E

SCIA5777E

SCIA5777E

Tool number
Tool name

Description

31197CA000
Drive plate location guide

Installing transaxle assembly
a: 14 mm (0.55 in) dia.

31093CA000
Slinger

Removing and installing transaxle assembly

SCIA2013E

SCIA2014E

PREPARATION

TM-239

< PREPARATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

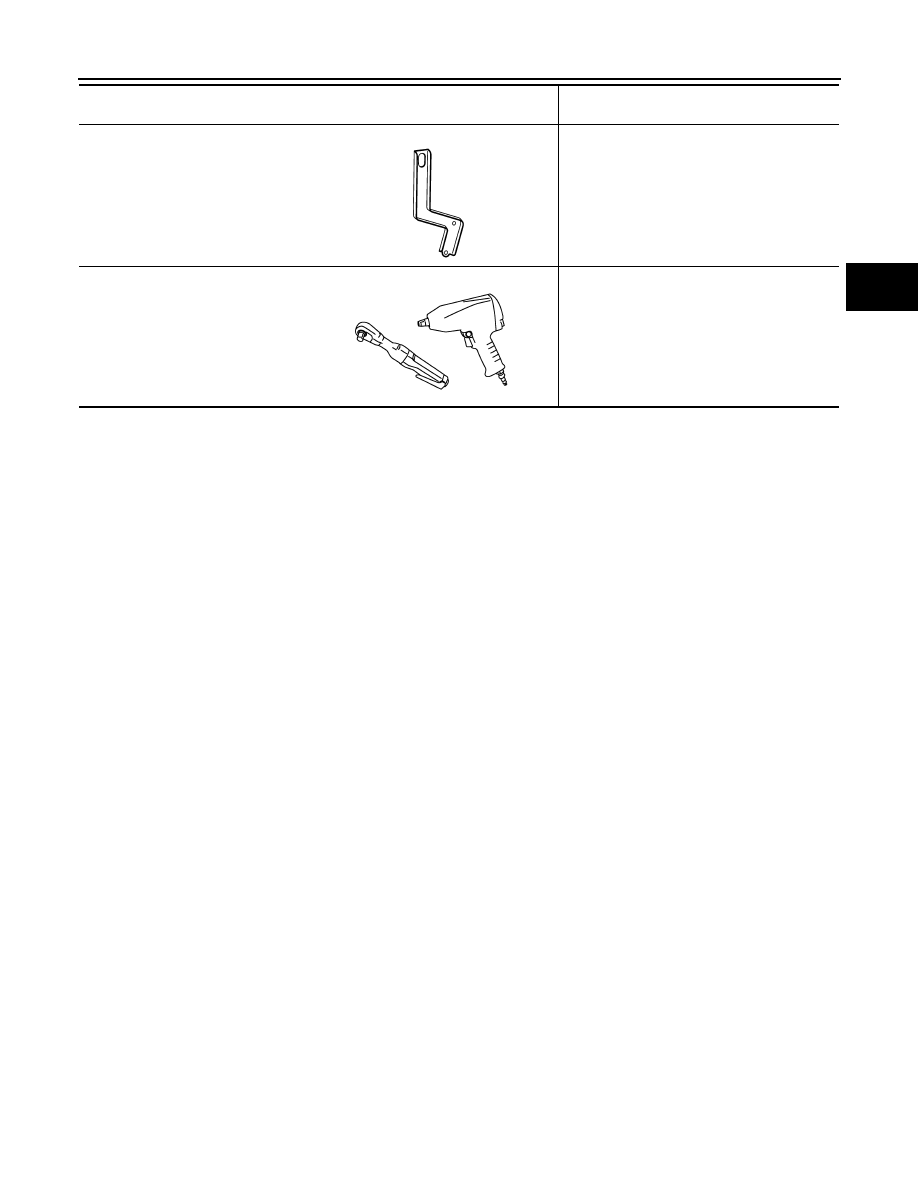

31092CA000
Slinger

Removing and installing transaxle assembly

Power tool

Loosening nuts and bolts

Tool number
Tool name

Description

SCIA2015E

PBIC0190E
