Nissan Altima L32. Manual - part 1462

TM-192

< COMPONENT DIAGNOSIS >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

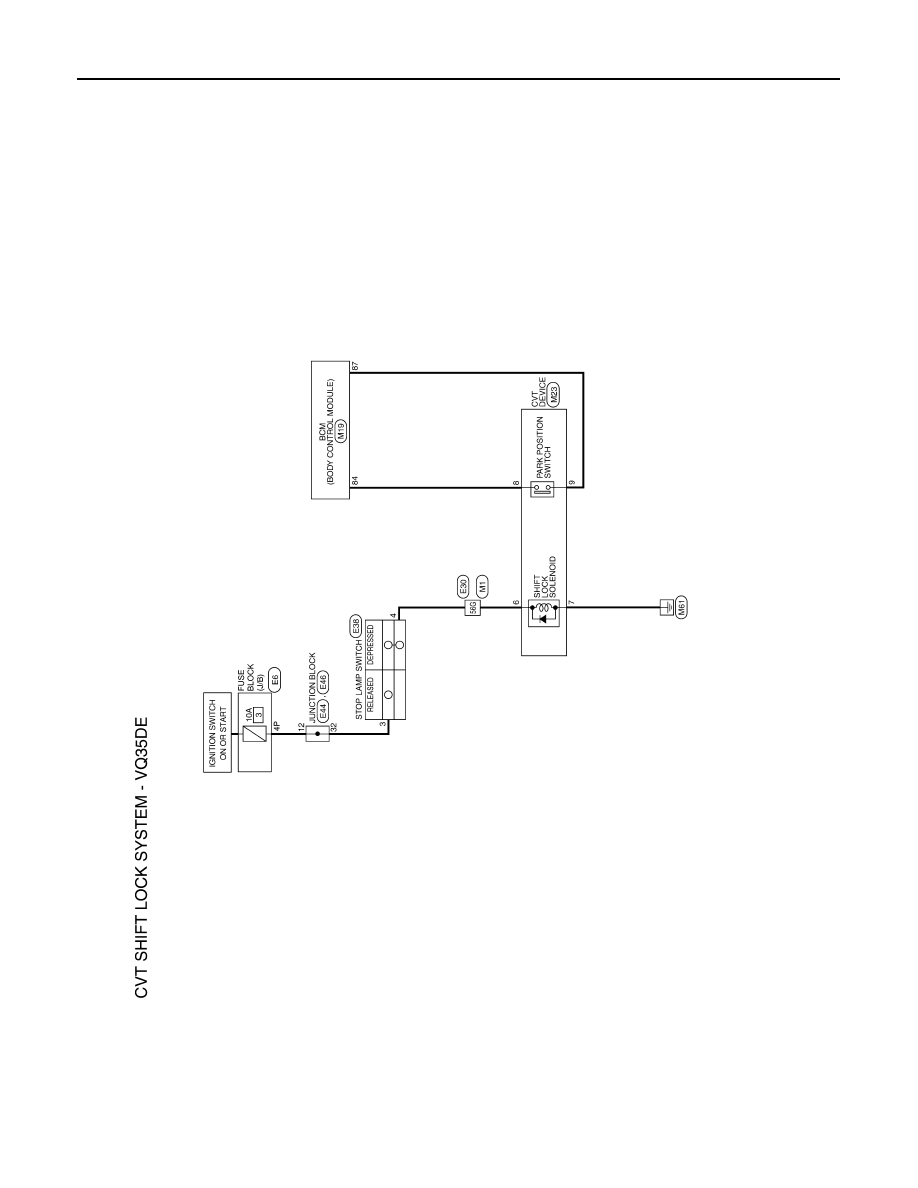

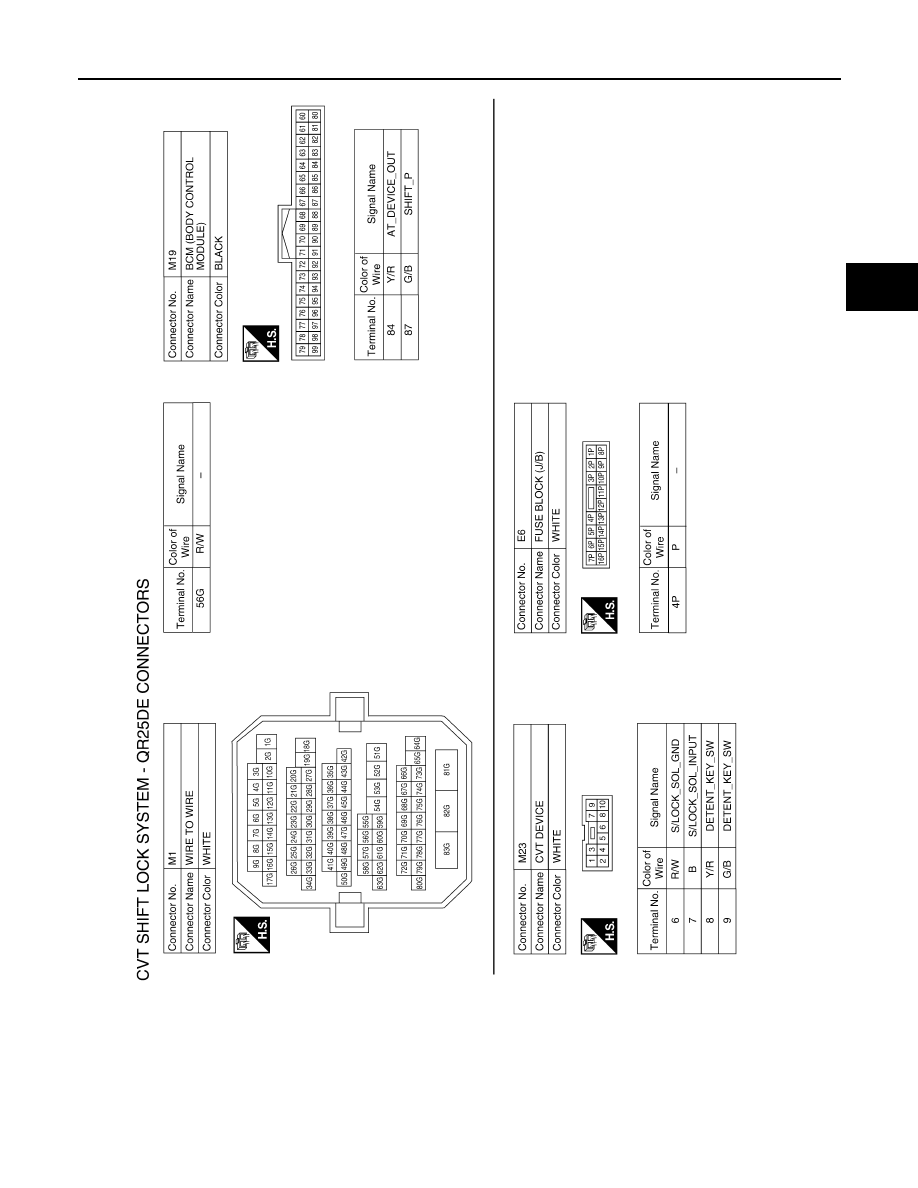

Wiring Diagram - CVT SHIFT LOCK SYSTEM - Sedan

INFOID:0000000004201771

ABDWA0073GB

SHIFT LOCK SYSTEM

TM-193

< COMPONENT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

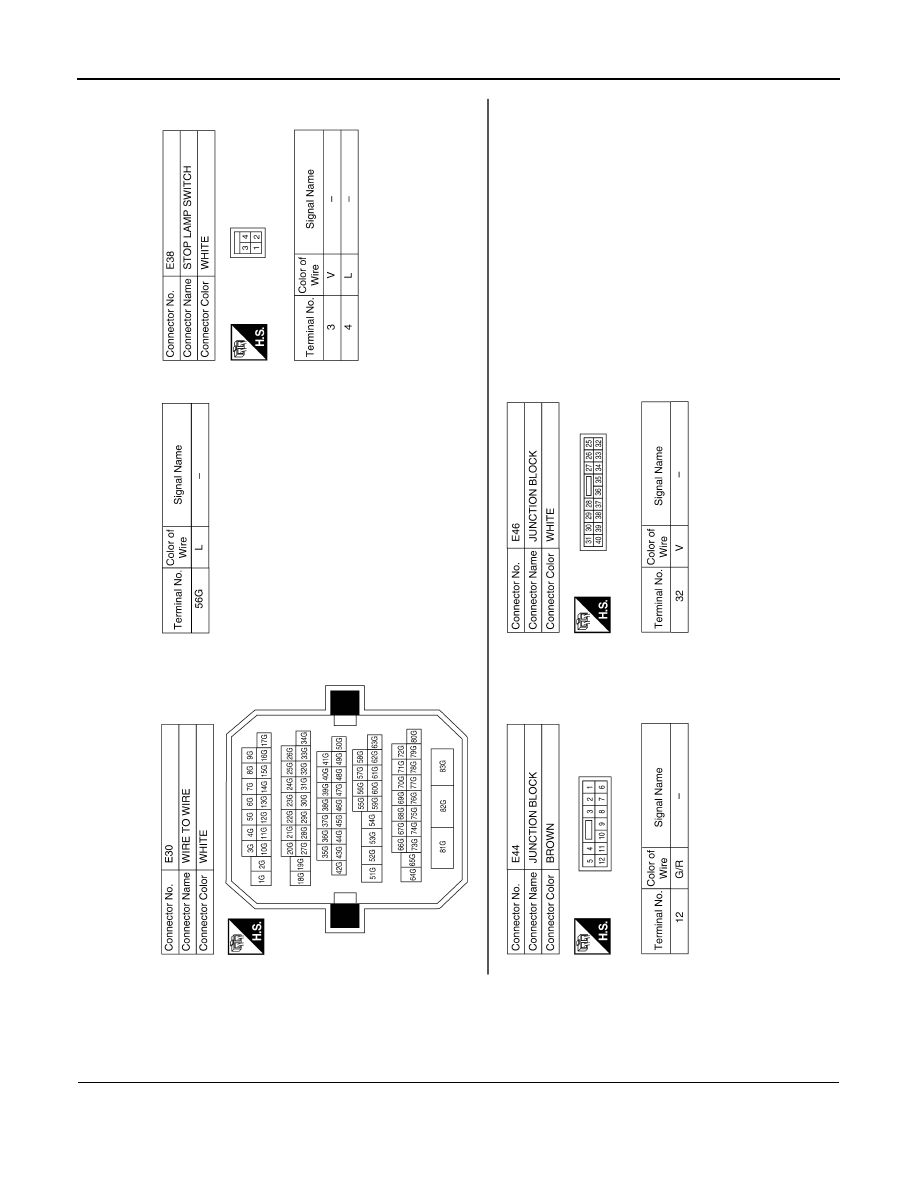

ABDIA0187GB

TM-194

< COMPONENT DIAGNOSIS >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

Diagnosis Procedure

INFOID:0000000004201772

1.

 CHECK POWER SOURCE

ABDIA0188GB

SHIFT LOCK SYSTEM

TM-195

< COMPONENT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

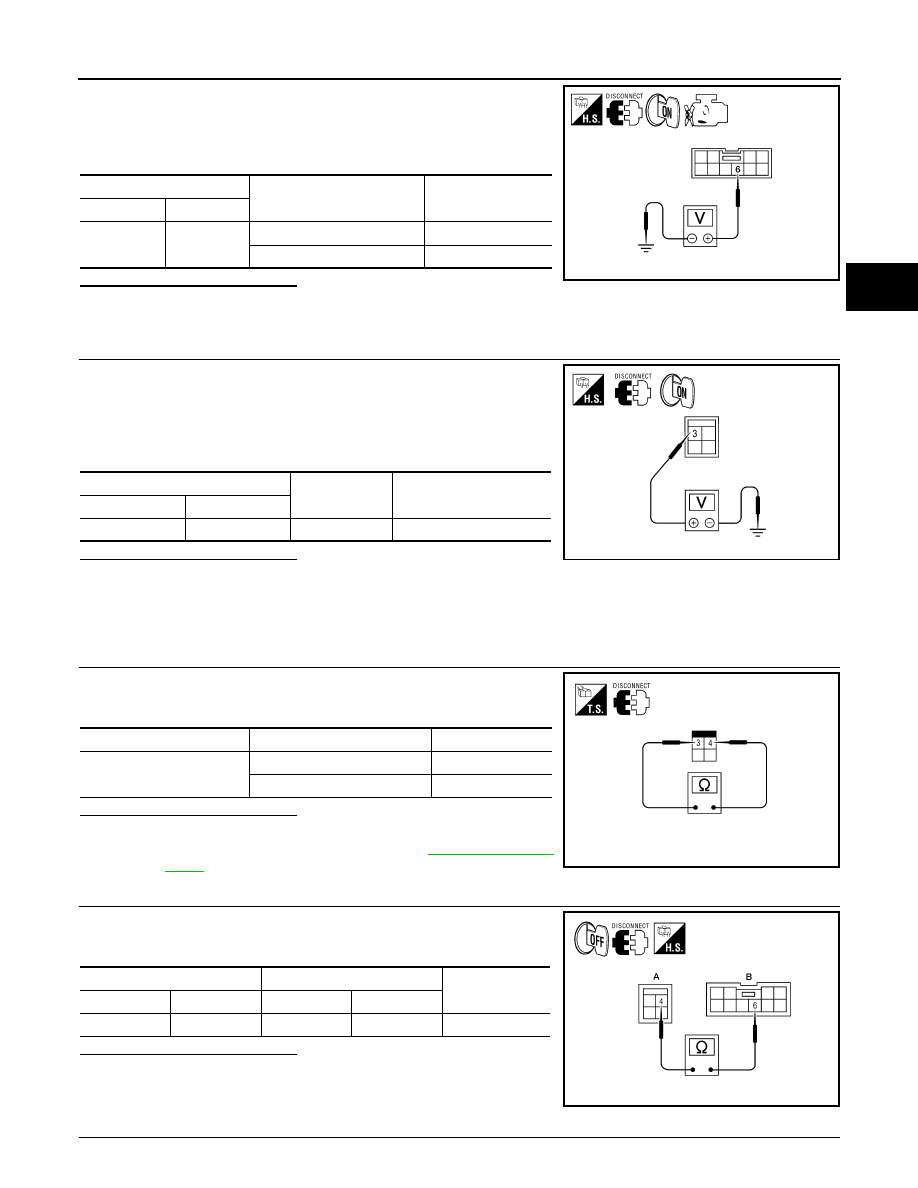

1. Disconnect CVT device connector.

2. Turn ignition switch ON.

3. Check voltage between CVT device connector M23 terminal 6

and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

 CHECK POWER SOURCE AT STOP LAMP SWITCH

1. Turn ignition switch OFF.

2. Disconnect stop lamp switch connector.

3. Turn ignition switch ON.

4. Check voltage between stop lamp switch connector E38 termi-

nal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the following:

• Harness for short or open between fuse block (J/B) and stop lamp switch

• 10A fuse [No. 3, located in fuse block (J/B)]

3.

 CHECK STOP LAMP SWITCH

1. Turn ignition switch OFF.

2. Check continuity between stop lamp switch terminals 3 and 4.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace stop lamp switch. Refer to

BR-17, "Exploded

View"

.

4.

 CHECK HARNESS BETWEEN STOP LAMP SWITCH AND CVT DEVICE FOR OPEN

Check continuity between stop lamp switch connector E38 (A) termi-

nal 4 and CVT device connector M23 (B) terminal 6.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connectors.

5.

 CHECK GROUND CIRCUIT

CVT device

Condition

Voltage

(Approx.)

Connector

Terminal

M23

6

Brake pedal depressed

Battery voltage

Brake pedal released

0V

AWDIA0003ZZ

Stop lamp switch

Ground

Voltage

(Approx.)

Connector

Terminal

E38

3

—

Battery voltage

ALDIA0024ZZ

CVT device terminals

Condition

Continuity

3 and 4

Brake pedal depressed

Yes

Brake pedal released

No

AWDIA0419ZZ

Stop lamp switch

CVT device

Continuity

Connector

Terminal

Connector

Terminal

E38 (A)

4

M23 (B)

7

Yes

AWDIA0632ZZ
