Nissan Altima L32. Manual - part 1431





TM-68

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

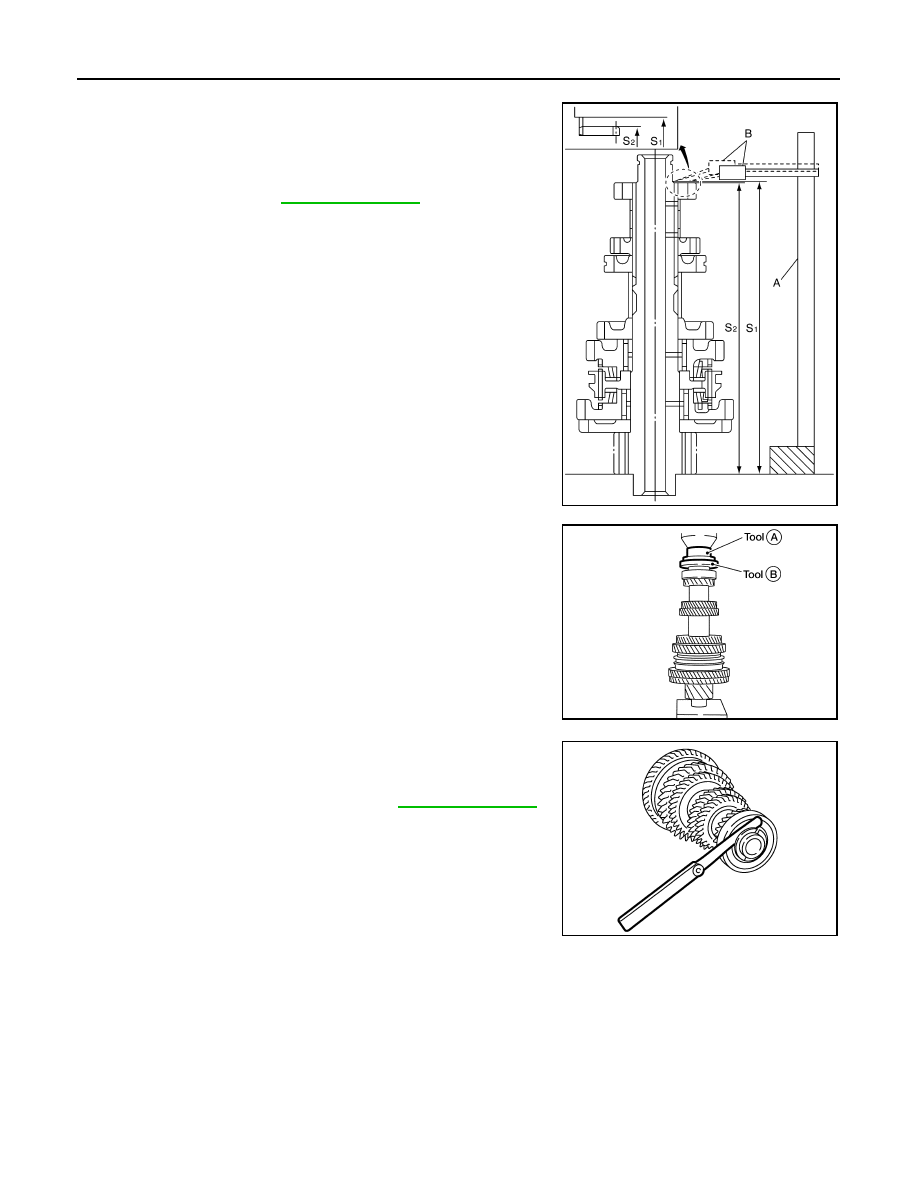

16. Select 6th main gear adjusting shim and then install it onto mainshaft.

• Calculate thickness “S” of 6th main gear adjusting shim follow-

ing the procedure below so that end play dimension between

6th main gear and mainshaft rear bearing becomes the dimen-

sion shown below.

CAUTION:

Only one adjusting shim can be selected.

a. Measure dimension “S

1

” and “S

2

” using a height gauge (A) and

pick tester (B).

b. Install selected 6th main gear adjusting shim to mainshaft.

17. Press in mainshaft rear bearing using Tools.

18. Install mainshaft C-ring onto mainshaft and check that end play

of mainshaft rear bearing satisfies the standard value.

• If measurement is outside the standard range, reselect main-

shaft C-ring.

End play :Refer to

TM-83, "End Play"

.

Dimension “S” = (S

1

 - S

2

) - End play

S

: Thickness of adjusting shim

S

1

: Dimension from mainshaft standard face to
mainshaft rear bearing press-fit end face

S

2

: Dimension from mainshaft standard face to
6th main gear end face

PCIB1887E

Tool numbers

A: ST30720000 (J-25405)
B: ST30901000 (J-26010-01)

WCIA0314E

End play standard value : Refer to

TM-83, "End Play"

.

SCIA0979E

MAINSHAFT AND GEAR

TM-69

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

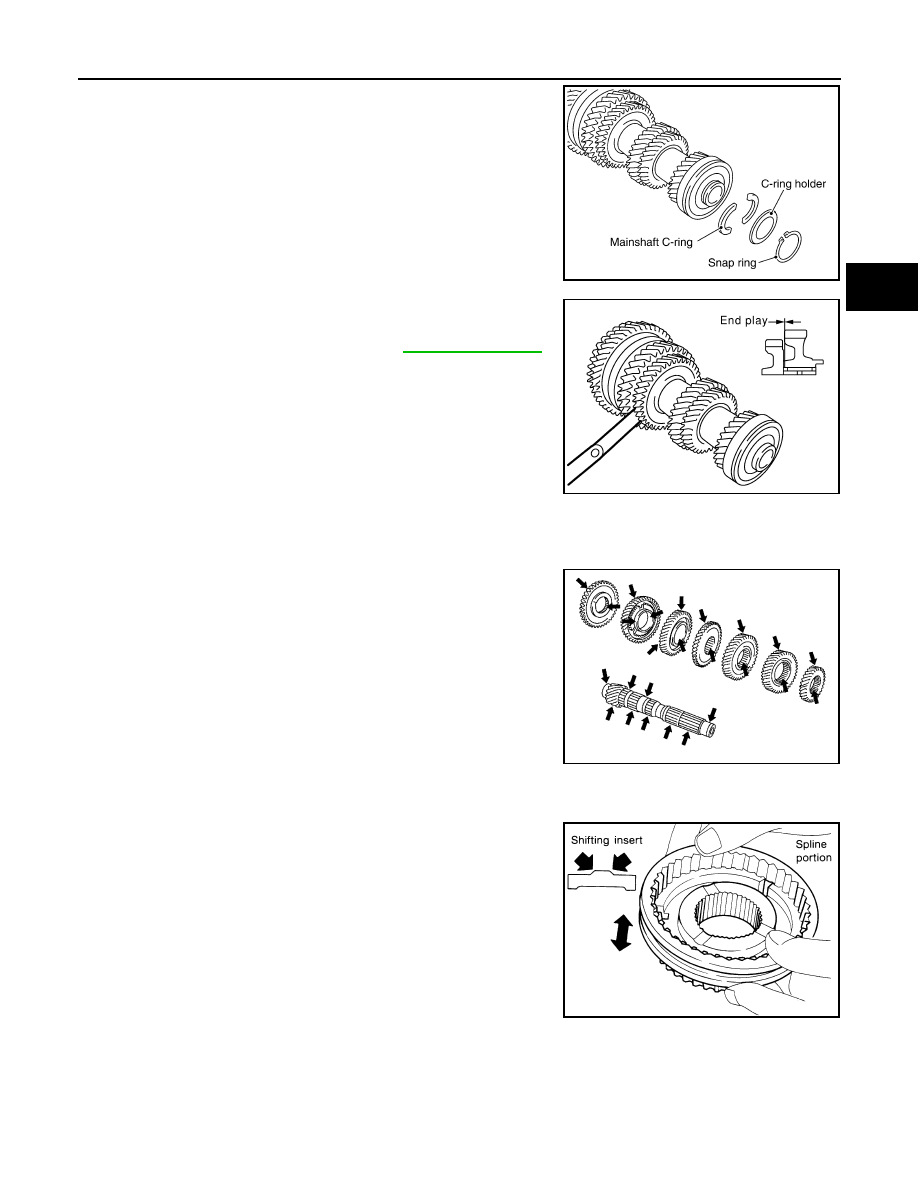

19. Install C-ring holder and then install snap ring.

CAUTION:

Do not reuse snap ring.

20. Check end play of 1st and 2nd main gears.

Inspection

INFOID:0000000004201606

MAINSHAFT AND GEAR

Check items below. If necessary, replace them with new ones.

• Damage, peeling, dent, uneven wear, bending, and other non-

standard conditions of the shaft.

• Excessive wear, damage, peeling, and other non-standard condi-

tions of the gears.

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

Check items below. If necessary, replace them with new ones.

• Damage and unusual wear on contact surfaces of coupling sleeve,

synchronizer hub and shifting insert.

• Coupling sleeve and synchronizer hub must move smoothly.

Baulk Ring and Spread Spring

PCIB0805E

End play standard value

: Refer to

TM-83, "End Play"

.

SCIA0973E

SCIA1076J

SMT387A

TM-70

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

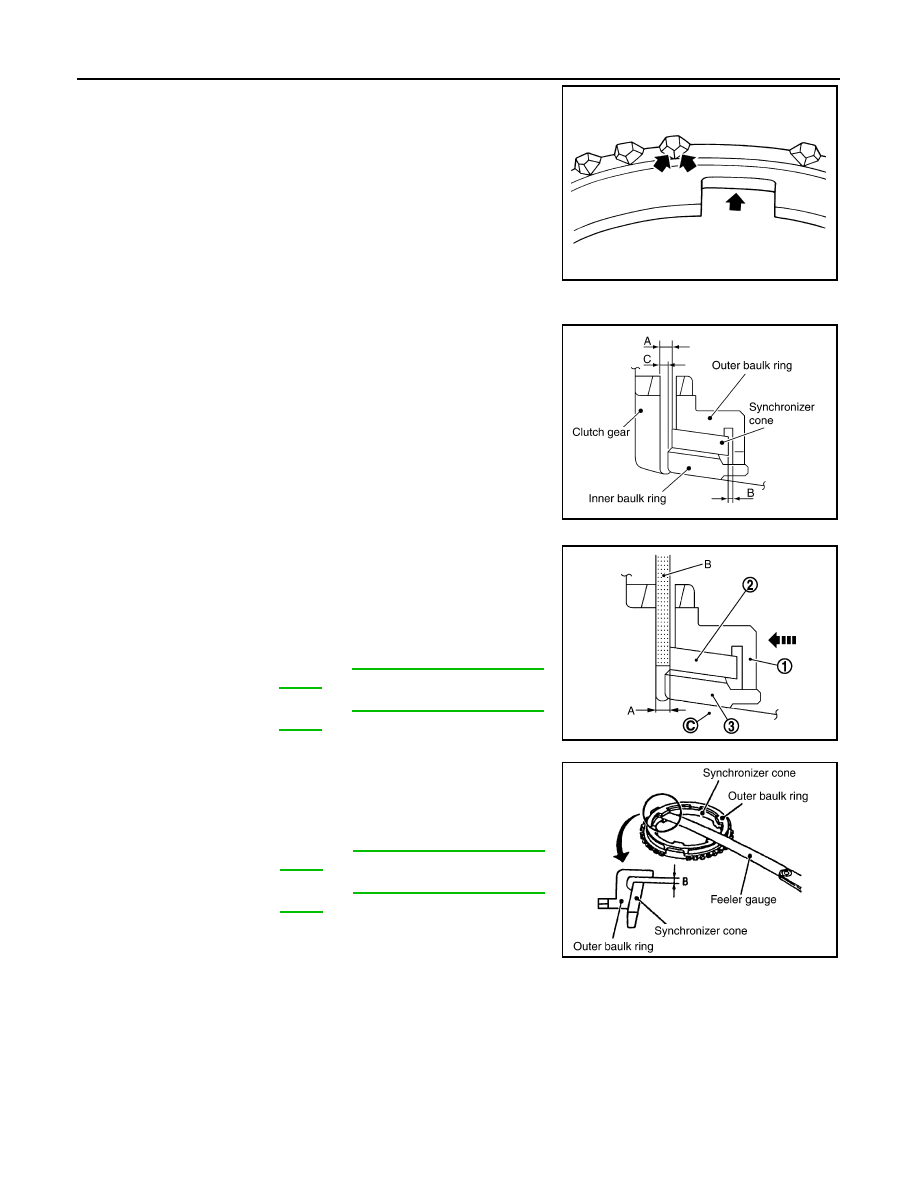

Check items below. If necessary, replace them with new ones.

• If any crack, damage, or excessive wear is found on cam face of

baulk ring or working face of insert, replace it.

Baulk Ring Clearance for Triple Cone Synchronizer (1st and 2nd)

• Check the clearance between outer baulk ring, synchronizer cone,

and inner baulk ring as follows.

CAUTION:

The clearances “A”, “B”, and “C” are controlled with outer

baulk ring, synchronizer cone, and inner baulk ring as a set.

Replace them as a set if the clearances are outside the limit

value.

1. Measure the clearance “A” at two points or more diagonally

opposite using a feeler gauge (B) when pressing outer baulk

ring (1), synchronizer cone (2), and inner baulk ring (3) toward

gear taper cone (C). Then calculate mean value.

2. Measure the clearance “B” at two points or more diagonally

opposite using a feeler gauge. Then calculate mean value.

SMT867D

PCIB1358E

Clearance “A”

Standard value : Refer to

TM-83, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-83, "Baulk Ring Clear-

ance"

.

JPDIC0034ZZ

Clearance “B”

Standard value

: Refer to

TM-83, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-83, "Baulk Ring Clear-

ance"

.

PCIB1360E

MAINSHAFT AND GEAR

TM-71

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

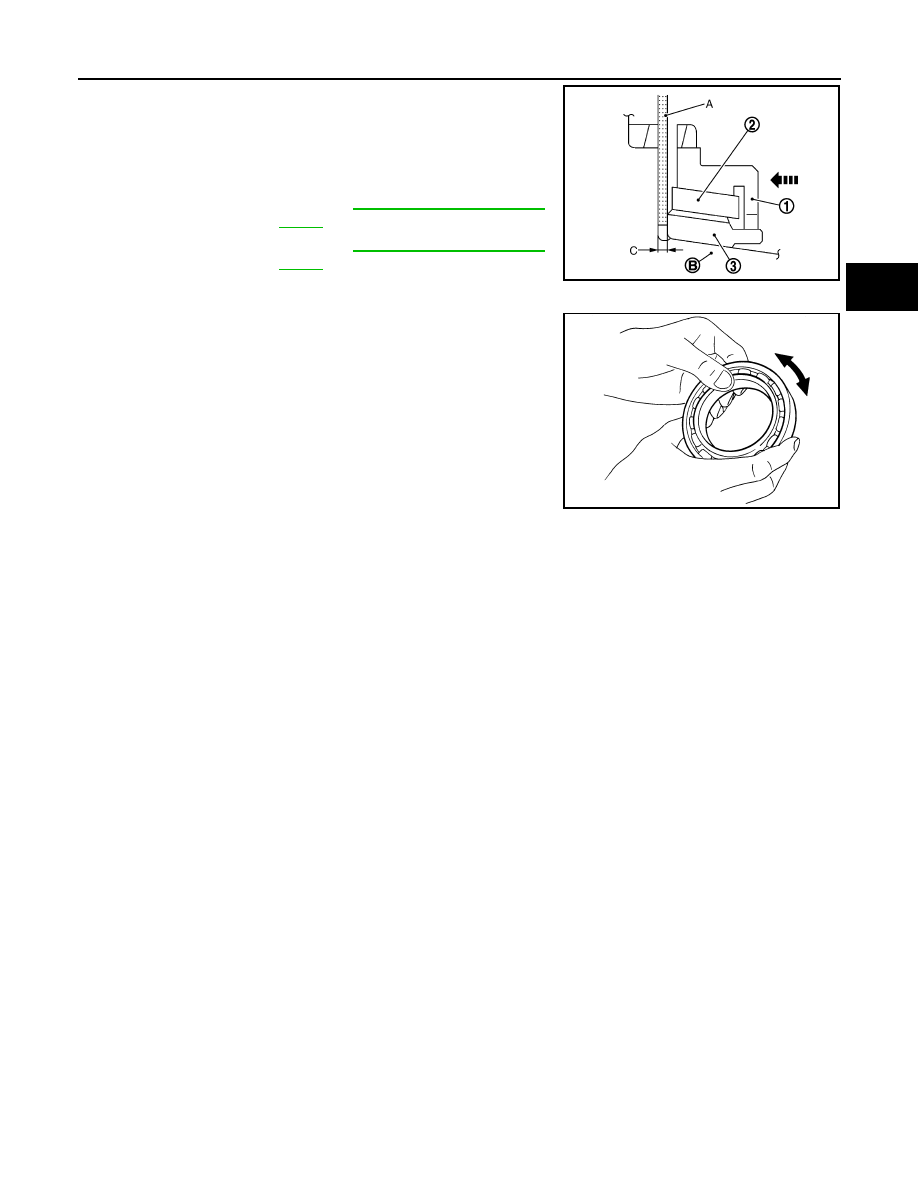

3. Measure the clearance “C” at two points or more diagonally

opposite using a feeler gauge (A) when pressing outer baulk

ring (1), synchronizer cone (2), and inner baulk ring (3) toward

gear taper cone (B). Then calculate mean value.

BEARING

Check bearing for damage and rough rotation. If necessary, replace

with new one.

Clearance “C”

Standard value : Refer to

TM-83, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-83, "Baulk Ring Clear-

ance"

.

JPDIC0035ZZ

MTF0041D
