BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

On Board Inspection

INFOID:0000000004204166

LEAK INSPECTION

Check for leaks in the master cylinder installation surface, reservoir tank installation surface, and brake pipe

and hose connections.

BRAKE TUBE AND HOSE

BR-11

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE TUBE AND HOSE

Hydraulic Circuit

INFOID:0000000004499287

Four Channel Hydraulic Circuit

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

• Make sure there is no interference with other parts when turning steering both clockwise and coun-

terclockwise.

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.

• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.

• Do not reuse drained brake fluid.

• After installation of the ABS actuator and electric unit (control unit), refill brake system with new

brake fluid. Then bleed the air from the system. Refer to

BR-16, "Bleeding Brake System"

.

FRONT BRAKE
FRONT BRAKE : Inspection

INFOID:0000000004204167

INSPECTION AFTER REMOVAL

CAUTION:

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.

AWFIA0504ZZ

1.

ABS actuator and electric unit
(control unit)

2.

Master cylinder

3.

Booster

4.

Connector

A.

Union bolt
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
16.2 N·m (1.7 kg-m, 12 ft-lb)

BR-12

< BASIC INSPECTION >

BRAKE TUBE AND HOSE

1. Check brake lines (tubes and hoses) and connections for fluid leakage, damage, twists, deformation, con-

tacts with other parts, and loose connections. Replace any damage parts.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, check each part for fluid leakage.

REAR BRAKE
REAR BRAKE : Inspection

INFOID:0000000004204168

INSPECTION AFTER REMOVAL

CAUTION:

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.
1. Check brake lines (tubes and hoses) and connections for fluid leakage, damage, twists, deformation, con-

tacts with other parts, and loose connections. Replace any damage parts.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, then check each part for fluid leakage.

BRAKE PEDAL

BR-13

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ON-VEHICLE MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment

INFOID:0000000004499288

INSPECTION

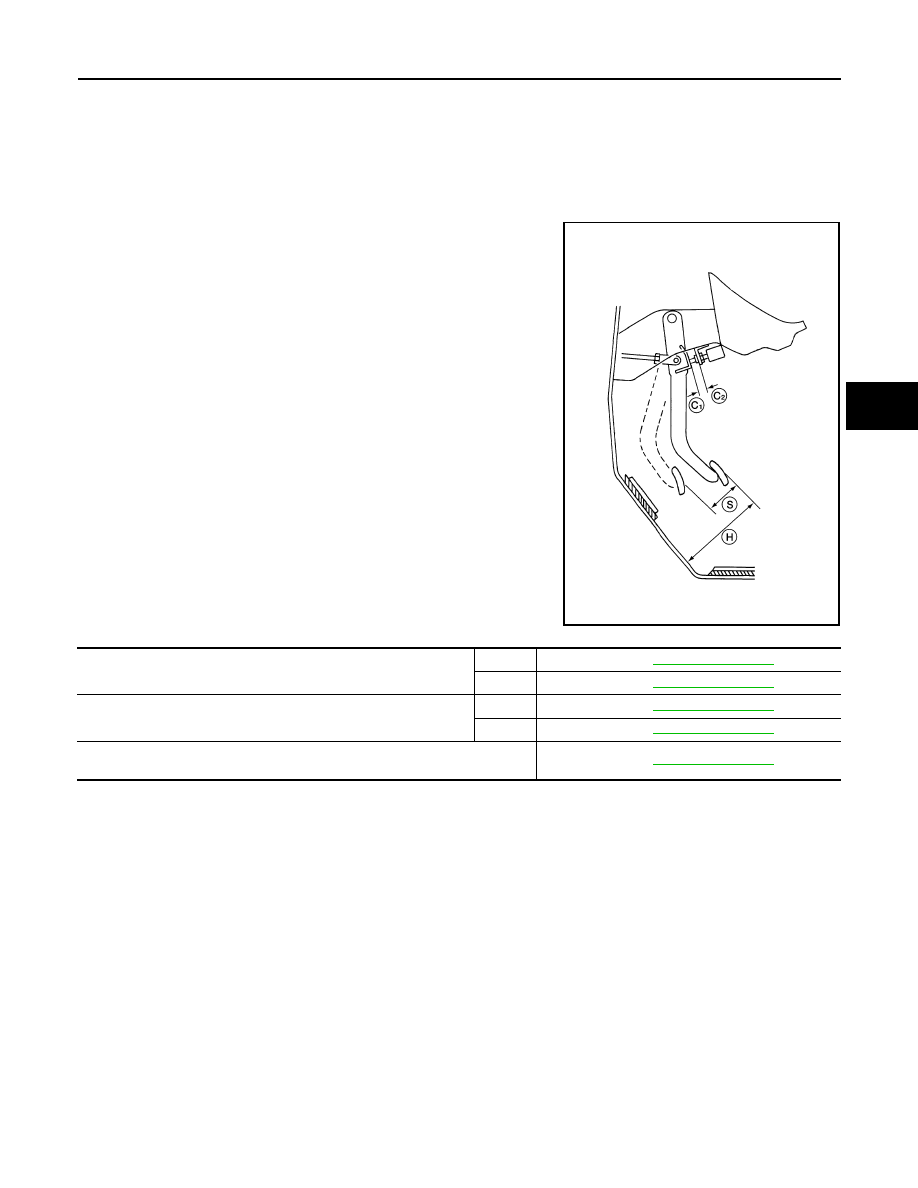

1. Inspect the brake pedal height (H) and brake pedal full stroke

(S) from the floor using Tool at a 90

° angle to the floor.

2. Adjust the brake pedal height to specifications.

Brake Pedal Specifications

ADJUSTMENT

Tool number

:

—

(J-46532)

AWFIA0433ZZ

Brake pedal height (H)
(from dash lower panel top surface)

CVT

Refer to

BR-46, "Brake Pedal"

.

M/T

Refer to

BR-46, "Brake Pedal"

.

Brake pedal full stroke (S)
[under a force of 490 N (50 kg-f, 110 lb-f) with engine running]

CVT

Refer to

BR-46, "Brake Pedal"

.

M/T

Refer to

BR-46, "Brake Pedal"

.

Clearance between stopper bracket and threaded end of the stop lamp switch
and ASCD cancel switch (C

1

 and C

2

)

Refer to

BR-46, "Brake Pedal"

.
