SRC-70

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

Trouble Diagnosis without CONSULT-III

INFOID:0000000004205401

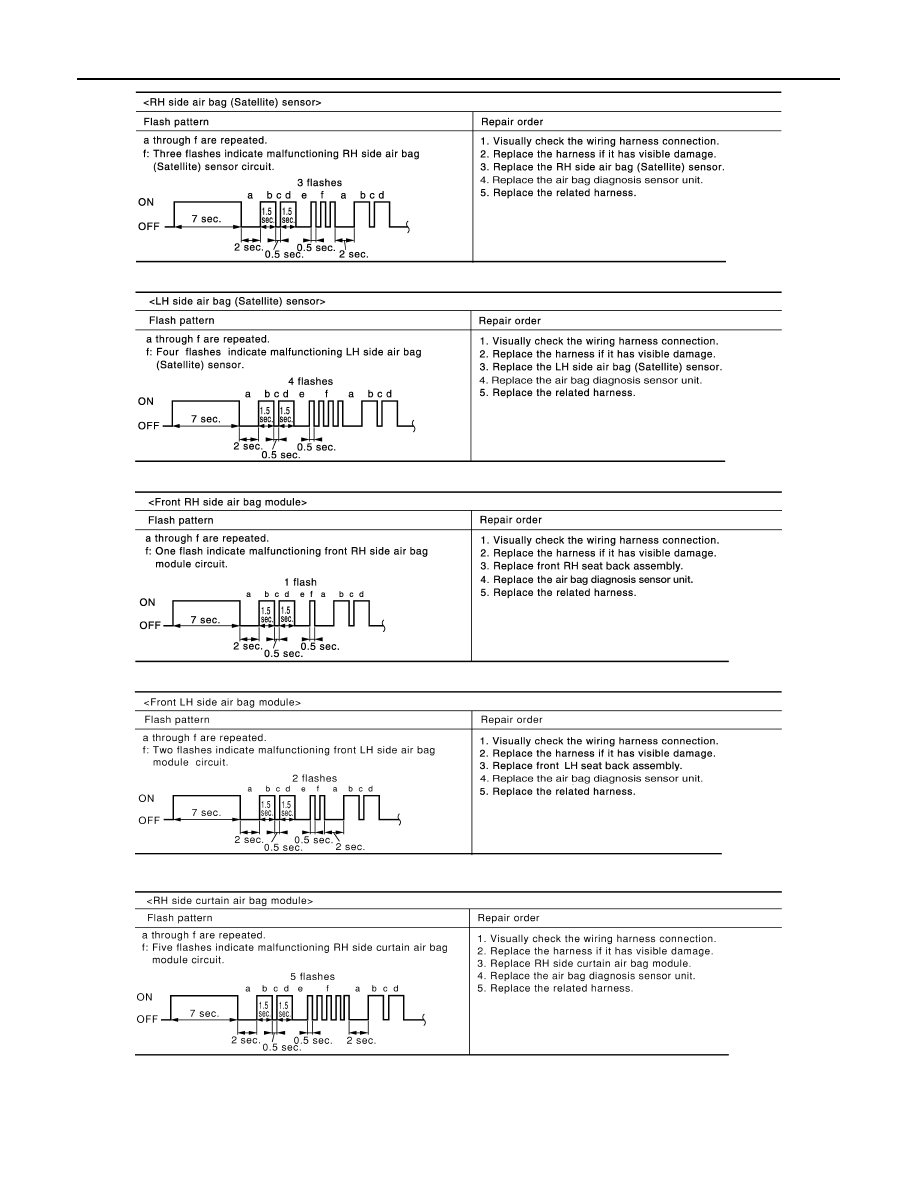

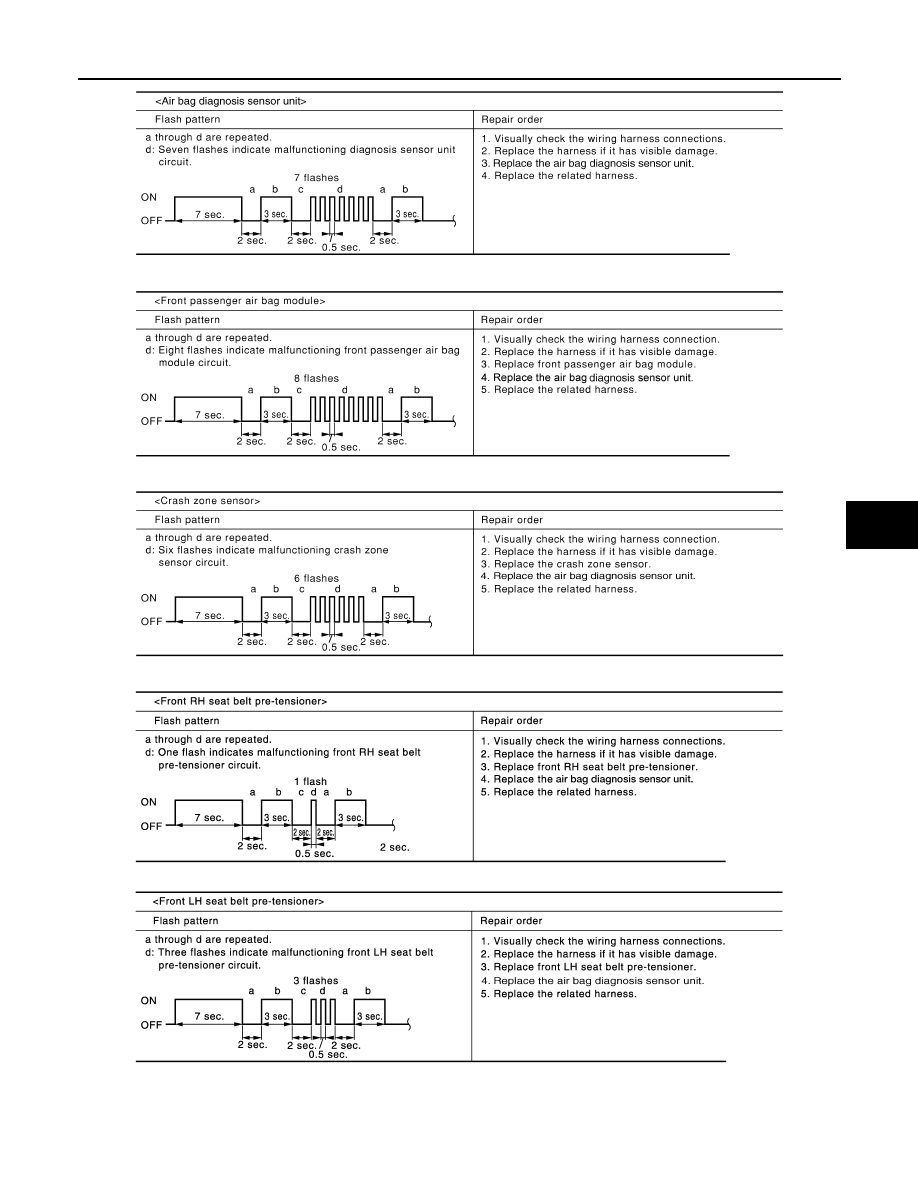

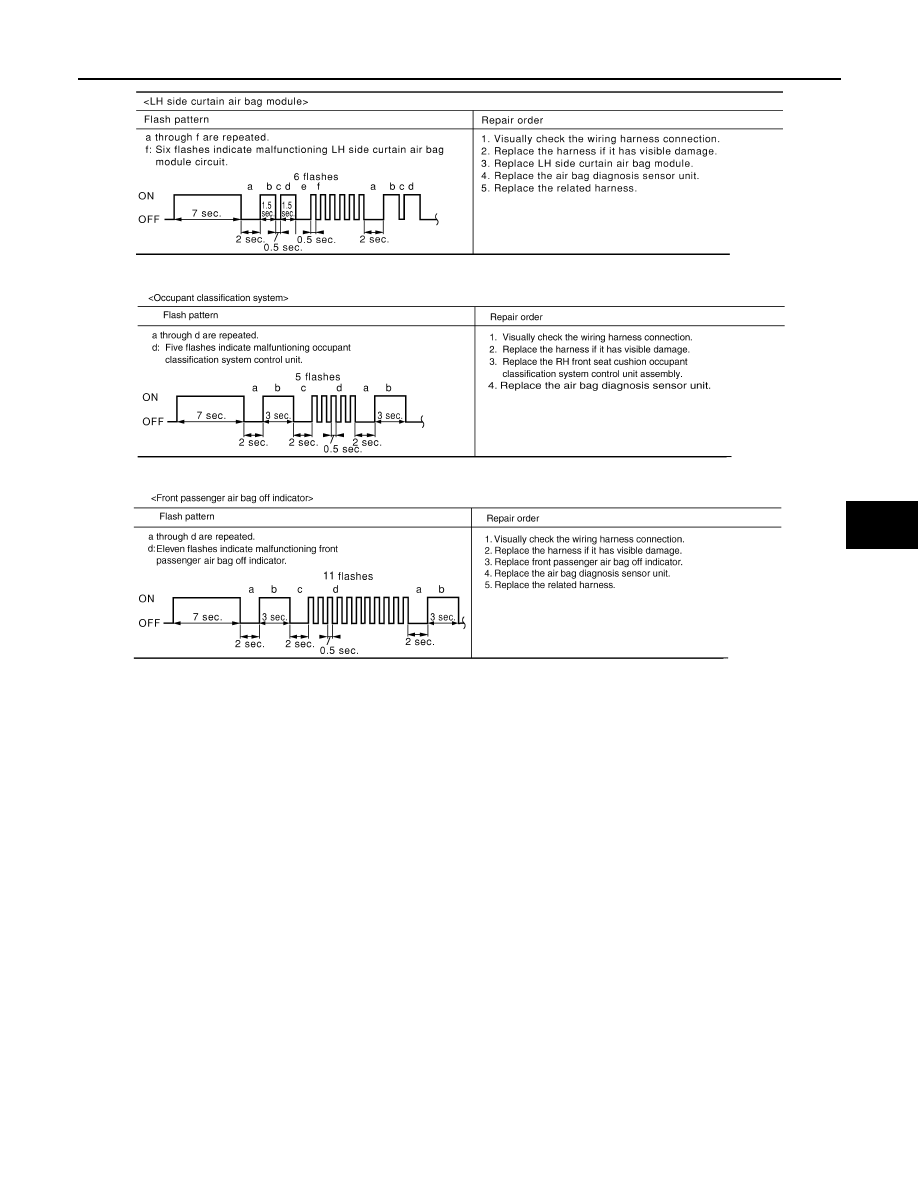

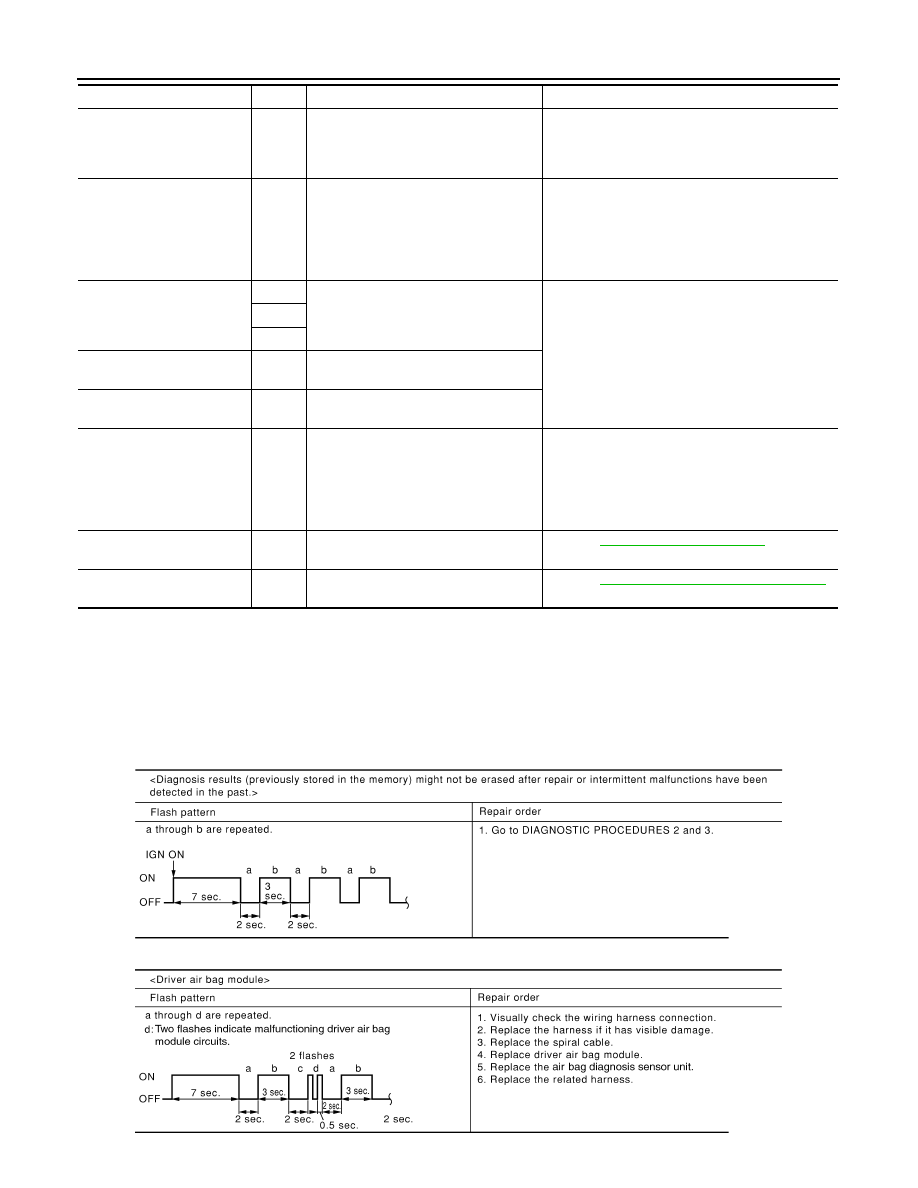

WARNING LAMP FLASH CODE CHART

NOTE:

Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is

eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to

the next step. When malfunction is eliminated, further repair work is not required.

CONTROL UNIT

B1XXX

Air bag diagnosis sensor unit is malfunc-
tioning.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the related harness.

PASS A/B INDCTR CKT

B1023

Front passenger air bag OFF indicator is
malfunctioning.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front passenger air bag OFF in-
dicator.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

OCCUPANT SENS C/U

[UNIT FAIL]

B1017

The OCS control unit is malfunctioning.

1.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

B1020

B1021

OCCUPANT SENS

[UNIT FAIL]

B1018

The OCS sensor mat is malfunctioning.

OCCUPANT SENS

[OTHER FAIL]

B1019

The OCS is malfunctioning.

OCCUPANT SENS C/U

[COMM FAIL]

B1022

Communication between the OCS con-
trol unit and the air bag diagnosis sensor
unit is interrupted.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

4.

Replace the air bag diagnosis sensor unit.

FRONTAL COLLISION DE-

TECTION

B1209

Driver and/or front passenger air bag
modules are deployed.

Refer to

SR-20, "For Frontal Collision"

.

SIDE COLLISION DETEC-

TION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SR-21, "For Side and Rollover Collision"

.

CONSULT-III name

DTC

DTC detecting condition

Repair order

SHIA0026E

WHIA0260E

DIAGNOSIS SENSOR UNIT

SRC-71

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

WHIA0198E

WHIA0261E

WHIA0200E

WHIA0262E

WHIA0263E

SRC-72

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

WHIA0203E

WHIA0204E

WHIA0264E

WHIA0265E

WHIA0266E

DIAGNOSIS SENSOR UNIT

SRC-73

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

WHIA0267E

WHIA0211E

WHIA0212E
