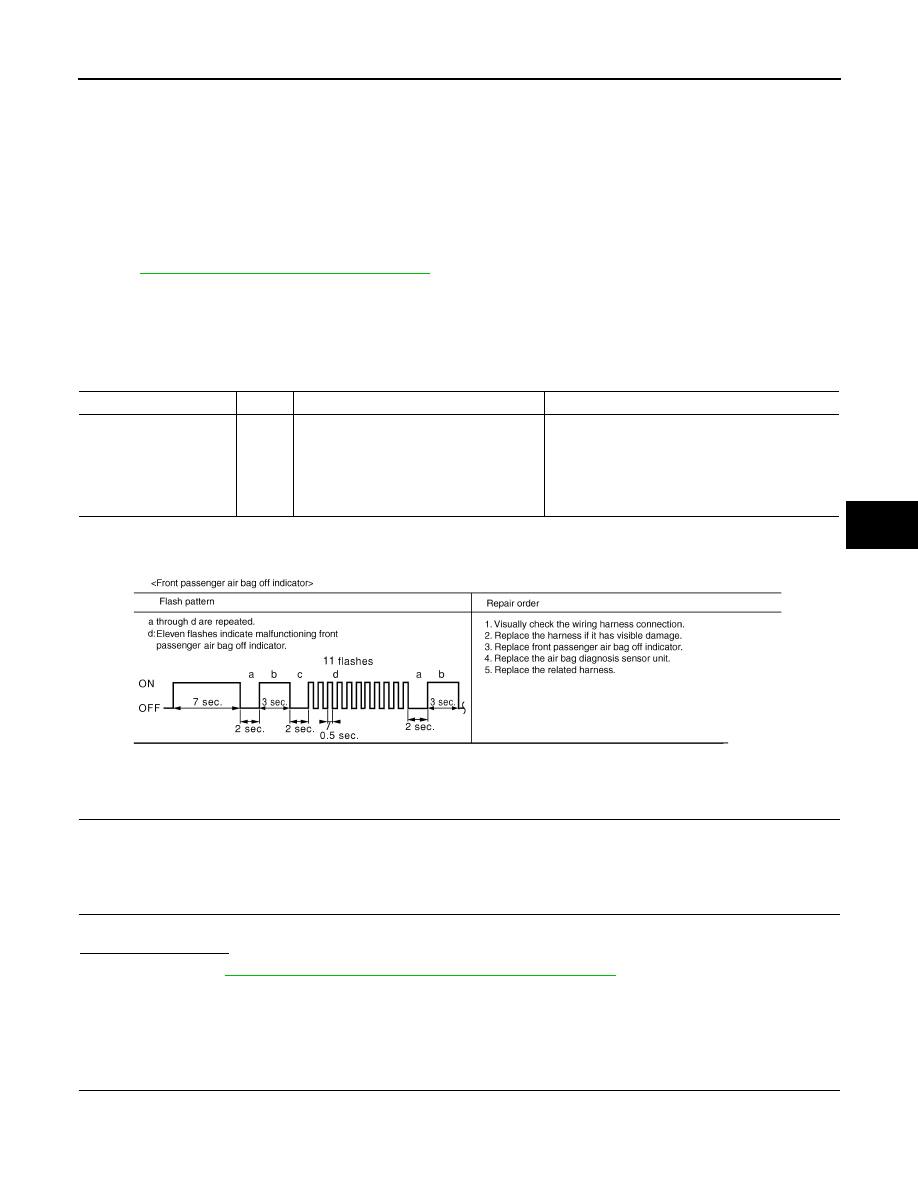

SRC-50 < COMPONENT DIAGNOSIS > B1XXX AIR BAG DIAGNOSIS SENSOR UNIT 2. IGNITION SWITCH After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second. >> GO TO 3 3. WAIT TIME Wait more than 3 seconds. >> GO TO 4 4. REPEAT STEPS Repeat steps 1 to 3 twice. >> GO TO 5 5. IGNITION SWITCH Turn ignition switch ON. >> GO TO 6 6. DIAGNOSTIC MODE SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to . >> END Diagnosis Procedure (Component Diagnosis) INFOID:0000000004205388 Recheck SRS after each replacement. 1. HARNESS CONNECTOR Is there any visible damage to the connector? YES >> Replace the harness. NO >> GO TO 2 2. WIRING HARNESS Is there any visible damage to the harness? YES >> Replace the harness. NO >> GO TO 3 3. AIR BAG DIAGNOSIS SENSOR UNIT Replace the air bag diagnosis sensor unit. Refer to SR-17, "Removal and Installation" >> GO TO 4 4. RELATED HARNESS Replace the related harness. >> END |
