DIAGNOSIS AND REPAIR WORK FLOW

SRC-3

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000004205332

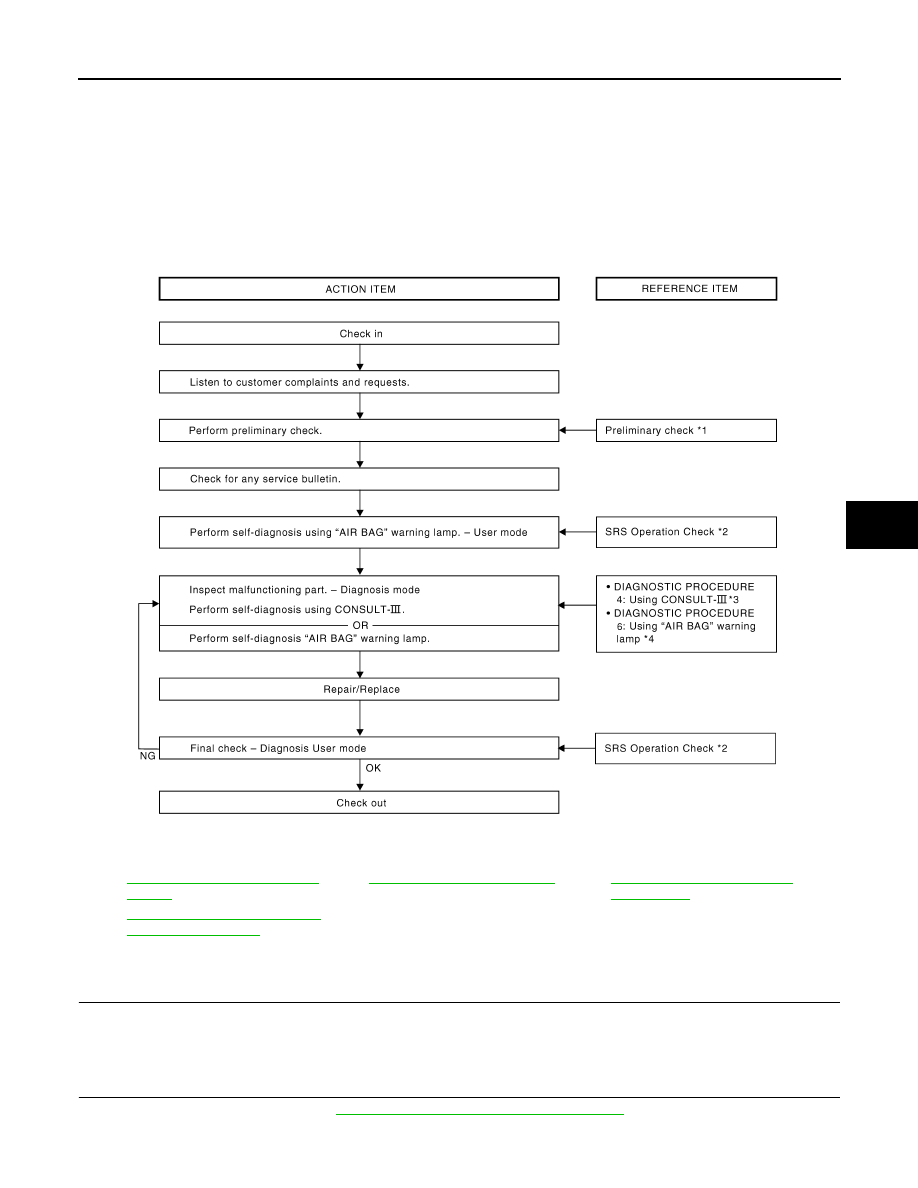

OVERALL SEQUENCE

DETAILED WORK FLOW

1.

CUSTOMER INFORMATION

Get detailed information from the customer about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check.  Refer to

SRC-12, "Trouble Diagnosis Introduction"

.

*1

SRC-12, "Trouble Diagnosis Intro-
duction"

*2

SRC-12, "SRS Operation Check"

*3

SRC-5, "Trouble Diagnosis with
CONSULT-III"

*4

SRC-14, "Self-Diagnosis Function
(Without CONSULT-III)"

WHIA0348E

SRC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 4

4.

USER MODE

Perform self-diagnosis using the "AIR BAG" warning lamp in User mode.  Refer to

SRC-12, "SRS Operation

Check"

.

>> GO TO 5

5.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS.  Refer to

SRC-5, "Trouble Diagnosis with CONSULT-III"

 (w/CONSULT-III) or

SRC-14, "Self-Diagnosis Function (Without CONSULT-III)"

 (w/o CONSULT- III).

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection end.

NO

>> GO TO 5

INTERMITTENTS INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENTS INCIDENT

Inspection Procedure

INFOID:0000000004205333

INTERMITTENT TROUBLE

An intermittent incident may have occured in the past but is not being detected currently.  This DTC will not be

detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT-III.

Trouble Diagnosis with CONSULT-III

INFOID:0000000004205334

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.
Have any previous repairs been made to the SRS?

YES

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Proceed to "DIAGNOSTIC PROCEDURE 3".  Refer to

SRC-14, "Self-Diagnosis Func-

tion (Without CONSULT-III)"

.

NO

>> Proceed to "DIAGNOSTIC PROCEDURE 2".  Refer to

SRC-12, "SRS Operation Check"

.
