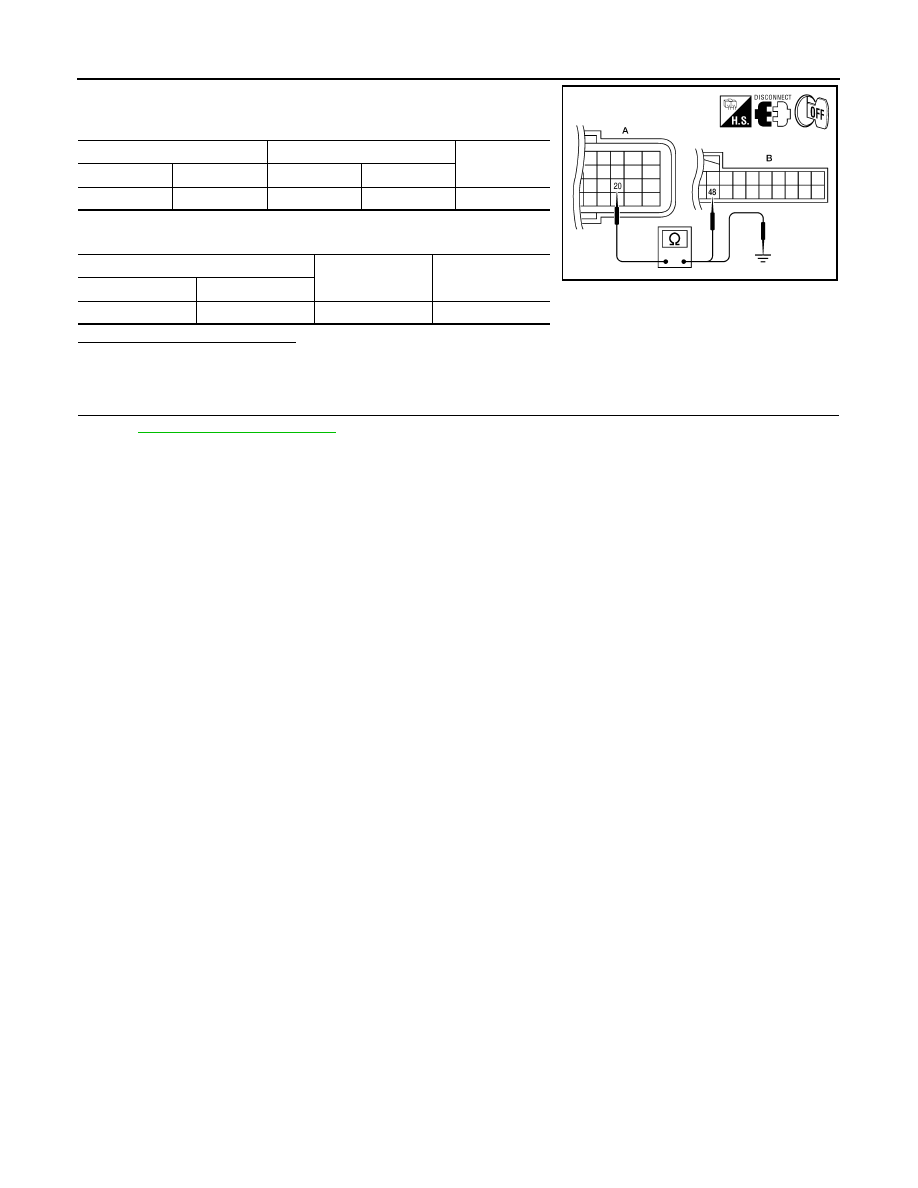

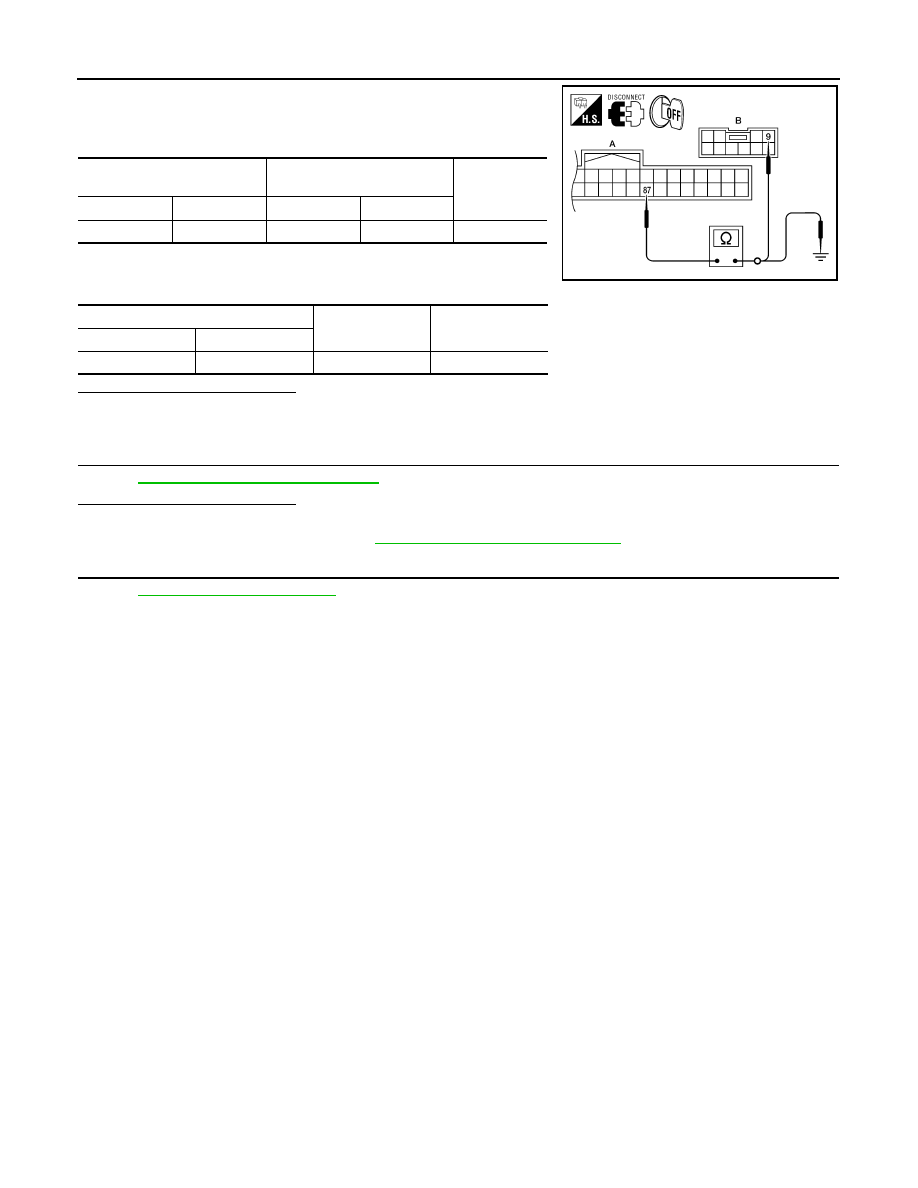

SEC-474 < COMPONENT DIAGNOSIS > [SEDAN WITHOUT INTELLIGENT KEY] B2603 SHIFT POSITION STATUS 2. Check continuity between BCM harness connector M19 (A) ter- minal 87 and CVT device (park position switch) harness connec- tor M23 (B) terminal 9. 3. Check continuity between BCM harness connector M19 (A) ter- minal 87 and ground. Is the inspection result normal? YES >> GO TO 6 NO >> Repair harness or connector. 6. CHECK CVT DEVICE SEC-469, "Component Inspection" . Is the inspection result normal? YES >> GO TO 7 NO >> Replace CVT device. Refer to TM-431, "Removal and Installation" . 7. CHECK INTERMITTENT INCIDENT GI-42, "Intermittent Incident" >> Inspection End. BCM CVT device (park position switch) Continuity Connector Terminal Connector Terminal A: M19 87 B: M23 9 Yes BCM Ground Continuity Connector Terminal A: M19 87 Ground No ALKIA0446ZZ |
