B210A STEERING LOCK CONDITION SWITCH

3. Check voltage between electronic steering column lock harness

connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

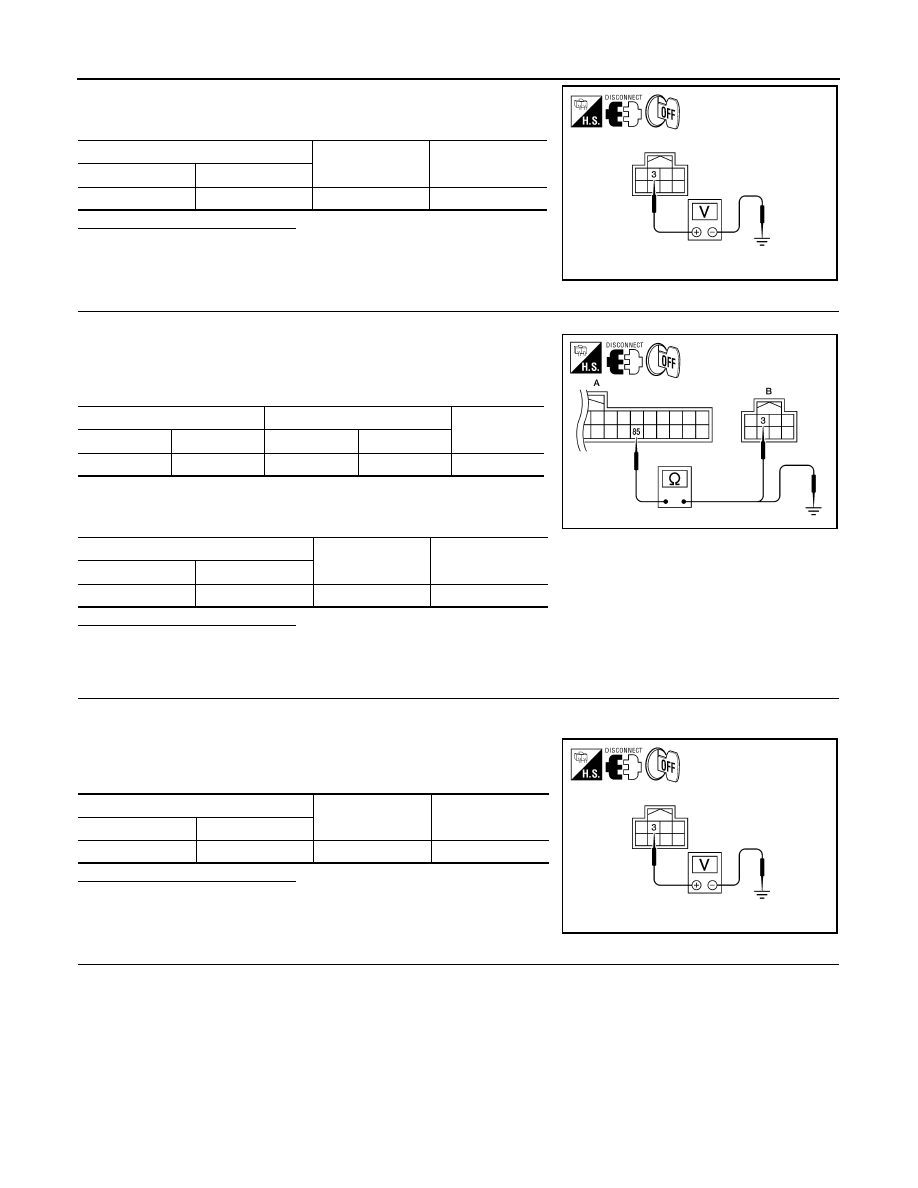

CHECK ELECTRONIC STEERING COLUMN LOCK CIRCUIT-I

1. Disconnect BCM harness connector.

2. Check continuity between BCM harness connector M19 (A) ter-

minal 85 and electronic steering column lock harness connector

M32 (B) terminal 3.

3. Check continuity between BCM harness connector M19 (A) ter-

minal 85 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair harness or connector.

4.

CHECK IPDM E/R OUTPUT SIGNAL

1. Connect IPDM E/R harness connector.

2. Disconnect BCM harness connector.

3. Check voltage between electronic steering column lock harness

connector and ground.

Is the inspection result normal?

YES

>> Replace electronic steering column lock.

NO

>> GO TO 5

5.

CHECK ELECTRONIC STEERING COLUMN LOCK CIRCUIT-II

Electronic steering column lock

Ground

Voltage [V]

Connector

Terminal

M32

3

Ground

Battery voltage

ALKIA0454ZZ

BCM

Electronic steering column lock

Continuity

Connector

Terminal

Connector

Terminal

A:  M19

85

B:  M32

3

Yes

BCM

Ground

Continuity

Connector

Terminal

A: M19

85

Ground

No

ALKIA0455ZZ

Electronic steering column lock

Ground

Voltage [V]

Connector

Terminal

M32

3

Ground

Battery voltage

ALKIA0454ZZ

B210A STEERING LOCK CONDITION SWITCH

SEC-443

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

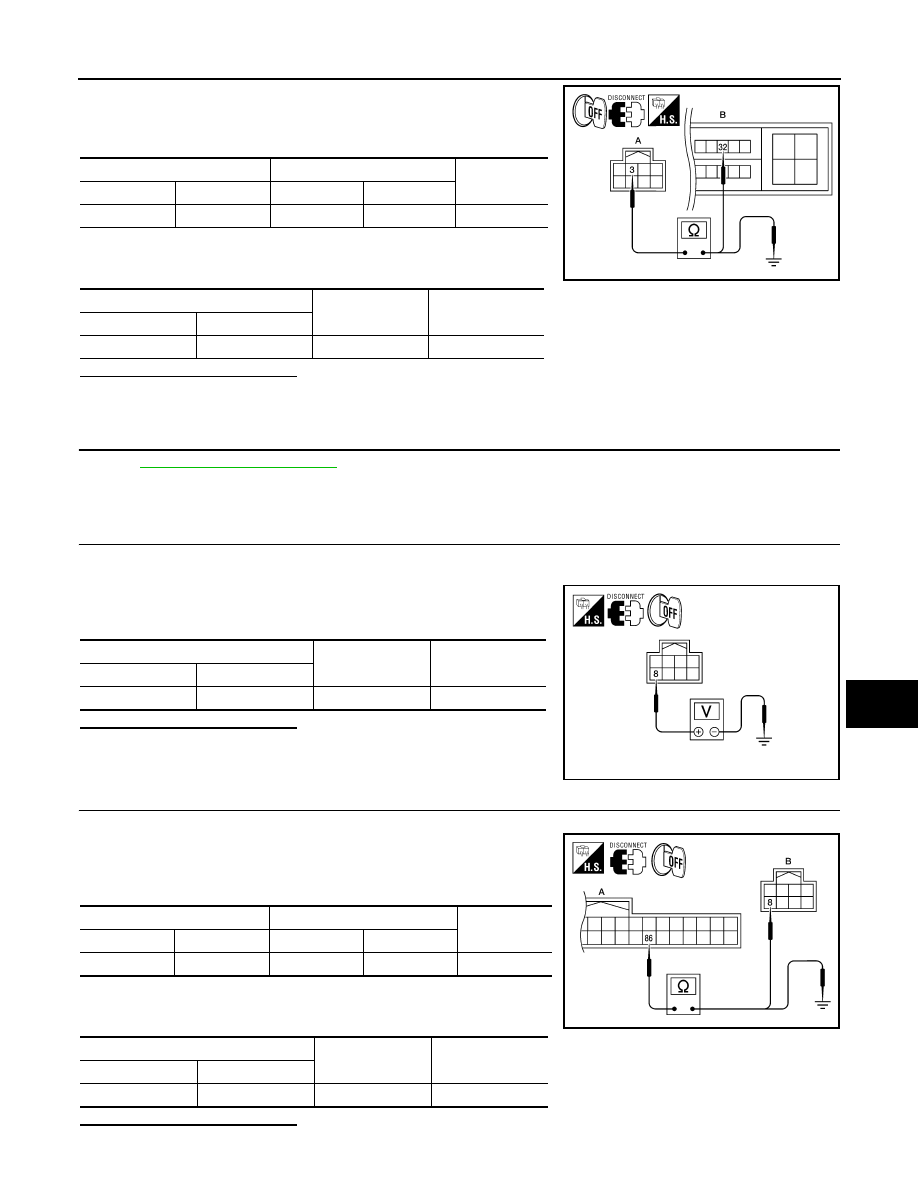

1. Check continuity between electronic steering column lock har-

ness connector M32 (A) terminal 3 and IPDM E/R harness con-

nector E18 (B) terminal 32.

2. Check continuity between electronic steering column lock har-

ness connector M32 (A) terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair harness or connector.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

7.

CHECK BCM OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect electronic steering column lock harness connector and IPDM E/R harness connector E5.

3. Check voltage between electronic steering column lock harness

connector and ground.

Is the inspection result normal?

YES

>> GO TO 9

NO

>> GO TO 8

8.

CHECK ELECTRONIC STEERING COLUMN LOCK CIRCUIT-I

1. Disconnect BCM harness connector M122.

2. Check continuity between BCM harness connector M19 (A) ter-

minal 86 and electronic steering column lock harness connector

M32 (B) terminal 8.

3. Check continuity between BCM harness connector M19 (A) ter-

minal 86 and ground.

Is the inspection result normal?

Electronic steering column lock

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: M32

3

B: E18

32

Yes

Electronic steering column lock

Ground

Continuity

Connector

Terminal

A: M32

3

Ground

No

ALKIA0456ZZ

Electronic steering column lock

Ground

Voltage [V]

Connector

Terminal

M32

8

Ground

Battery voltage

ALKIA0457ZZ

BCM

electronic steering column lock

Continuity

Connector

Terminal

Connector

Terminal

A:  M19

86

B:  M32

8

Yes

BCM

Ground

Continuity

Connector

Terminal

A: M19

86

Ground

No

ALKIA0458ZZ

SEC-444

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

B210A STEERING LOCK CONDITION SWITCH

YES

>> GO TO 11

NO

>> Repair harness or connector.

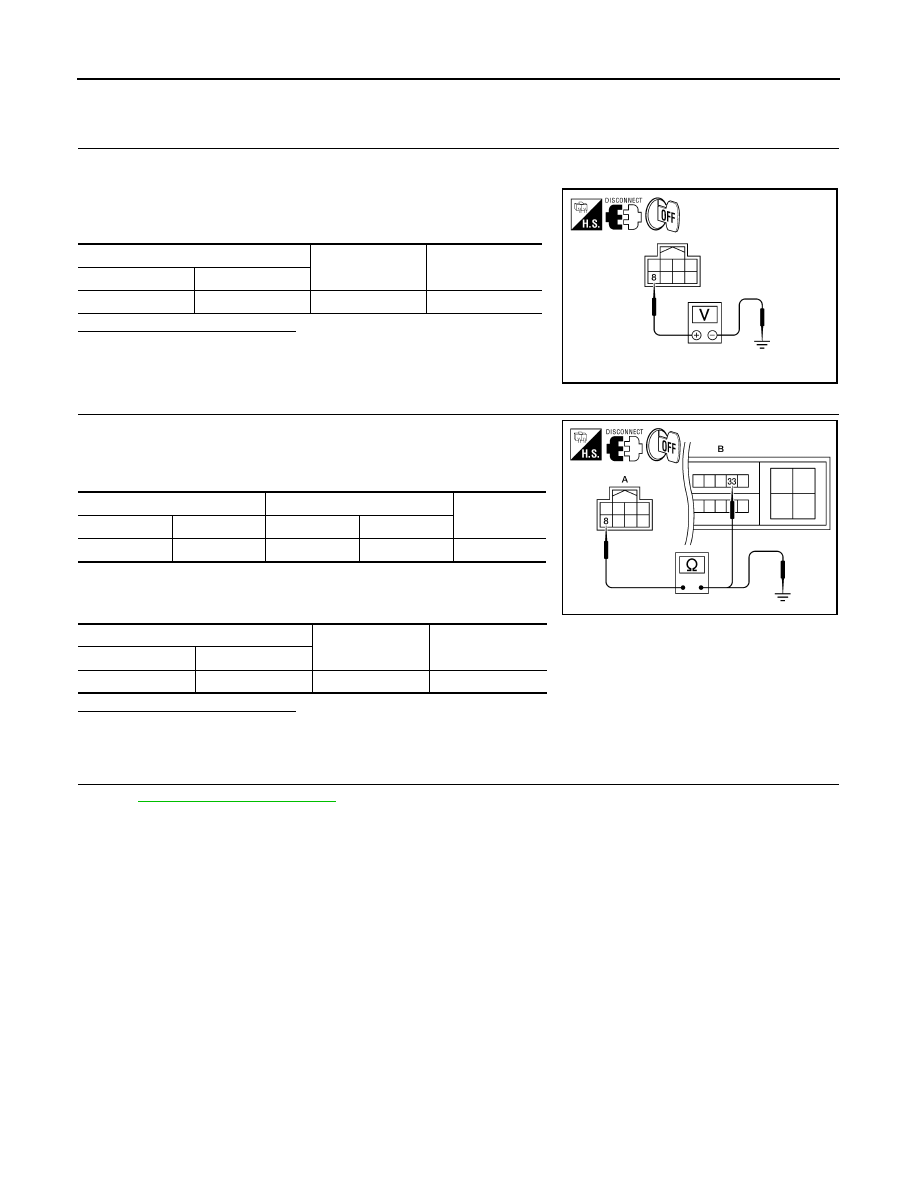

9.

CHECK IPDM E/R OUTPUT SIGNAL

1. Connect IPDM E/R harness connector.

2. Disconnect BCM harness connector.

3. Check voltage between electronic steering column lock harness

connector and ground.

Is the inspection result normal?

YES

>> Replace electronic steering column lock.

NO

>> GO TO 10

10.

CHECK ELECTRONIC STEERING COLUMN LOCK CIRCUIT-II

1. Check continuity between electronic steering column lock har-

ness connector M32 (A) terminal 8 and IPDM E/R harness con-

nector E18 (B) terminal 33.

2. Check continuity between electronic steering column lock har-

ness connector and ground.

Is the inspection result normal?

YES

>> GO TO 11

NO

>> Repair harness or connector.

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

Electronic steering column lock

Ground

Voltage [V]

Connector

Terminal

M32

8

Ground

Battery voltage

ALKIA0457ZZ

Electronic steering column lock

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: M32

8

B: E18

33

Yes

Electronic steering column lock

Ground

Continuity

Connector

Terminal

A: M32

8

Ground

No

ALKIA0459ZZ

B210B STARTER CONTROL RELAY

SEC-445

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B210B STARTER CONTROL RELAY

Description

INFOID:0000000004499091

Starter control relay, integrated in IPDM E/R, permits the starter relay operation when in N or P position and

the steering is locked or unlocked. It is installed in parallel with the starter relay.

DTC Logic

INFOID:0000000004499092

DTC DETECTION LOGIC

NOTE:

• If DTC B210B is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-433, "DTC Logic"

.

• If DTC B210B is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-434, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn the power supply position to start under the following conditions and wait for at least 1 second.

-

CVT selector lever is in the P or N position.

-

Depress the brake pedal

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-445, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004499093

1.

INSPECTION START

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.

3. Touch “ERASE”.

4. Perform DTC Confirmation Procedure.

See

PCS-45, "DTC Index"

.

Is the DTC B210B displayed again?

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and Installation"

.

NO

>> Inspection End.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B210B

START CONT RLY
ON

IPDM E/R detects that the relay is stuck at ON po-
sition even if the following conditions are met for
about 1 second.
• Starter control relay ON/OFF signal from BCM
• Shift park neutral position (PNP) switch input sig-

nal

• IPDM  E/R
