INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION SYMPTOMS

SYMPTOM DIAGNOSIS

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION SYMPTOMS

Symptom Table

INFOID:0000000004206350

Engine cannot be started with all Intelligent Keys.

CAUTION:

• Follow Trouble Diagnosis Flowchart referring to “

SEC-209, "Work Flow"

”. Determine malfunctioning

condition before performing this diagnosis.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagno-

sis.

• Check systems shown in the “Diagnosis/service procedure” column in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

• Engine start function is ON when setting on CONSULT-III.

• Use Intelligent Key with registered Intelligent Key ID.

• One or more of Intelligent Keys with registered Intelligent Key ID is in the passenger compartment.

Diagnosis/service procedure

Reference page

1. Check power supply and ground circuit

BCM

BCS-42

IPDM E/R

PCS-23

2. Check push button ignition switch

SEC-307

3. Check Intermittent Incident

GI-42

C

D

E

F

G

H

I

J

L

M

A

B

Check Intermittent Incident

GI-42

2

* Vehicle security
system does not
sound alarm when ····

Any door is opened.

Check door switch

DLK-293

Check Intermittent Incident

GI-42

3

Vehicle security
alarm does not acti-
vate.

Horn alarm

Check horn

DLK-344

Check Intermittent Incident

GI-42

Head lamp alarm

Check head lamp alarm

SEC-321

Check Intermittent Incident

GI-42

4

Vehicle security sys-
tem cannot be can-
celed by ····

Door outside key

Check key cylinder switch

SEC-315

Check Intermittent Incident

GI-42

Intelligent Key

Check Intelligent Key

DLK-340

Check Intermittent Incident

GI-42

VEHICLE SECURITY SYSTEM SYMPTOMS

SEC-407

< SYMPTOM DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

SEC

N

O

P

VEHICLE SECURITY SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000004206351

*: Check that the system is in the armed phase.

Procedure

Diagnostic procedure

Refer to page

Symptom

1

Vehicle security sys-

tem cannot be set by

····

Door switch

Check door switch

DLK-293

Trunk

Check trunk room lamp switch

DLK-316

Door outside key

Check key cylinder switch

SEC-315

Intelligent Key

Check Intelligent Key.

DLK-340

—

Check Intermittent Incident

GI-42

Security indicator does not turn ON.

Check vehicle security indicator

SEC-323

SEC-408

< SYMPTOM DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

Symptom Table

INFOID:0000000004206352

Security indicator does not turn ON or flash.

CAUTION:

• Follow Trouble Diagnosis Flowchart referring to “

SEC-209, "Work Flow"

”. Determine malfunctioning

condition before performing this diagnosis.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagno-

sis.

• Check systems shown in the “Action” column in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

• Intelligent Key is not inserted into key slot.

• Engine switch is not depressed.

Action

Reference page

1. Check vehicle security indicator

SEC-323

2. Check Intermittent Incident

GI-42

KEY SLOT

SEC-409

< ON-VEHICLE REPAIR >

[SEDAN WITH INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ON-VEHICLE REPAIR

KEY SLOT

Removal and Installation

INFOID:0000000004206355

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect key slot connector.

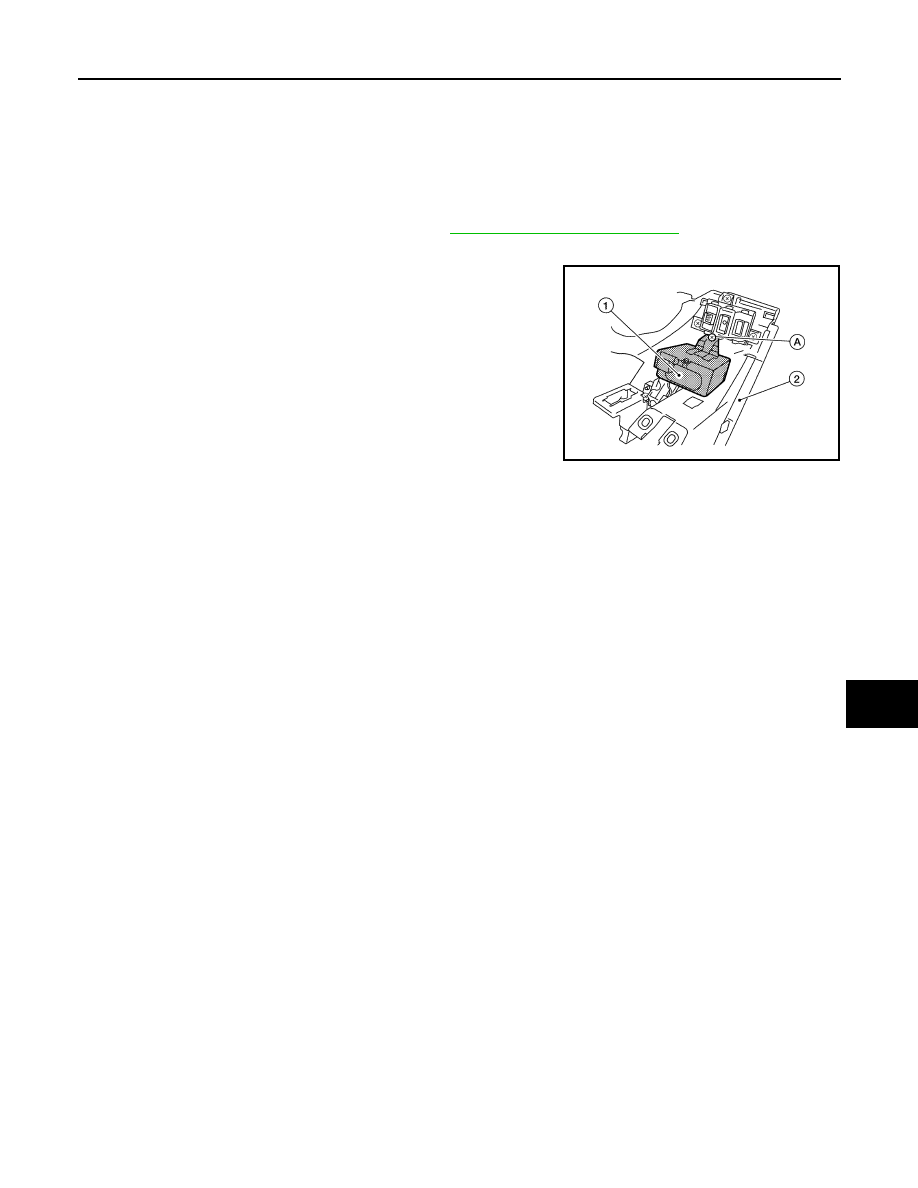

3. Remove the key slot screw (A), and then remove key slot (1)

from instrument lower panel LH (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA1495ZZ
