B210F PNP/CLUTCH INTERLOCK SWITCH

1. Turn ignition switch OFF.

2. Disconnect clutch interlock switch harness connector.

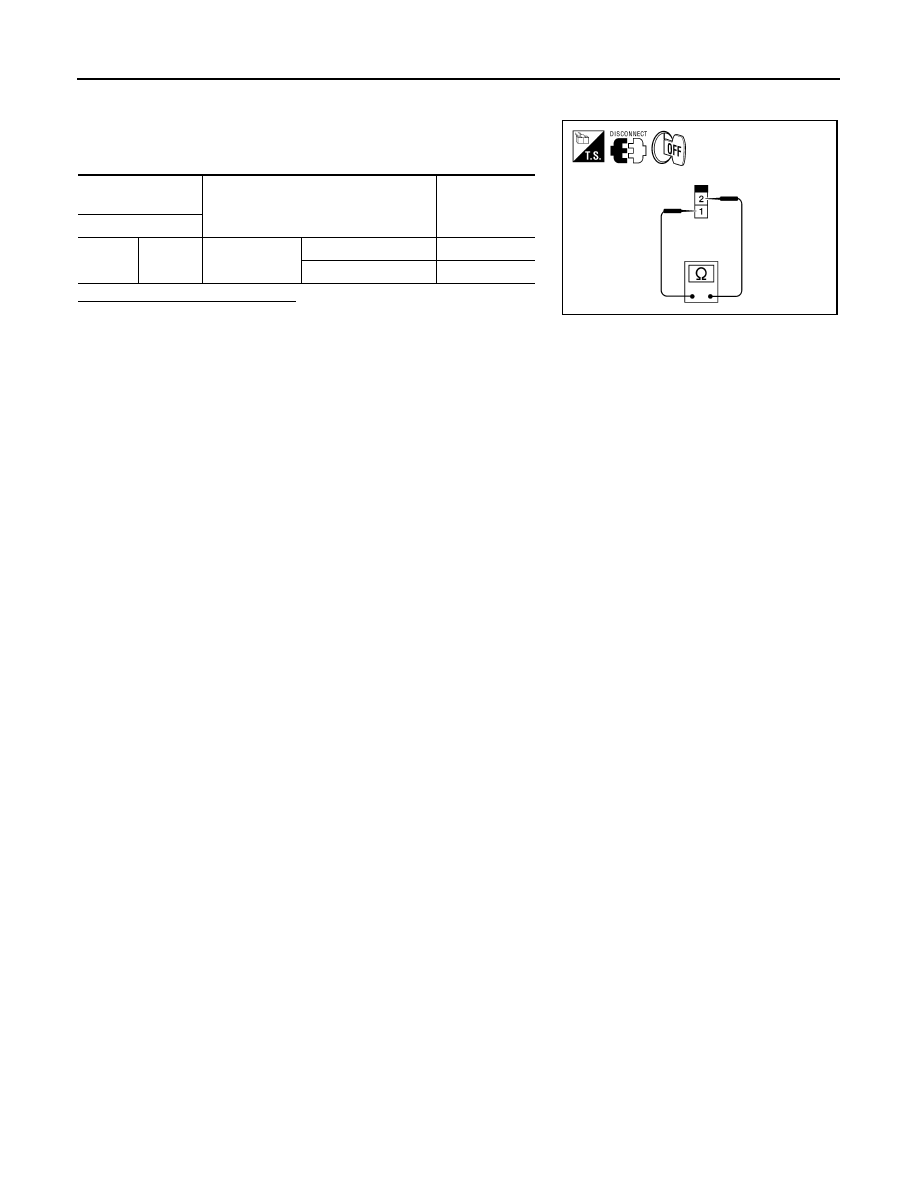

3. Check continuity between clutch interlock switch under the fol-

lowing conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace clutch interlock switch.

Clutch interlock

switch

Condition

Continuity

Terminal

1

2

Clutch pedal

Not depressed

No

Depressed

Yes

ALKIA1316ZZ

B2110 PNP/CLUTCH INTERLOCK SWITCH

SEC-59

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2110 PNP/CLUTCH INTERLOCK SWITCH

Description

INFOID:0000000004206126

IPDM E/R confirms the shift position with the following signals.

• Park/neutral position (PNP) switch (CVT models)

• Clutch inter lock switch (M/T models)

• Shift position signal from BCM (CAN)

DTC Logic

INFOID:0000000004206127

DTC DETECTION LOGIC

NOTE:

• If DTC B2110 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-36, "DTC Logic"

.

• If DTC B2110 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-37, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn the ignition switch ON under the following conditions and wait for at least 1 second.

-

CVT selector lever is in the P or N position

-

Do not depress the brake pedal

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-59, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004206128

1.

INSPECTION START

Check which type of transmission the vehicle is equipped with.
Which type of transmission

CVT

>> GO TO 2

M/T

>> GO TO 5

2.

CHECK DTC WITH BCM

Refer to

BCS-91, "DTC Index"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning parts.

3.

CHECK PNP SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Turn ignition switch ON.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2110

INTER LOCK/PNP
SW

IPDM E/R detects mismatch between the signals
below for 1 second or more.
• Clutch interlock input signal (M/T models)
• Shift NP switch input signal (CVT models)

• Harness or connectors

[Park/neutral position (PNP) switch
circuit is open or shorted (CVT mod-
els)] or (Clutch interlock switch circuit
is open or shorted.)

• Clutch inter lock switch (MT models)
• Park/neutral position (PNP) switch

(CVT models)

SEC-60

< COMPONENT DIAGNOSIS >

[COUPE]

B2110 PNP/CLUTCH INTERLOCK SWITCH

4. Check voltage between IPDM E/R harness connector and

ground under following condition.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and

Installation"

.

NO

>> (VQ35DE) GO TO 4

NO

>> (QR25DE) GO TO 10

4.

CHECK PNP SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect TCM harness connector.

3. Check continuity between IPDM E/R harness connector and

TCM harness connector.

4. Check continuity between TCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 13

NO

>> Repair harness or connector.

5.

CHECK CLUTCH INTERLOCK SWITCH INPUT SIGNAL (BCM)

1. Turn ignition switch OFF.

2. Disconnect BCM harness connector.

3. Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 7

6.

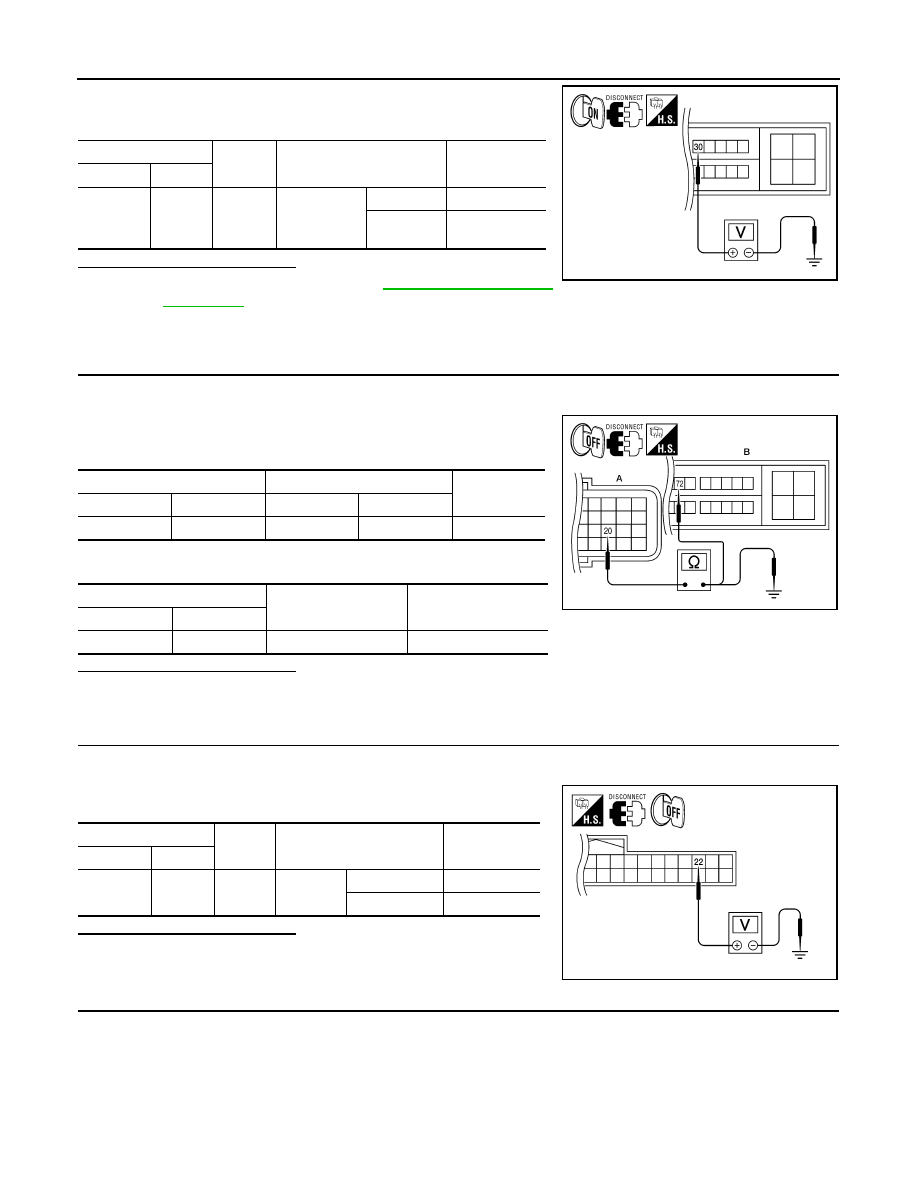

CHECK CLUTCH INTERLOCK SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Turn ignition switch ON.

IPDM E/R

Ground

Condition

Voltage (V)

Connector Terminal

E18

30

Ground

CVT selector

lever

P or N

0

Other than

above

Battery voltage

ALKIA1308ZZ

TCM

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: F16

20

B: E18

72

Yes

TCM

Ground

Continuity

Connector

Terminal

A: F16

20

Ground

No

ALKIA1309ZZ

BCM

Ground

Condition

Voltage (V)

Connector

Terminal

M18

22

Ground

Clutch

pedal

Not depressed

0

Depressed

Battery voltage

ALKIA1310ZZ

B2110 PNP/CLUTCH INTERLOCK SWITCH

SEC-61

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

4. Check voltage between IPDM E/R harness connector and

ground.

Is the inspection result normal?

YES

>> Replace the IPDM E/R. Refer to

PCS-48, "Removal and

Installation"

.

NO

>> Check harness for open between clutch interlock switch and IPDM E/R.

7.

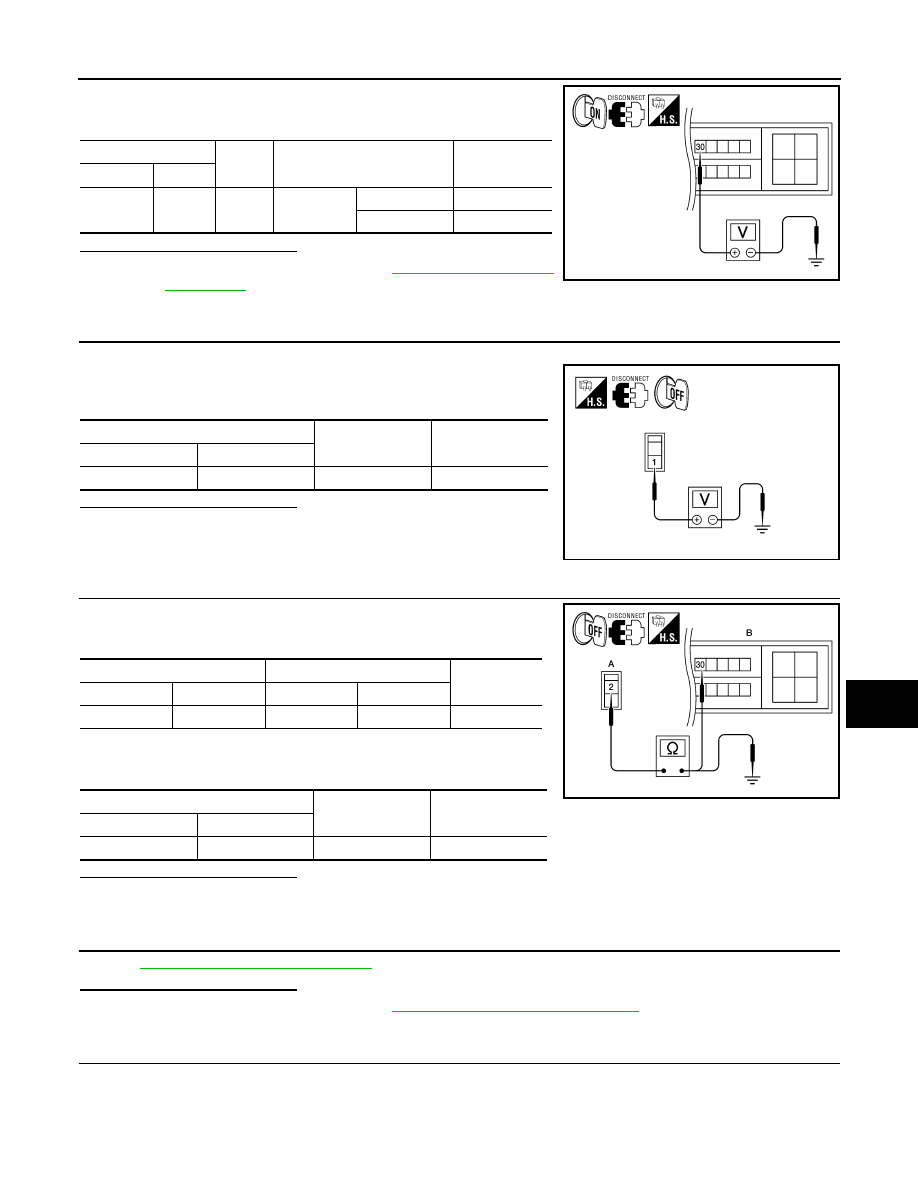

CHECK CLUTCH INTERLOCK SWITCH POWER SUPPLY

1. Disconnect clutch interlock switch harness connector.

2. Check voltage between clutch interlock switch harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 8

NO

>> Check harness for open or short between clutch inter-

lock switch and fuse.

8.

CHECK CLUTCH INTERLOCK SWITCH CIRCUIT

1. Check continuity between IPDM E/R harness connector and

clutch interlock switch harness connector.

2. Check continuity between clutch interlock switch harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 9

NO

>> Repair harness or connector.

9.

CHECK CLUTCH INTERLOCK SWITCH

Refer to

SEC-62, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace the IPDM E/R. Refer to

PCS-48, "Removal and Installation"

.

NO

>> Replace clutch interlock switch.

10.

CHECK PNP SWITCH CIRCUIT FOR CONTINUITY

1. Turn ignition switch OFF.

IPDM E/R

Ground

Condition

Voltage (V)

Connector Terminal

E18

30

Ground

Clutch pedal

Not depressed

0

Depressed

Battery voltage

ALKIA1308ZZ

Clutch interlock switch

Ground

Voltage (V)

Connector

Terminal

E36

1

Ground

Battery voltage

ALKIA1311ZZ

Clutch interlock switch

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: E36

2

B: E18

30

Yes

Clutch interlock switch

Ground

Continuity

Connector

Terminal

A: E36

2

Ground

No

ALKIA1312ZZ
