INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

• The ignition switch is in the ACC position

• All doors are closed

• CVT selector lever is in the P position

• No Intelligent Key failures (Intelligent Key warning indicator is not ON)

Reset Condition of Battery Saver System

CVT models

In order to prevent the battery from discharging, the battery saver system will cut off the power supply when all

doors are closed, the selector lever is on P position and the ignition switch is left on ACC position for 1 hour. If

any of the following conditions are met the battery saver system is released and the steering will change auto-

matically to lock position from OFF position.

• Opening any door

• Operating with request switch on door lock

• Operating with Intelligent Key on door lock

Press push-button ignition switch and ignition switch will change to ACC position from OFF position.

M/T models

If any of the conditions above is met the battery saver system is released but the steering will not lock.

In this case, the steering operation OFF to LOCK is prohibited.

STEERING LOCK OPERATION

Steering is locked by steering lock unit when ignition switch is in the OFF position, CVT selector lever is in the

P position and any of the following conditions are met.

• Opening door

• Closing door

• Door is locked with request switch

• Door is locked with Intelligent Key

PUSH-BUTTON IGNITION SWITCH OPERATION PROCEDURE

The power supply position changing operation can be performed with the following operations.

NOTE:

• When an Intelligent Key is within the detection area of inside key antenna or when it is inserted to the key

slot, it is equivalent to the operations below.

• When starting the engine, the BCM monitors under the engine start conditions,

- Brake pedal operating condition (CVT models)

- CVT selector lever position (CVT models)

- Clutch pedal operating condition (M/T models)

- Vehicle speed

- Steering lock condition

- Engine status

• Unless each start condition is fulfilled, the engine will not respond regardless of how many times the engine

switch is pressed. At that time, illumination repeats the position in the order of LOCK

→ACC→ON→OFF.

Power supply position

Engine start/stop condition

Push-button ignition switch op-

eration frequency

Brake pedal (CVT)
/clutch pedal (M/T)

CVT selector lever position

LOCK

→ ACC

Not depressed

Any position

1

LOCK

→ ACC → ON

Not depressed

Any position

2

LOCK

→ ACC → ON →

OFF

Not depressed

Any position

3

LOCK

→ START

ACC

→ START

ON

→ START

(Engine start)

Depressed

P or N position (*1)

1

[If the switch is pressed once,

the engine starts from any pow-
er supply position (LOCK, ACC,

and ON)]

Engine is running

→

OFF
(Engine stop)

Any position

Vehicle speed < 4 km/h (2 MPH)

1

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-19

< FUNCTION DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

*1: When the CVT selector lever position is N position, the engine start condition is different according to the vehicle speed.
• At vehicle speed of 4 km/h (2 MPH) or less, the engine can start only when the brake pedal is depressed.
• At vehicle speed of 4 km/h (2 MPH) or more, the engine can start even if the brake pedal is not depressed. (It is the same as “Engine

stall return operation while driving”.)

*2: When the CVT selector lever position is in any position other than P position and when the vehicle speed is 5 km/h (3 MPH) or more,
the engine stop condition is different.
• Press and hold the push-button ignition switch for 2 seconds or more. (When the push-button ignition switch is pressed for too short a

time, the operation may be invalid, so properly press and hold to prevent an incorrect operation.)

• Press the push-button ignition switch 3 times or more within 1.5 seconds. (Emergency stop operation)

Engine is running

→

ACC
(Engine stop)

Any position other than P (*2)

1

Engine stall return oper-
ation while driving

P position

1

Power supply position

Engine start/stop condition

Push-button ignition switch op-

eration frequency

Brake pedal (CVT)
/clutch pedal (M/T)

CVT selector lever position

SEC-20

< FUNCTION DIAGNOSIS >

[COUPE]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

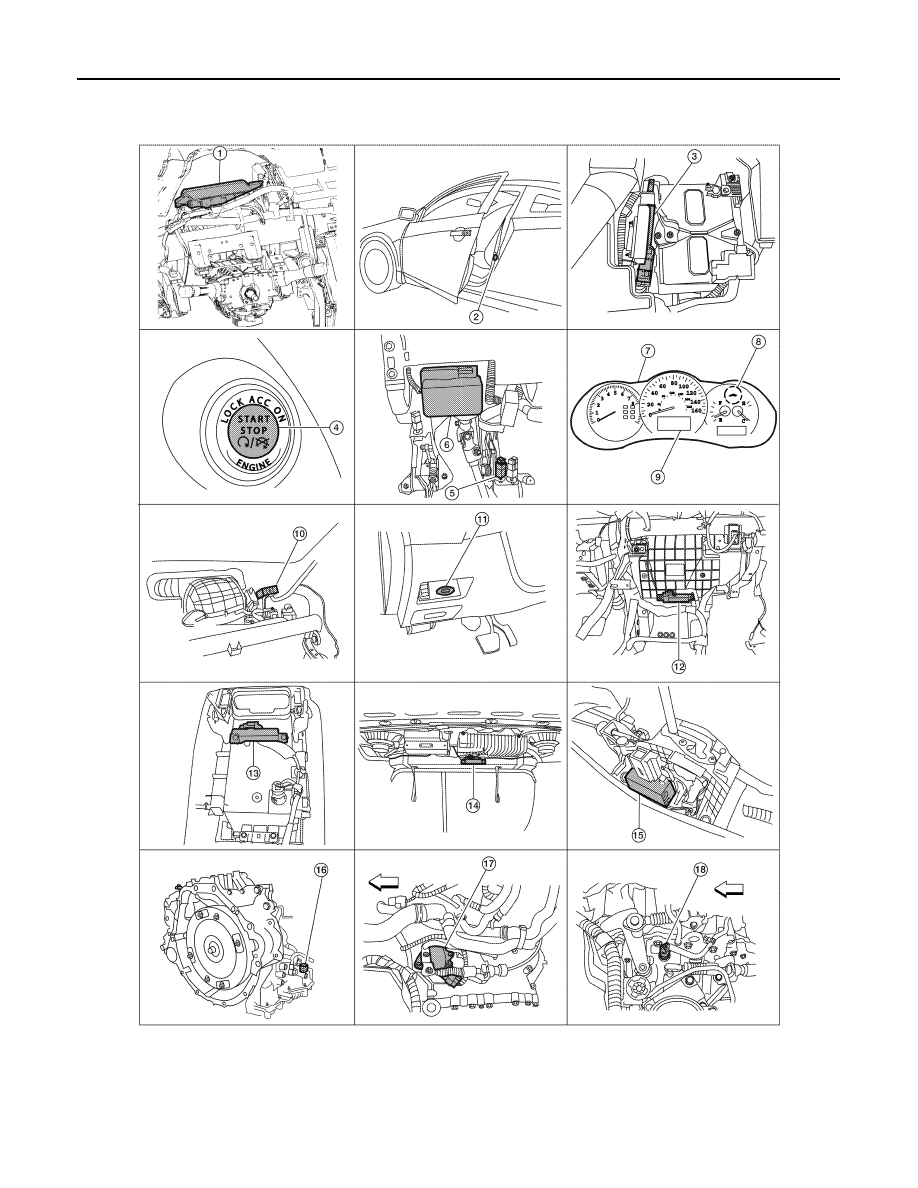

Component Parts Location

INFOID:0000000004205991

ALKIA1299ZZ

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-21

< FUNCTION DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000004205992

1.

Body control module M16, M17, M18,
M19, M21
(view with instrument panel removed)

2.

Door switch LH B8
RH B108

3.

ECM E10

4.

Push button ignition switch M38

5.

Stop lamp switch E38
(view with lower driver instrument
panel removed)

6.

Electronic steering column lock M32
(steering column)

7.

Combination meter M24

8.

Security indicator lamp

9.

Information display

10. Remote keyless entry receiver M27

(view with instrument panel removed)

11. Key slot M40

12. Instrument panel antenna M49

(view with instrument panel removed)

13. Front console antenna M203

(bottom view of console)

14.  Rear parcel shelf antenna B29

15. CVT device (park position switch) M23

(with CVT)

16. Park neutral position switch connector

(TCM connector) F16
(with CVT/VQ)

17. Park neutral position switch F25

(with CVT/QR)

18. Park neutral position switch F32

(with M/T)

Component Reference

BCM

SEC-107

Steering lock unit

SEC-97

Push-button ignition switch

SEC-108

Door switch

DLK-69

CVT device (park position switch)

SEC-76

Inside key antenna

DLK-59

Remote keyless entry receiver

DLK-112

Stop lamp switch

SEC-70

Park/neutral position switch

SEC-84

Clutch switch

SEC-54

Steering lock relay

SEC-88

Starter relay

SEC-91

Starter control relay

SEC-75

Security indicator

SEC-124

Key warning lamp

SEC-123
