< ON-VEHICLE REPAIR >

[SEDAN]

FRONT SEAT

PASSENGER'S SEAT

13. Seat cushion frame

14. Manual seat lifter lever finisher

15. Manual seat recliner handle

16. Manual seat lifter lever

17. Manual seat outer finisher

18. Seat slide switch

19. Seat reclining switch

20. Power seat outer finisher

21. Seat switch assembly

22. LH seat bracket

23. Front seat finisher

24. Cushion bracket

25. Inner seat cover

26. Seat frame assembly

27. Cushion finishers

28. Rear leg covers

ALIIA0272GB

FRONT SEAT

SE-51

< ON-VEHICLE REPAIR >

[SEDAN]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000004206809

REMOVAL

CAUTION:

• Before removing the front seat, turn the ignition switch off, disconnect both battery terminals and

wait and least 3 minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.

• Always replace passenger seat cushion as an assembly with Occupant Classification System.

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

• When removing and installing, use shop cloths to protect the parts from damage where they may

interfere with other parts.

1. Slide the seat until the four seat bolts are visible and a tool can be inserted.
2. Disconnect the negative and positive battery terminals and wait at least 3 minutes.
3. Disconnect the harness connector for the side air bag module.
4. Disconnect the power seat harness connector and vehicle harness clip from the vehicle.
5. Remove the seat leg covers.
6. Remove the four seat bolts.

INSTALLATION

Installation is in the reverse order of removal.

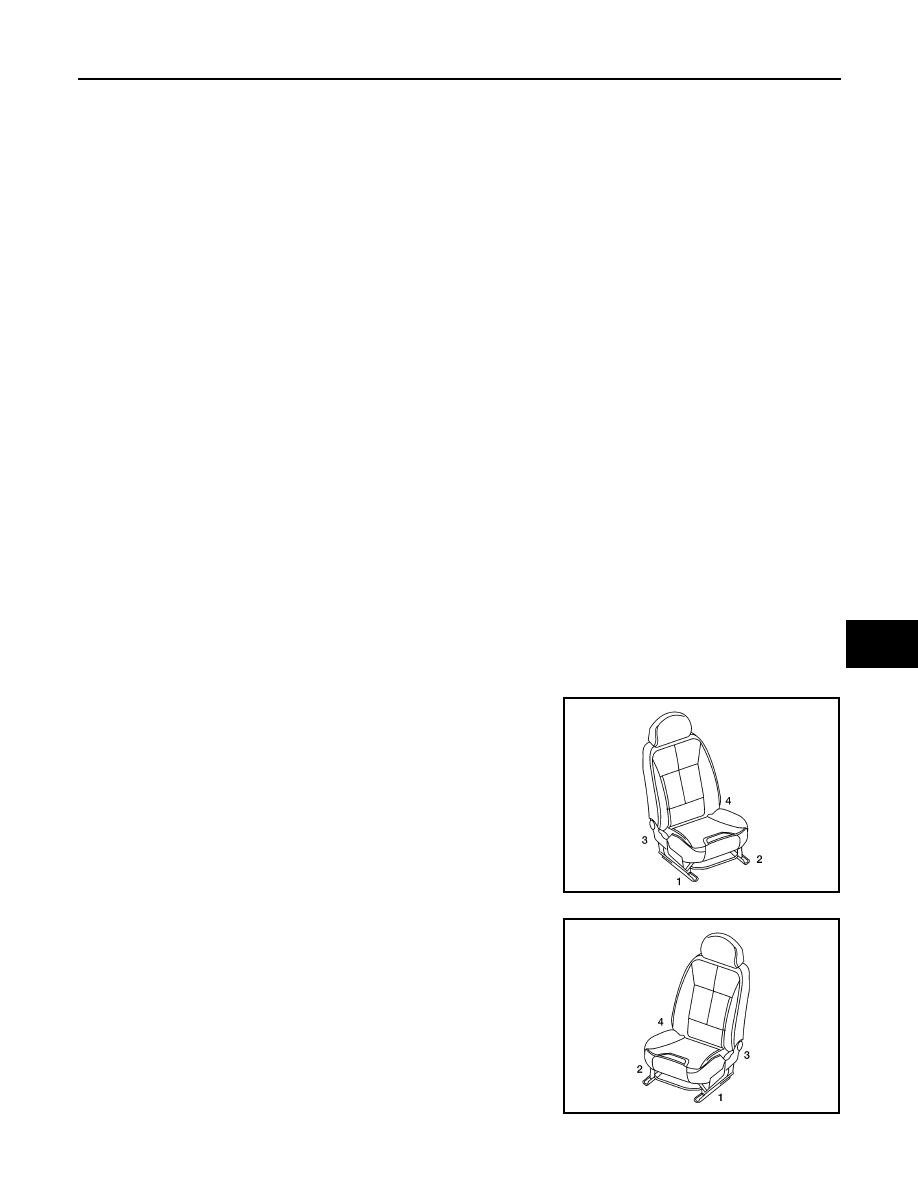

• When installing the LH front seats tighten the bolts as shown.

• When installing the RH front seats tighten the bolts as shown.

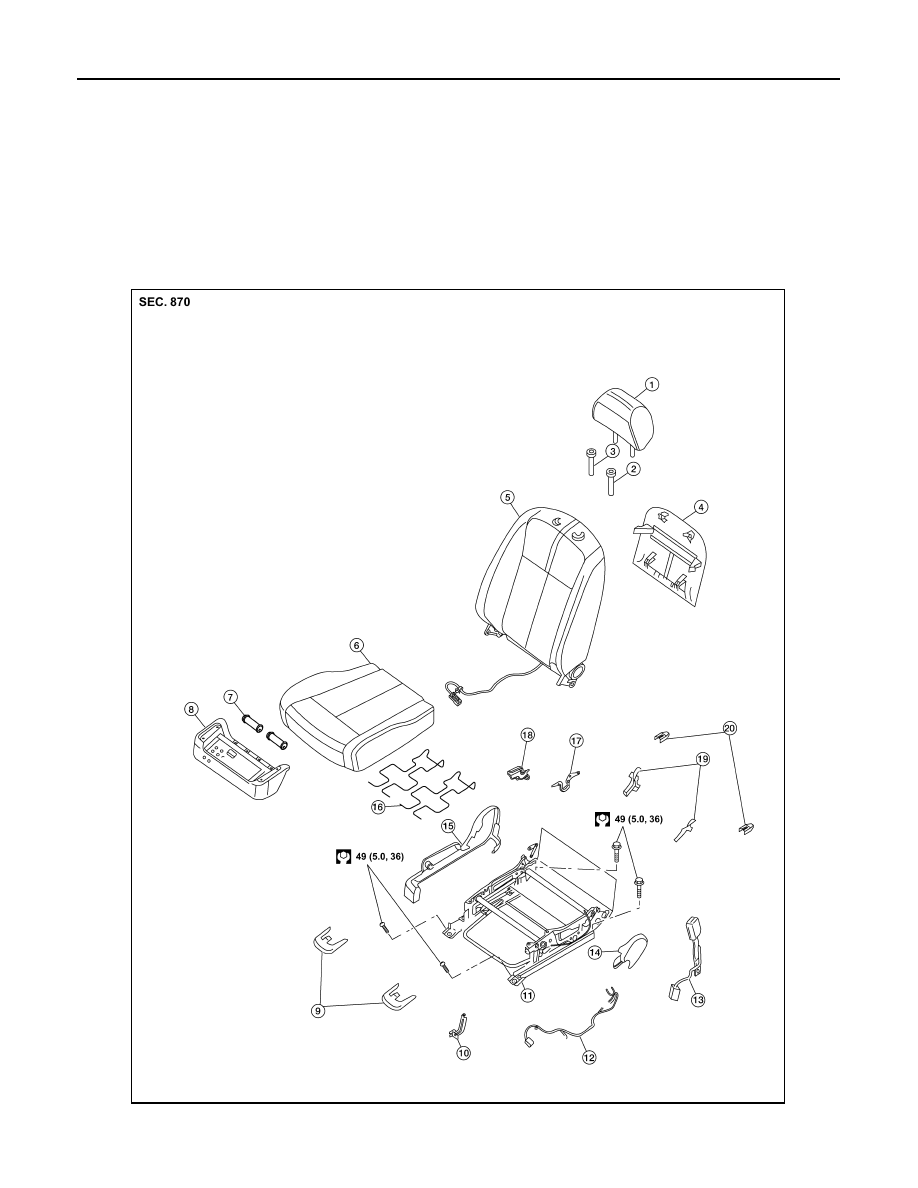

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Seatback assembly

6.

Seat cushion assembly

7.

Bushing

8.

Seat cushion frame assembly

9.

Front leg covers

10. Cushion bracket

11. Seat frame assembly

12. Seat harness

13. Seat belt buckle

14. Inner finisher

15. Outer finisher

16. Seat cushion supporter

17. Recliner mechanism

18. Finisher

19. Cushion finishers

20. Rear leg covers

LIIA2853E

LIIA2854E

SE-52

< ON-VEHICLE REPAIR >

[SEDAN]

REAR SEAT

REAR SEAT

Exploded View

INFOID:0000000004206810

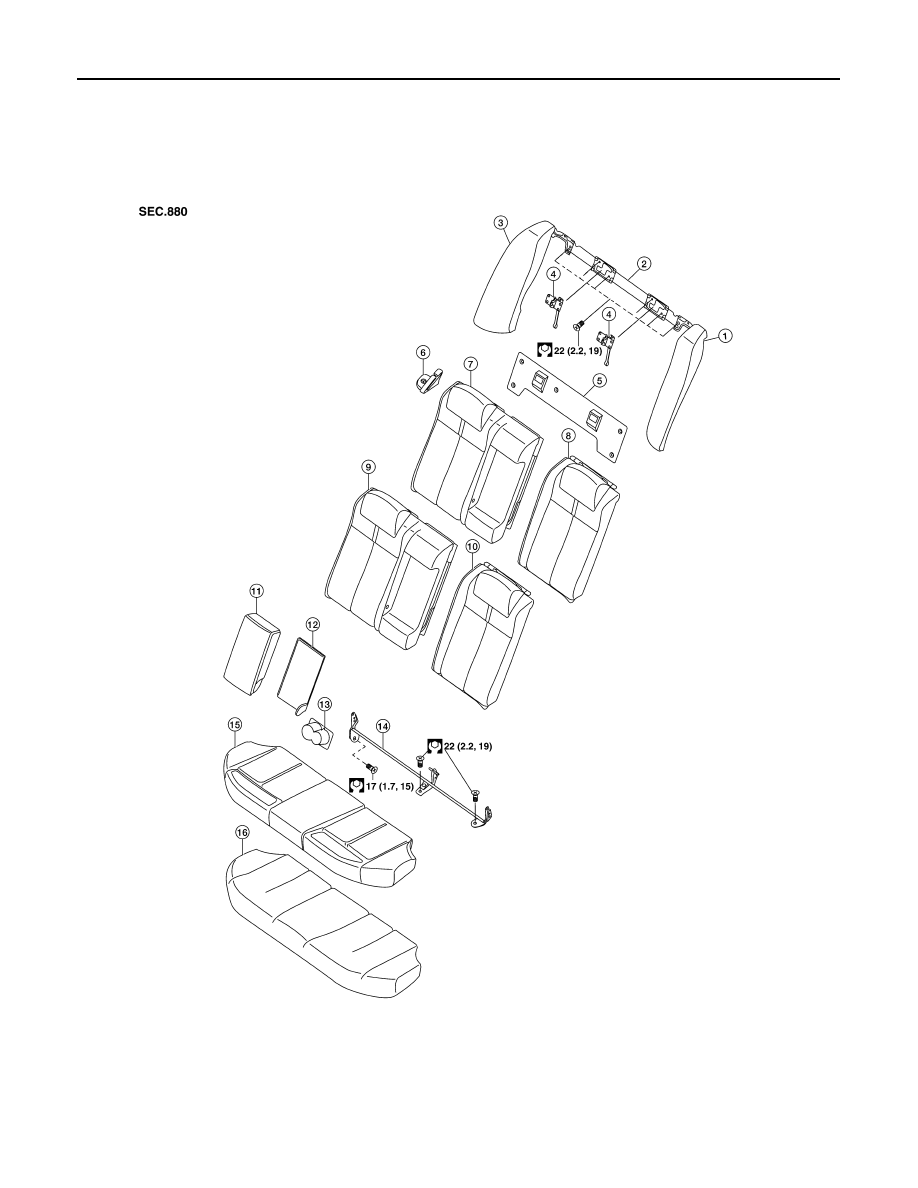

BENCH SEAT

1.

Rear seat side bolster assembly LH 2.

Rear seatback latch mount

3.

Rear seat side bolster assembly RH

4.

Rear seatback latch

5.

Rear seatback trim panel

6.

Seat belt guide

7.

Rear seatback pad RH

8.

Rear seatback pad LH

9.

Rear seatback pad trim RH

10. Rear seatback pad trim LH

11. Armrest

12. Armrest trim panel

ALIIA0028GB

REAR SEAT

SE-53

< ON-VEHICLE REPAIR >

[SEDAN]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000004206811

REMOVAL

1. Remove the rear seat cushion trim and pad.

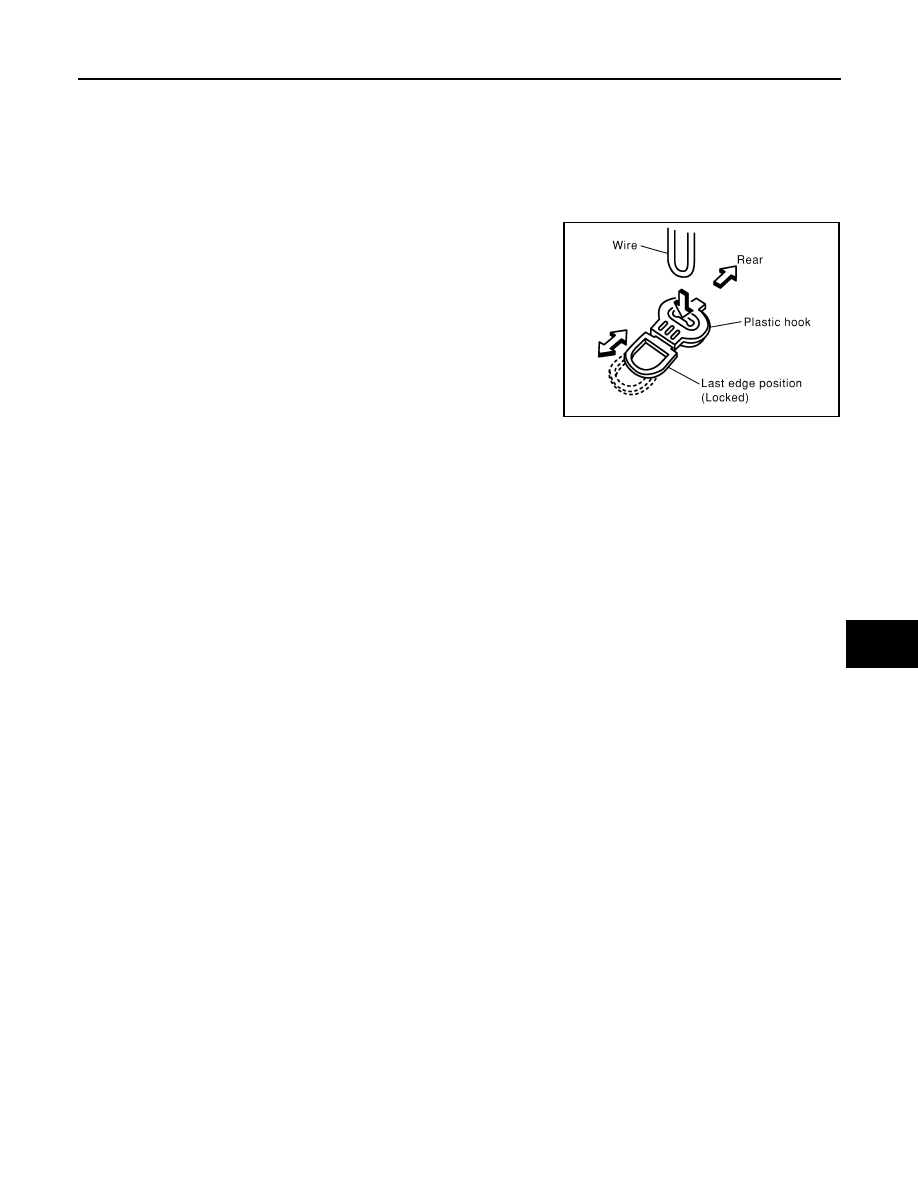

• Pull the lock at the front bottom of the seat cushion forward

(one for each side), and pull the seat cushion upward to

release the wire from the plastic hook, then pull the seat cush-

ion forward to remove.

2. Remove the seat belt webbing from the guides.
3. Fold seatbacks forward.
4. Remove upper seatback trim panel.
5. Remove rear side bolster bolts.
6. Lock seatbacks in upright position.
7. Remove the seatback hinge anchor bolts and nut.
8. Remove the seatback assembly.

INSTALLATION

Installation is in the reverse order of removal.

13. Cup holder

14. Rear seatback hinge assembly

15. Rear seat cushion trim

16. Rear seat cushion

SIIA0511E
