RF-10

< FUNCTION DIAGNOSIS >

SUNROOF SYSTEM

Front door switch

Detects front door open/close condition and transmits to BCM.

Combination meter

Transmits vehicle speed signal to sunroof motor assembly.

Component

Function

DIAGNOSIS SYSTEM (BCM)

RF-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function

INFOID:0000000004494649

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to

BCS-91, "DTC Index"

.

RETAIND PWR
RETAIND PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000004494650

Data monitor

Monitor Item

[Unit]

Description

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH.

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH.

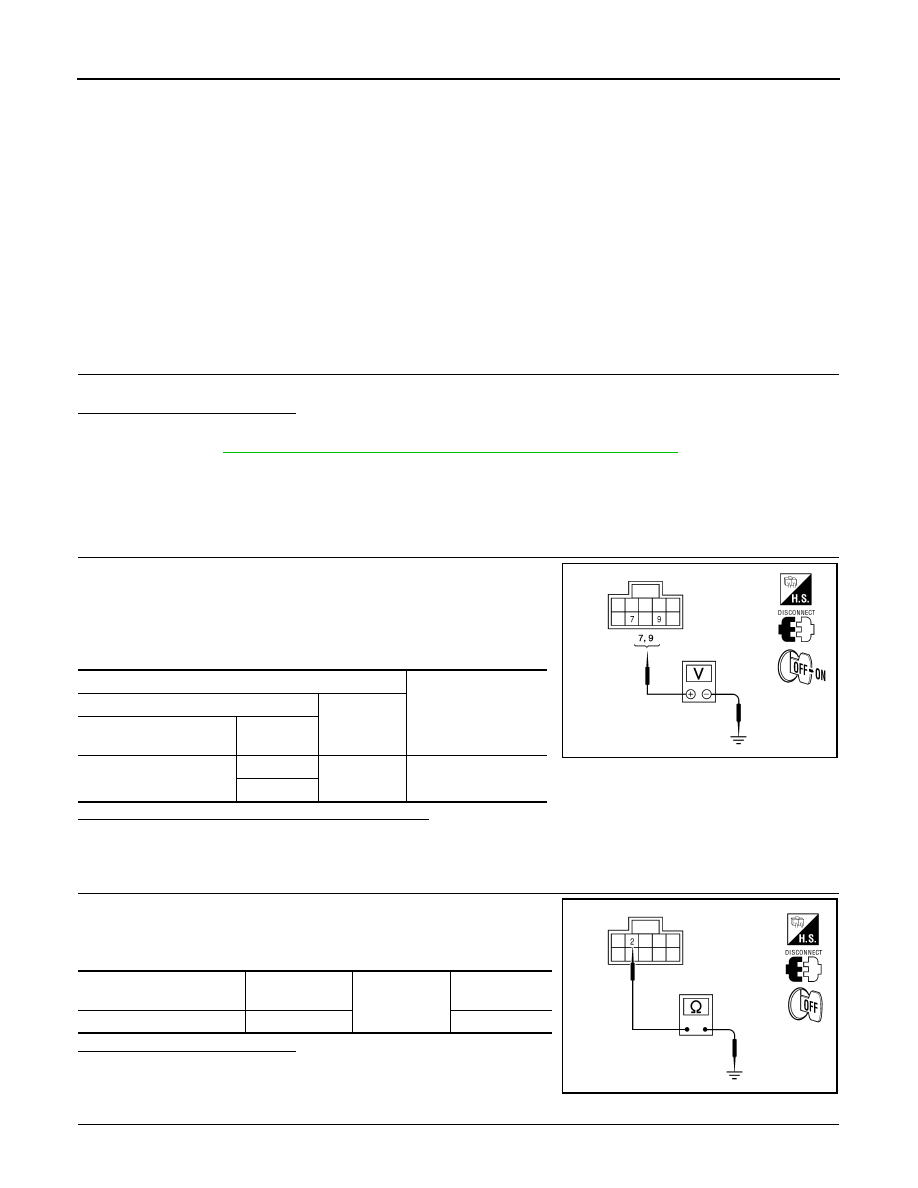

RF-12

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY : Description

INFOID:0000000004205532

• BCM supplies power.

• CPU is integrated in sunroof motor assembly.

• Tilts up/down & slides open/close by sunroof switch operation.

• In order to close sunroof lid certainly with the signal from combination meter at the time of high speed run,

the sunroof motor torque at the time of tilt-down operation is controlled.

SUNROOF MOTOR ASSEMBLY : Component Function Check

INFOID:0000000004205533

1.

 CHECK SUNROOF MOTOR FUNCTION

Do tilt up/down & slide open/close functions operate normally with sunroof switch?
Is the inspection result normal?

YES

>> Sunroof motor assembly is OK.

NO

>> Refer to

RF-12, "SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure"

.

SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure

INFOID:0000000004205534

SUNROOF MOTOR ASSEMBLY

1.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect sunroof motor assembly.

3. Turn ignition switch ON.

4. Check voltage between sunroof motor assembly connector and

ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> GO TO 3

2.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between sunroof motor assembly connector

and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Repair or replace harness.

3.

 CHECK SUNROOF MOTOR CIRCUIT

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Sunroof motor assembly

connector

Terminal

R5

7

Ground

Battery voltage

9

ALKIA0259ZZ

Sunroof motor assembly

connector

Terminal

Ground

Continuity

R5

2

Yes

ALKIA0260ZZ

POWER SUPPLY AND GROUND CIRCUIT

RF-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

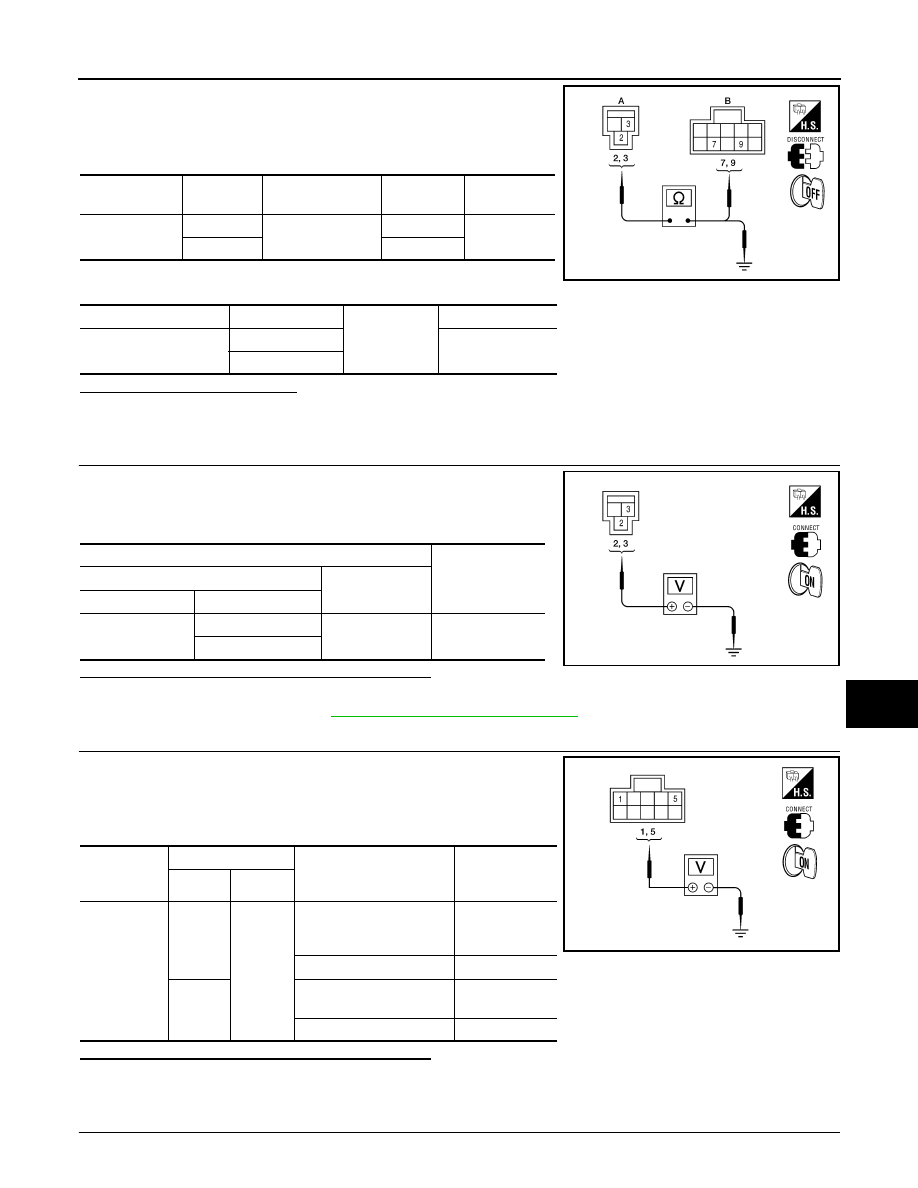

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check continuity between BCM connector (A) and sunroof

motor assembly connector (B).

4. Check continuity between BCM connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK BCM OUTPUT SIGNAL

1. Connect BCM.

2. Turn ignition switch ON.

3. Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> Check condition of harness and connector.

NO

>> Replace BCM. Refer to

BCS-96, "Removal and Installation"

.

5.

 CHECK SUNROOF SWITCH INPUT SIGNAL

1. Connect sunroof motor assembly.

2. Turn ignition switch ON.

3. Check voltage between sunroof motor assembly connector and

ground.

Is the measurement value within the specification?

YES

>> GO TO 8

NO

>> GO TO 6

6.

 CHECK SUNROOF SWITCH CIRCUIT

BCM connector

Terminal

Sunroof motor as-

sembly connector

Terminal

Continuity

M16 (A)

2

R5 (B)

7

Yes

3

9

BCM connector

Terminal

Ground

Continuity

M16 (A)

2

No

3

ALKIA0261ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M16

2

Ground

Battery voltage

3

ALKIA0262ZZ

Sunroof mo-

tor assembly

connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

R5

5

Ground

Sunroof switch is operated
TILT DOWN or SLIDE
OPEN

0

Other than above

Battery voltage

1

Sunroof switch is operated
TILT UP or SLIDE CLOSE

0

Other than above

Battery voltage

ALKIA0263ZZ
