Nissan Altima L32. Manual - part 116

AV-456

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000004498180

REMOVAL

1. Remove the room/map lamp assembly. Refer to

INL-121, "Removal and Installation"

.

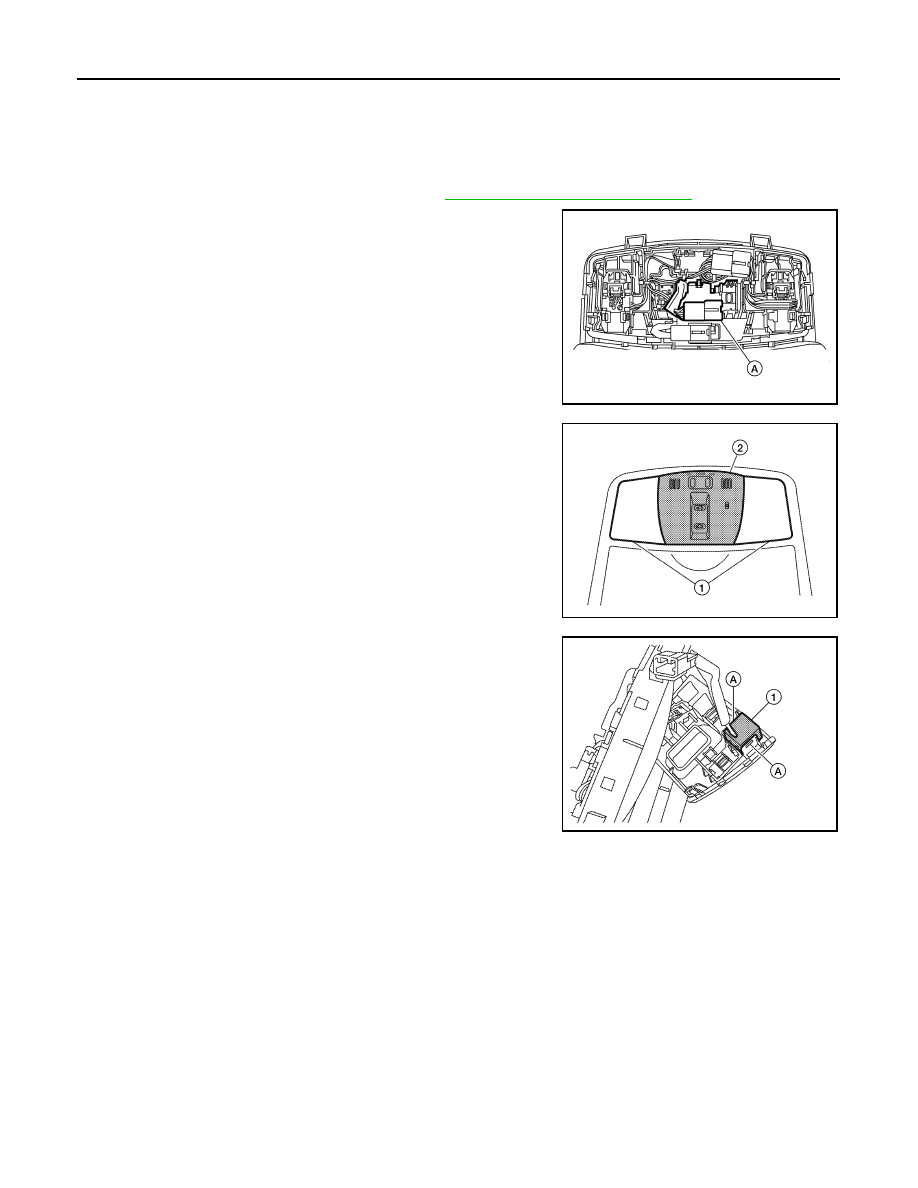

2. Detach the microphone connector (A).

3. Remove the map lamp covers (1), then remove the map lamp

assembly cover (2).

4. Release the microphone tabs (A), then remove the microphone

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0928ZZ

ALNIA0929ZZ

ALNIA0930ZZ

AV

REAR VIEW CAMERA

AV-457

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000004206716

REMOVAL

1. Remove the license plate finisher. Refer to

EXT-23, "Removal and Installation"

 (coupe) and

EXT-46,

"Removal and Installation"

 (sedan).

2. Remove trunk lid finisher. Refer to

INT-22, "Exploded View"

.

3. Remove the rear view camera by performing the following:

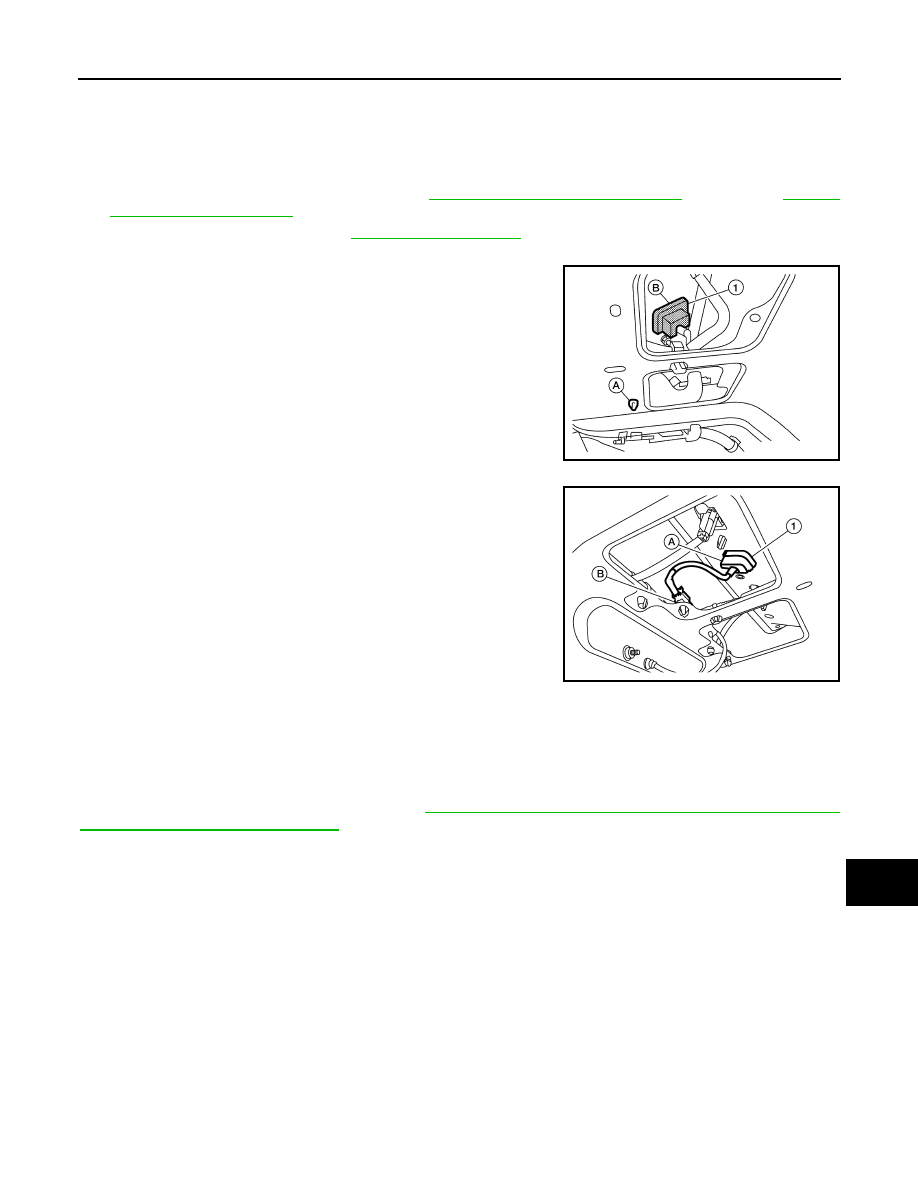

• For coupe models, release the clip (A), then pull out the rear

view camera connector, disconnect the rear view camera con-

nector, press the rear view camera tab (B) and remove the

rear view camera (1).

• For sedan models, disconnect the rear view camera connector

(B), press the rear view camera tab (A) and remove the rear

view camera (1).

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000004206717

REAR VIEW MONITOR

For adjustment on the rear view camera, refer to

AV-238, "REAR VIEW MONITOR GUIDING LINE ADJUST-

MENT : Special Repair Requirement"

.

ALNIA0926ZZ

ALNIA0062ZZ

AV-458

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

CAMERA CONTROL UNIT

CAMERA CONTROL UNIT

Removal and Installation - Coupe

INFOID:0000000004206718

REMOVAL

1. Disconnect the negative battery terminal.
2. Remove the trunk floor carpet and spare tire cover. Refer to

INT-23, "Removal and Installation"

.

3. Remove the LH trunk side finisher. Refer to

INT-23, "Removal and Installation"

.

4. Remove the LH trunk floor spacer.

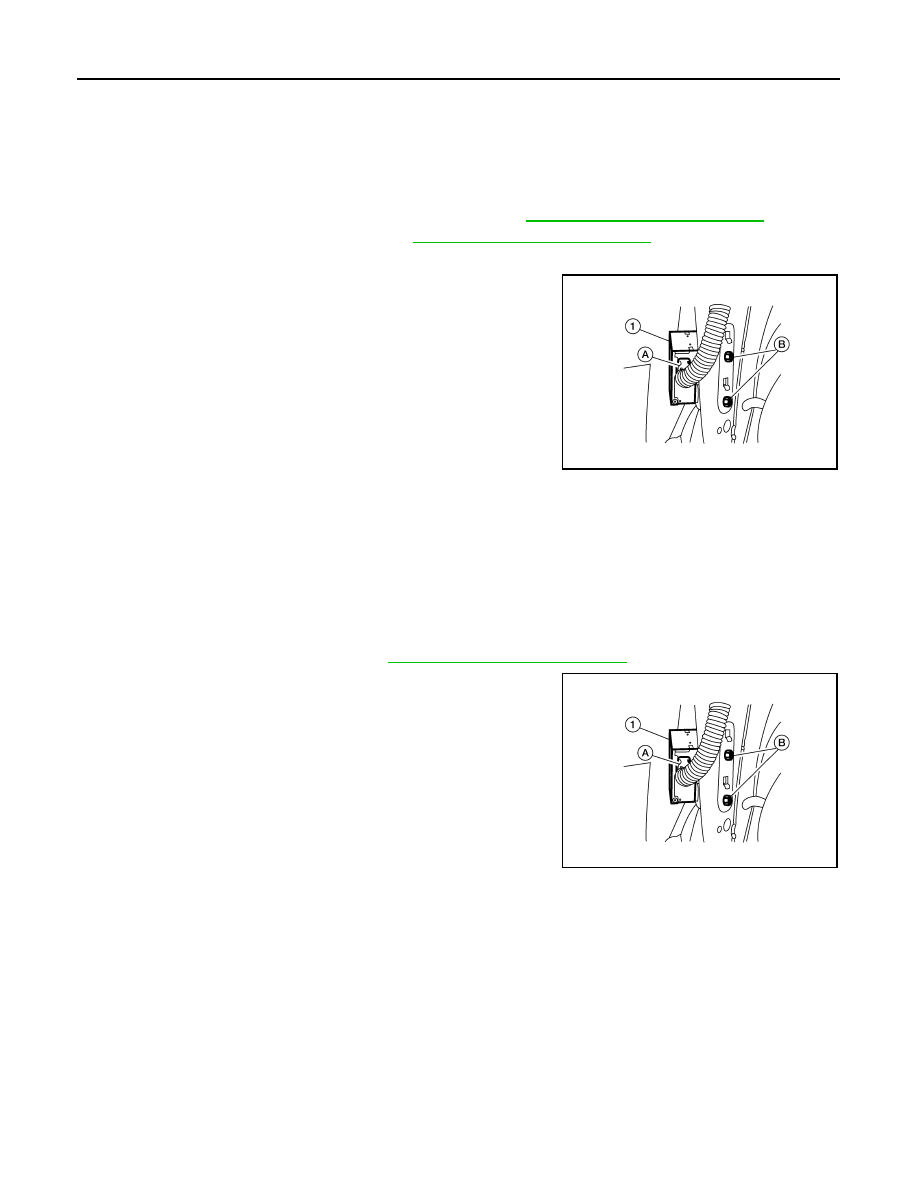

5. Disconnect the rear view camera control unit connector (A), then

remove the rear view camera control unit screws (B) and

remove the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004206719

REMOVAL

1. Disconnect the negative battery terminal.
2. Remove the trunk side finisher. Refer to

INT-46, "Removal and Installation"

.

3. Disconnect the rear view camera control unit connector (A), then

remove the rear view camera control unit screws (B) and

remove the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0063ZZ

ALNIA0063ZZ
