FRONT POWER WINDOW SWITCH

PWC-347

< ECU DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

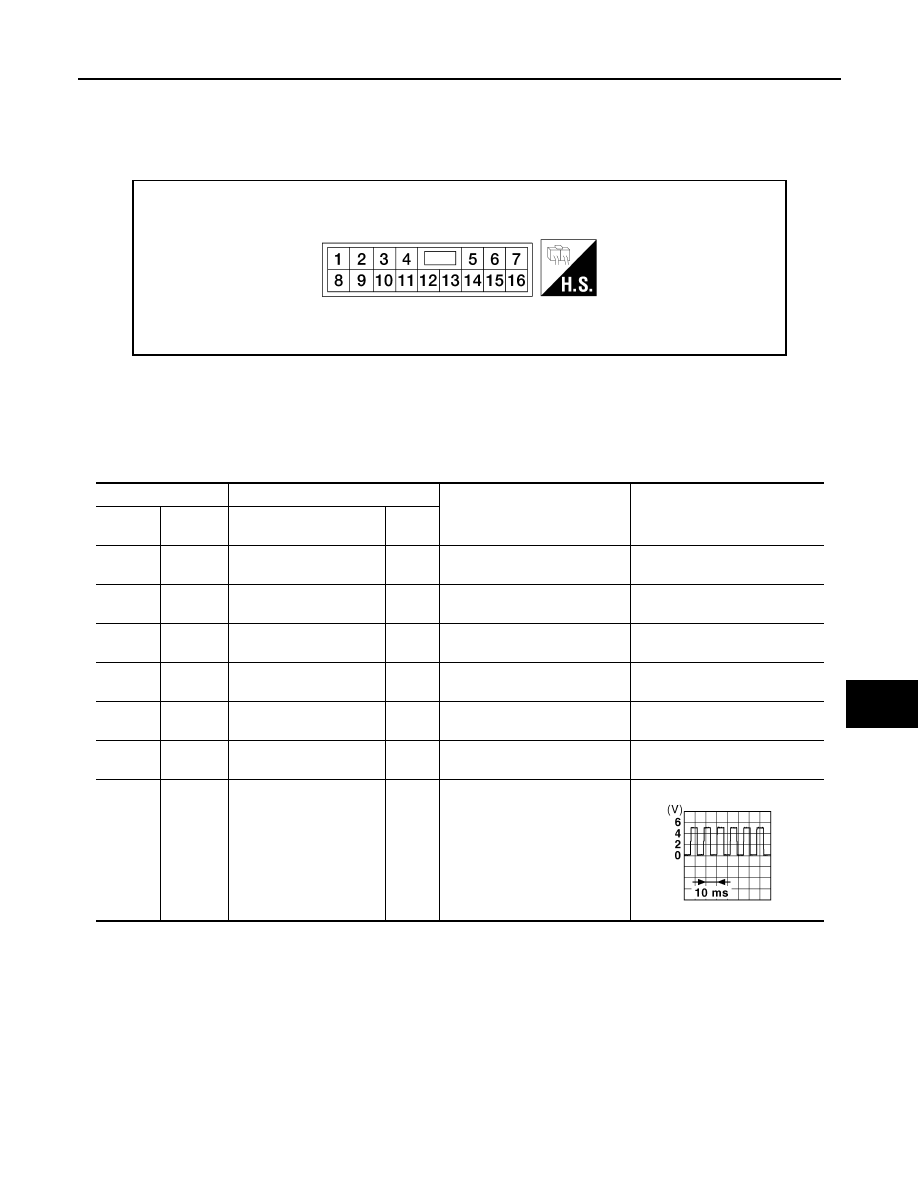

FRONT POWER WINDOW SWITCH

Reference Value

INFOID:0000000004205209

TERMINAL LAYOUT

PHYSICAL VALUES

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

LIIA2454E

Terminal No.

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

3

(W/B)

Ground

Encoder ground

—

—

0

4

(G/R)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer operates

10

8

(L/R)

9

Power window motor
UP signal

Output

When power window motor is
UP at operated.

 Battery voltage

9

(L/B)

8

Power window motor
DOWN signal

Output

When power window motor is
DOWN at operated.

Battery voltage

10

(R/Y)

Ground

Battery power supply

Input

—

Battery voltage

11

(B)

Ground

Ground

—

—

0

12

(G/Y)

3

Encoder pulse signal 1

Input

When power window motor op-
erates.

JMKIA0070GB

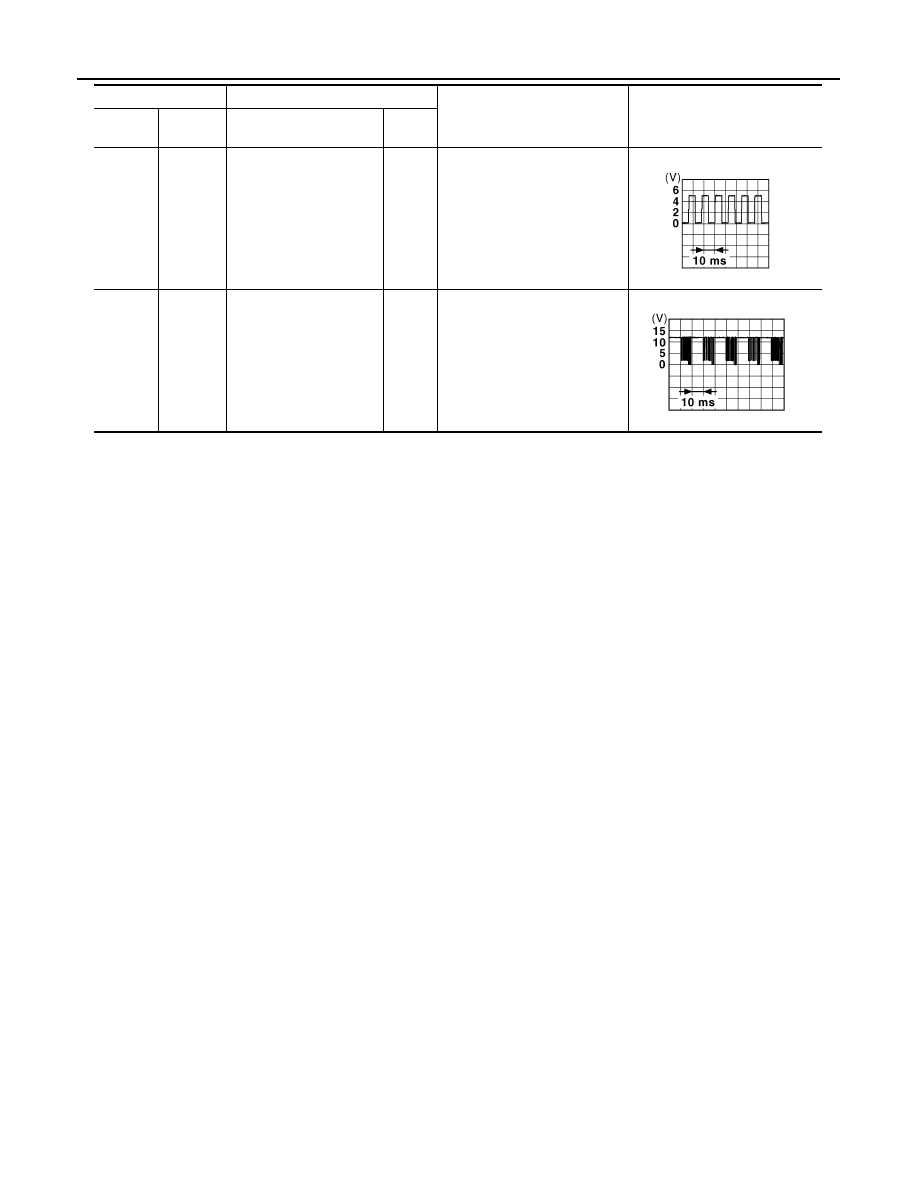

PWC-348

< ECU DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

FRONT POWER WINDOW SWITCH



15

(G/W)

3

Encoder pulse signal 2

Input

When power window motor op-
erates.

16

(Y/G)

Ground

Power window serial link

Input/

Output

IGN SW ON or power window
timer operating.

Terminal No.

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

FRONT POWER WINDOW SWITCH

PWC-349

< ECU DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

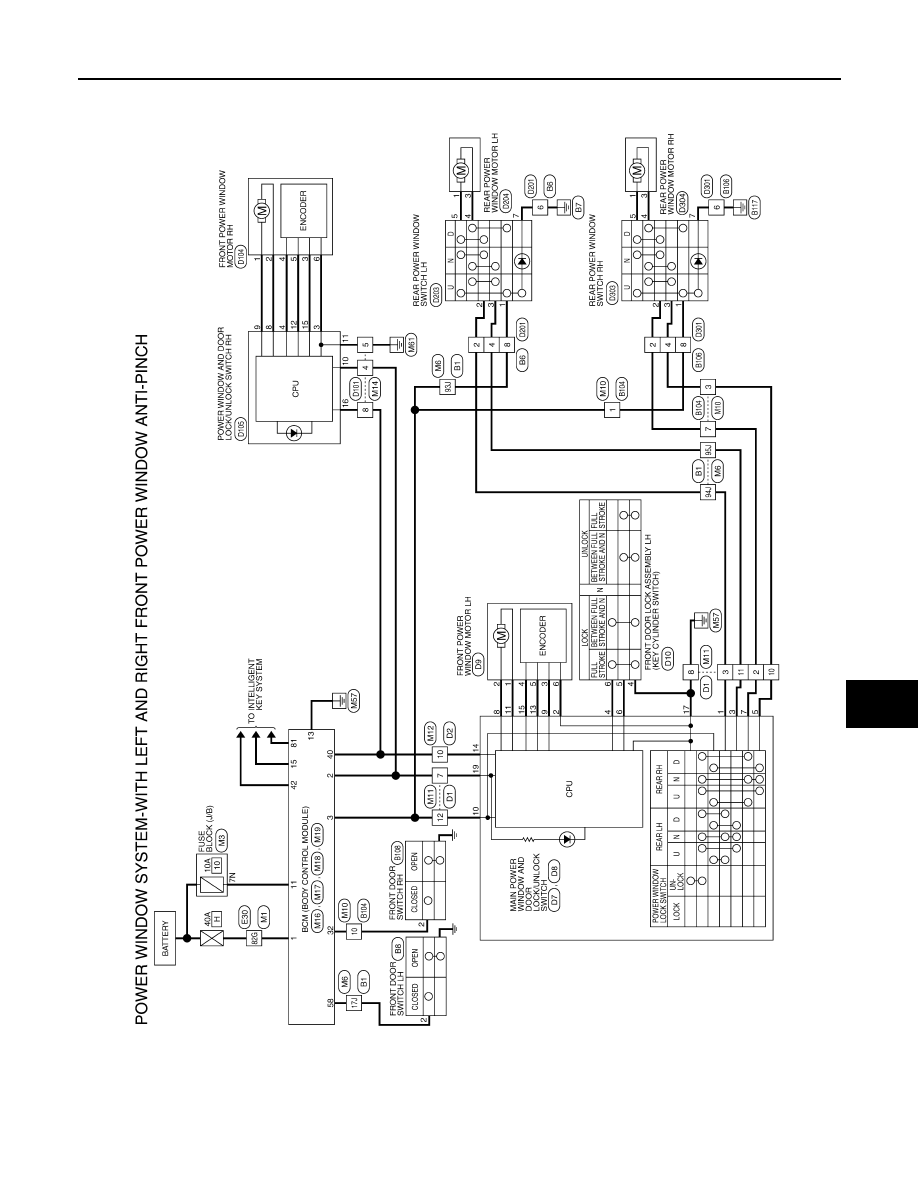

Wiring Diagram

INFOID:0000000004498325

ABKWA0180GB

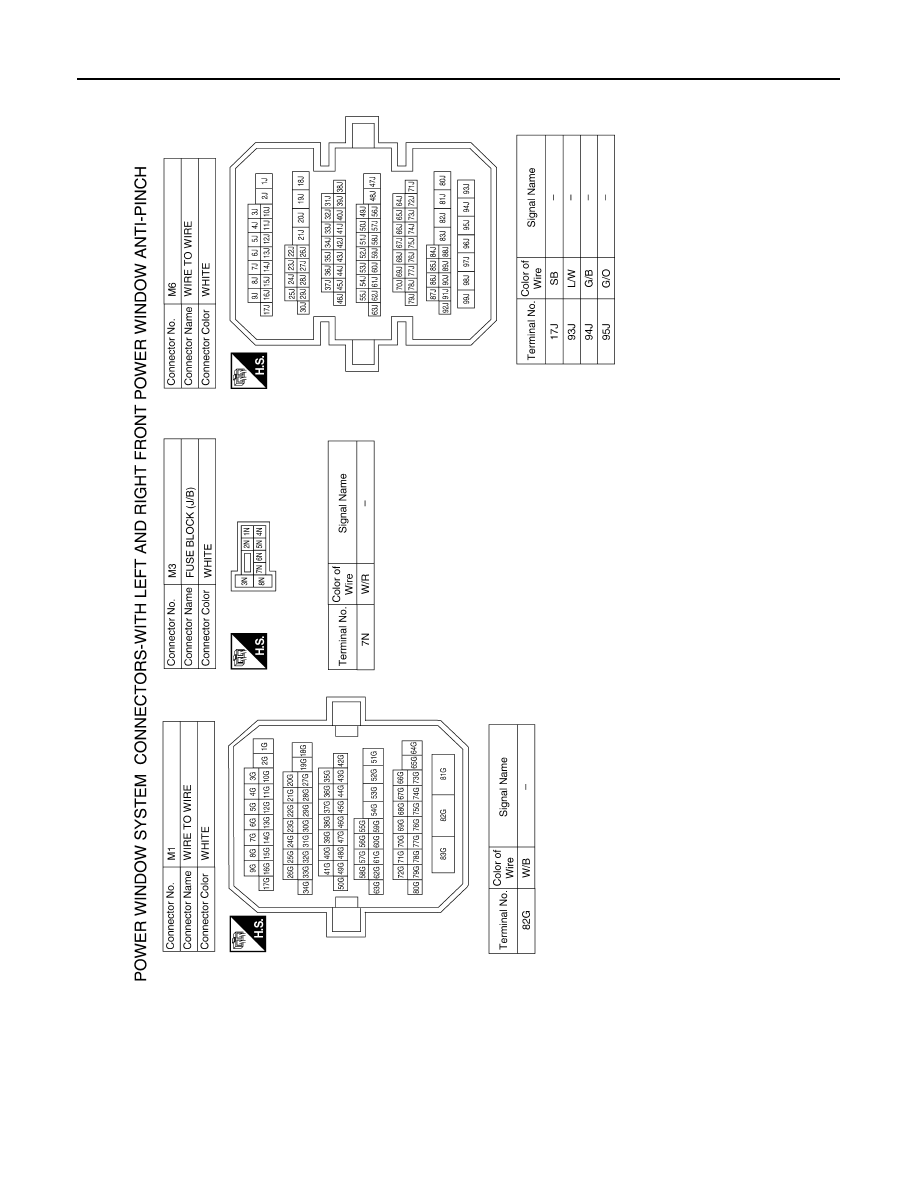

PWC-350

< ECU DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

FRONT POWER WINDOW SWITCH

ABKIA0594GB
