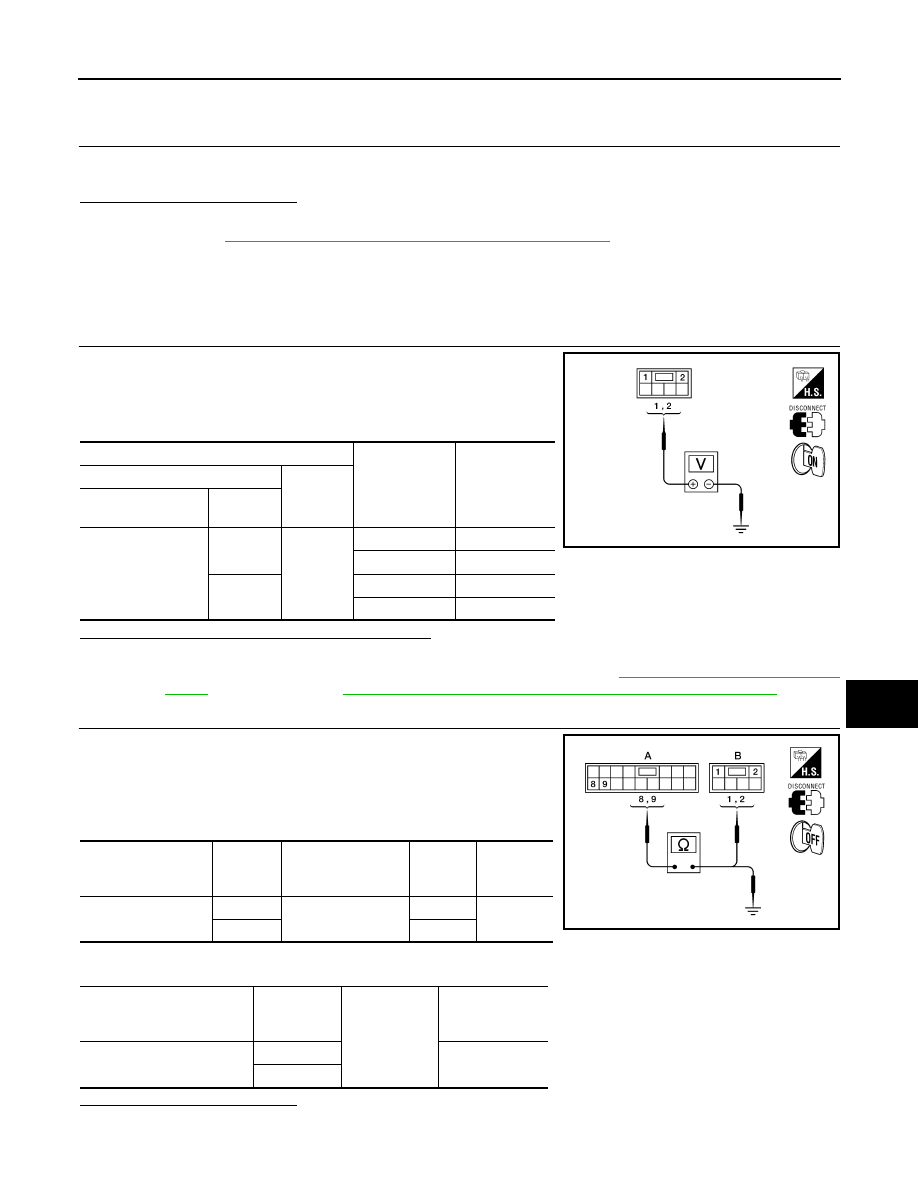

POWER WINDOW MOTOR

PWC-315

< COMPONENT DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

PASSENGER SIDE : Component Function Check

INFOID:0000000004205169

1.

 CHECK POWER WINDOW MOTOR CIRCIUT

Does power window motor operate with operating main power window and door lock/unlock switch or power

window and door lock/unlock switch RH?
Is the inspection result normal?

YES

>> Front power window motor RH is OK.

NO

>> Refer to

PWC-315, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000004205170

Front Power Window Motor RH Circuit Check

1.

 CHECK FRONT POWER WINDOW SWITCH RH OUTPUT SIGNAL

1. Disconnect front power window motor RH.

2. Turn ignition switch ON.

3. Check voltage between front power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Replace power window and door lock/unlock switch RH. Refer to

PWC-411, "Removal and Instal-

lation"

. After that, refer to

PWC-316, "PASSENGER SIDE : Special Repair Requirement"

.

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect power window and door lock/unlock switch RH.

3. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

4. Check continuity between power window and door lock/unlock switch RH connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

Terminal

Front power

window motor

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Front power window
motor RH connector

Terminal

D104

2

Ground

UP

Battery voltage

DOWN

0

1

UP

0

DOWN

Battery voltage

ALKIA0290ZZ

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

8

D104 (B)

2

Yes

9

1

Power window and door

lock/unlock switch RH con-

nector

Terminal

Ground

Continuity

D105 (A)

8

No

9

ALKIA0481ZZ

PWC-316

< COMPONENT DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

POWER WINDOW MOTOR

NO

>> Repair or replace harness.

3.

 CHECK FRONT POWER WINDOW MOTOR RH

Check front power window motor RH.

Refer to

PWC-316, "PASSENGER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace front power window motor RH. Refer to

GW-19, "Removal and Installation"

. After that,

refer to

PWC-316, "PASSENGER SIDE : Special Repair Requirement"

.

PASSENGER SIDE : Component Inspection

INFOID:0000000004205171

COMPONENT INSPECTION

1.

 CHECK FRONT POWER WINDOW MOTOR RH

Does motor operate by connecting the battery voltage directly to front power window motor RH?

Is the inspection result normal?

YES

>> Front power window motor RH is OK.

NO

>> Replace front power window motor RH. Refer to

GW-19, "Removal and Installation"

. After that,

refer to

PWC-316, "PASSENGER SIDE : Special Repair Requirement"

.

PASSENGER SIDE : Special Repair Requirement

INFOID:0000000004205172

1.

 PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

Refer to

PWC-295, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

2.

 CHECK ANTI-PINCH OPERATION

Check anti-pinch operation.

Refer to

PWC-295, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

PWC-322, "PASSENGER SIDE : Component Function Check"

.

REAR LH
REAR LH : Description

INFOID:0000000004205173

Door glass moves UP/DOWN by receiving the signal from power window main switch or rear power window

switch LH.

REAR LH : Component Function Check

INFOID:0000000004205174

1.

 CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

Does rear power window motor LH operate with main power window and door lock/unlock switch or rear

power window switch LH?
Is the inspection result normal?

Terminal

Motor condition

(+)

(–)

1

2

DOWN

2

1

UP

POWER WINDOW MOTOR

PWC-317

< COMPONENT DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

YES

>> Rear power window motor LH is OK.

NO

>> Refer to

PWC-317, "REAR LH : Diagnosis Procedure"

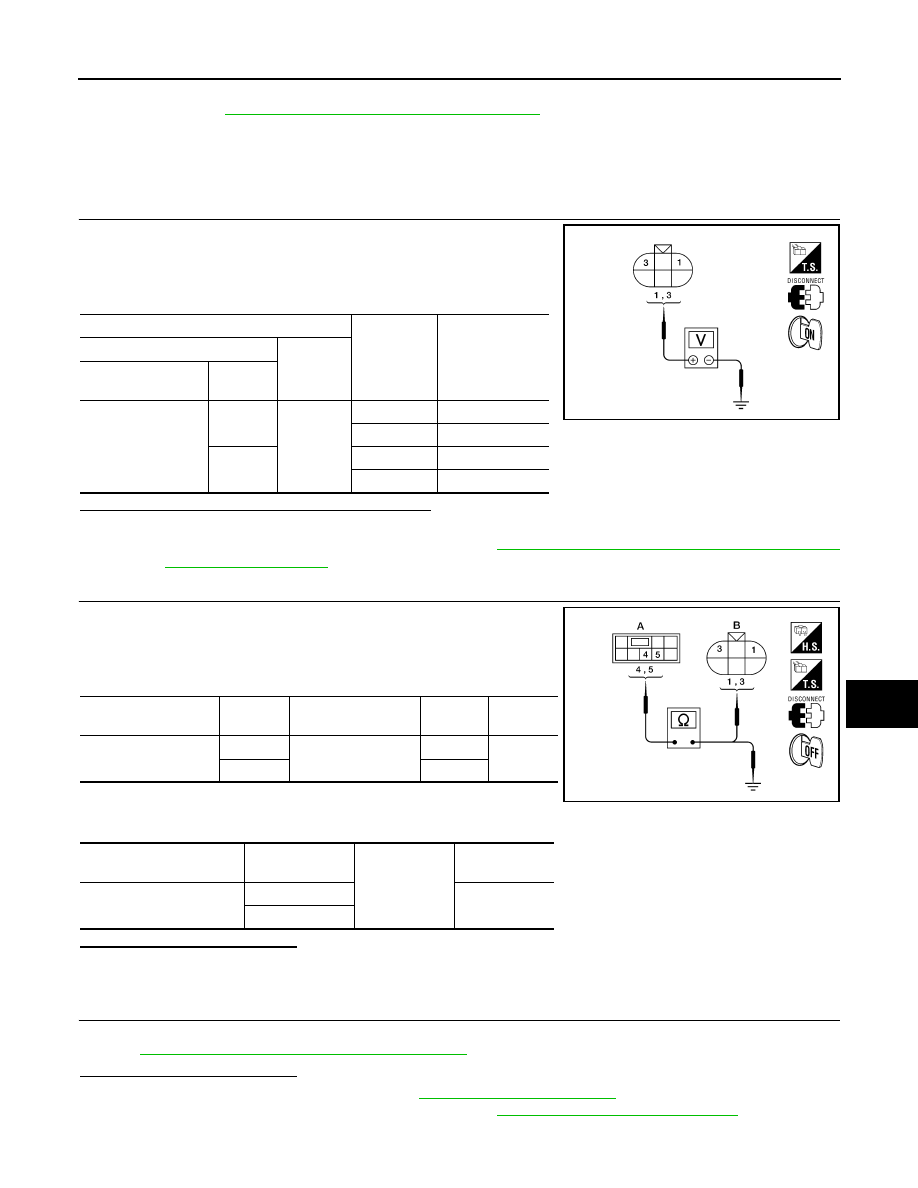

REAR LH : Diagnosis Procedure

INFOID:0000000004205175

Power Window Motor Circuit Check

1.

 CHECK REAR POWER WINDOW SWITCH OUTPUT SIGNAL

1. Disconnect rear power window motor LH connector.

2. Turn ignition switch ON.

3. Check voltage between rear power window motor LH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Check rear power window switch LH. Refer to

PWC-311, "REAR POWER WINDOW SWITCH :

Component Inspection"

.

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect rear power window switch LH.

3. Check continuity between rear power window switch LH connec-

tor (A) and rear power window motor LH connector (B).

4. Check continuity between rear power window switch LH connec-

tor (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.

Refer to

PWC-318, "REAR LH : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace rear power window motor LH. Refer to

GW-14, "Removal and Installation"

.

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window
motor LH connector

Terminal

D204

1

Ground

UP

Battery voltage

DOWN

0

3

UP

0

DOWN

Battery voltage

ALKIA0293ZZ

Rear power window

switch LH connector

Terminal

Rear power window
motor LH connector

Terminal

Continuity

D203 (A)

5

D204 (B)

1

Yes

4

3

Rear power window switch

LH connector

Terminal

Ground

Continuity

D203 (A)

5

No

4

ALKIA0294ZZ

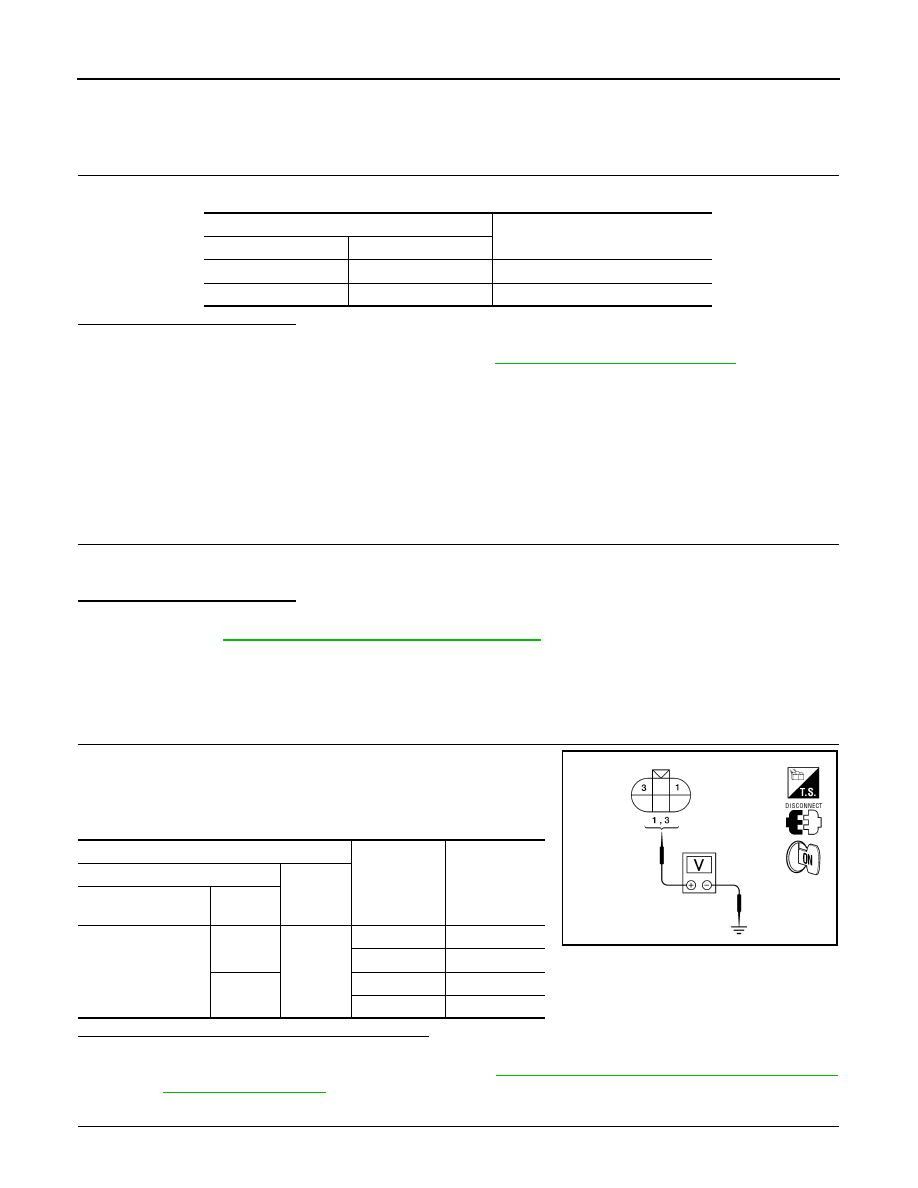

PWC-318

< COMPONENT DIAGNOSIS >

[LH&RH FRONT ANTI-PINCH-SEDAN]

POWER WINDOW MOTOR

REAR LH : Component Inspection

INFOID:0000000004205176

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR LH

Does motor operate by connecting the battery voltage directly to rear power window motor LH?

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Replace rear power window motor LH. Refer to

GW-14, "Removal and Installation"

.

REAR RH
REAR RH : Description

INFOID:0000000004205177

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or

rear power window switch RH.

REAR RH : Component Function Check

INFOID:0000000004205178

1.

 CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

Does rear power window motor RH operate with operating main power window and door lock/unlock switch or

rear power window switch RH?
Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Refer to

PWC-318, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000004205179

Rear Power Window Motor RH Circuit Check

1.

 CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1. Disconnect rear power window motor RH.

2. Turn ignition switch ON.

3. Check voltage between rear power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Check rear power window switch RH. Refer to

PWC-311, "REAR POWER WINDOW SWITCH :

Component Inspection"

.

2.

 CHECK HARNESS CONTINUITY

Terminal

Motor condition

(+)

(–)

3

1

DOWN

1

3

UP

Terminal

Rear power

window switch

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window

motor RH connector

Terminal

D304

1

Ground

UP

Battery voltage

DOWN

0

3

UP

0

DOWN

Battery voltage

ALKIA0293ZZ
