Nissan Altima L32. Manual - part 113

AV-444

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR TWEETER

REAR TWEETER

Removal and Installation - Coupe

INFOID:0000000004206696

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-17, "Removal and Installation"

.

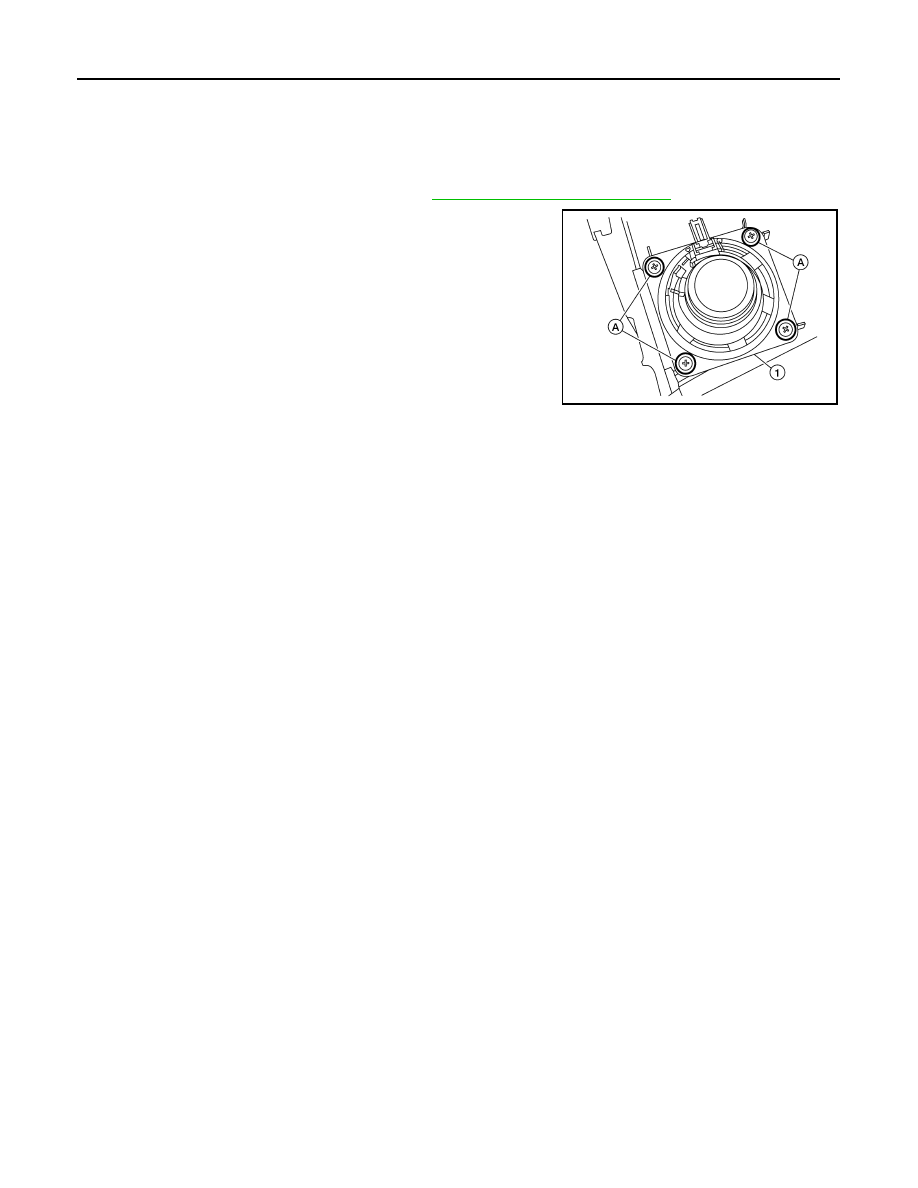

2. Remove the rear tweeter speaker screws (A) and remove the

rear tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0919ZZ

AV

SUBWOOFER

AV-445

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Components

INFOID:0000000004535138

Removal and Installation

INFOID:0000000004535139

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-17, "Removal and Installation"

 (coupe) and

INT-38,

"Removal and Installation"

 (sedan).

2. Remove the trunk front finisher. Refer to

INT-23, "Removal and Installation"

 (coupe) and

INT-46,

"Removal and Installation"

 (sedan).

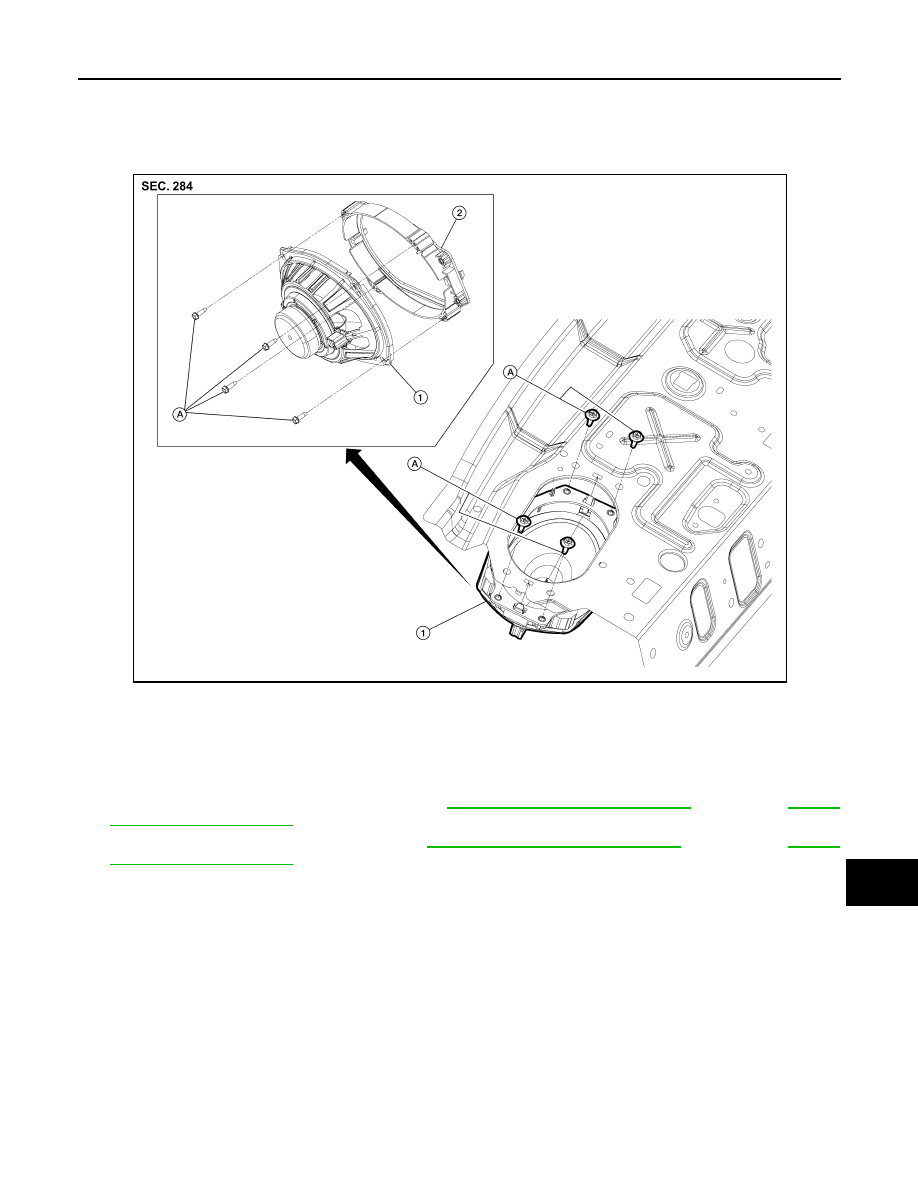

3. Remove the subwoofer speaker screws from the top, disconnect the subwoofer speaker harness connec-

tor and remove the subwoofer speaker and spacer assembly.

4. Remove the spacer screws and remove the subwoofer speaker from the spacer.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0054ZZ

1.

Subwoofer speaker

2.

Spacer

A.

Screws

AV-446

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000004206701

REMOVAL

1. Lower the headliner at the rear. Refer to

INT-20, "Removal and Installation"

 (coupe) and

INT-42,

"Removal and Installation"

 (sedan).

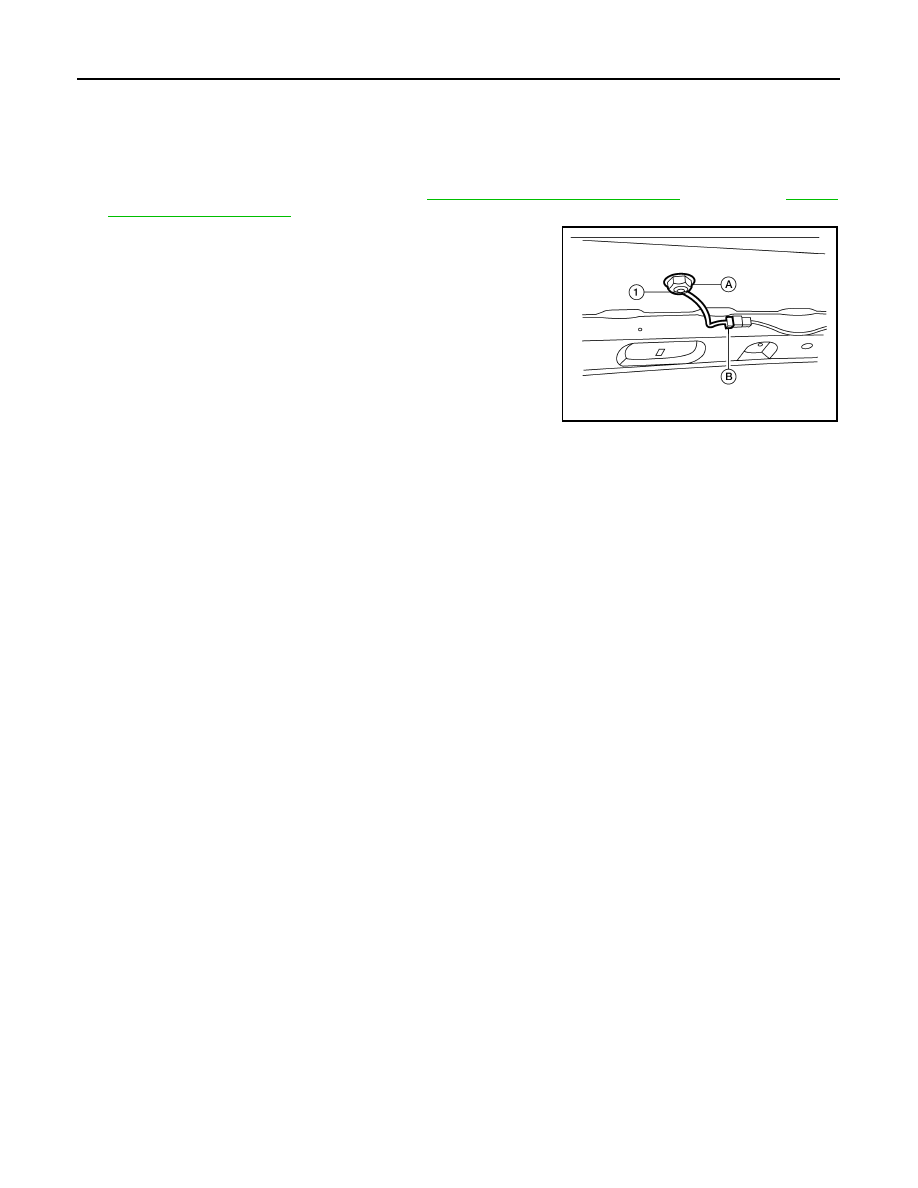

2. Remove the satellite radio antenna nut (A), then disconnect the

satellite radio antenna connector (B) and remove the satellite

radio antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0056ZZ

AV

GPS ANTENNA

AV-447

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000004206702

REMOVAL

1. Remove the combination meter. Refer to

MWI-176, "Removal and Installation"

.

2. Remove the navigation audio unit. Refer to

AV-437, "Removal and Installation"

.

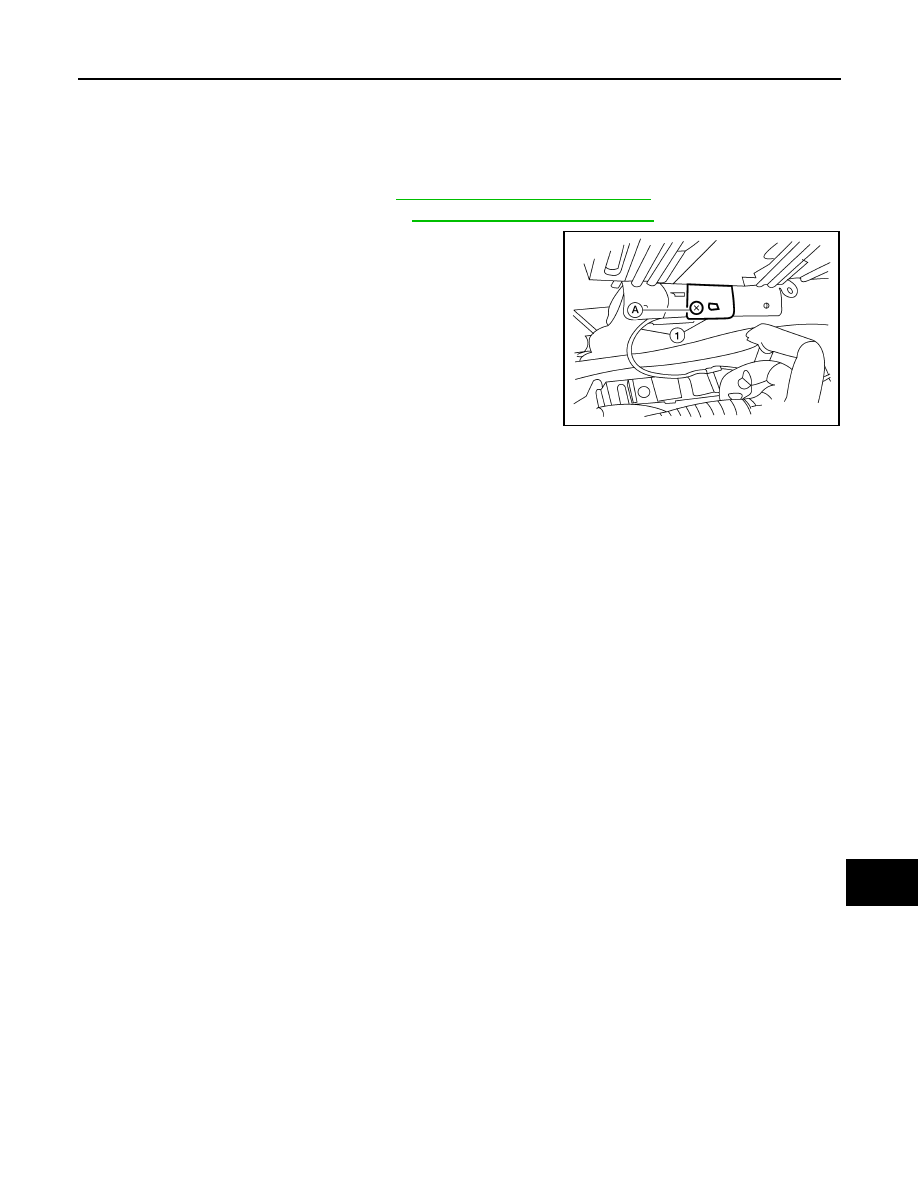

3. Remove the GPS navigation antenna screw (A), then fish the

GPS navigation antenna connector and harness (1), through the

combination meter instrument panel opening and remove the

GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0061ZZ
