POWER WINDOW MAIN SWITCH

PWC-127

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ECU DIAGNOSIS

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000004205050

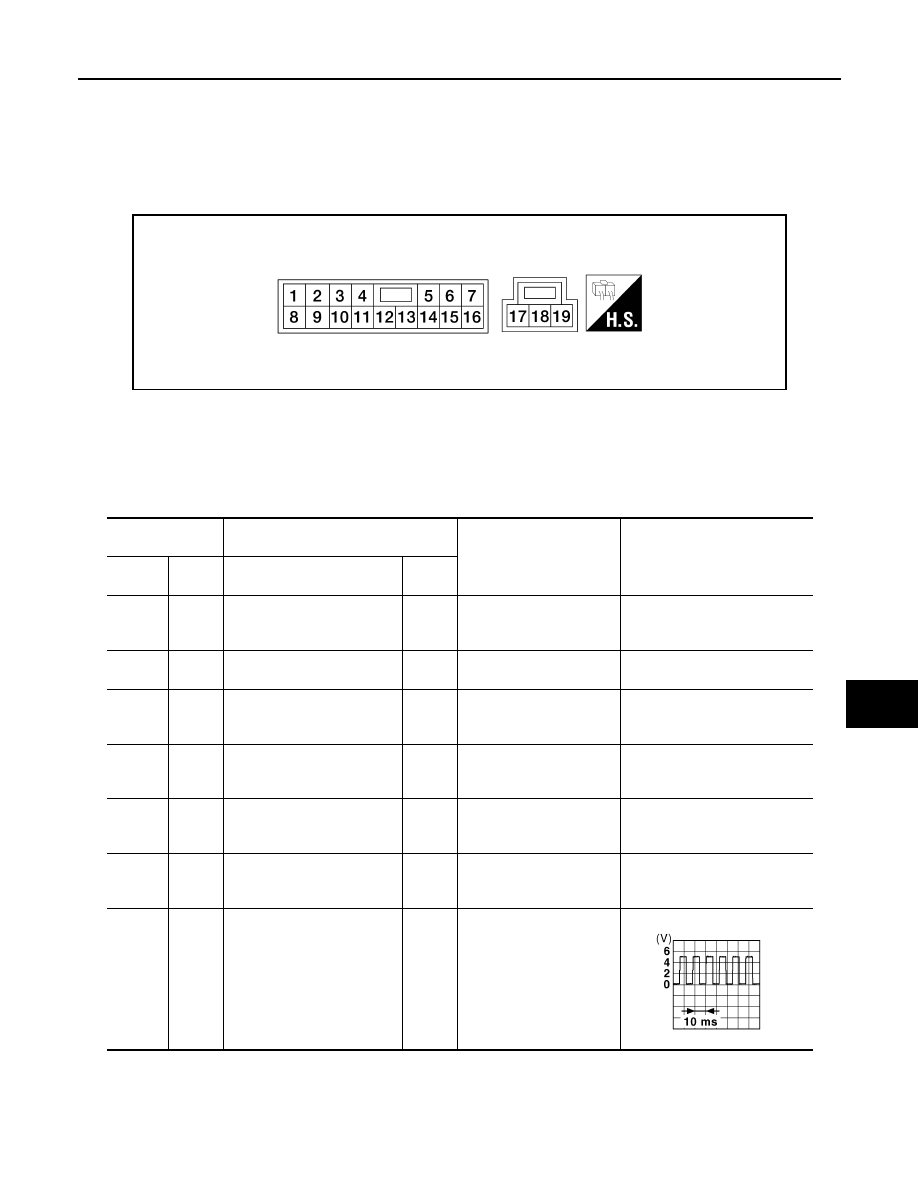

TERMINAL LAYOUT

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

LIIA2455E

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

1

(G/B)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is operated UP.

Battery voltage

2

(W/B)

Ground Encoder ground

—

—

0

3

(G/O)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is operated DOWN.

Battery voltage

5

(G/R)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is operated DOWN.

Battery voltage

7

(G/W)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is operated UP.

Battery voltage

8

(R/B)

11

Front power window motor
RH UP signal

Output

When front RH switch in
power window main switch
is operated UP.

 Battery voltage

9

(G/W)

2

Encoder pulse signal 2

Input

When power window mo-
tor operates.

JMKIA0070GB

PWC-128

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

POWER WINDOW MAIN SWITCH

10

(L/W)

Ground RAP signal

Input

IGN SW ON

Battery voltage

Within 45 second after ig-
nition switch is turned to
OFF.

Battery voltage

When driver side or pas-
senger side door is opened
during retained power op-
eration.

0

11

(R/W)

8

Front power window motor
RH DOWN signal

Output

When front RH switch in
power window main switch
is operated DOWN.

 Battery voltage

12

(L/B)

16

Front power window motor LH
DOWN signal

Output

When front LH switch in
power window main switch
is operated DOWN.

 Battery voltage

13

(G/Y)

2

Encoder pulse signal 1

Input

When power window mo-
tor operates.

15

(G/R)

Ground Encoder power supply

Output

When ignition switch ON or
power window timer oper-
ates.

10

16

(L/R)

12

Front power window motor LH
UP signal

Output

When front LH switch in
power window main switch
is operated UP.

 Battery voltage

17

(B)

Ground Ground

—

—

0

19

(R/Y)

Ground Battery power supply

Input

—

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB

POWER WINDOW MAIN SWITCH

PWC-129

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

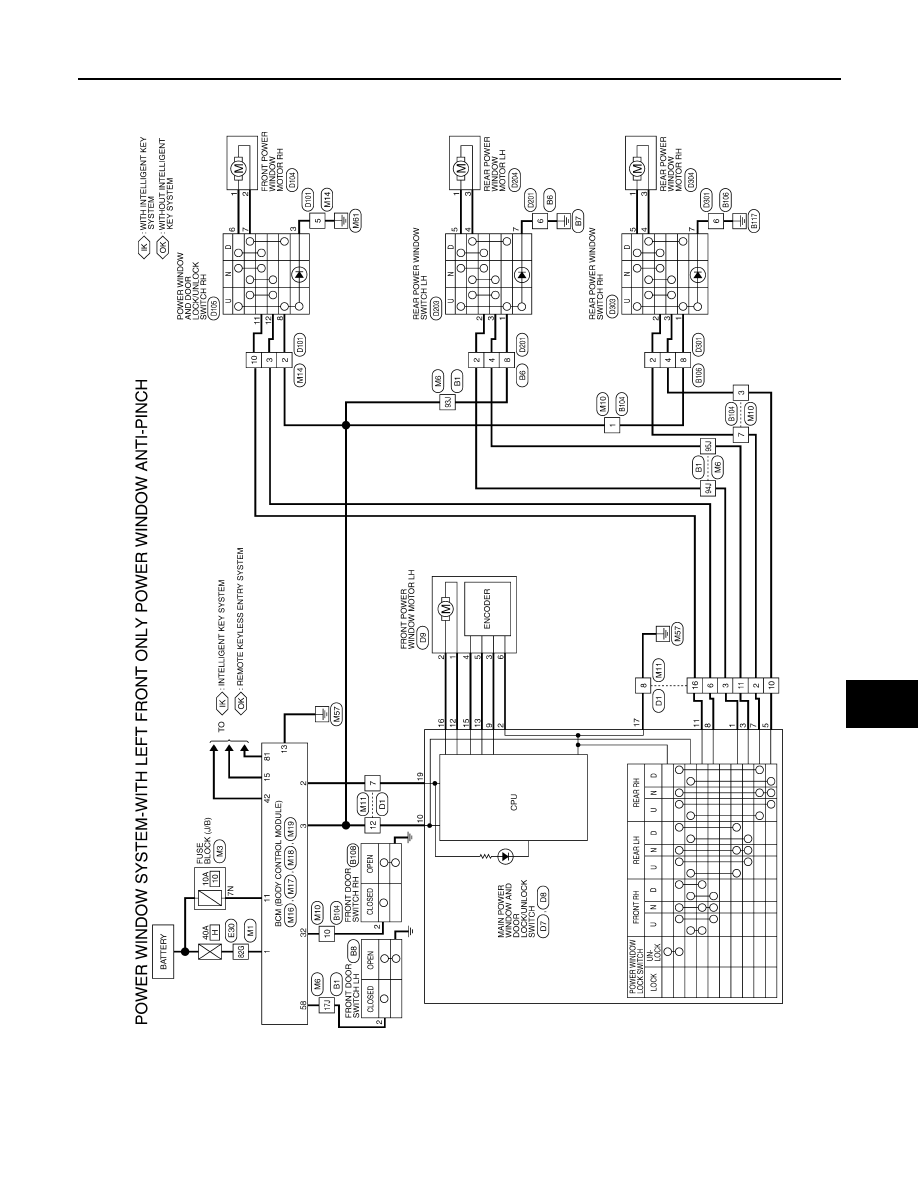

Wiring Diagram

INFOID:0000000004205051

ABKWA0179GB

PWC-130

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

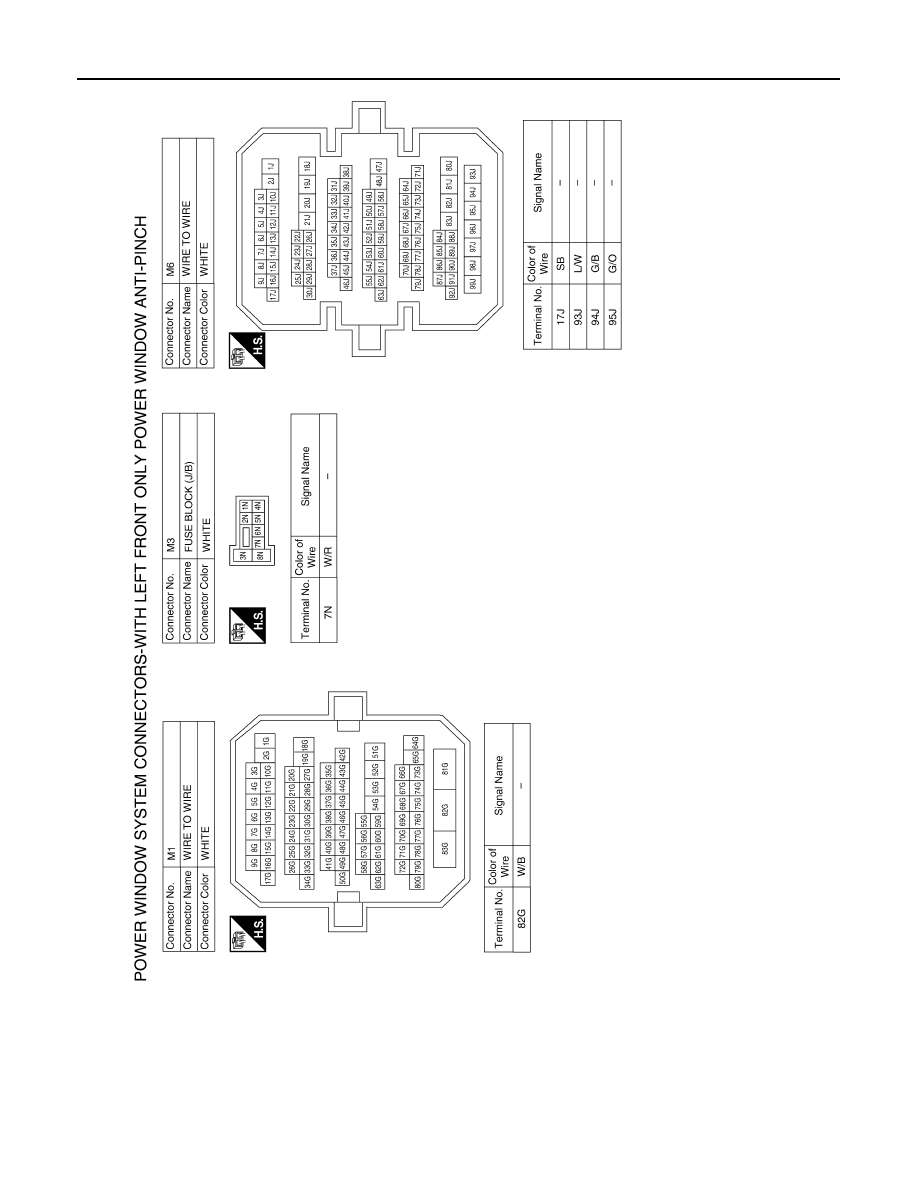

POWER WINDOW MAIN SWITCH

ABKIA0590GB
