POWER WINDOW SYSTEM

PWC-99

< FUNCTION DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

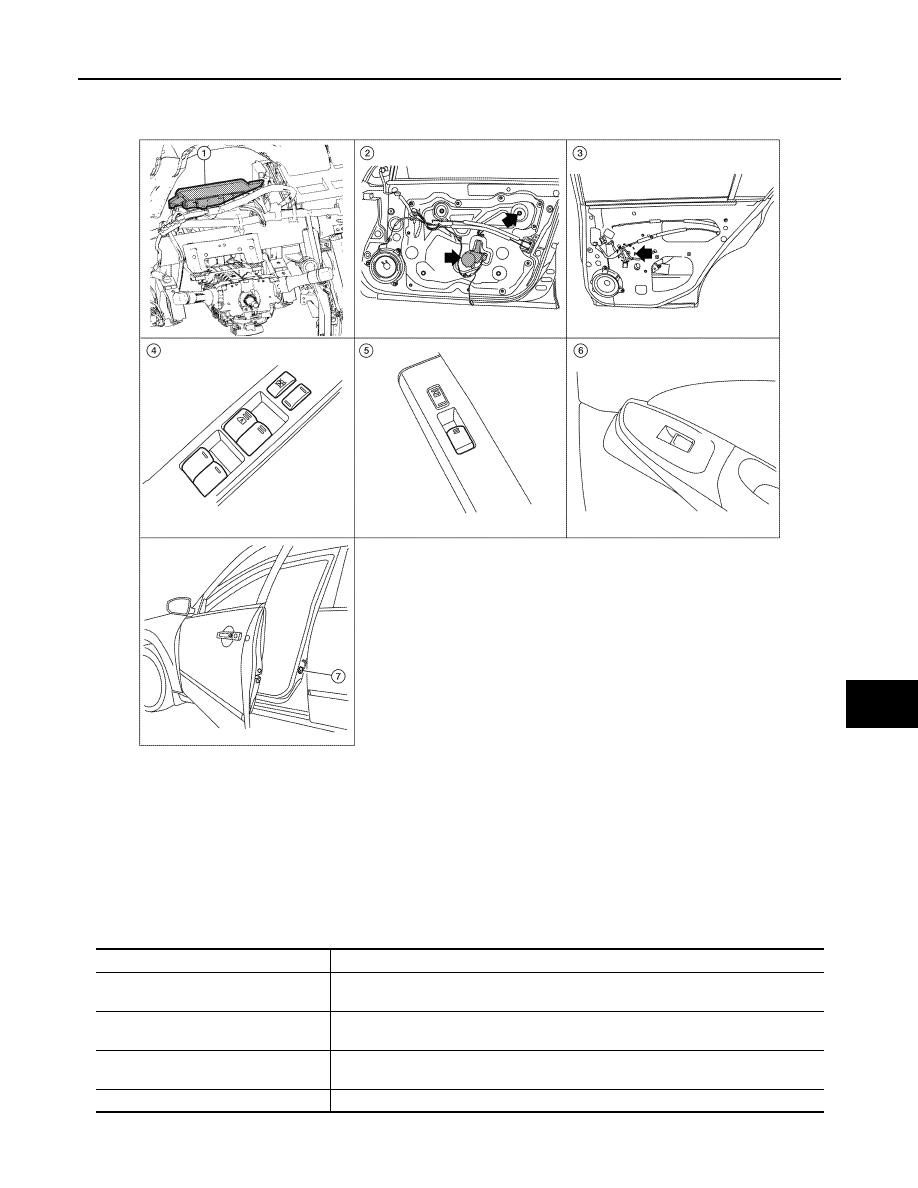

Component Parts Location

INFOID:0000000004205004

Component Description

INFOID:0000000004205005

FRONT POWER WINDOW LH ANTI-PINCH SYSTEM

ALCIA0111ZZ

1.

BCM M16, M17, M18, M19

2.

Front power window motor LH D9,
RH D104

3.

Rear power window motor LH D204,
RH D304

4.

Main power window and door lock/
unlock switch D7, D8

5.

Power window and door lock/unlock
switch RH D105

6.

Rear power window switch LH D203,
RH D303

7.

Front door switch LH B8, RH B108

Component

Function

BCM

• Supplies power to power window switches.
• Controls retained power.

Main power window and door lock/un-
lock switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window LH.

Power window and door lock/unlock
switch RH

• Controls front power window motor RH.

Rear power window switch

• Controls rear power window motors LH and RH.

PWC-100

< FUNCTION DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

POWER WINDOW SYSTEM

Front power window motor LH

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and

door lock/unlock switch.

Front power window motor RH

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.

Rear power window motor

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

Front door switch LH or RH

Detects door open/close condition and transmits to BCM.

Component

Function

DIAGNOSIS SYSTEM (BCM)

PWC-101

< FUNCTION DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : Diagnosis Description

INFOID:0000000004498115

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

COMMON ITEM : CONSULT-III Function

INFOID:0000000004498116

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to

BCS-91, "DTC Index"

.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MUTI REMOTE ENT

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

PWC-102

< FUNCTION DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

DIAGNOSIS SYSTEM (BCM)

RETAINED PWR
RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000004498117

Data monitor

Monitor Item

[Unit]

Description

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH.

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH.
