POWER WINDOW MAIN SWITCH
PWC-35
< ECU DIAGNOSIS >
[LH ONLY ANTI-PINCH-COUPE]
C
D
E
F
G
H
I
J
L
M
A
B
PWC
N
O
P
ECU DIAGNOSIS

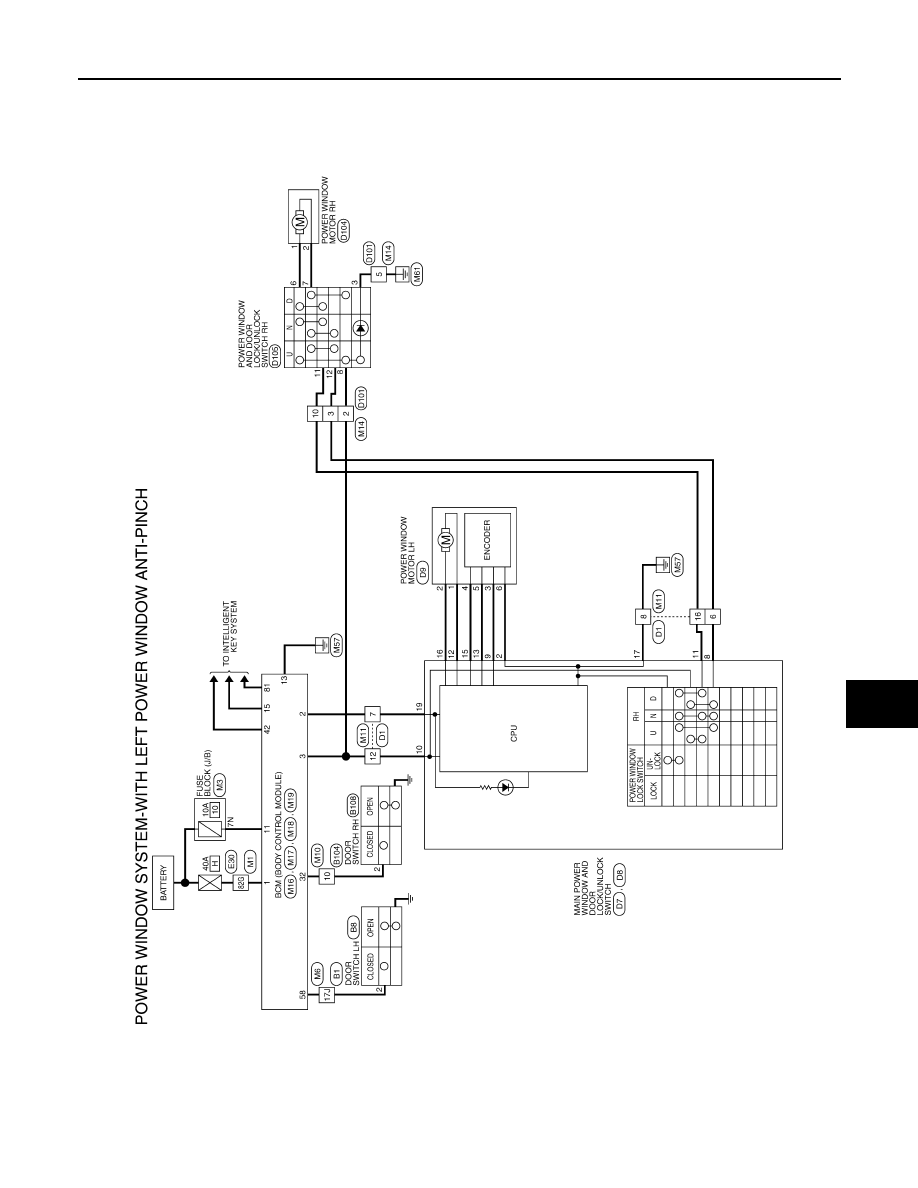

POWER WINDOW MAIN SWITCH

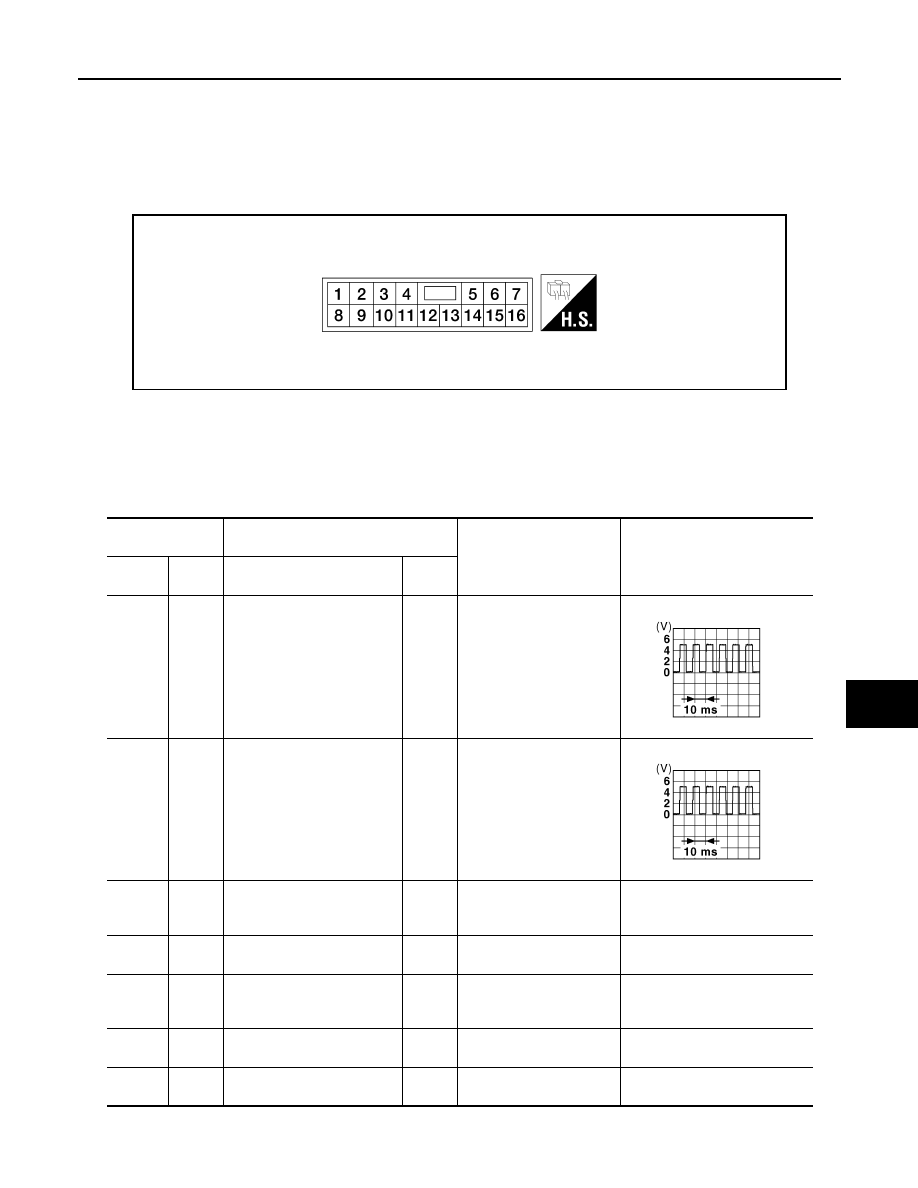

Reference Value
INFOID:0000000004204984

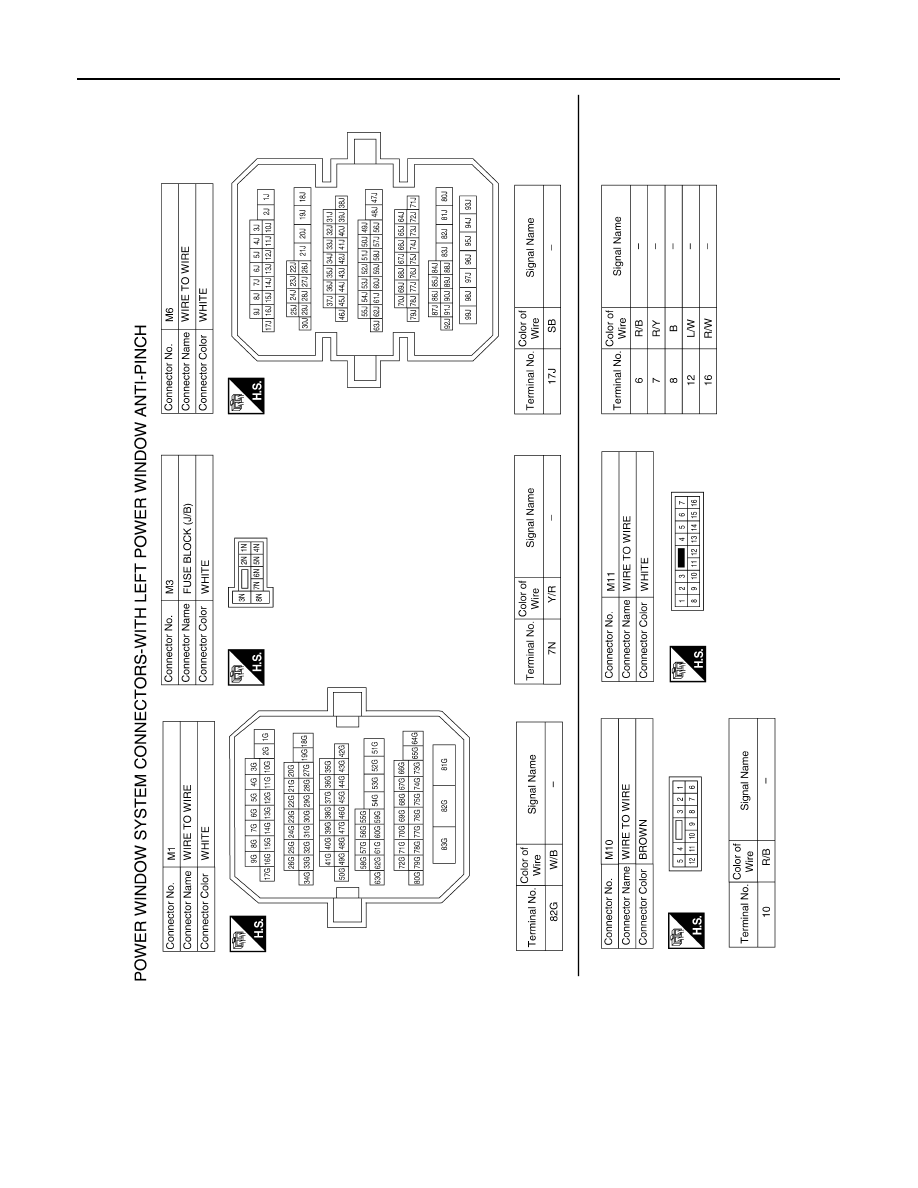

TERMINAL LAYOUT
PHYSICAL VALUES
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH
LIIA2454E
Terminal No.
(Wire color)
Description
Condition
Voltage [V]
(Approx.)
+
–
Signal name
Input/
Output
2
(G/Y)
7
Encoder pulse signal 1
Input
When power window mo-
tor operates.
3
(G/W)
7
Encoder pulse signal 2
Input
When power window mo-
tor operates.
4
(G/R)
Ground Encoder power supply
Output
When ignition switch ON or
power window timer oper-
ates.
10
7
(W/B)
Ground Encoder ground
—
—
0
8
(L/R)
11
Power window motor LH UP
signal
Output
When LH switch in
power window main switch
is operated UP.
Battery voltage
9
(R/Y)
Ground Battery power supply
Input
—
Battery voltage
10
(B)
Ground Ground
—
—
0
