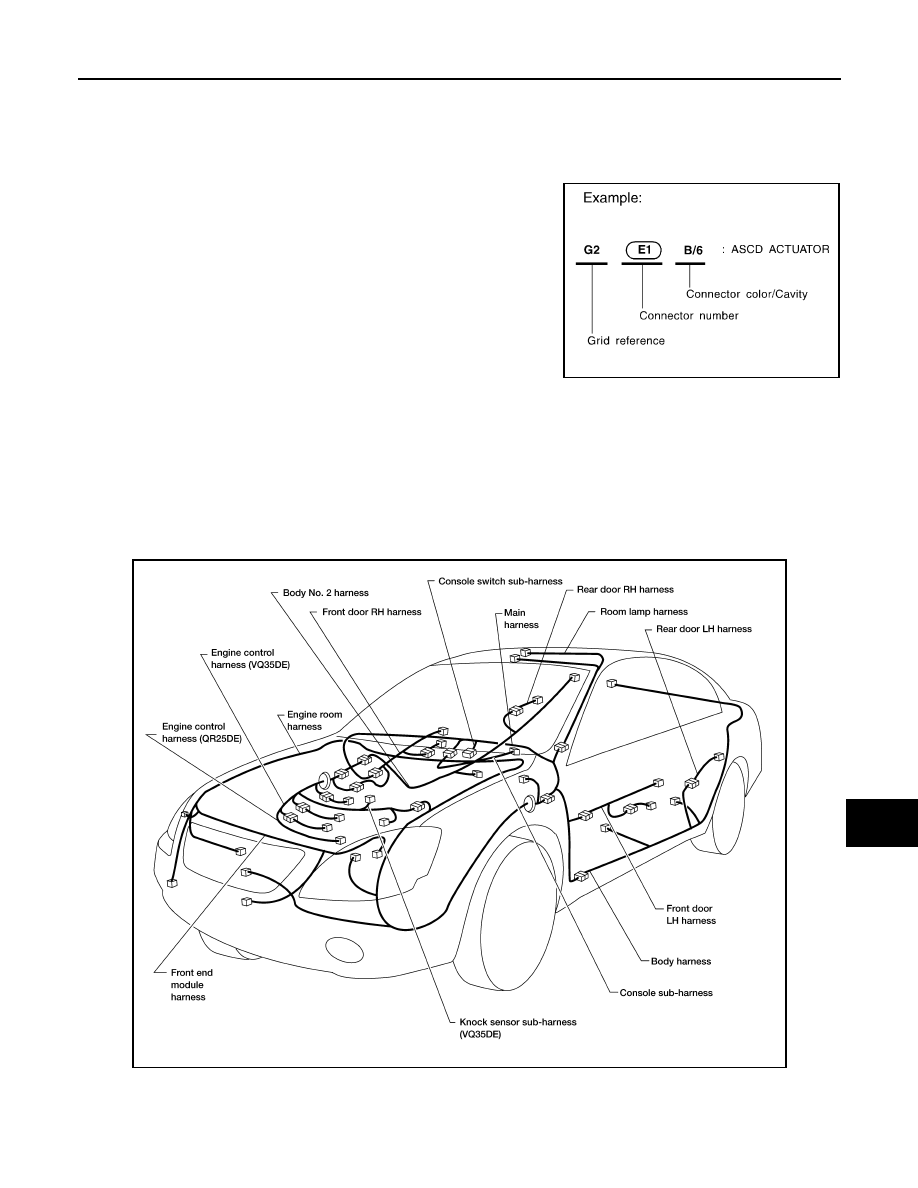

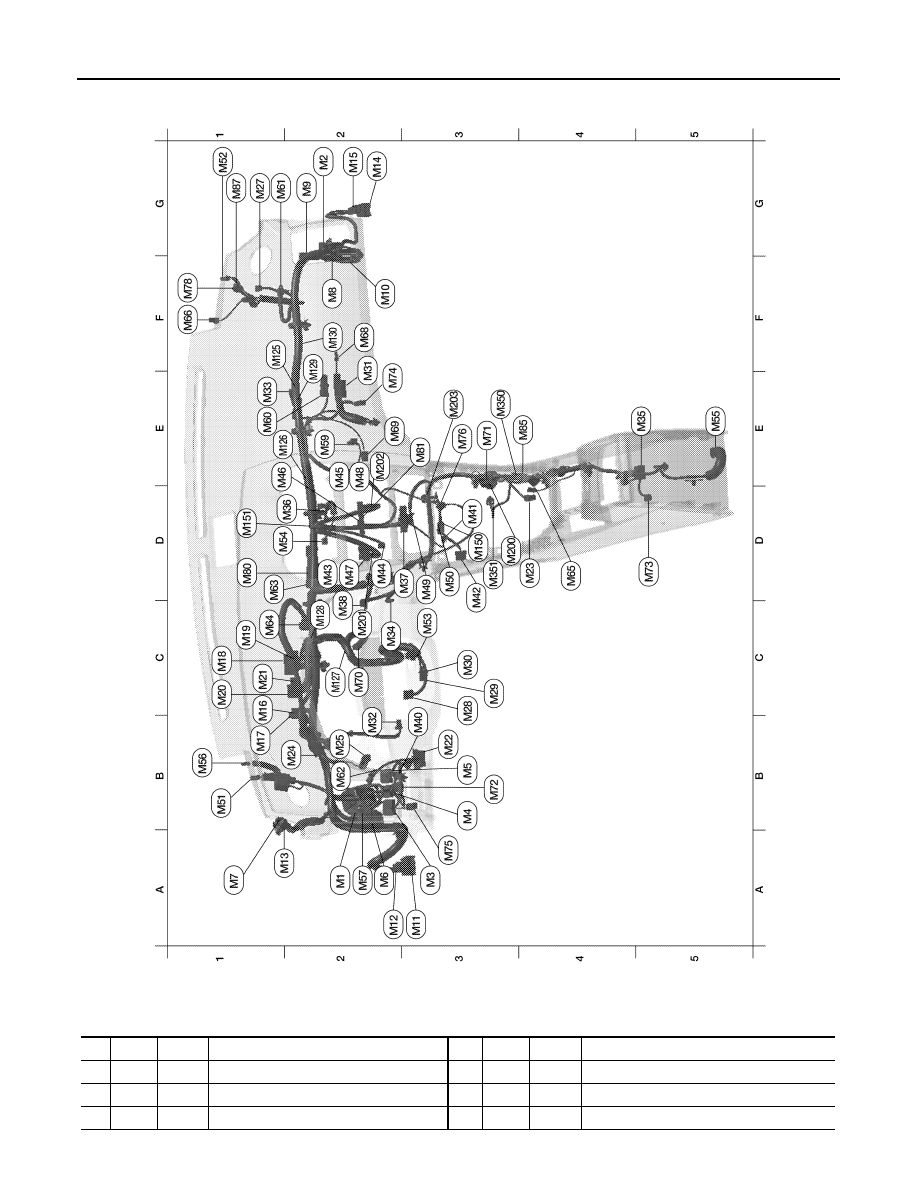

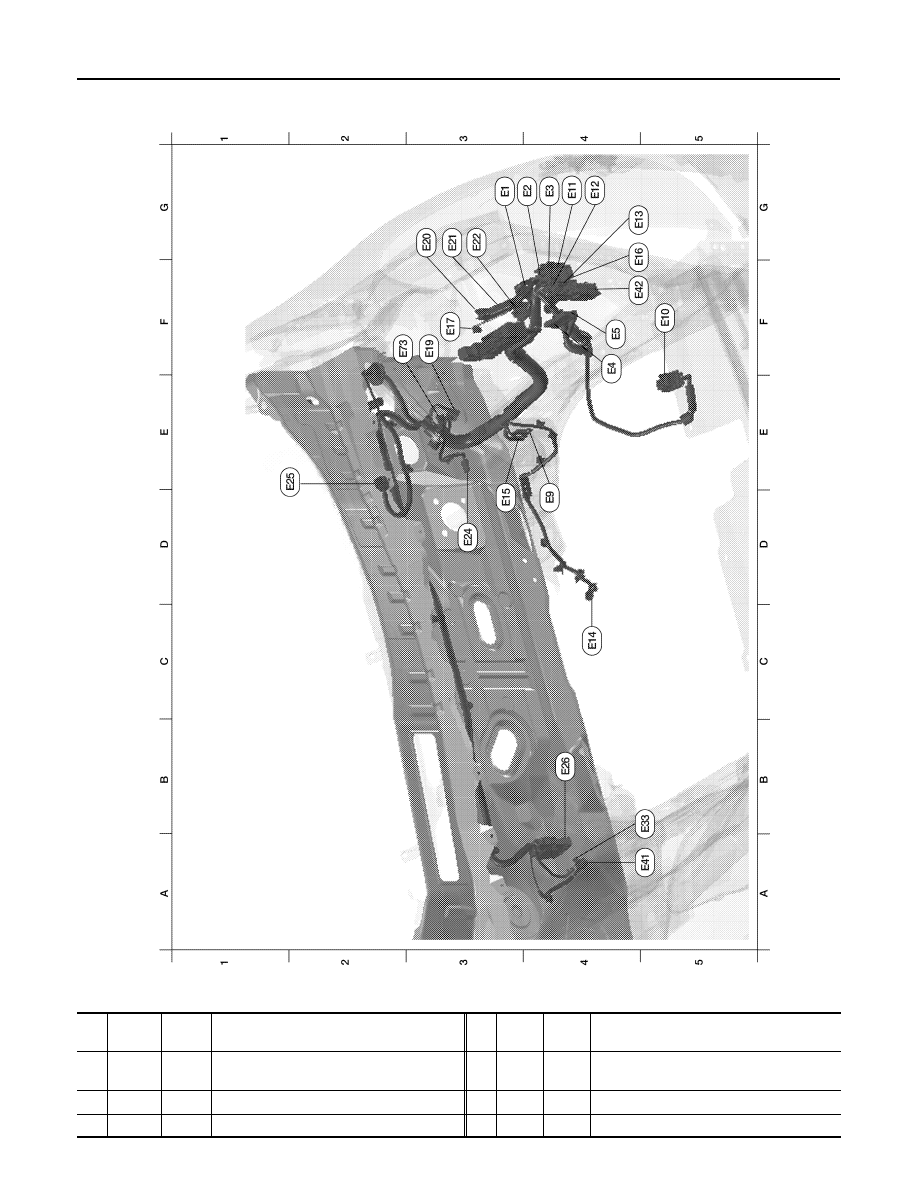

PG HARNESS PG-103 < COMPONENT DIAGNOSIS > [SEDAN] C D E F G H I J K L B A O P N HARNESS Harness Layout INFOID:0000000004206750 HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map style grid to help locate connectors on the drawings: • Main Harness, Console Sub-harness and Console Switch Sub- harness • Engine Room Harness • Engine Room Harness (Passenger Compartment) • Front End Module Harness • Engine Control Harness (VQ35DE) and Knock Sensor Sub-har- ness • Engine Control Harness (QR25DE) • Body Harness • Body No. 2 Harness • Room Lamp Harness To use the grid reference OUTLINE SEL252V ABMIA0543GB |
