PG

HARNESS

PG-51

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ROOM LAMP HARNESS

F4

B105

W/8

: To B301

E2

B119

Y/2

: RH side curtain air bag module

E3

B107

—

: Body ground

B5

B121

BR/23

: BOSE speaker amp.

F3

B108

W/3

: Door switch RH

B4

B122

BR/14

: BOSE speaker amp.

F3

B112

Y/2

: Front RH side air bag module

E4

B127

—

: Body ground

ABMIA0530GB

PG-52

< COMPONENT DIAGNOSIS >

[COUPE]

HARNESS

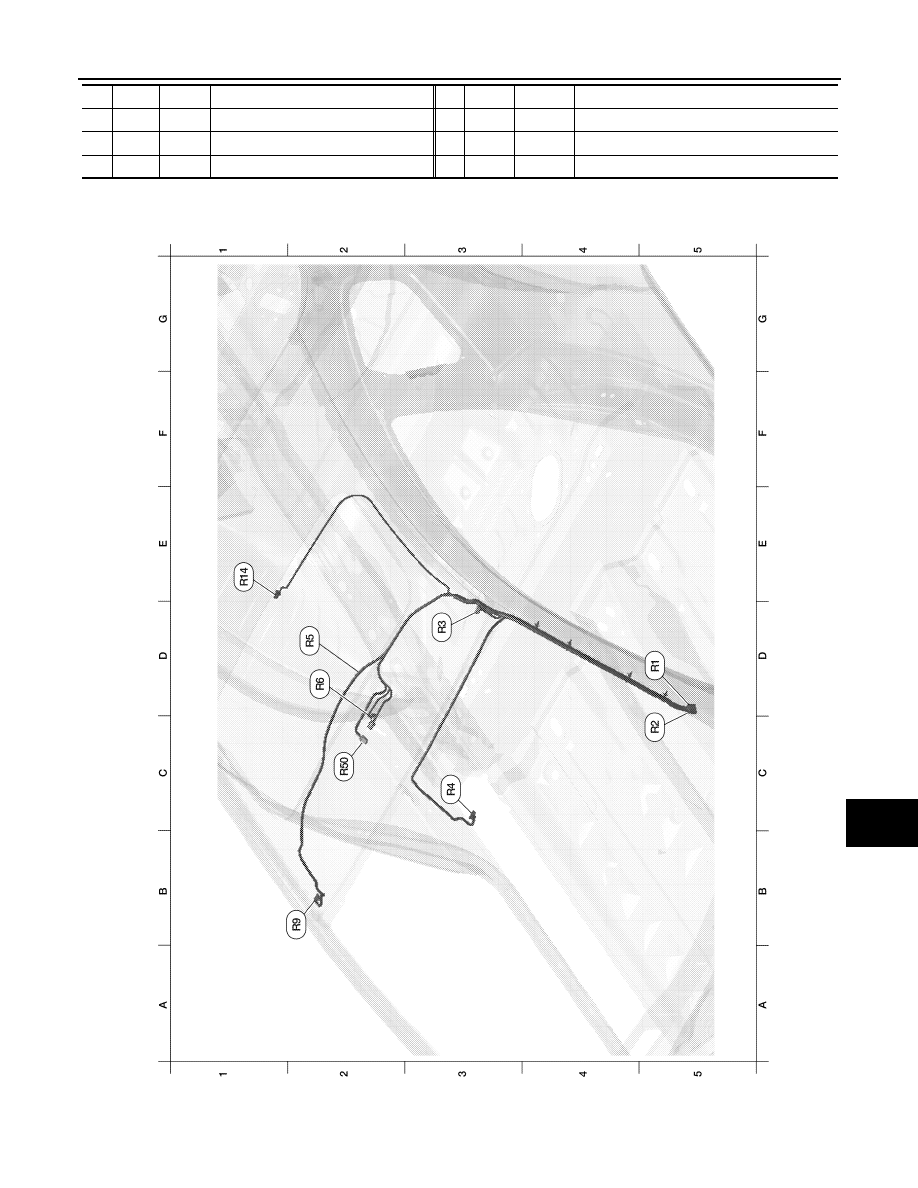

DOOR LH HARNESS

D5 R1

W/16

: To M7

C2 R6

W/3

: Sunroof switch

D5 R2

W/4

: To M13

C2 R7

W/4

: Microphone

D3 R3

W/2

: Vanity mirror  lamp LH

B2

R9

W/2

: Vanity mirror lamp RH

C3 R4

B/10

: Auto anti-dazzling inside mirror

D1 R14

W/6

: Interior room lamp

D2 R5

W/10

: Sunroof motor assembly

C2 R50

GR/6

: Front room/map lamp assembly

ALMIA0399GB

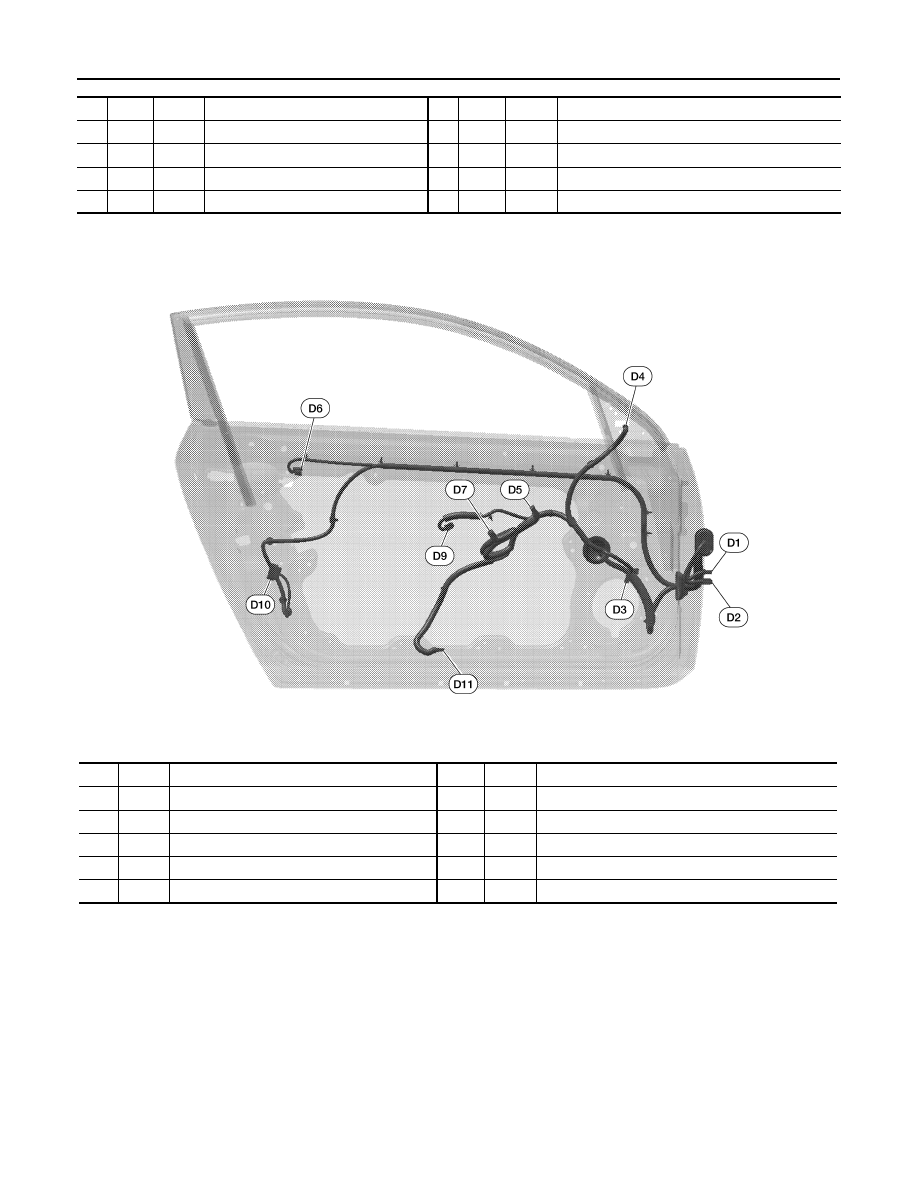

D1

W/16

: To M11

D6

B/4

: Outside handle LH

D2

W/16

: To M12

D7

W/16

: Main power window and door lock/unlock switch

D3

W/2

: Door speaker LH (with base audio system)

D8

W/3

: Main power window and door lock/unlock switch

D3

BR/2

: Door speaker LH (with BOSE audio system)

D9

W/6

: Front power window motor LH

D4

W/8

: Door mirror LH

D10

GR/6

: Door lock assembly LH

D5

W/16

: Door mirror remote control switch

D11

W/2

: Step lamp LH

PG

HARNESS

PG-53

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

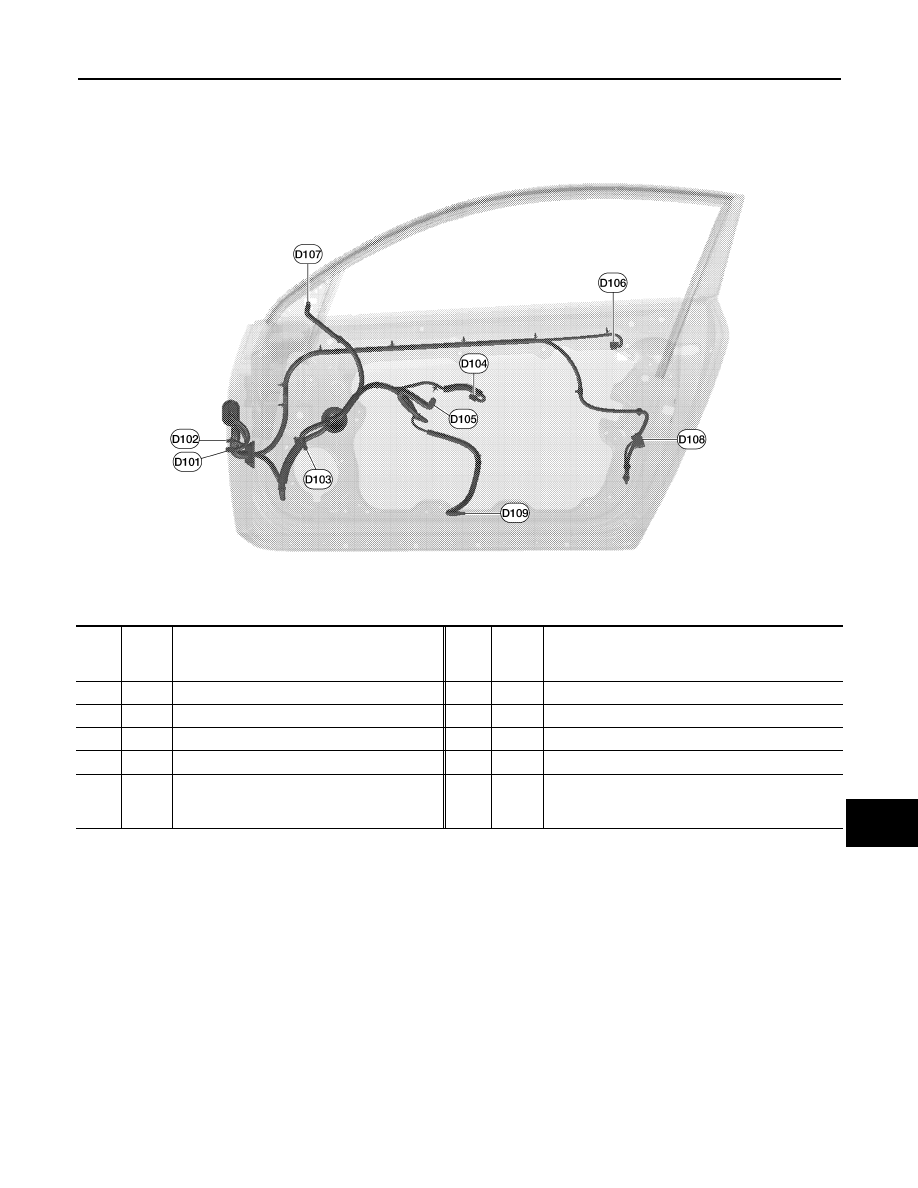

DOOR RH HARNESS

ALMIA0400GB

D101

W/10

: To M14

D105

W/16

: Power window and door lock/unlock switch RH
  (with left and right front power window anti-
  pinch system)

D102

W/12

: To M15

D106

B/4

: Outside handle RH

D103

W/2

: Door speaker RH (with base audio system)

D107

W/8

: Door mirror RH

D103

BR/2

: Door speaker RH (with BOSE audio system)

D108

GR/6

: Door lock actuator RH

D104

W/6

: Front power window motor RH

D109

W/2

: Step lamp RH

D105

W/12

: Power window and door lock/unlock switch
  RH (with left front only power window
  anti-pinch system)

PG-54

< COMPONENT DIAGNOSIS >

[COUPE]

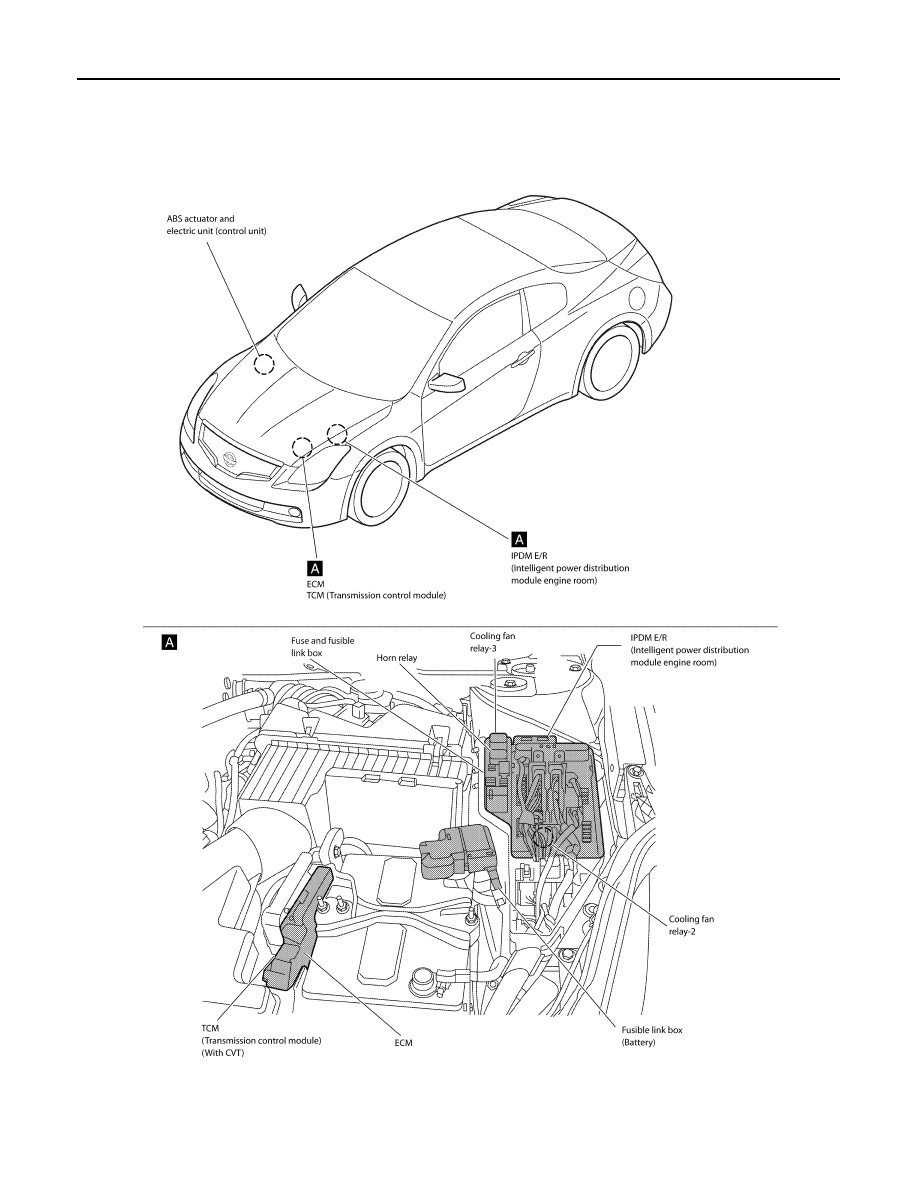

ELECTRICAL UNITS LOCATION

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000004206730

ENGINE COMPARTMENT

ABMIA0515GB
