COMPONENT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

Wiring Diagram —Battery Power Supply —

INFOID:0000000004206723

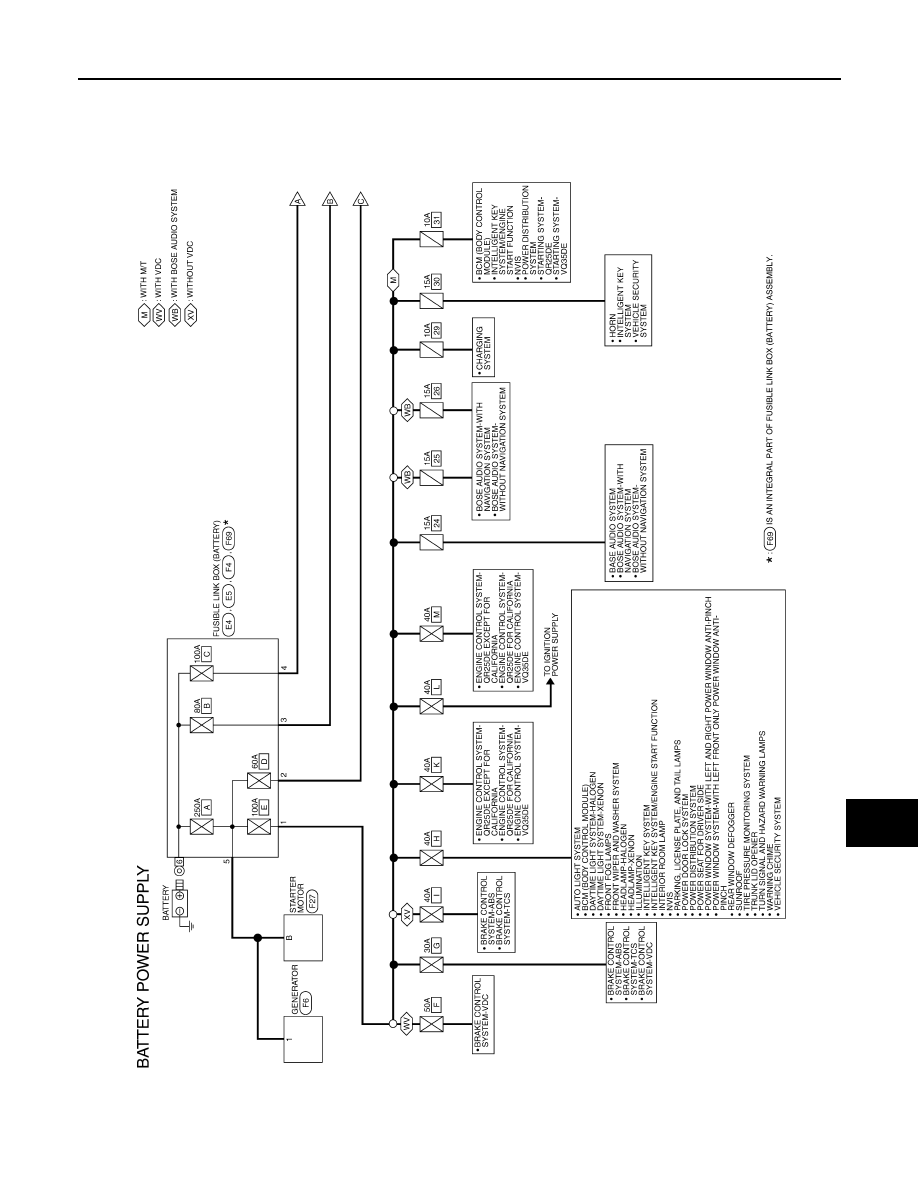

ABMWA0175GB

PG-8

< COMPONENT DIAGNOSIS >

[COUPE]

POWER SUPPLY ROUTING CIRCUIT

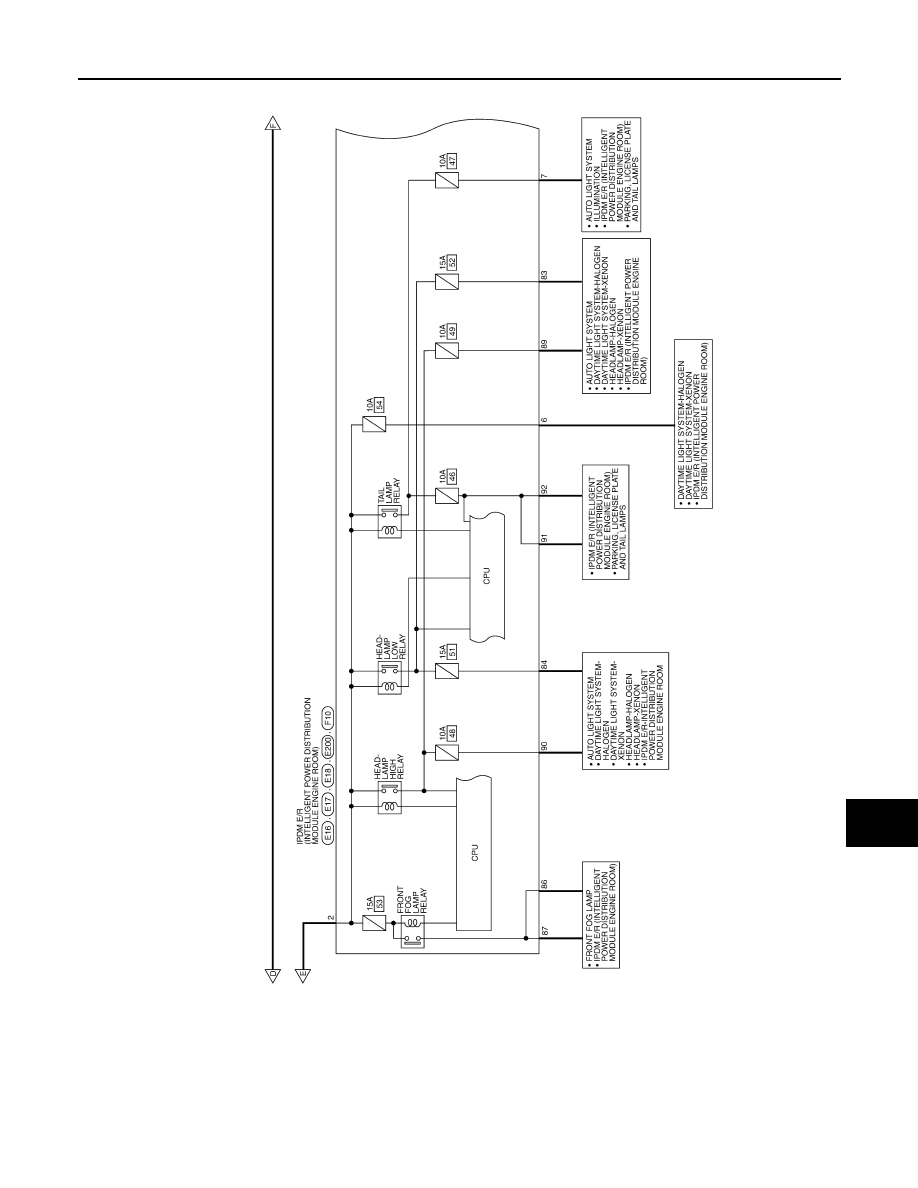

ABMWA0176GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-9

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

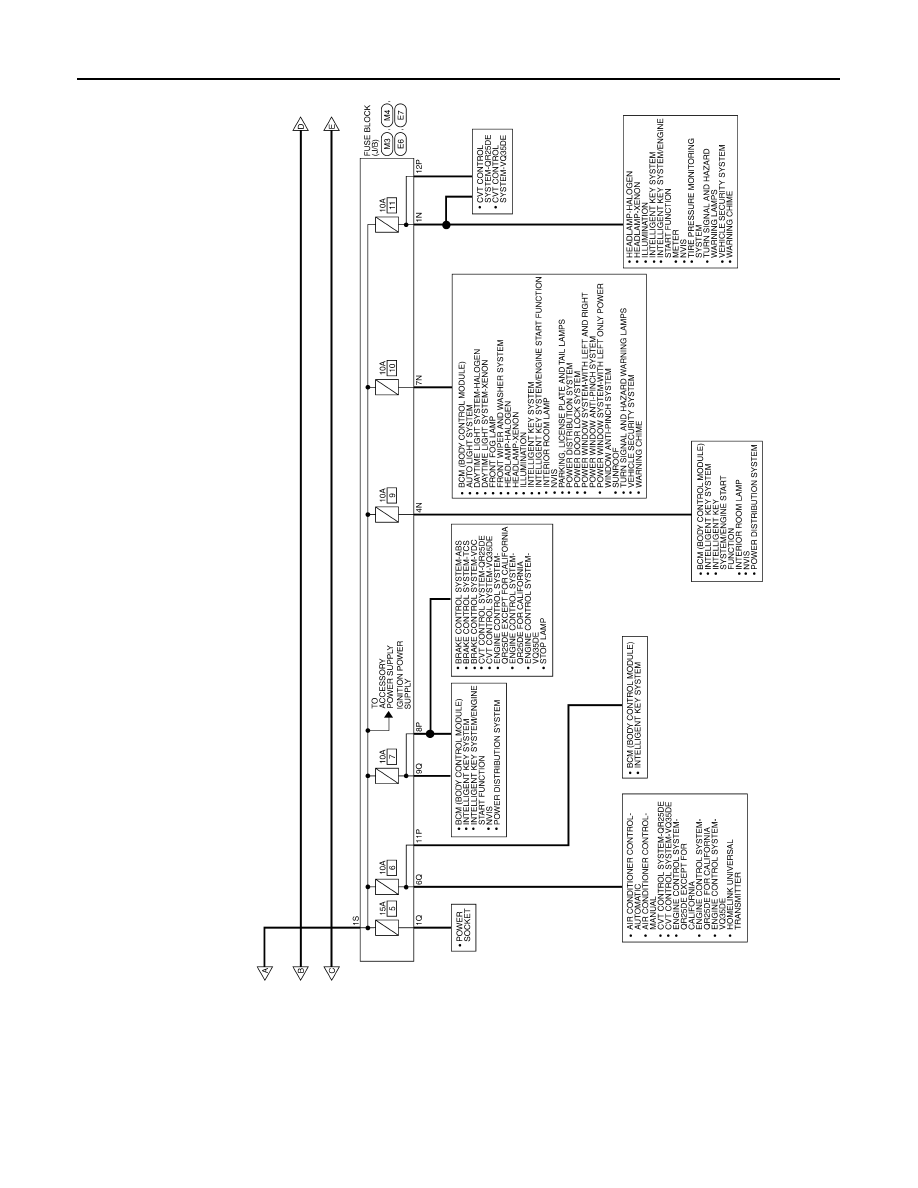

ABMWA0177GB

PG-10

< COMPONENT DIAGNOSIS >

[COUPE]

POWER SUPPLY ROUTING CIRCUIT

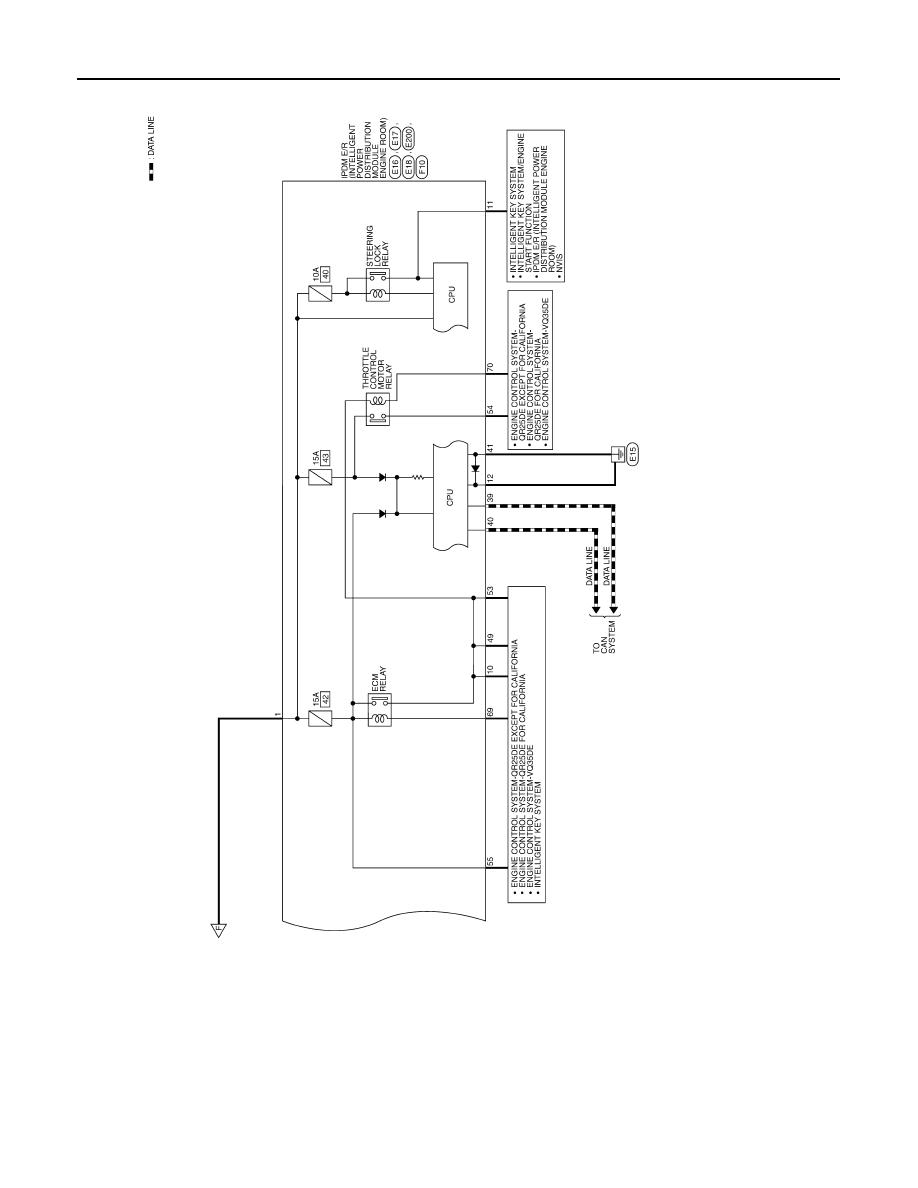

ABMWA0178GB
