Nissan Altima L32. Manual - part 71

AV-276

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

HANDS FREE PHONE SYSTEM (COUPE)

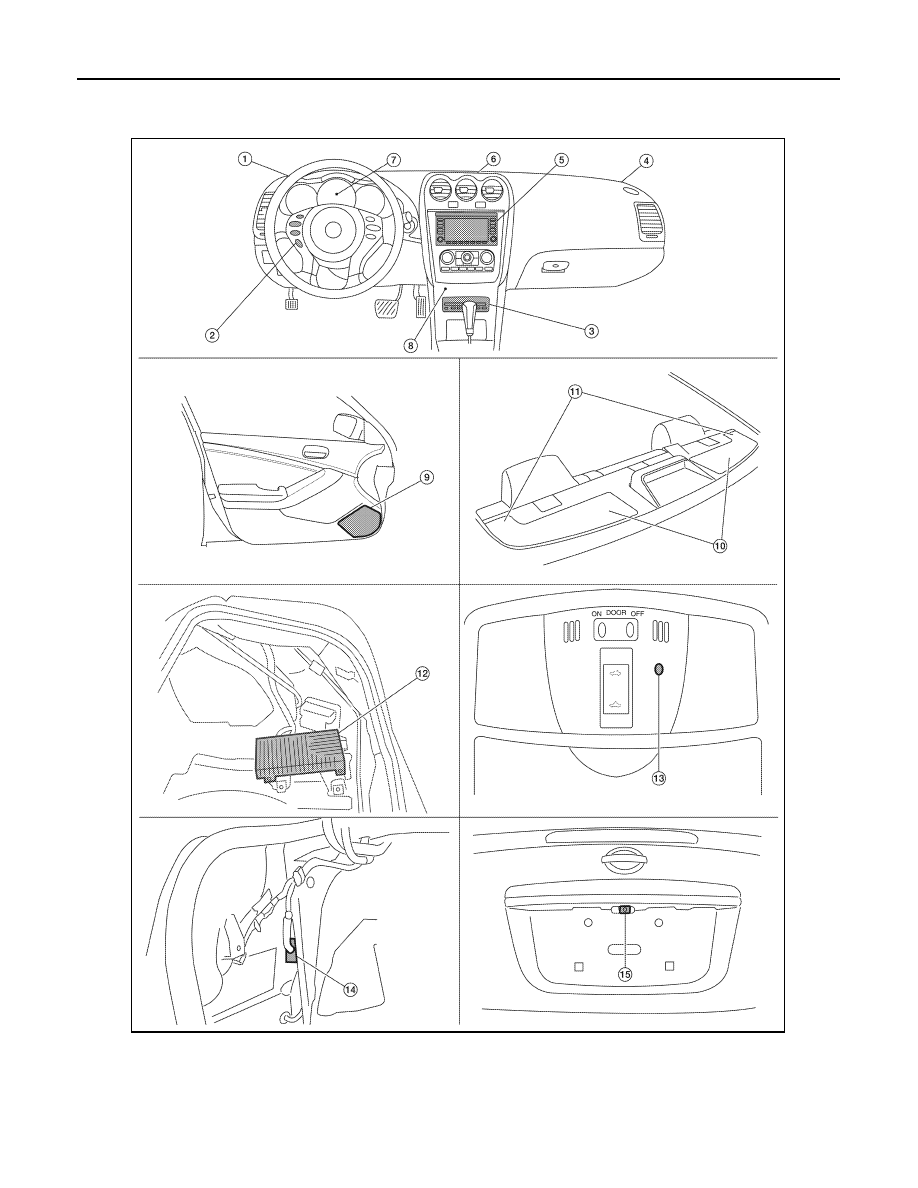

Component Parts Location

INFOID:0000000004206558

ALNIA0941GB

1.

Front tweeter LH M51

2.

Steering wheel audio control switches 3.

CD changer M42

4.

Front tweeter RH M52

5.

AV control unit M46, M47, M48, M81,
M90, M91

6.

Center speaker M151

AV

HANDS FREE PHONE SYSTEM (COUPE)

AV-277

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000004206559

7.

Combination meter M24

8.

Aux Jack M41

9.

Door speaker
LH D3
RH D103

10. Rear subwoofer

LH B25
RH B47

11. Rear tweeter

LH B16
RH B100

12. BOSE speaker amp. B121, B122 (view

with trunk carpet and RH floor spacer
removed)

13. Microphone R7

14. Rear view camera control unit B31

(view with trunk side finisher LH re-
moved)

15. Rear view camera T7

Part name

Description

AV control unit

• Controls hands-free phone functions
• Displays hands-free phone information on display screen

BOSE speaker amp.

Inputs power (amp ON) and sound signal from AV control unit, and outputs
sound signal to each speaker.

Door speaker

Receives telephone voice and voice guidance signals from the BOSE speaker
amp.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to AV control unit

AV-278

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

HANDS FREE PHONE SYSTEM (SEDAN)

HANDS FREE PHONE SYSTEM (SEDAN)

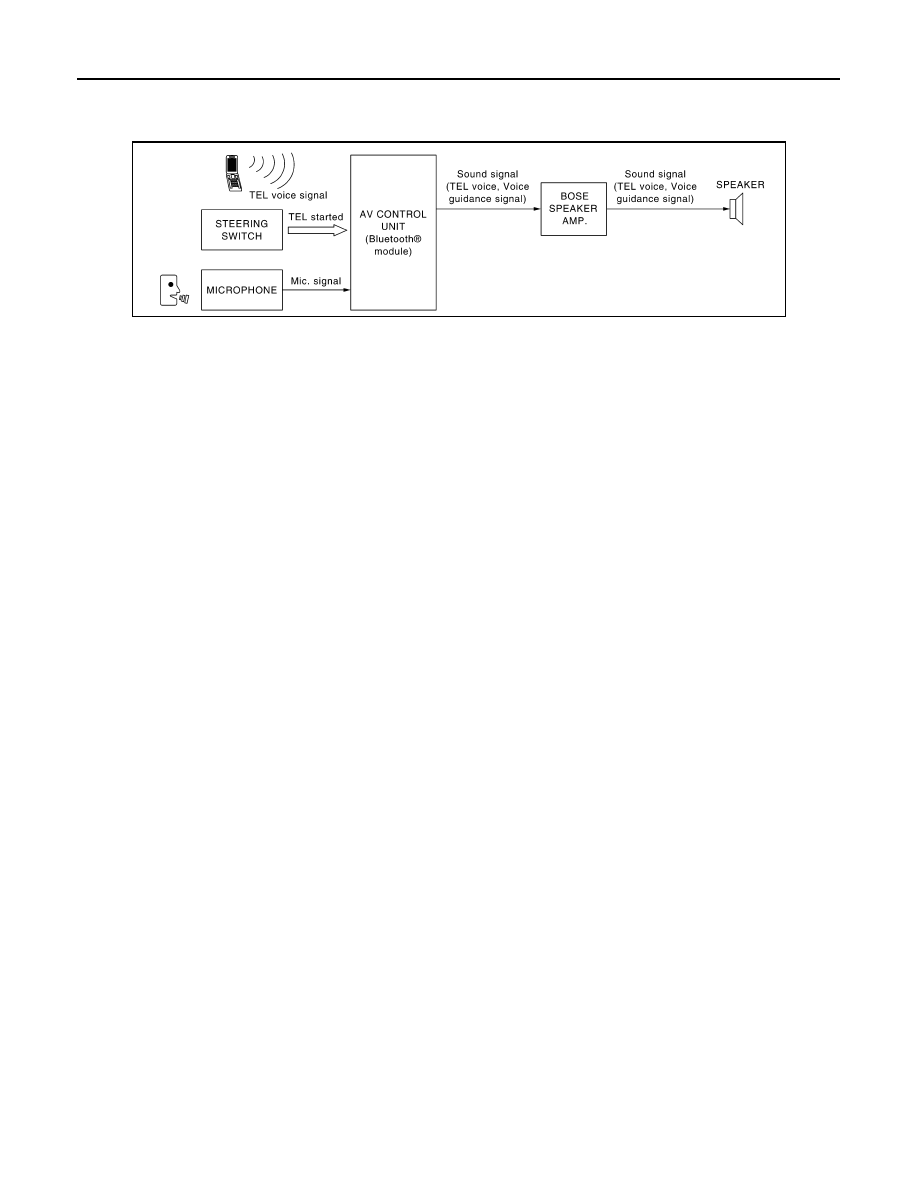

System Diagram

INFOID:0000000004206560

System Description

INFOID:0000000004206561

Refer to the owner's manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth cellular telephone to make a wireless connec-

tion between their cellular telephone and the AV control unit. Hands-free cellular telephone calls can be sent

and received. Personal memos can be created using the Nissan Voice Recognition system. Some Bluetooth

cellular telephones may not be recognized by the AV control unit. When a cellular telephone or the AV control

unit is replaced, the telephone must be paired with the AV control unit. Different cellular telephones may have

different pairing procedures. Refer to the cellular telephone operating manual.

AV CONTROL UNIT

When the ignition switch is turned to ACC or ON, the AV control unit will power up. During power up, the AV

control unit is initialized and performs various self checks. Initialization may take up to 10 seconds. During this

time the Bluetooth ON indicator will flash until initialization is complete. If a phone is present in the vehicle and

paired with the AV control unit, Nissan Voice Recognition will then become active and the Bluetooth ON indica-

tor will remain on. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition system.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The AV control unit uses this signal to

perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self-Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the AV control unit.

The microphone can be actively tested during self-diagnosis.

AWNIA0057GB

AV

HANDS FREE PHONE SYSTEM (SEDAN)

AV-279

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Parts Location

INFOID:0000000004206562
