AV-264

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM (SEDAN)

REAR VIEW MONITOR SYSTEM (SEDAN)

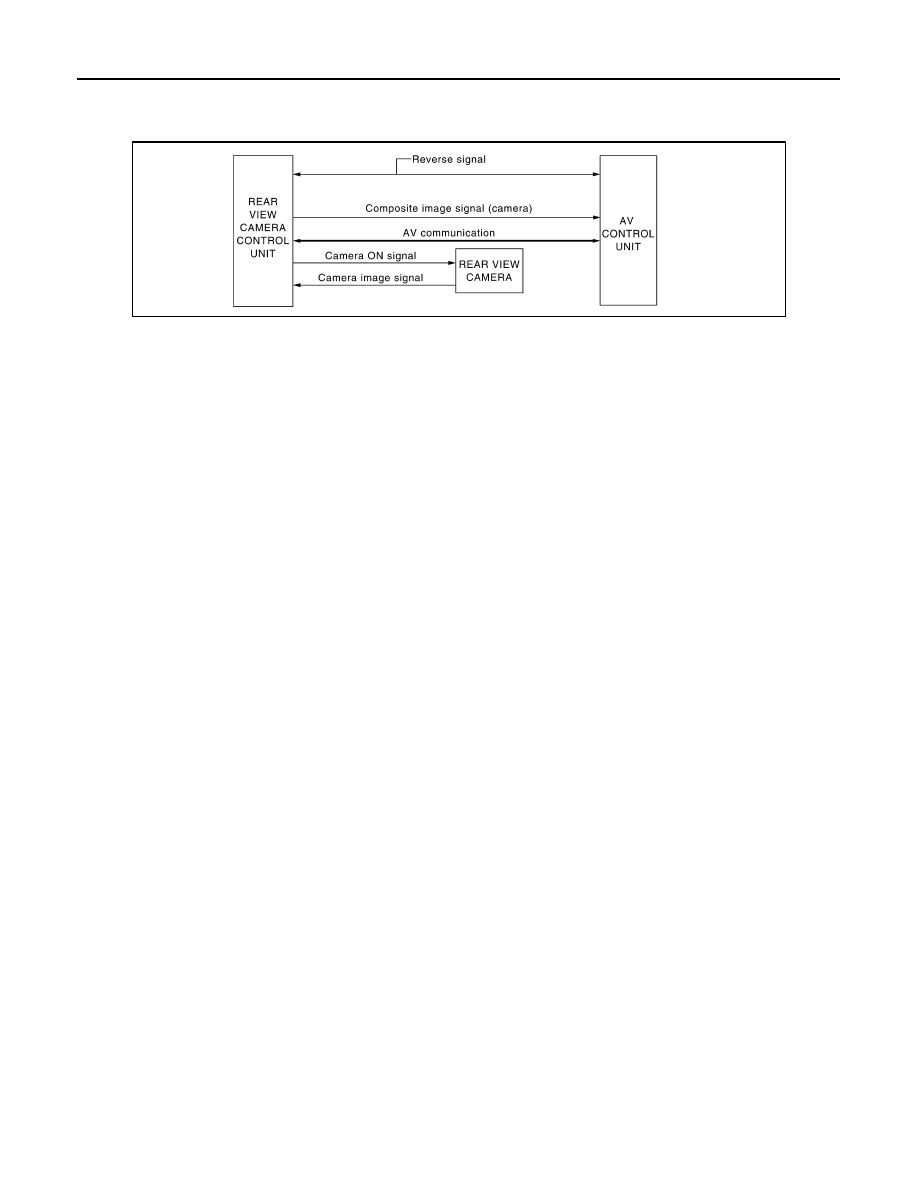

System Diagram

INFOID:0000000004206544

System Description

INFOID:0000000004206545

When the selector is in the R position, the display will show a view to the rear of the vehicle. Lines which indi-

cate the vehicle clearance and distances are also displayed.

AV COMMUNICATION LINE

The rear view camera control unit is connected to the AV control unit using an AV communication line. This

line is used to transmit and receive data.

AWNIA0055GB

AV

REAR VIEW MONITOR SYSTEM (SEDAN)

AV-265

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

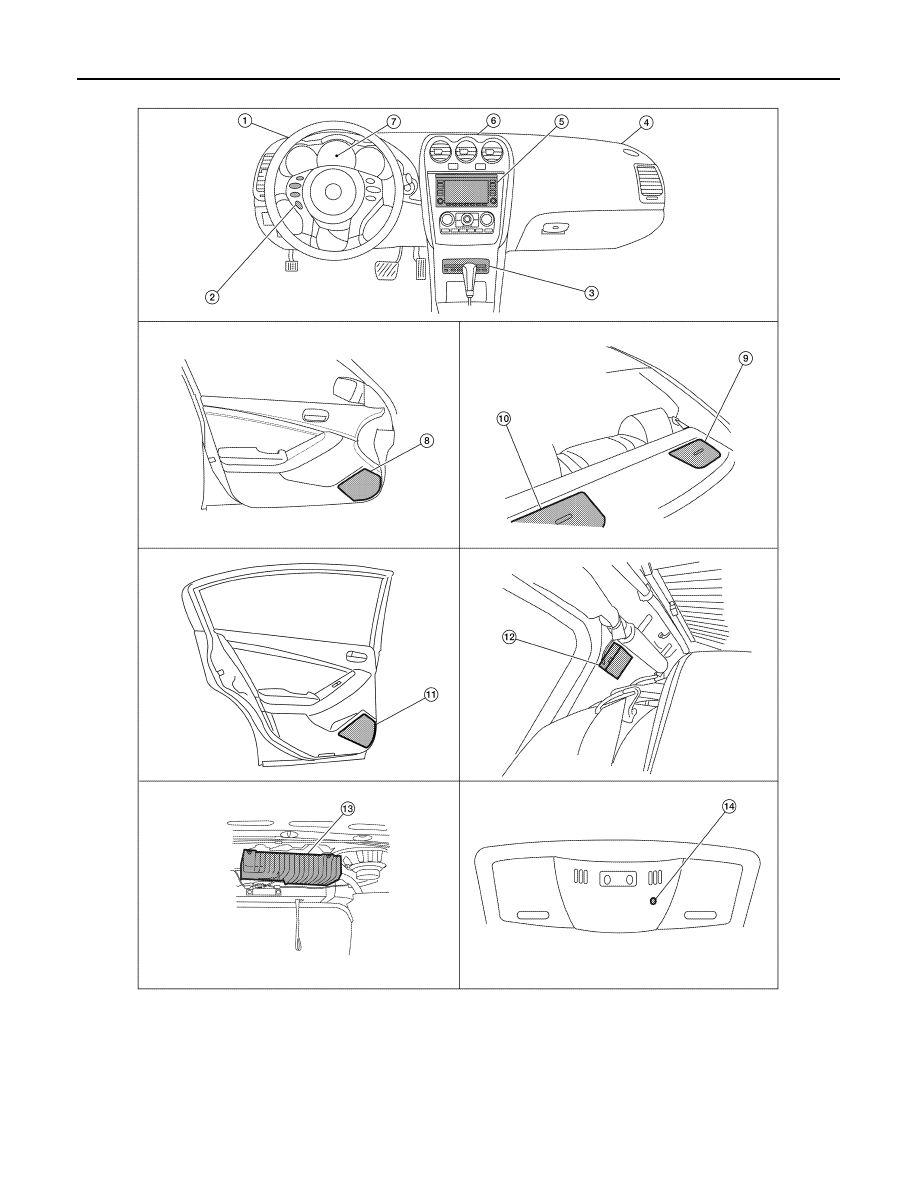

Component Parts Location

INFOID:0000000004206546

AV-266

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM (SEDAN)

AWNIA0760ZZ

AV

REAR VIEW MONITOR SYSTEM (SEDAN)

AV-267

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000004206547

AWNIA0761ZZ

1.

Tweeter LH M51

2.

Steering wheel audio control switches 3.

CD changer M42

4.

Tweeter RH M52

5.

AV control unit M46, M47, M48, M81,
M90, M91

6.

Center speaker M151

7.

Combination meter M24

8.

Front door speaker
LH D3
RH D103

9.

Rear subwoofer RH B124

10. Rear subwoofer LH B120

11. Rear door speaker

LH D202
RH D302

12. Antenna amp M502 (view with rear pil-

lar finisher RH removed)

13. BOSE speaker amp. B121, B122

14. Microphone R7

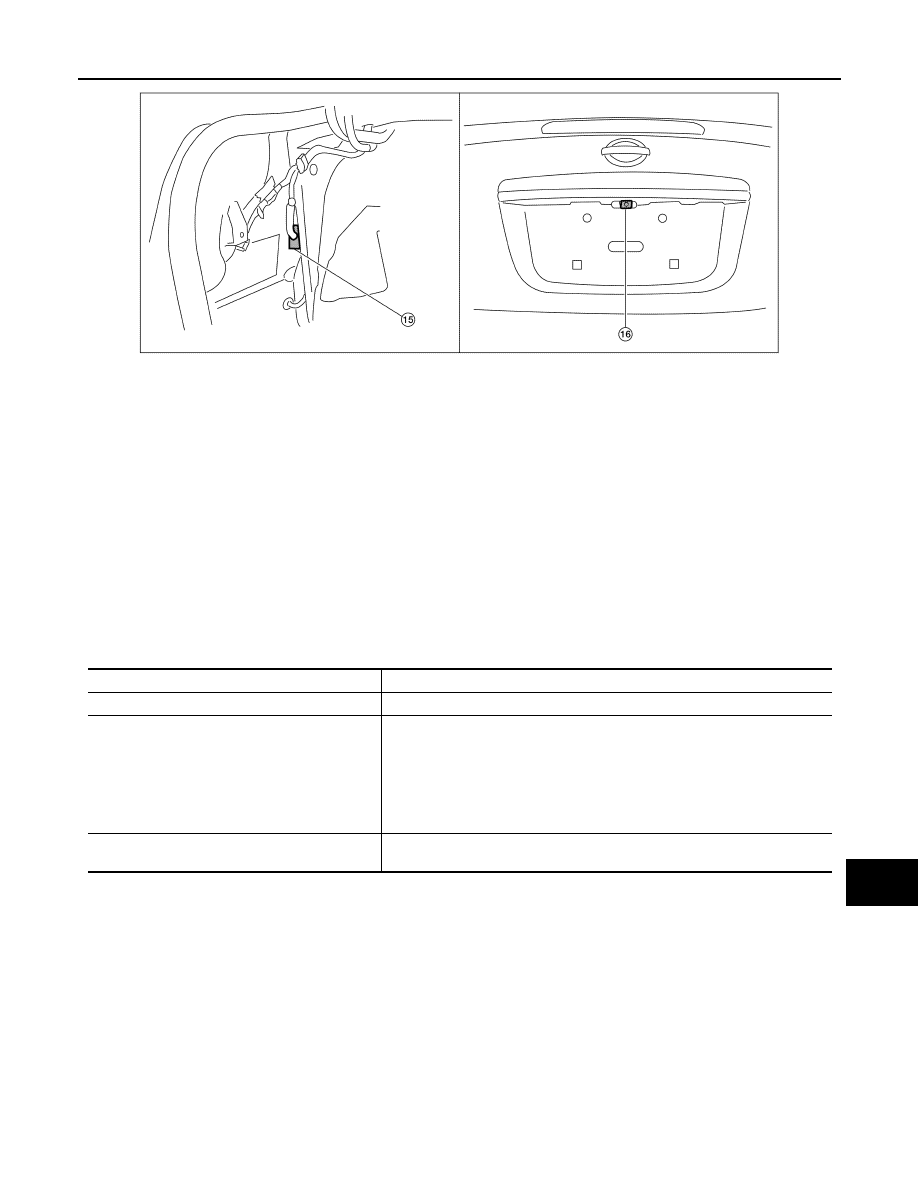

15. Rear view camera control unit B31

(view with trunk side finisher LH re-
moved)

16. Rear view camera B35

Part name

Description

AV control unit

Camera image signal is sent from rear view camera control unit

Rear view camera control unit

• Receives reverse signal from park/neutral position (PNP) switch (with CVT

and QR25DE)

• Receives reverse signal from back-up lamp relay (with CVT and VQ35DE)
• Receives reverse signal from back up lamp switch (with M/T)
• Receives rear view camera image signal
• Sends camera ON signal to rear view camera
• Sends image signal to AV control unit

Rear view camera

• Receives camera ON signal from rear view camera control unit
• Sends image signal to rear view camera control unit
