AV-244

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM (SEDAN)

MULTI AV SYSTEM (SEDAN)

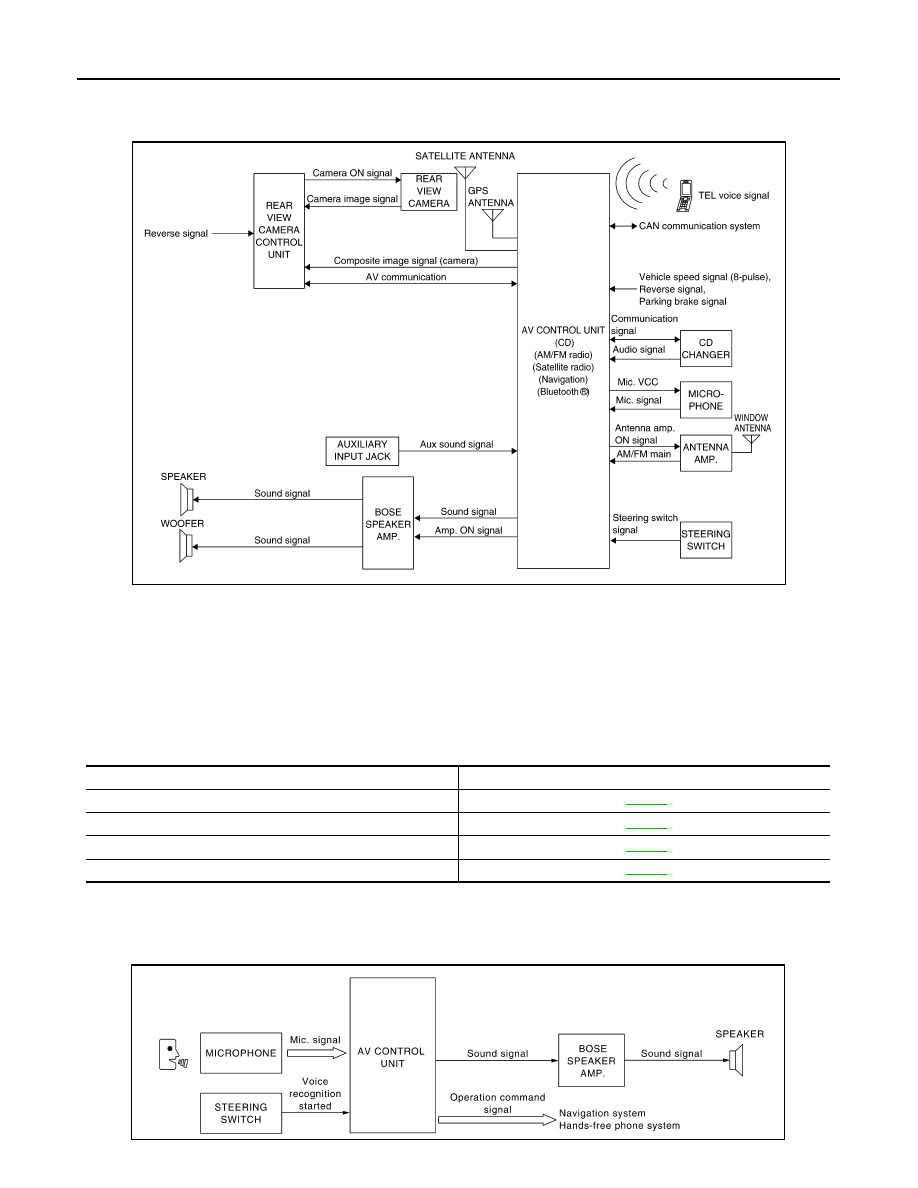

System Diagram

INFOID:0000000004206528

System Description

INFOID:0000000004206529

The multi AV system consists of the following systems.

• Navigation system

• Audio system

• Rear view monitor

• Hands-free phone system

Refer to the following table for multi AV system descriptions.

VOICE RECOGNITION

The multi AV system uses voice recognition to control functions of the following systems:

• Navigation system

• Hands-free phone system

AWNIA0049GB

System

Reference page

Navigation system

AV-255

Audio system

AV-271

Rear view monitor system

AV-264

Hands-free phone system

AV-278

AWNIA0050GB

AV

MULTI AV SYSTEM (SEDAN)

AV-245

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

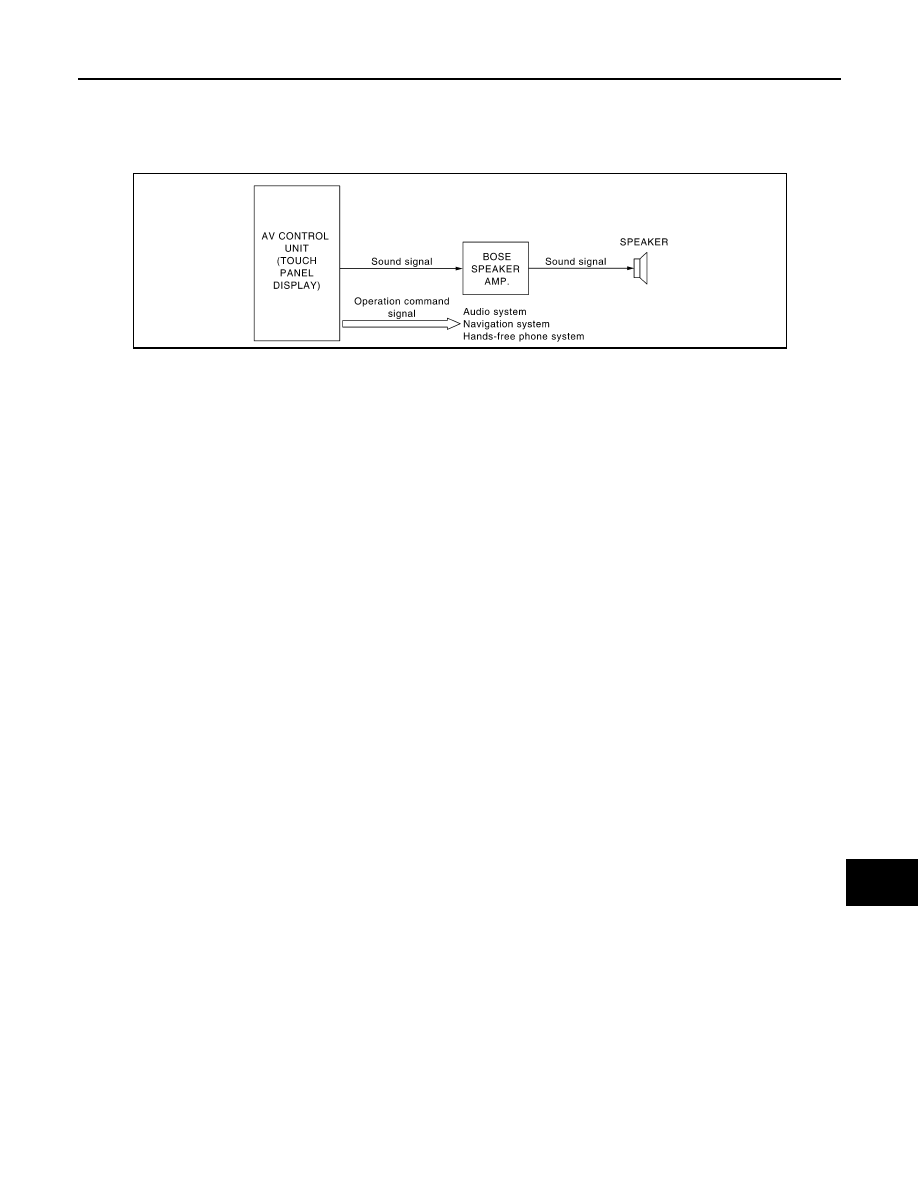

TOUCH PANEL

The multi AV system uses a touch panel display to control functions of the following systems:

• Audio system

• Navigation system

• Hands-free phone system

AWNIA0051GB

AV-246

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM (SEDAN)

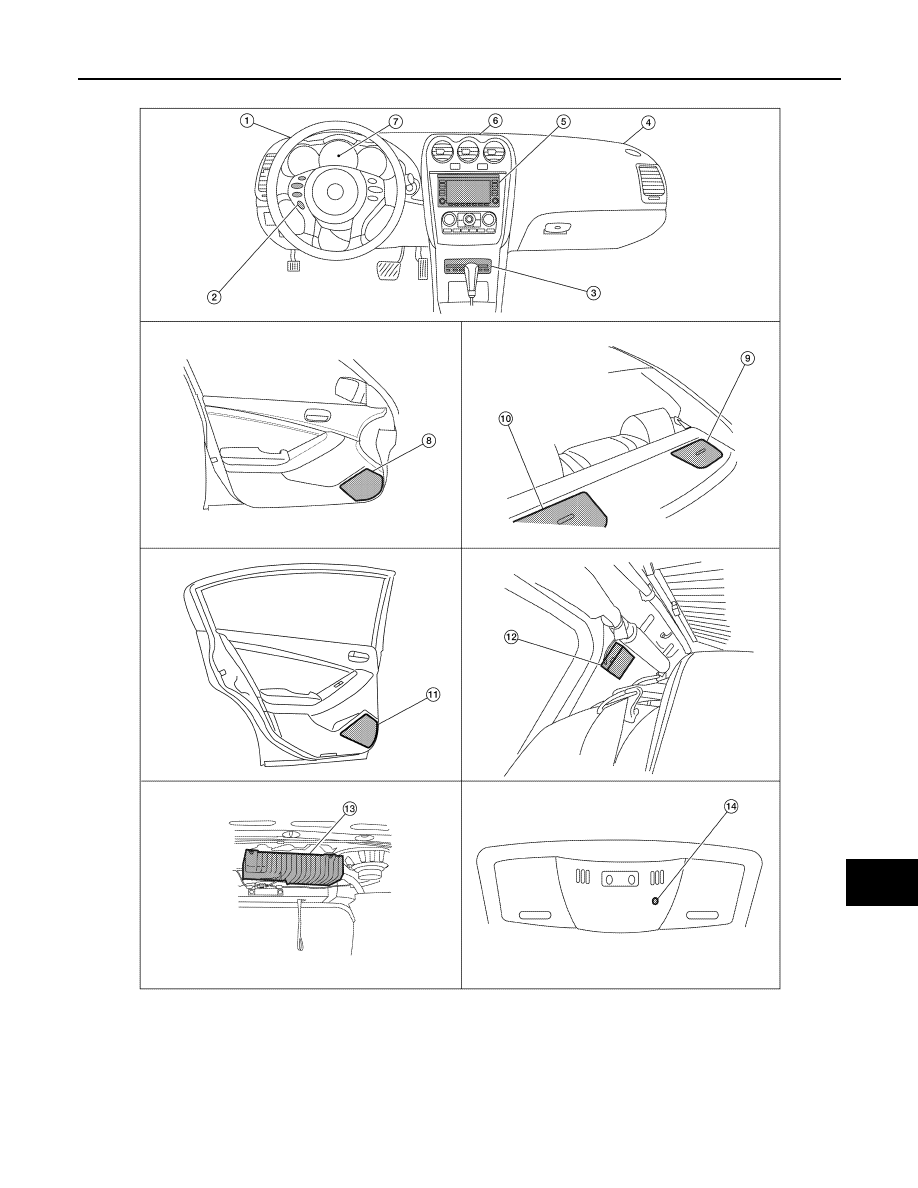

Component Parts Location

INFOID:0000000004206530

AV

MULTI AV SYSTEM (SEDAN)

AV-247

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AWNIA0760ZZ
