AV-176

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

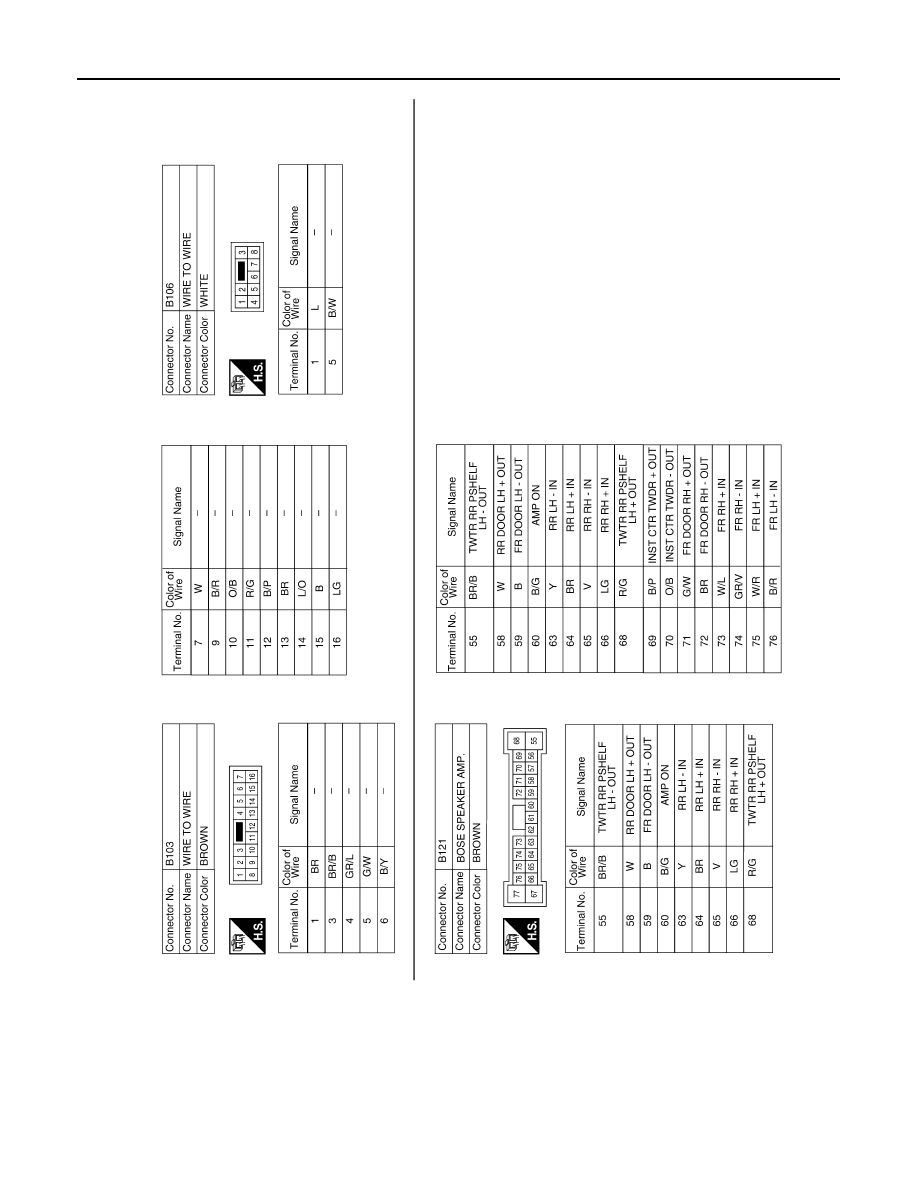

AUDIO UNIT (COUPE)

ABNIA0642GB

AV

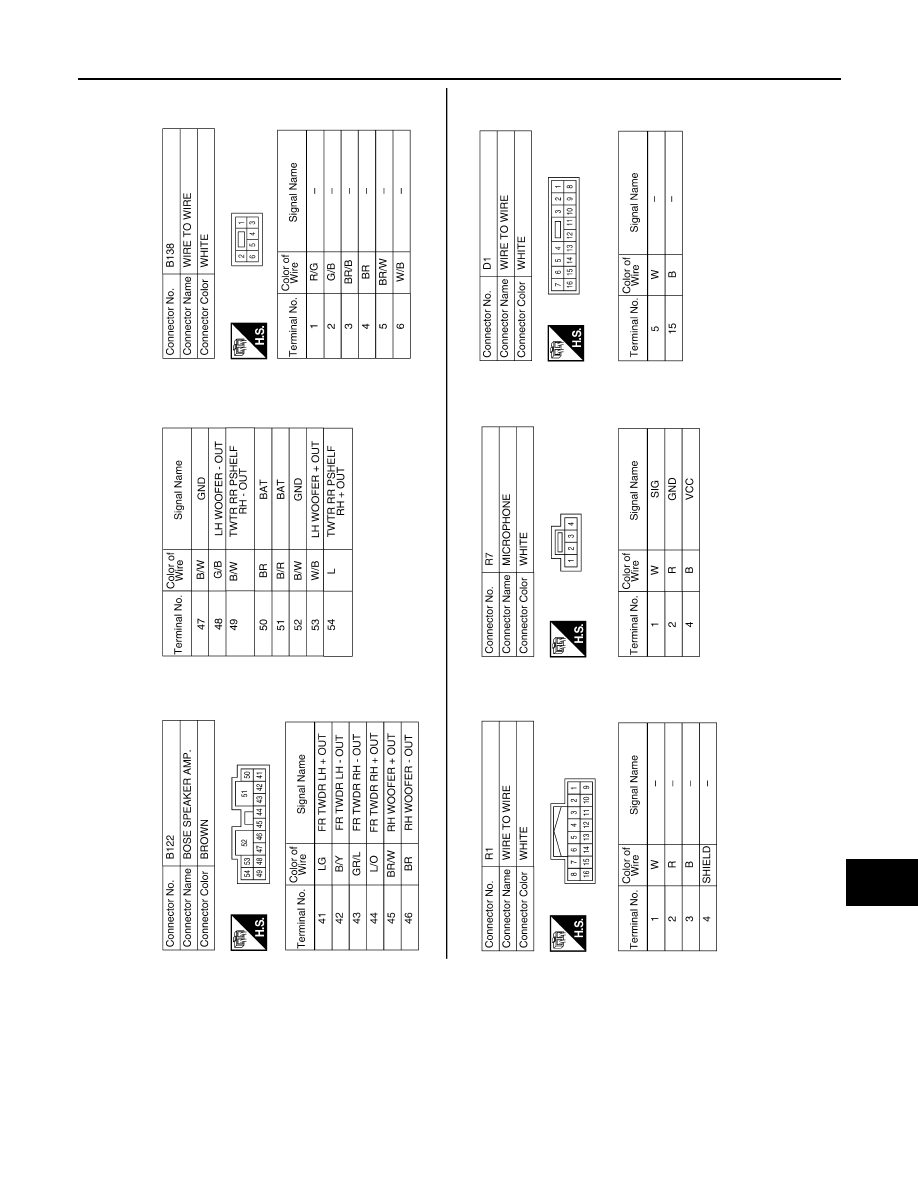

AUDIO UNIT (COUPE)

AV-177

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA0698GB

AV-178

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

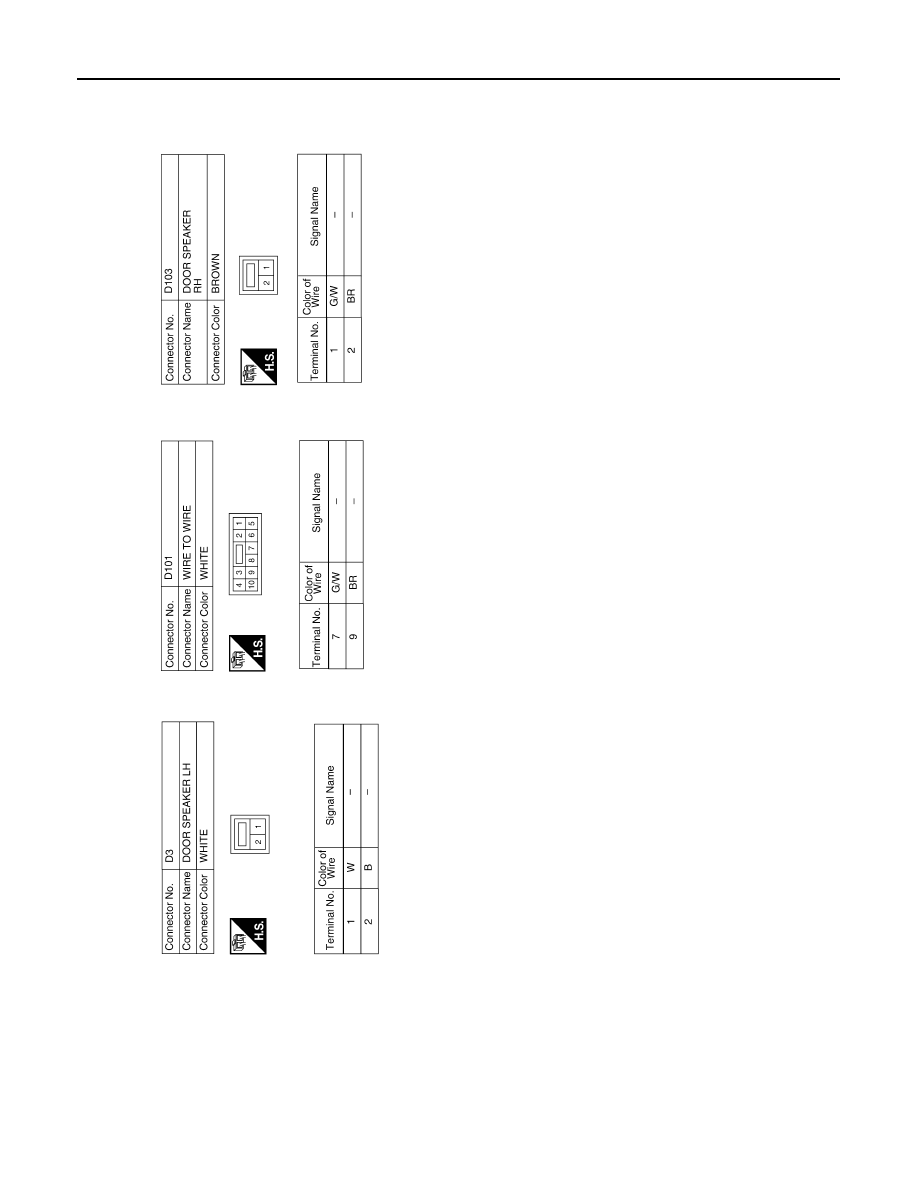

AUDIO UNIT (COUPE)

ABNIA0701GB

AV

AUDIO UNIT (SEDAN)

AV-179

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO UNIT (SEDAN)

Reference Value

INFOID:0000000004206482

TERMINAL LAYOUT

PHYSICAL VALUES - WITH BLUETOOTH

AWNIA0046ZZ

Terminal

 (Wire color)

Item

Signal in-

put/out-

put

Condition

Reference value

+

–

Ignition

switch

Operation

1

(B/P)

Ground

Amp. ON sig-
nal

Output

ON

–

More than approx. 6.5V

2

(G)

3

 (R)

Audio sound
signal front LH

Output

ON

Receive audio sig-
nal

4

(GR/V)

5

 (W/L)

Audio sound
signal rear LH

Output

ON

Receive audio sig-
nal

6

(W/G)

Ground

Remote con-
trol A

Input

ON

Press SEEK
DOWN switch.

0.7 V

Press SEEK UP
switch.

1.3 V

Press

switch.

2.0 V

Except for above.

3.3 V

7

(V/Y)

Ground

ACC signal

Input

ON

Ignition switch
ACC or ON

Battery voltage

11

(B)

12

 (W)

Audio sound
signal front RH

Output

ON

Receive audio sig-
nal
