AV-132

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER (SEDAN)

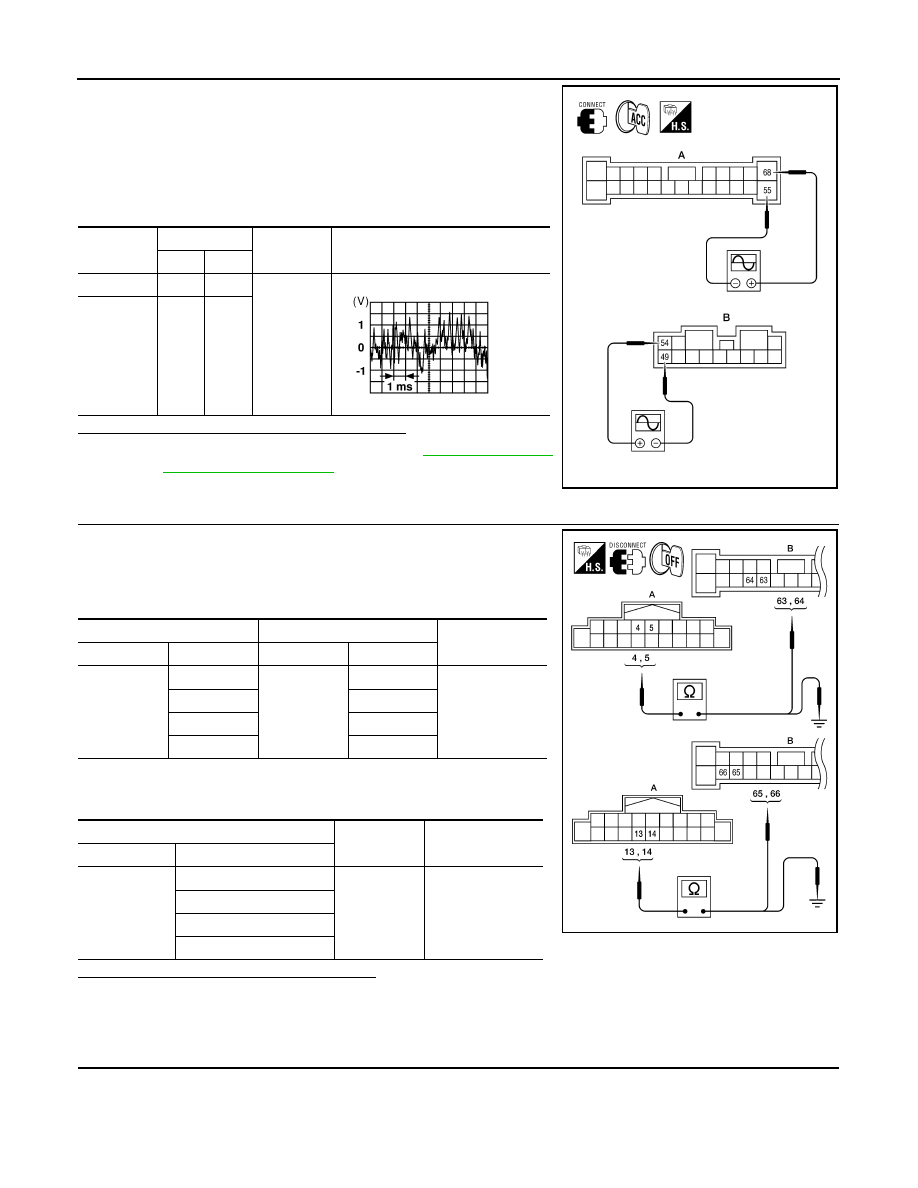

1. Connect BOSE speaker amp. connectors and suspect speaker

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tors B121 (A) and B122 (B) terminals with CONSULT-III or oscil-

loscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect speaker. Refer to

AV-220, "Removal

and Installation - Sedan"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1. Disconnect audio unit connector M43 and BOSE speaker amp.

connector B121.

2. Check continuity between audio unit harness connector M43 (A)

and BOSE speaker amp. harness connector B121 (B).

3. Check continuity between audio unit harness connector M43 (A)

and ground.

Are the continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

A: B121

68

55

Receive
audio sig-
nal

B: B122

54

49

ALNIA0142ZZ

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M43

4

B121

64

Yes

5

63

13

66

14

65

A

—

Continuity

Connector

Terminal

M43

4

Ground

No

5

13

14

ALNIA0144ZZ

AV

REAR DOOR SPEAKER (SEDAN)

AV-133

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

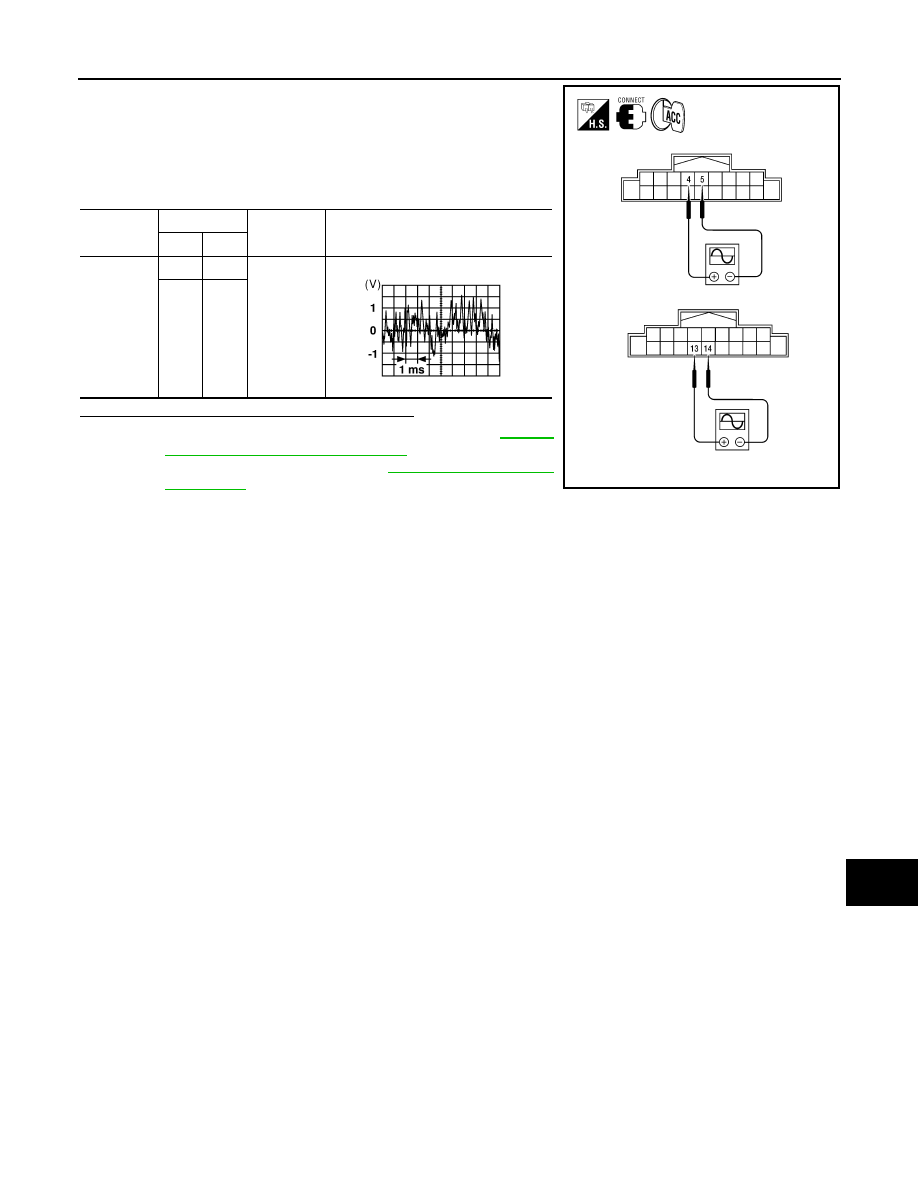

1. Connect audio unit connector M43 and BOSE speaker amp.

connector B121.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between audio unit harness connector M43

terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-216,

"Removal and Installation - Sedan"

.

NO

>> Replace audio unit. Refer to

AV-215, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M43

4

5

Receive
audio sig-
nal

13

14

AWNIA0034ZZ

SKIA0177E

AV-134

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

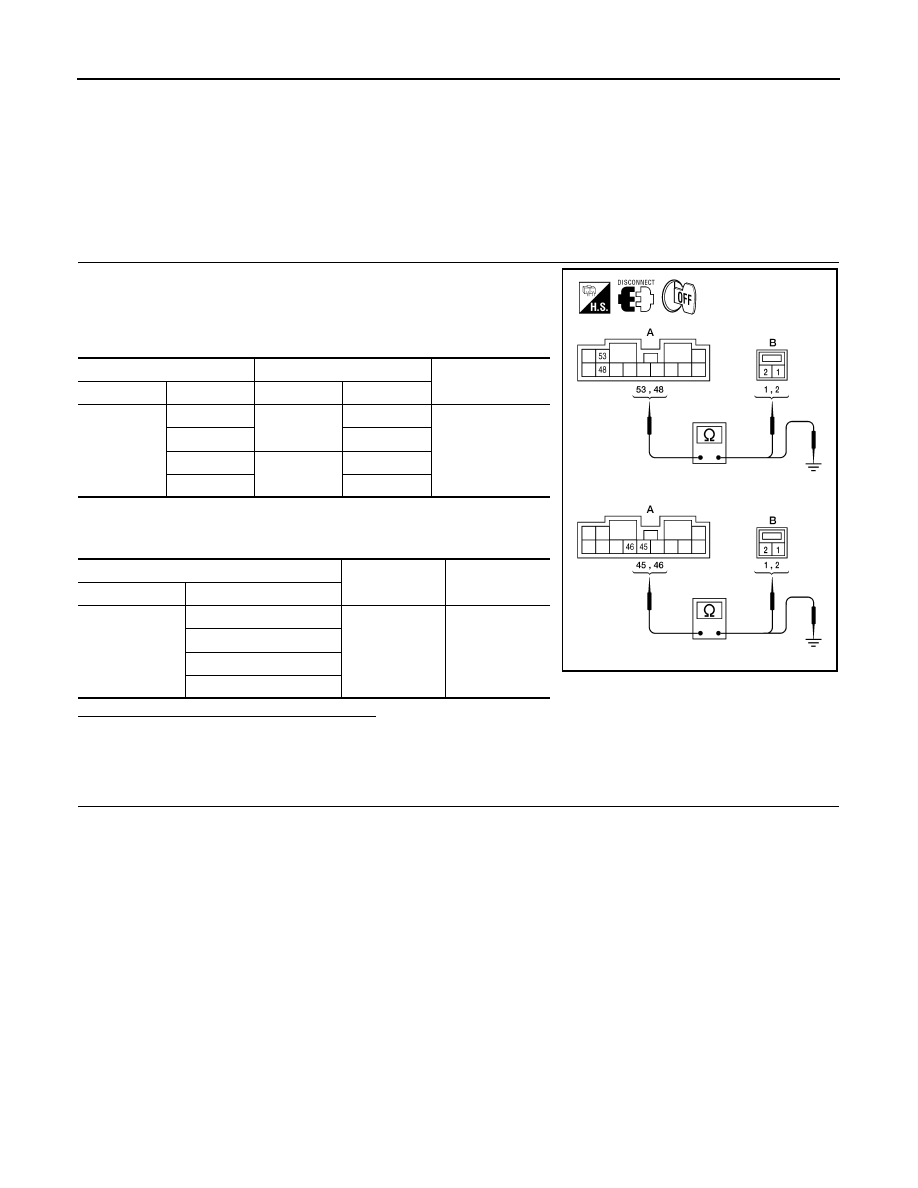

SUBWOOFER (COUPE)

SUBWOOFER (COUPE)

Description

INFOID:0000000004206458

The audio unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio

signals before sending them to the subwoofers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000004206459

1.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connector B122 and suspect

rear subwoofer connector.

2. Check continuity between BOSE speaker amp. harness connec-

tor B122 (A) and suspect rear subwoofer harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tor B122 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

REAR SUBWOOFER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

B122

53

B25

1

Yes

48

2

45

B47

1

46

2

A

—

Continuity

Connector

Terminal

B122

53

Ground

No

48

45

46

ALNIA0145ZZ

AV

SUBWOOFER (COUPE)

AV-135

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

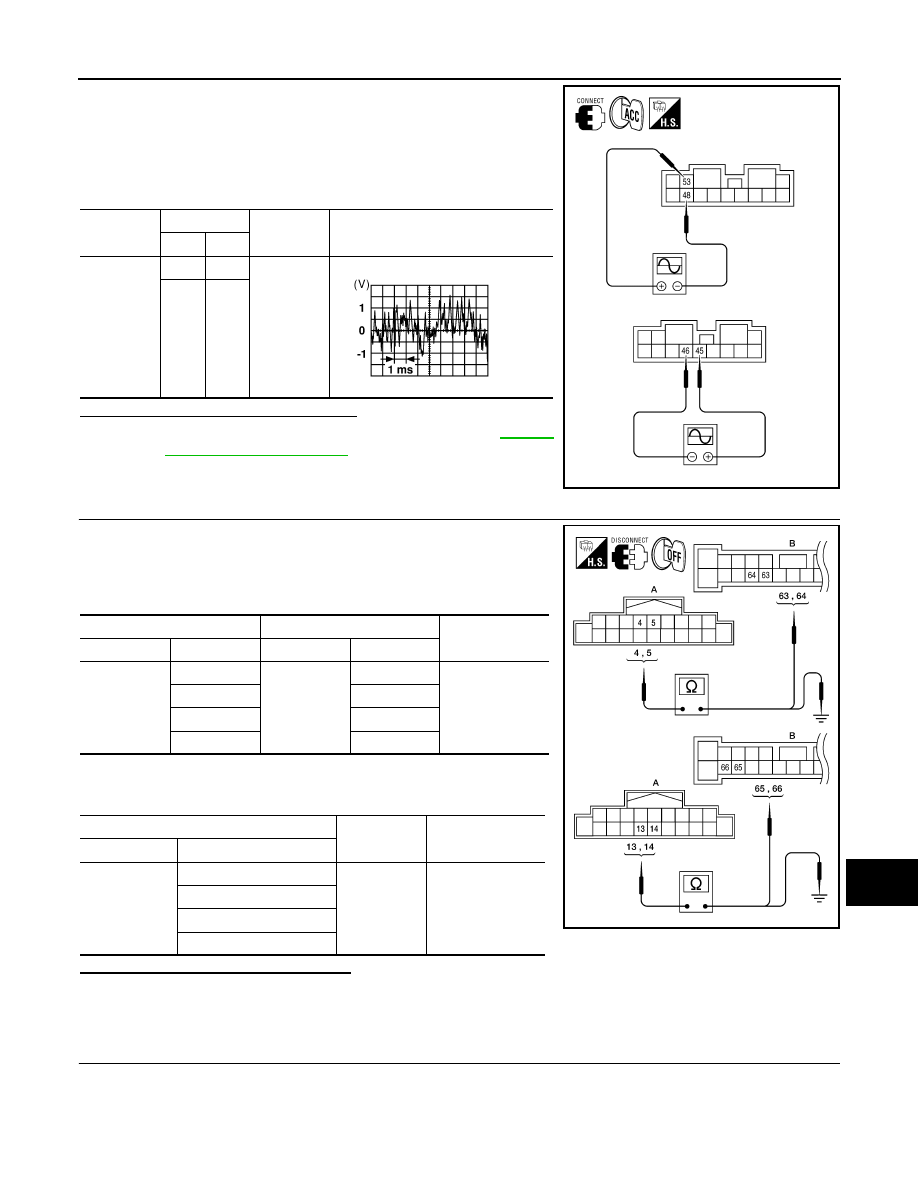

1. Connect BOSE speaker amp. connector B122 and suspect rear

subwoofer connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tor B122 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace suspect rear subwoofer. Refer to

AV-222,

"Removal and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

1. Disconnect audio unit connector M43 and BOSE speaker amp.

connector B121.

2. Check continuity between audio unit harness connector M43 (A)

and BOSE speaker amp. harness connector B121 (B).

3. Check continuity between audio unit harness connector M43 (A)

terminal and ground.

Are continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

REAR SUBWOOFER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B122

53

48

Receive au-
dio signal

45

46

ALNIA0932GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M43

4

B121

64

Yes

5

63

13

66

14

65

A

—

Continuity

Connector

Terminal

M43

4

Ground

No

5

13

14

ALNIA0144ZZ
