AIR MIX DOOR MOTOR

VTL-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

1. Remove the center console lower cover LH. Refer to

IP-19, "Exploded View"

.

2. Disconnect the harness connector from air mix door motor.
3. Remove the three screws and the air mix door motor.

Installation

Installation is in the reverse order of removal.

VTL-22

< REMOVAL AND INSTALLATION >

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

Removal and Installation

INFOID:0000000009882390

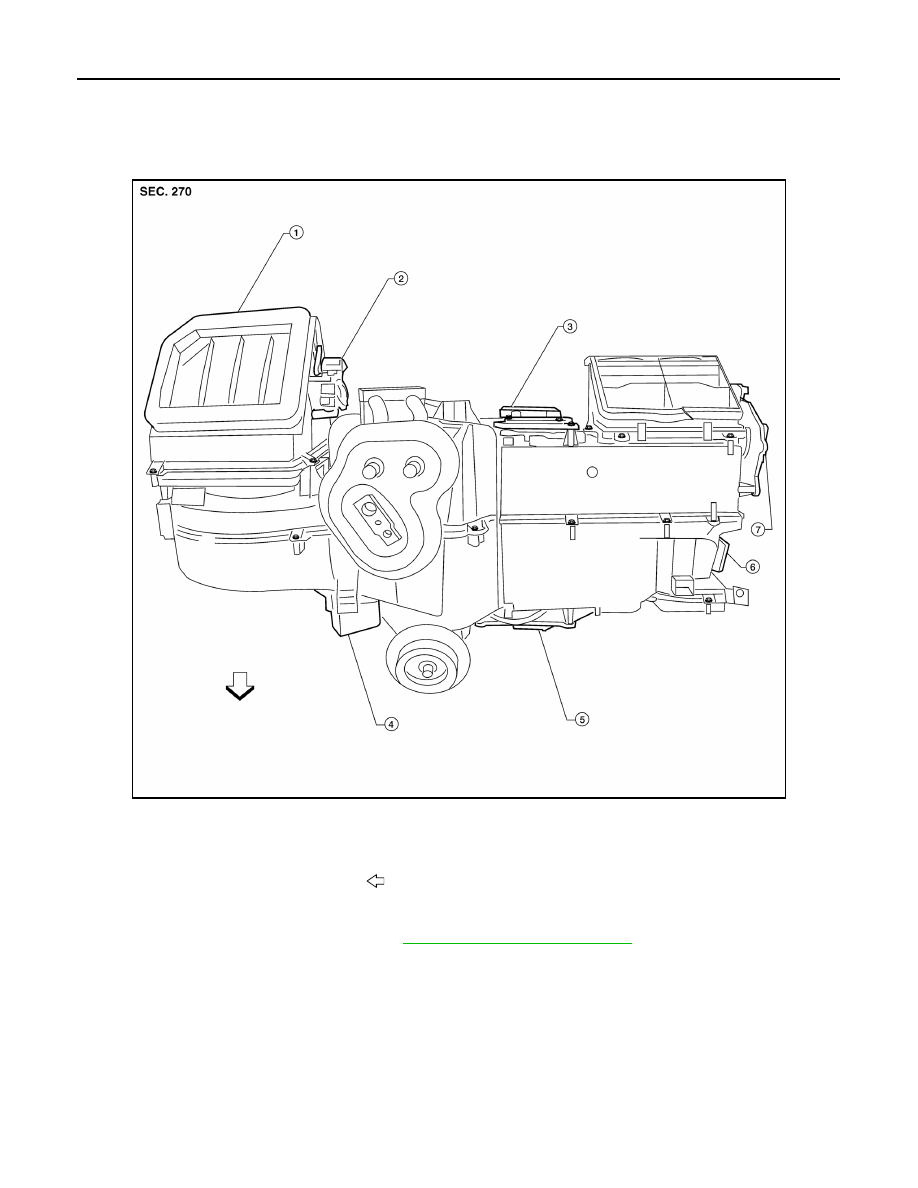

Variable Blower Control - Heater and Cooling Unit Assembly

REMOVAL

1. Remove the glove box assembly. Refer to

IP-16, "Removal and Installation"

.

2. Disconnect the harness connector from variable blower control.
3. Remove the two screws and the variable blower control.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1522ZZ

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control or front blower
motor resistor

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

Front

BLOWER FAN RESISTOR

VTL-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

BLOWER FAN RESISTOR

Removal and Installation

INFOID:0000000009882391

Front Blower Motor Resistor - Heater and Cooling Unit Assembly

REMOVAL

1. Remove the glove box assembly. Refer to

IP-16, "Removal and Installation"

.

2. Disconnect the harness connector from front blower motor resistor.
3. Remove the two screws and the front blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1522ZZ

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control or front blower
motor resistor

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

Front

VTL-24

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

DUCTS AND GRILLES

Component

INFOID:0000000009882392

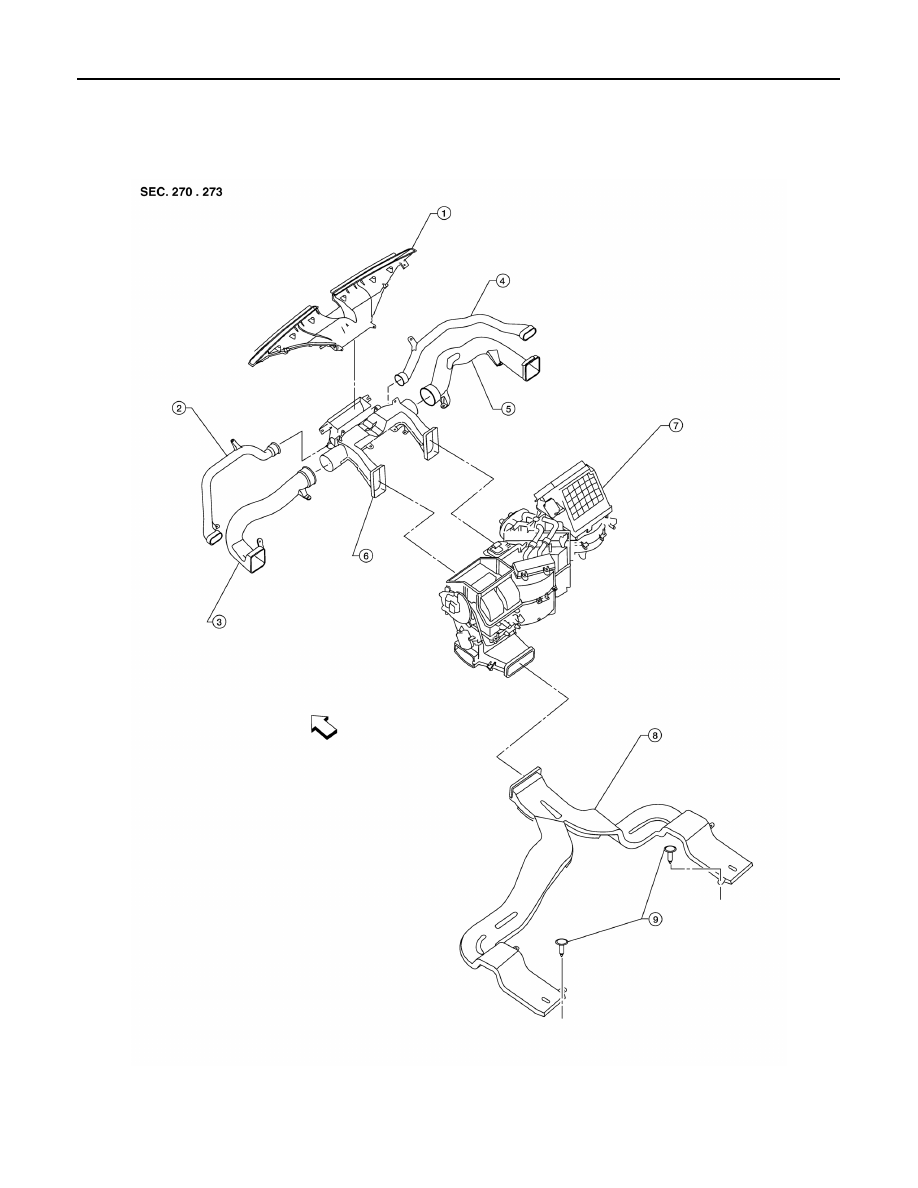

Ducts - Heater and Cooling Unit Assembly

AWIIA1523ZZ

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct
