IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000009882380

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

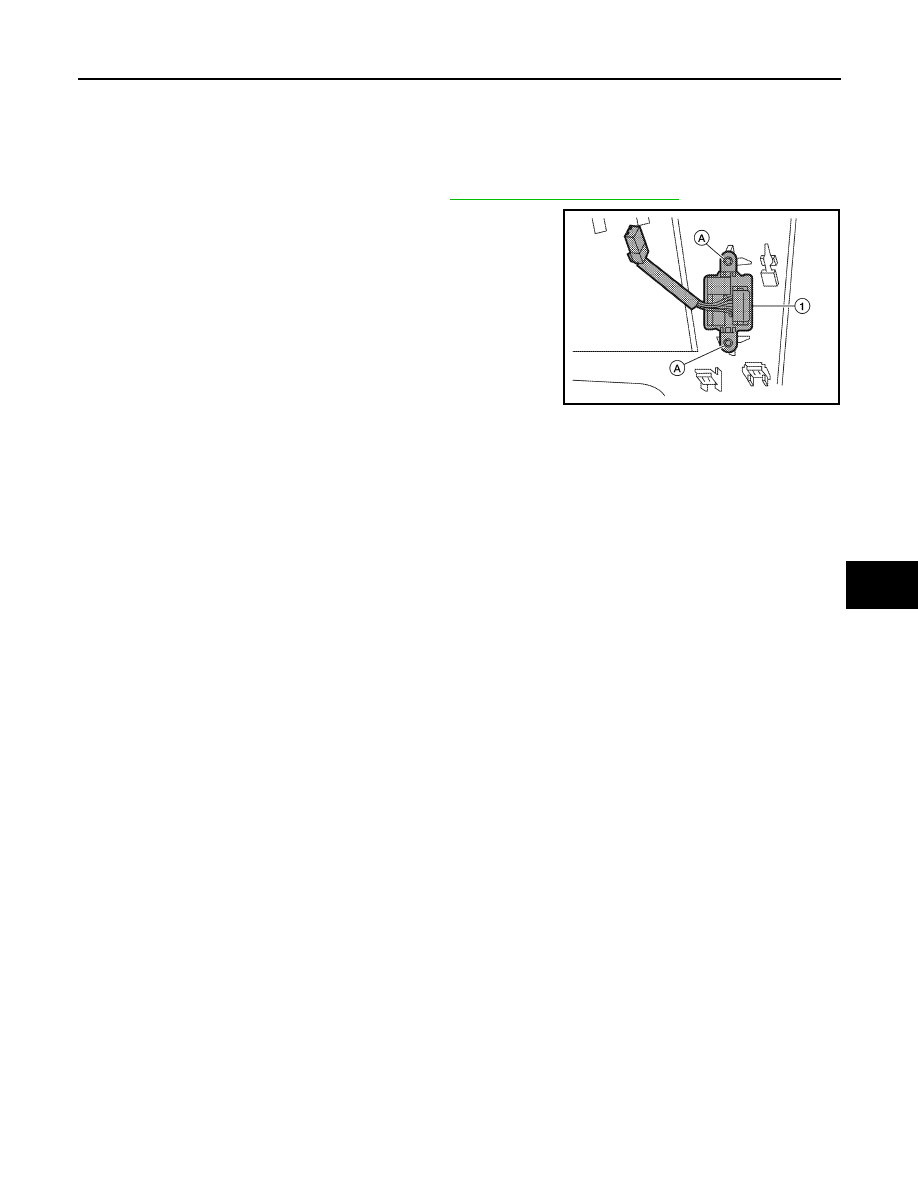

2. Remove the two screws (A).
3. Disconnect harness connector from in-vehicle sensor.
4. Remove the in-vehicle sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0060ZZ

VTL-10

< REMOVAL AND INSTALLATION >

OPTICAL SENSOR

OPTICAL SENSOR

Removal and Installation

INFOID:0000000009882381

REMOVAL

1. Remove the defroster grille from the instrument panel. Refer to

IP-10, "Exploded View"

.

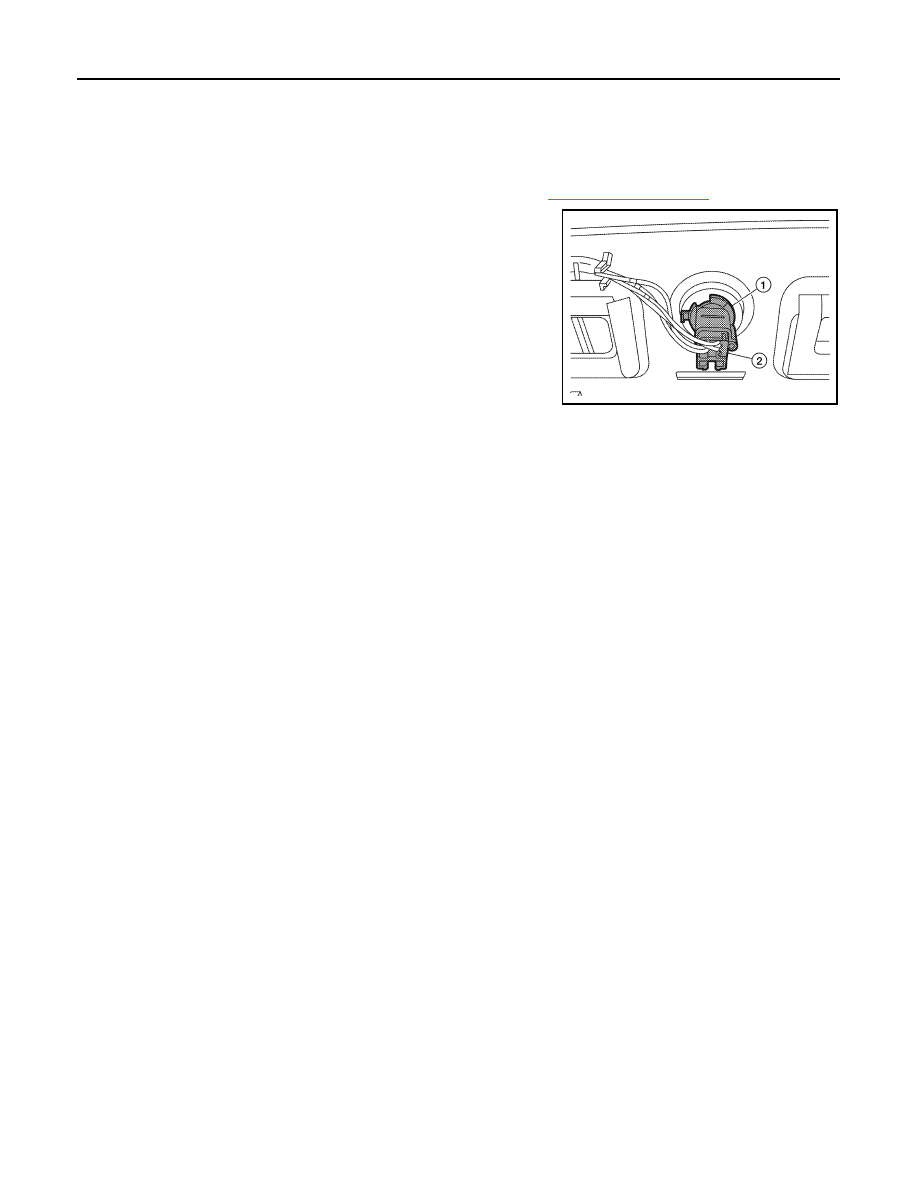

2. Disconnect the harness connector (2) from the optical sensor.
3. Twist the optical sensor (1) counter clockwise to remove it from

the defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0061ZZ

INTAKE SENSOR

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

Removal and Installation

INFOID:0000000009882382

REMOVAL

1. Remove the instrument lower panel RH and glove box. Refer to

IP-16, "Removal and Installation"

.

2. Disconnect the harness connector from intake sensor.

NOTE:

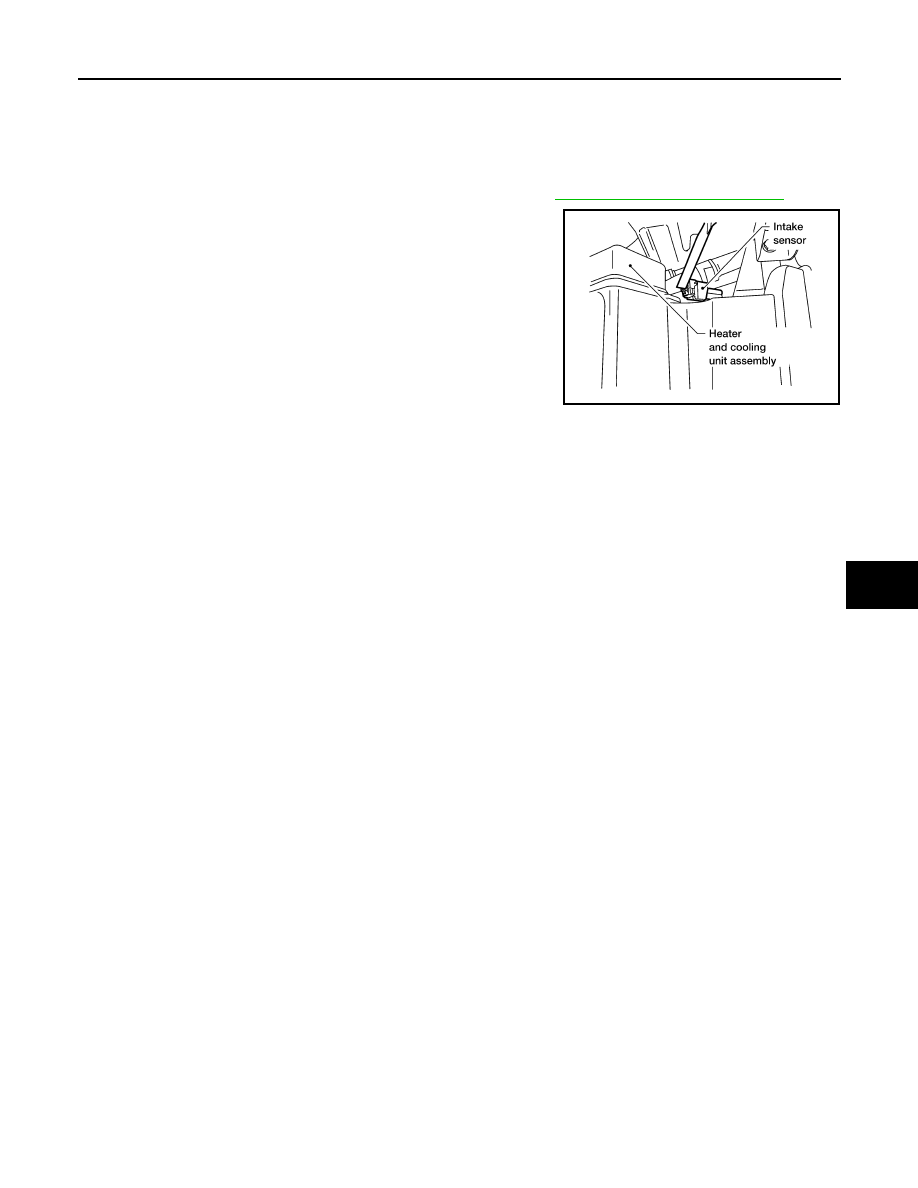

The intake sensor is located on the top of the heater and cooling

unit assembly next to the A/C evaporator cover.

3. Pull up on the intake sensor to remove the intake sensor from

the heater and cooling unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1349E

VTL-12

< REMOVAL AND INSTALLATION >

BLOWER MOTOR

BLOWER MOTOR

Removal and Installation

INFOID:0000000009882383

Blower Motor - Heater and Cooling Unit Assembly

REMOVAL

1. Remove the instrument lower panel RH and glove box assembly. Refer to

IP-16, "Removal and Installa-

tion"

.

2. Disconnect the harness connector from blower motor.
3. Remove the three screws and the blower motor.
4. Remove the blower motor wheel as necessary to transfer to the new blower motor.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1519ZZ

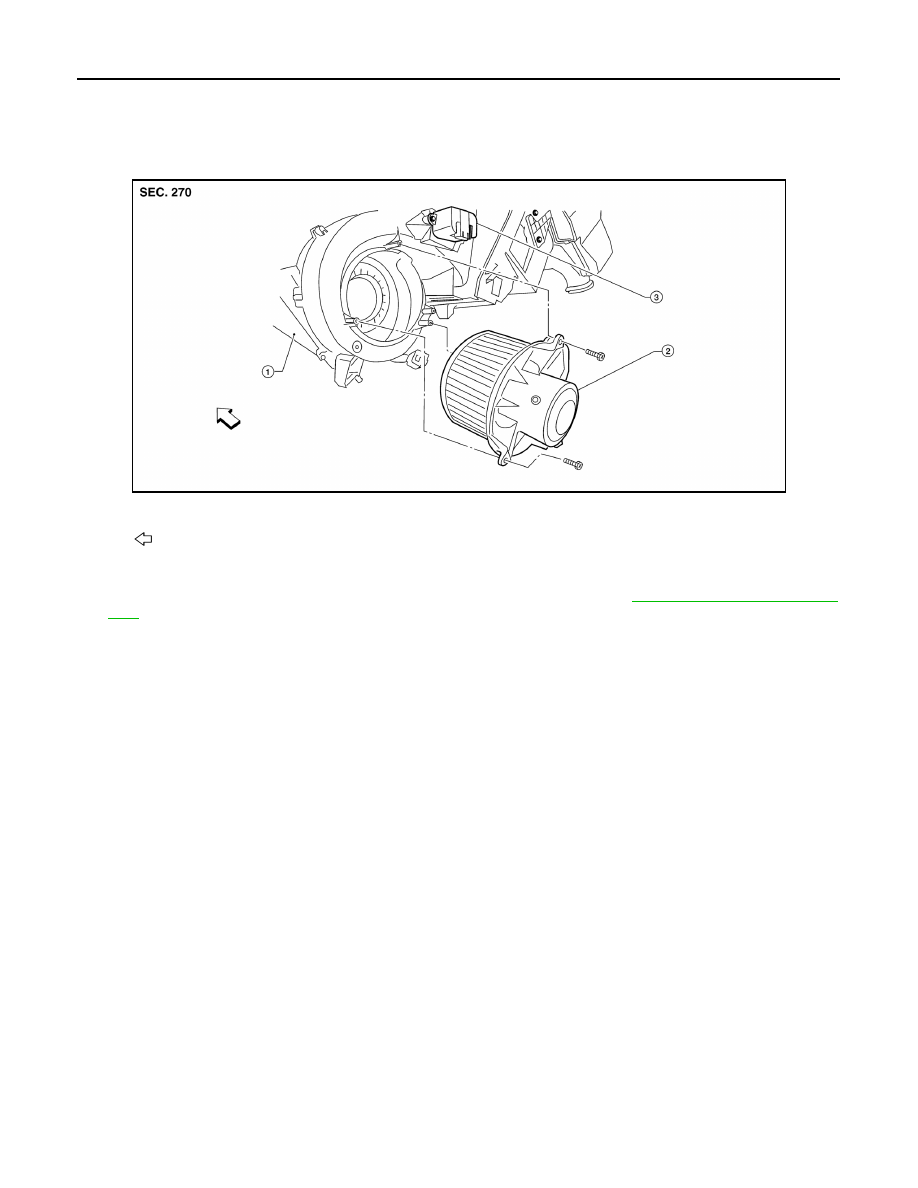

1. Heater and cooling unit assembly 2. Blower motor

3. Variable blower control or front blower motor resistor

Front
