Nissan Titan. Manual - part 649

ASSEMBLY

TM-279

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

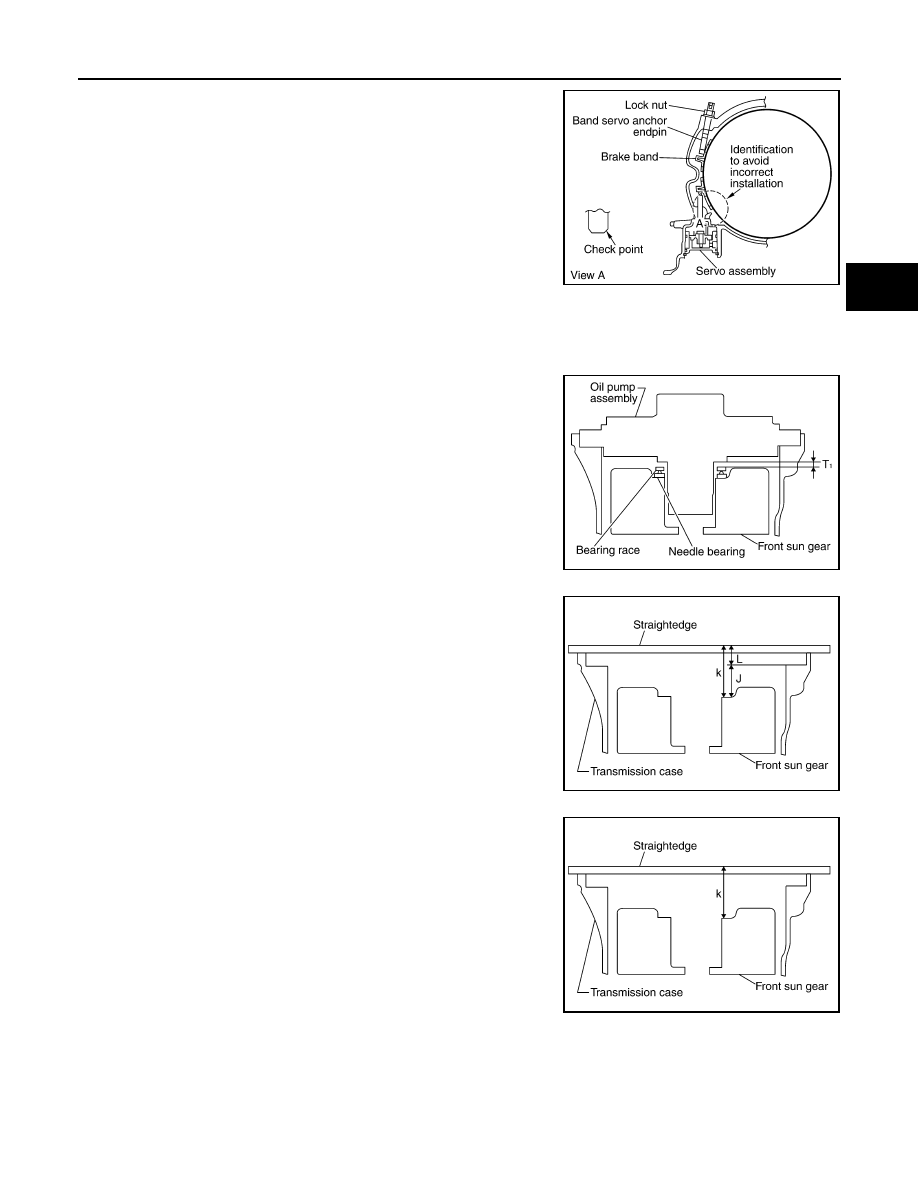

53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.

c. Back off band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to specified

torque.

Adjustment

INFOID:0000000009885936

TOTAL END PLAY

• Measure clearance between front sun gear and bearing race for oil

pump cover.

• Select proper thickness of bearing race so that end play is within

specifications.

1. Measure dimensions “K” and “L” and then calculate dimension

“J”.

a. Measure dimension “K”.

Anchor end pin

: 5.0 N·m (0.51 kg-m, 44 in-lb)

Lock nut

: 46 N·m (4.7 kg-m, 34 ft-lb)

SCIA5498E

SCIA2810E

SCIA5350E

SCIA5351E

TM-280

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

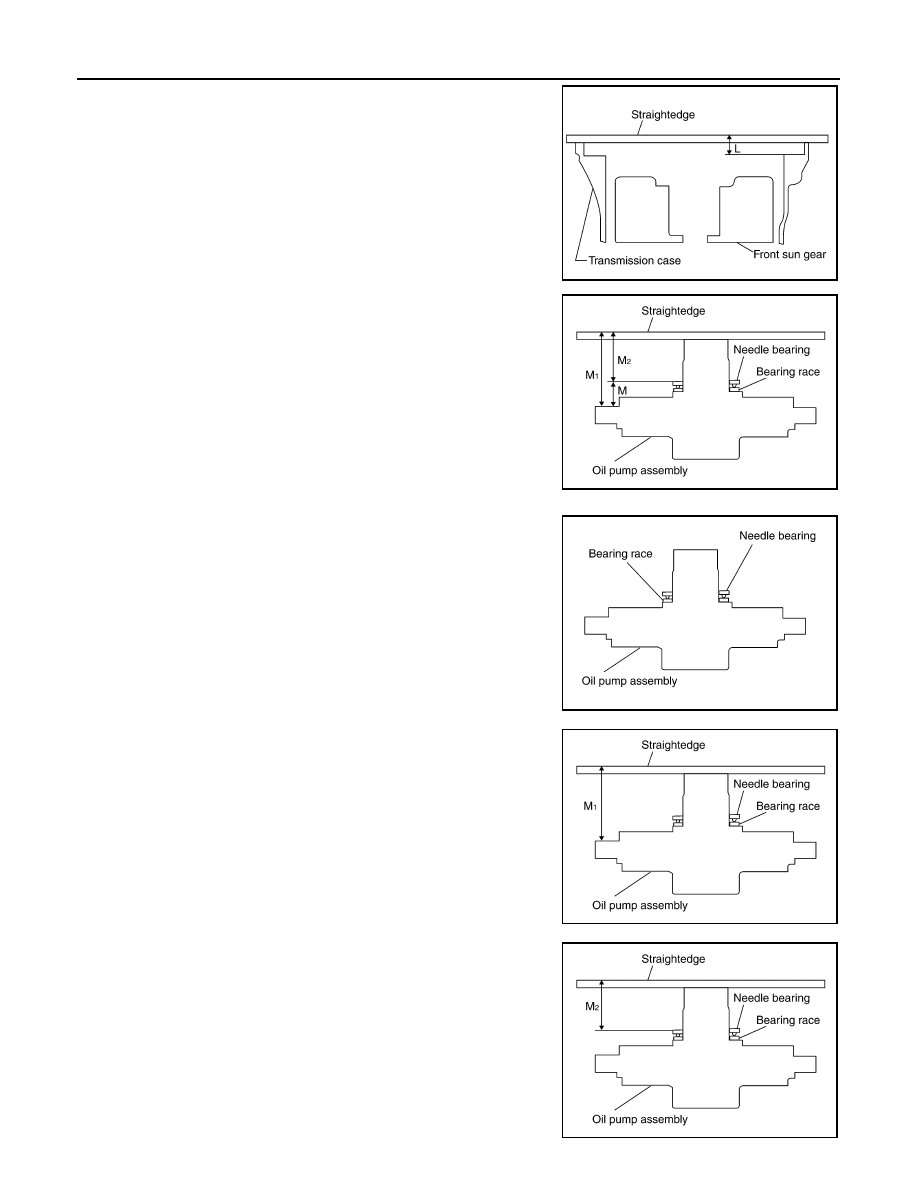

b. Measure dimension “L”.
c.

Calculate dimension “J”.

2. Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

a. Place bearing race and needle bearing on oil pump assembly.

b. Measure dimension “M

1

”.

c.

Measure dimension “M

2

”.

“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E

ASSEMBLY

TM-281

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

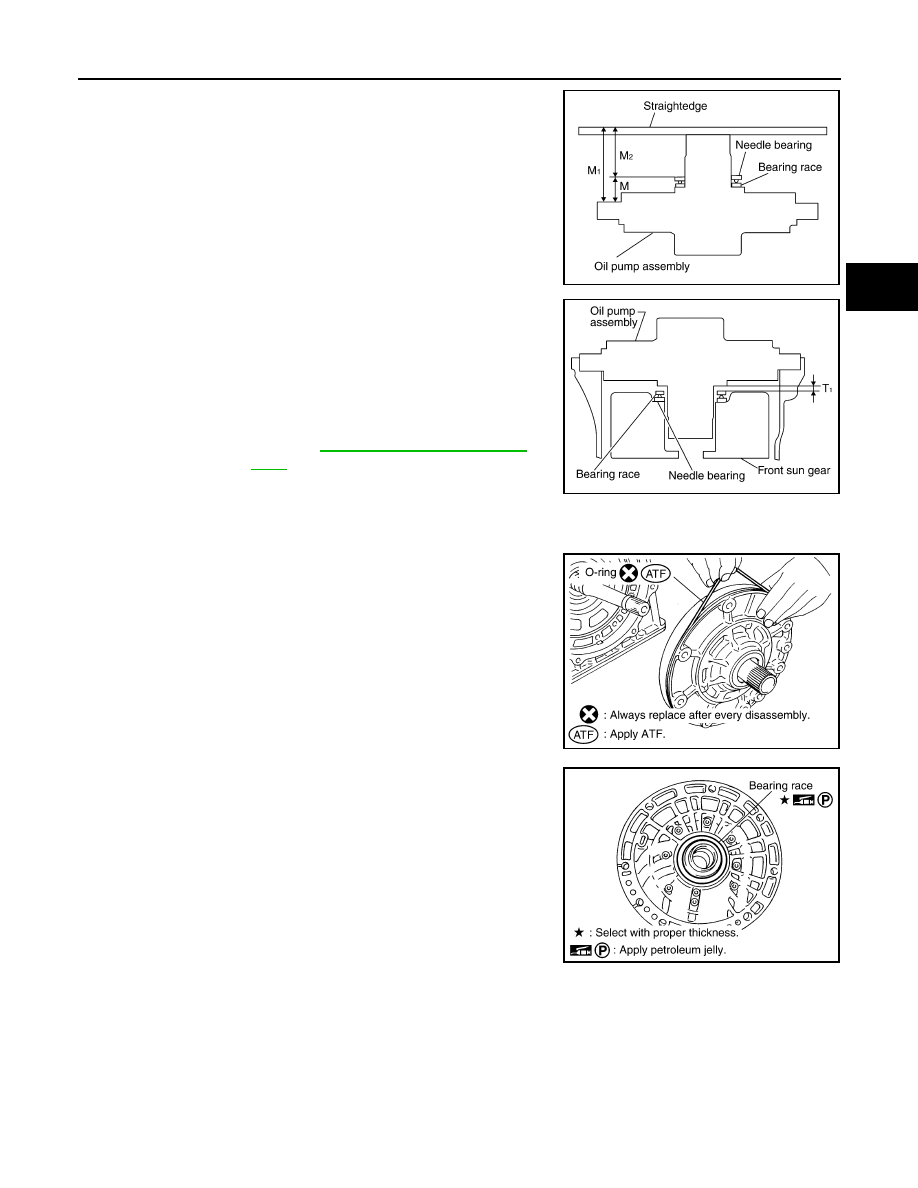

d. Calculate dimension “M”.

3. Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

Assembly (2)

INFOID:0000000009885937

1. Install O-ring to oil pump assembly.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

2. Install bearing race to oil pump assembly.

CAUTION:

Apply petroleum jelly to bearing race.

“M”: Distance between transmission case fitting sur-
face of oil pump and needle bearing on oil pump.

M = M

1

 – M

2

SCIA3125E

T

1

 = J – M

Total end play “T

1

” : 0.25 - 0.55 mm (0.0098 - 0.0217 in)

Bearing races :Refer to

TM-288, "General Specifica-

tion"

.

SCIA2810E

SCIA5172E

SCIA6529E

TM-282

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

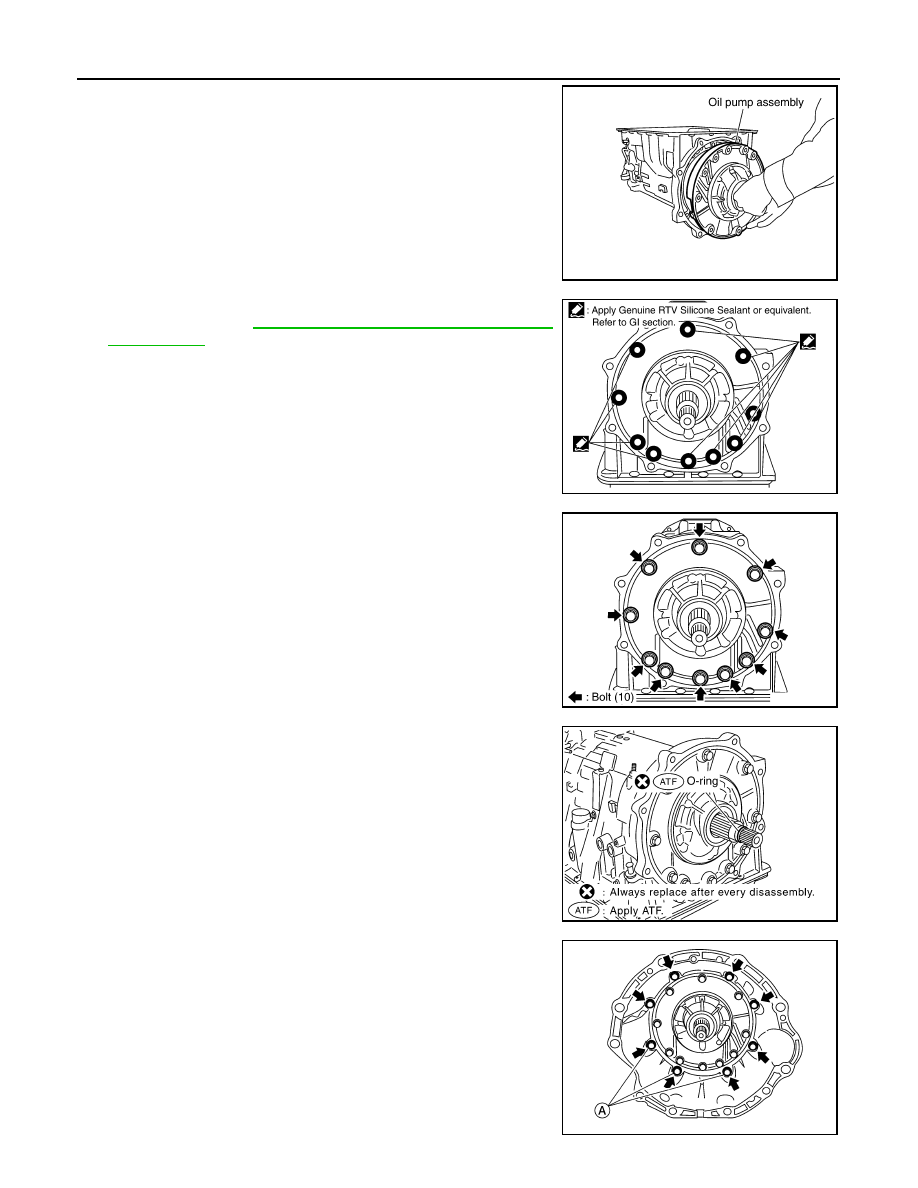

3. Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump bearing.

4. Apply recommended sealant (Genuine RTV Silicone Sealant or

equivalent. Refer to

GI-21, "Recommended Chemical Products

and Sealants"

.) to oil pump assembly as shown.

CAUTION:

Completely remove all moisture, oil, old sealant and any

foreign material from the oil pump bolts and oil pump bolt

mating surfaces.

5. Tighten oil pump bolts to specified torque.

CAUTION:

Apply ATF to oil pump bushing.

6. Install O-ring to input clutch assembly.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

7. Install converter housing to transmission case and tighten bolts

to specified torque.

CAUTION:

Do not reuse self-sealing bolt (A).

SCIA2811E

SCIA5321E

Oil pump bolts

: 48 N·m (4.9 kg-m, 35 ft-lb)

SCIA2300E

SCIA5011E

Converter housing bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt (A)

: 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0662E
