CONTROL VALVE WITH TCM

TM-207

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

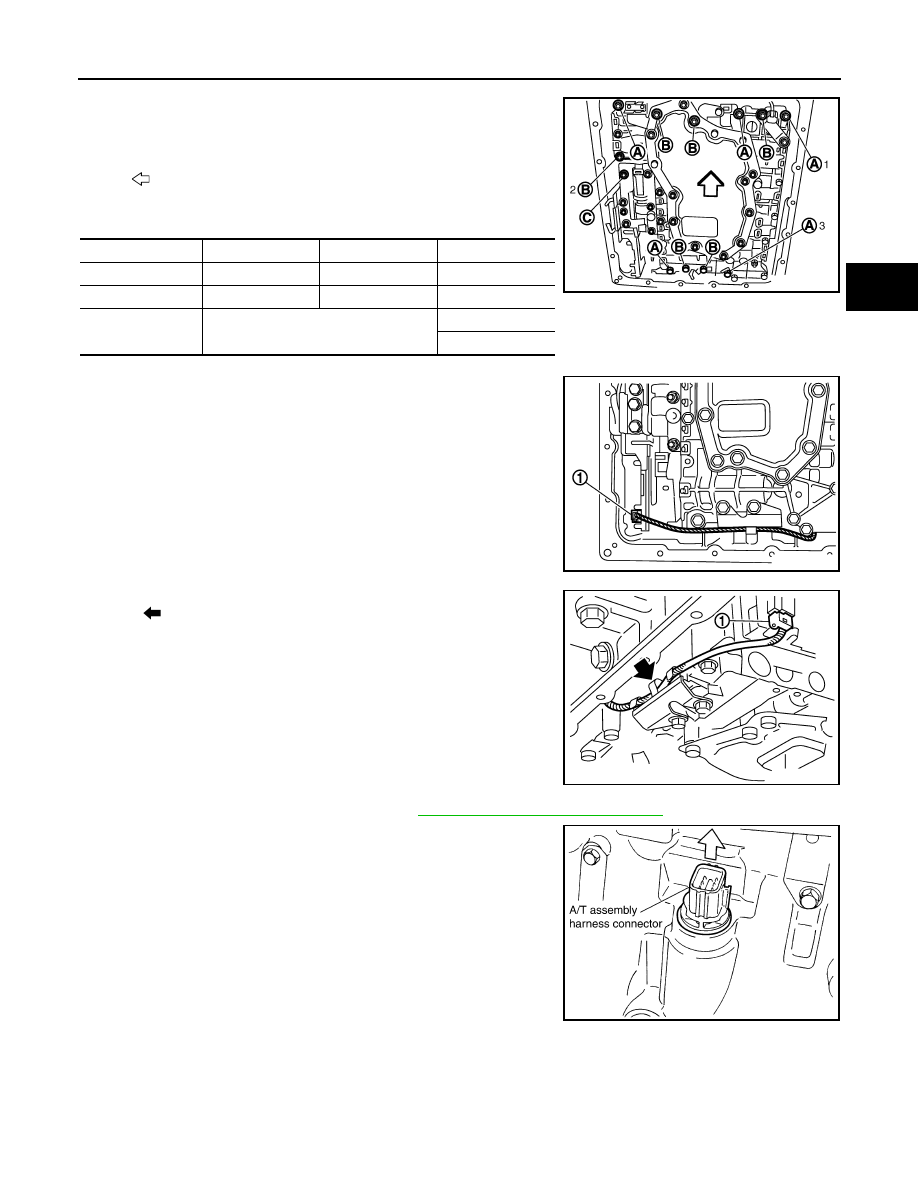

10. Tighten bolt (1A), (2B) and (3A) temporarily to prevent disloca-

tion. After that tighten them in order (1

→ 2 → 3). Then tighten

other bolts.

11. Tighten control valve with TCM bolts to the specified torque.

12. Connect output speed sensor connector (1).

13. Securely fasten output speed sensor (1) harness with terminal

clip (

).

14. Install oil pan to transmission case. Refer to

TM-199, "Removal and Installation"

.

15. Pull up A/T assembly harness connector.

CAUTION:

Do not damage connector.

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (kg-m, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8075E

JSDIA1319ZZ

JSDIA1316ZZ

SCIA5038E

TM-208

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

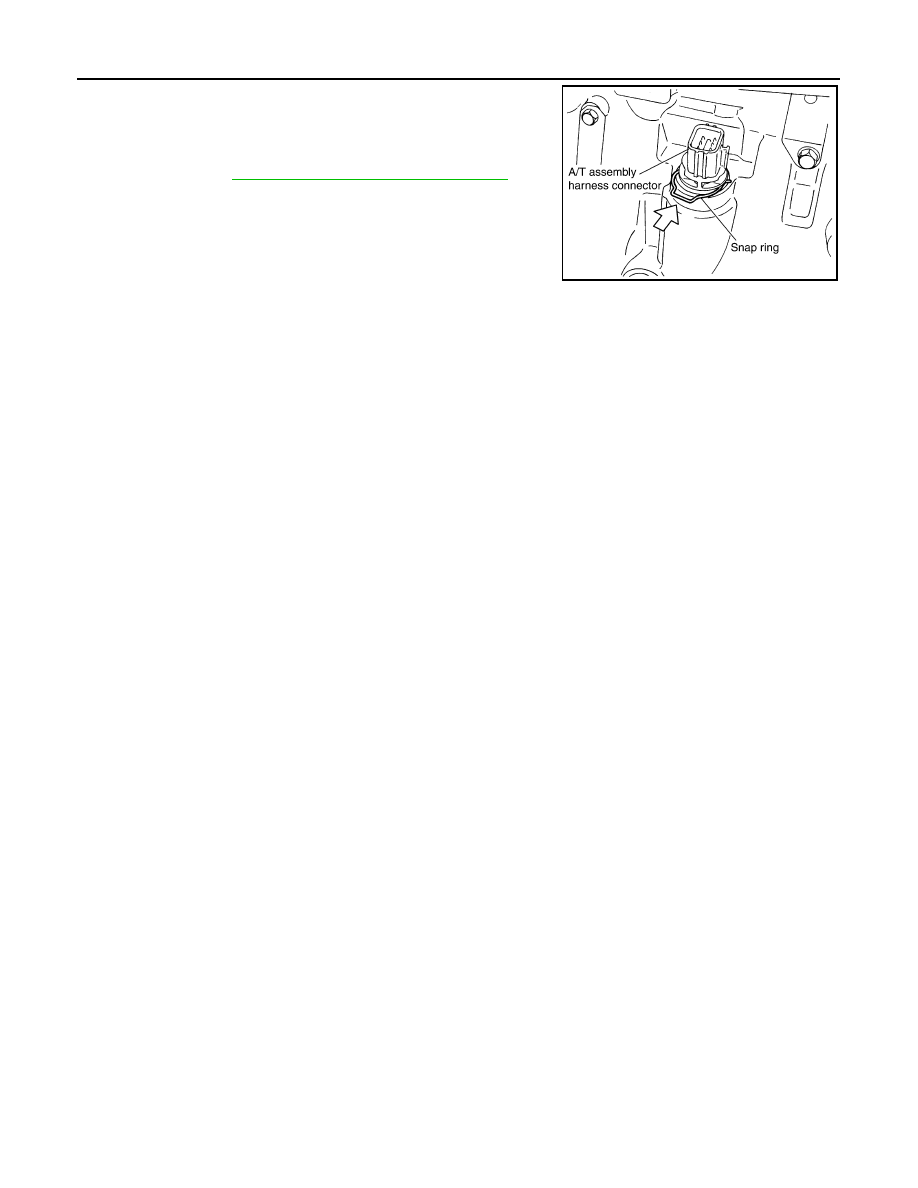

16. Install snap ring to A/T assembly harness connector.
17. Connect A/T assembly harness connector.
18. Connect the negative battery terminal.
19. Refill the A/T with fluid and check the fluid level and for fluid

leakage. Refer to

TM-172, "Checking the A/T Fluid (ATF)"

.

SCIA5039E

REAR OIL SEAL

TM-209

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

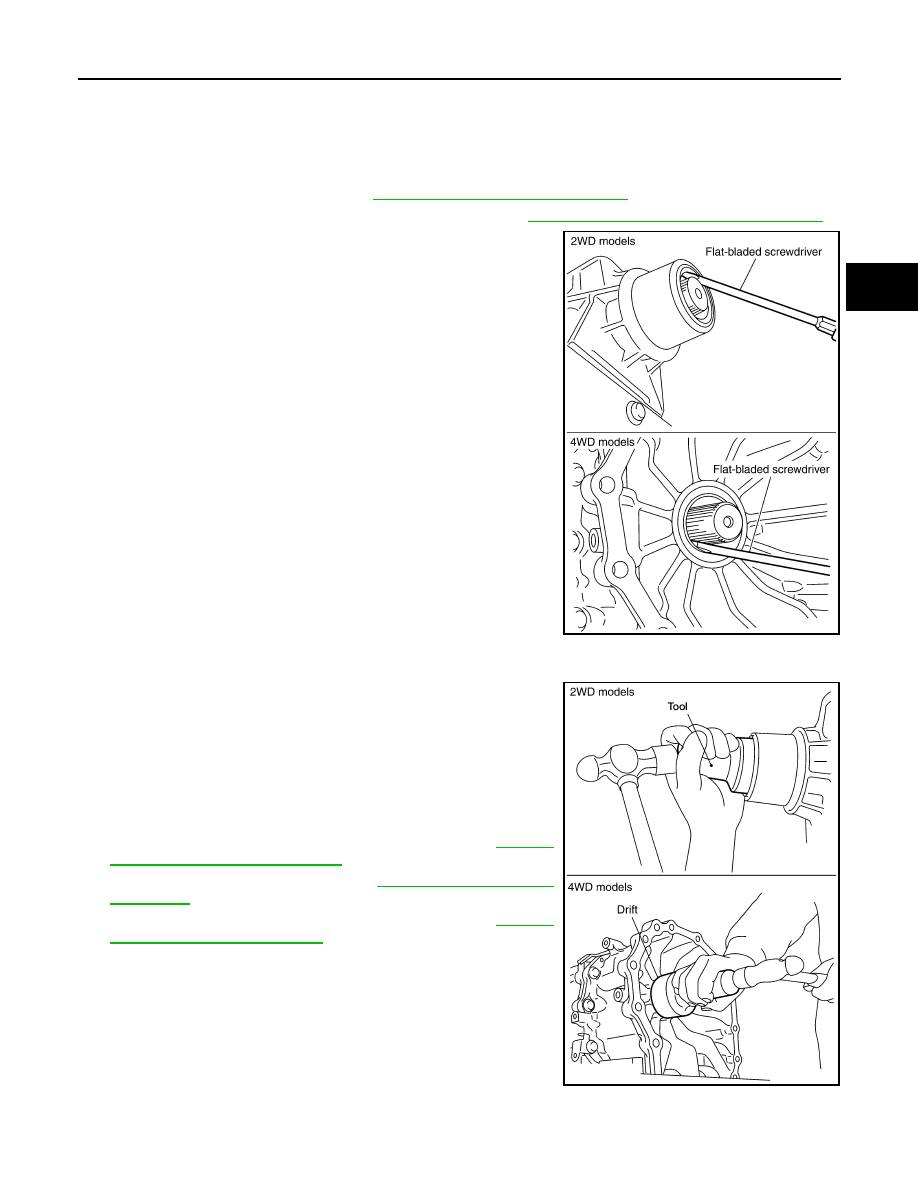

REAR OIL SEAL

Removal and Installation

INFOID:0000000009885920

REMOVAL

1. Remove rear propeller shaft. Refer to

DLN-139, "Removal and Installation"

.

2. Remove transfer from transmission (4WD models). Refer to

TM-213, "Removal and Installation (4WD)"

.

3. Remove rear oil seal using suitable tool.

CAUTION:

Do not scratch rear extension assembly (2WD models) or

adapter case assembly (4WD models).

INSTALLATION

1. Install new rear oil seal until it is flush into the rear extension

case (2WD models) using Tool or adapter case (4WD models)

using suitable tool.

CAUTION:

• Apply ATF to rear oil seal.

• Do not reuse rear oil seal.

2. Install transfer to transmission (4WD models). Refer to

TM-213,

"Removal and Installation (4WD)"

.

3. Install rear propeller shaft. Refer to

DLN-139, "Removal and

Installation"

.

4. Check the A/T fluid level and for fluid leakage. Refer to

TM-172,

"Checking the A/T Fluid (ATF)"

.

SCIA5254E

Tool number

: ST33400001 (J-26082)

WCIA0475E

TM-210

< REMOVAL AND INSTALLATION >

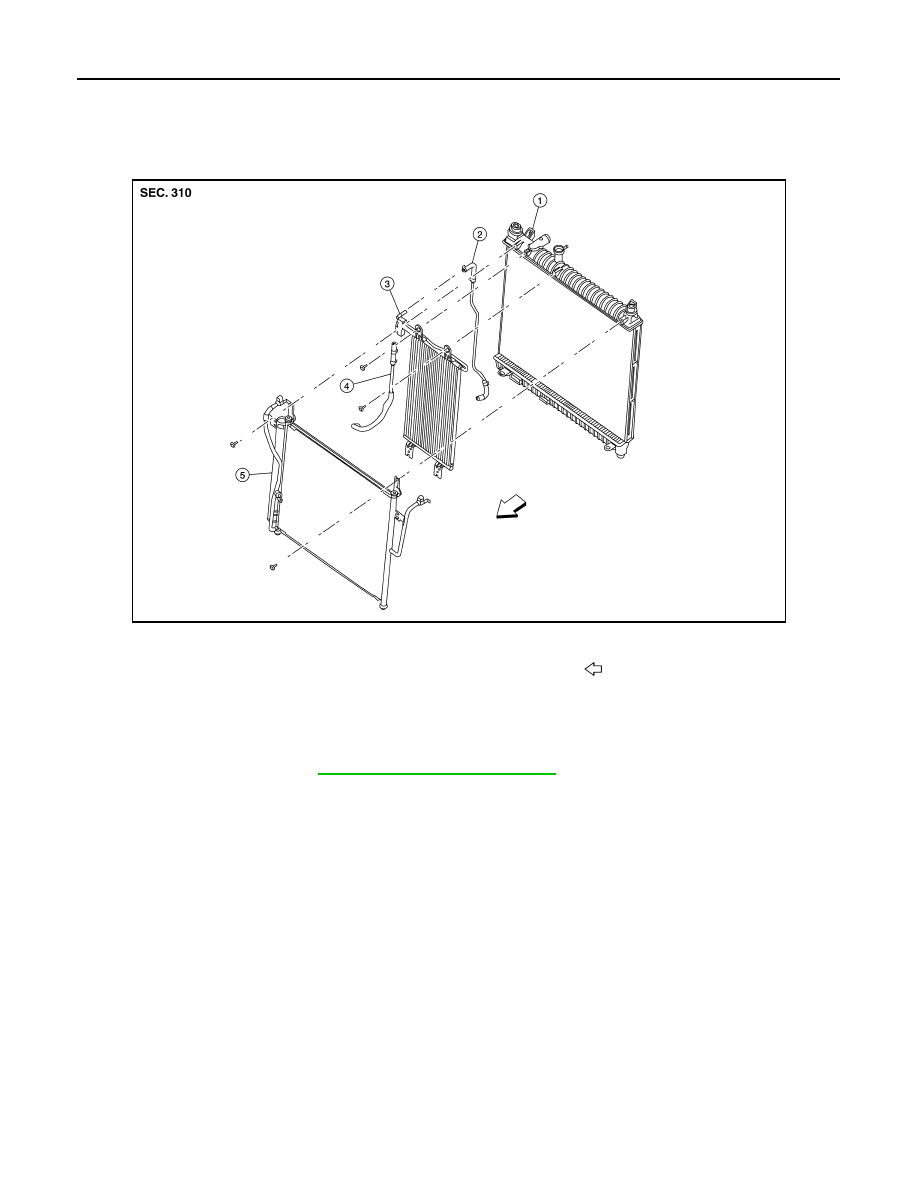

FLUID COOLER SYSTEM

FLUID COOLER SYSTEM

Exploded View

INFOID:0000000009885921

Fluid Cooler

Removal and Installation

INFOID:0000000009885922

REMOVAL

1. Remove the radiator. Refer to

CO-15, "Removal and Installation"

.

2. Disconnect the transmission fluid cooler hoses.
3. Remove the transmission fluid cooler.

INSTALLATION

Installation is in the reverse order of removal.

ALDIA0212GB

1.

Radiator

2.

Fluid cooler hose

3.

Fluid cooler

4.

Fluid cooler hose

5.

A/C condenser

Front
