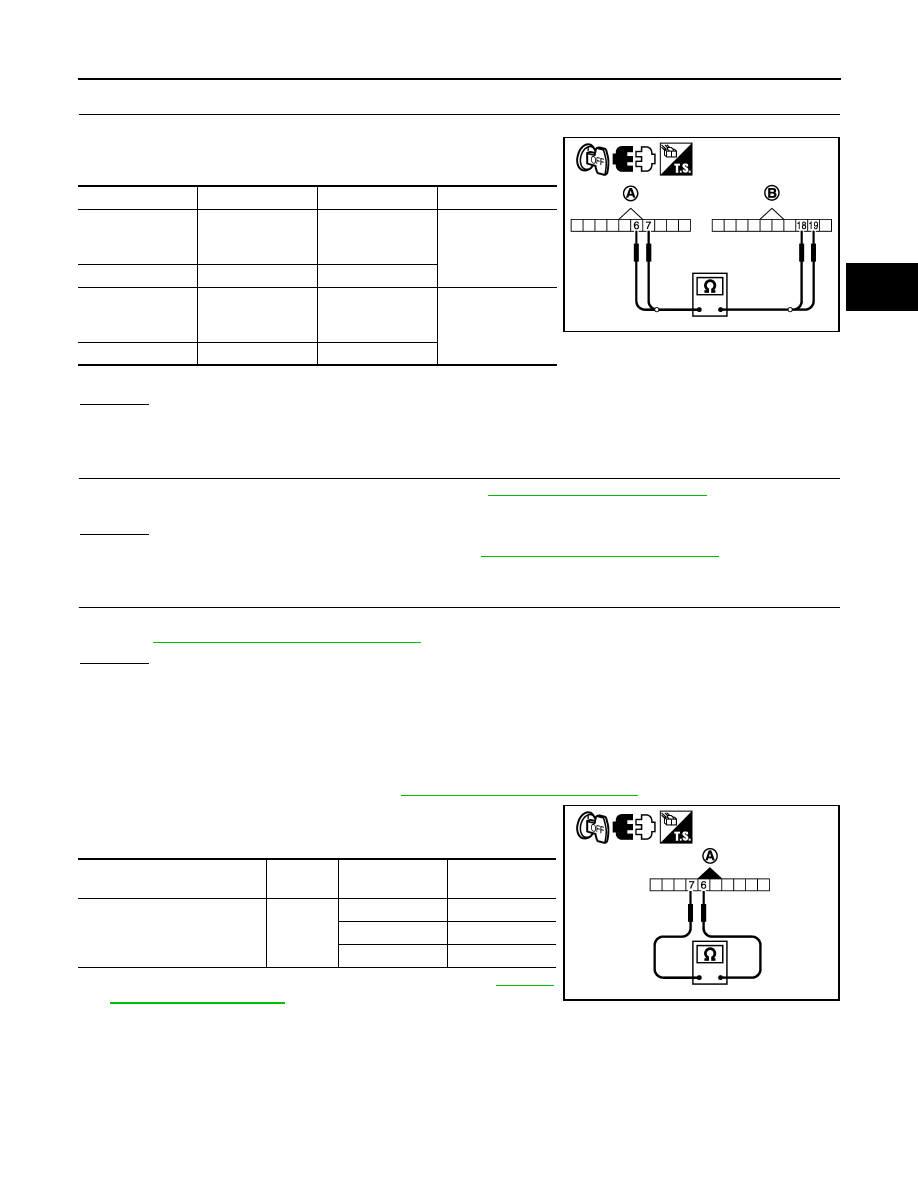

P1710 TRANSMISSION FLUID TEMPERATURE SENSOR TM-83 < DTC/CIRCUIT DIAGNOSIS > C E F G H I J K L M A B TM N O P 3. CHECK SUB-HARNESS 1. Disconnect transmission range switch connector and TCM connector. 2. Check continuity between transmission range switch connector (A) terminals and TCM connector (B) terminals. 3. If OK, check harness for short to ground and short to power. OK >> GO TO 4. NG >> Replace open circuit or short to ground and short to power in harness or connectors. 4. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT 1. Check TCM power supply and ground circuit. Refer to . 2. Reinstall any part removed. OK >> Replace the control valve with TCM. Refer to TM-201, "Control Valve with TCM" NG >> Repair or replace damaged parts. 5. CHECK DTC Perform “DTC Confirmation Procedure”. • Refer to TM-81, "DTC Confirmation Procedure" OK or NG OK >> INSPECTION END NG >> GO TO 1. Component Inspection INFOID:0000000009885803 A/T FLUID TEMPERATURE SENSOR 1. Remove control valve with TCM. Refer to TM-201, "Control Valve with TCM" . 2. Check resistance between transmission range switch connector terminals. 3. If NG, replace the control valve with TCM. Refer to Item Connector Terminal Continuity Transmission F505 6 Yes TCM connector F503 19 Transmission F505 7 Yes TCM connector F503 18 JSDIA1330ZZ Name Terminal Temperature °C ( °F) Resistance (Ap- prox.) (k Ω) A/T fluid temperature sensor 6-7 0 (32) 15 20 (68) 6.5 80 (176) 0.9 JSDIA1331ZZ |
