A/T CONTROL SYSTEM

TM-15

< SYSTEM DESCRIPTION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

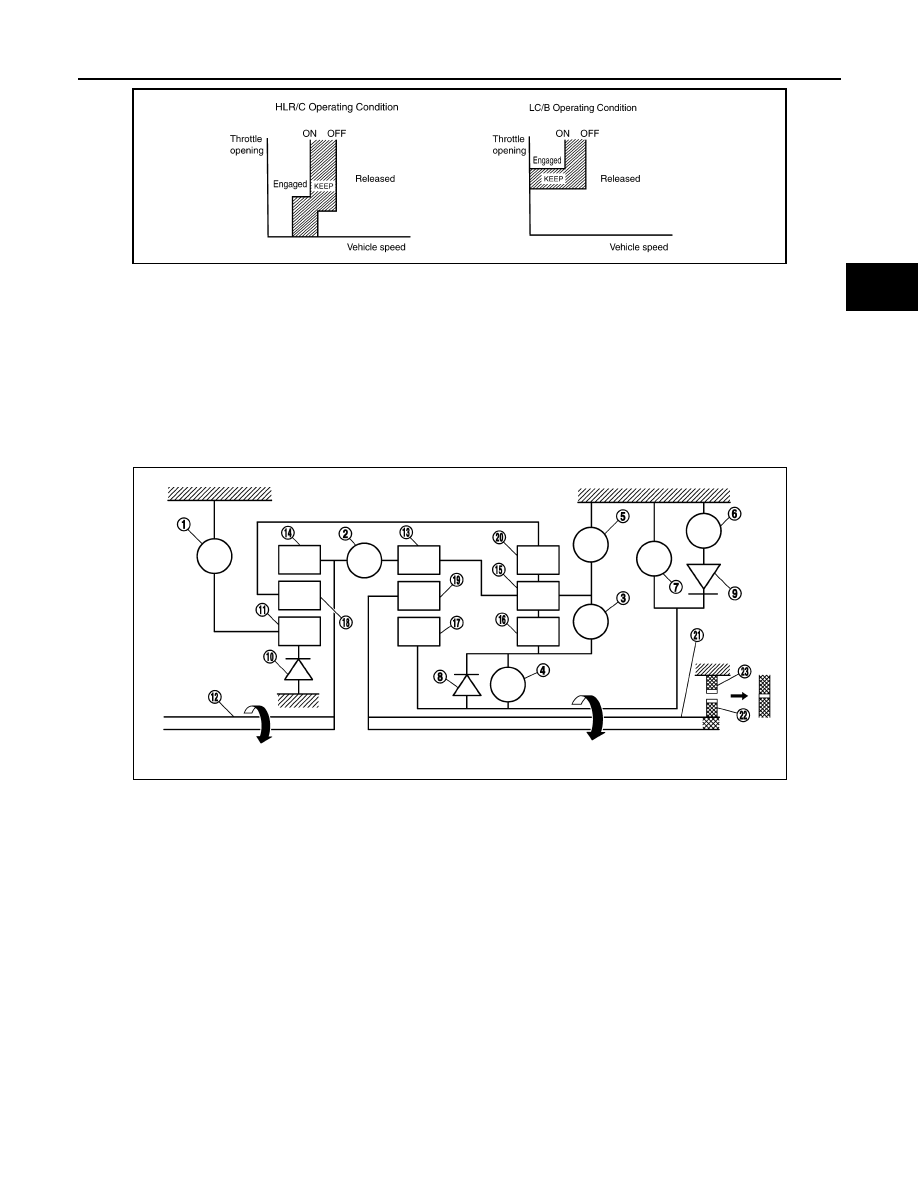

POWER TRANSMISSION

“N” position

Since both the forward brake and the reverse brake are released, torque from the input shaft drive is not trans-

mitted to the output shaft.

“P” position

•  The same as for the “N” position, both the forward brake and the reverse brake are released, so torque from

the input shaft drive is not transmitted to the output shaft.

• The parking pawl linked with the select lever meshes with the parking gear and fastens the output shaft

mechanically.

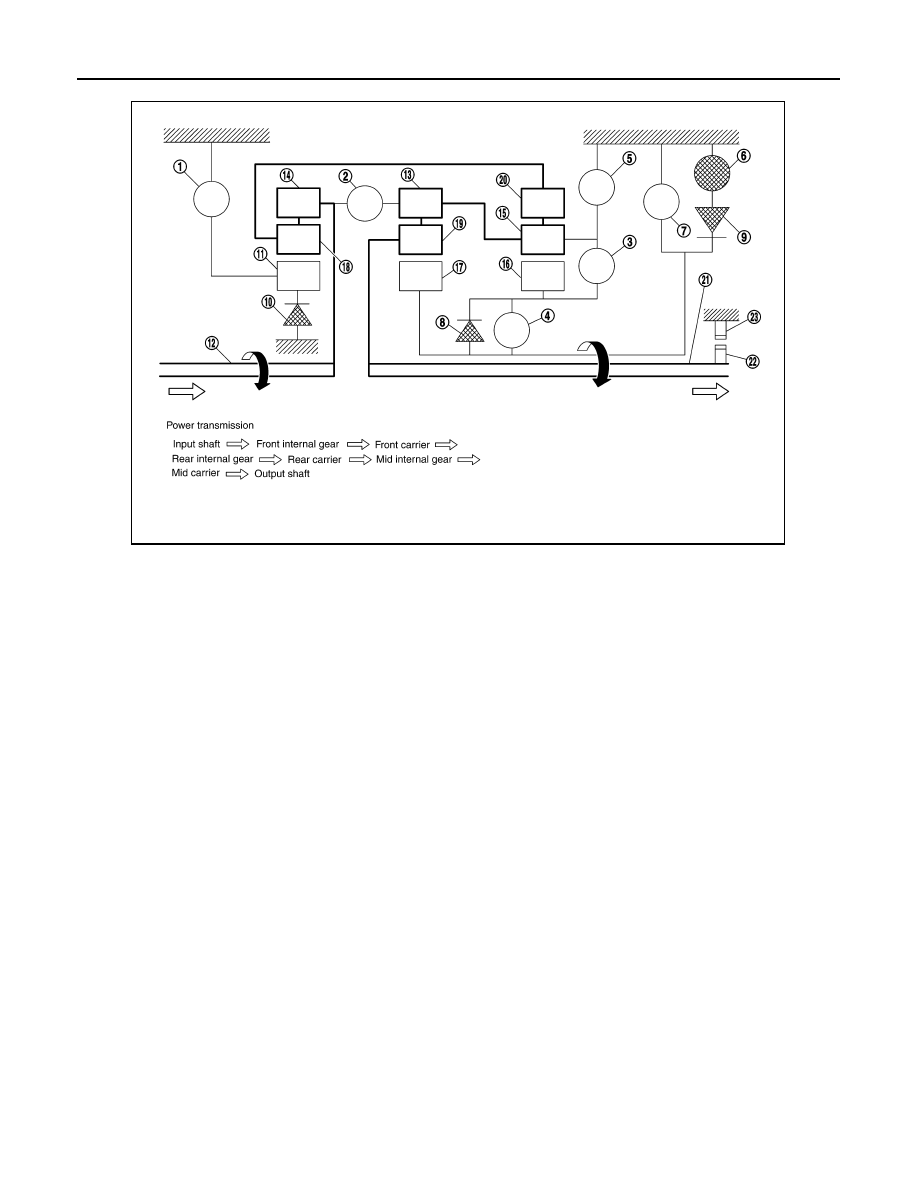

“D”, “M5”, “M4”, “M3”, “M2” positions (column shift), “D”, “4”, “3”, “2” positions (floor shift) 1GR

• The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.

• The 1st one-way clutch regulates reverse rotation of the rear sun gear.

• The 3rd one-way clutch regulates reverse rotation of the front sun gear.

• During deceleration, the mid sun gear turns forward, so the forward one-way clutch idles and the engine

brake is not activated.

SCIA5642E

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17.  Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

PCIA0003J

TM-16

< SYSTEM DESCRIPTION >

A/T CONTROL SYSTEM

“M1” position (column shift), “1” position (floor shift) 1GR

• The front brake fastens the front sun gear.

• The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.

• High and low reverse clutch connects the rear sun gear and the mid sun gear.

• The low coast brake fastens the mid sun gear.

• During deceleration, the low coast brake regulates forward rotation of the mid sun gear and the engine brake

functions.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1512E

A/T CONTROL SYSTEM

TM-17

< SYSTEM DESCRIPTION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

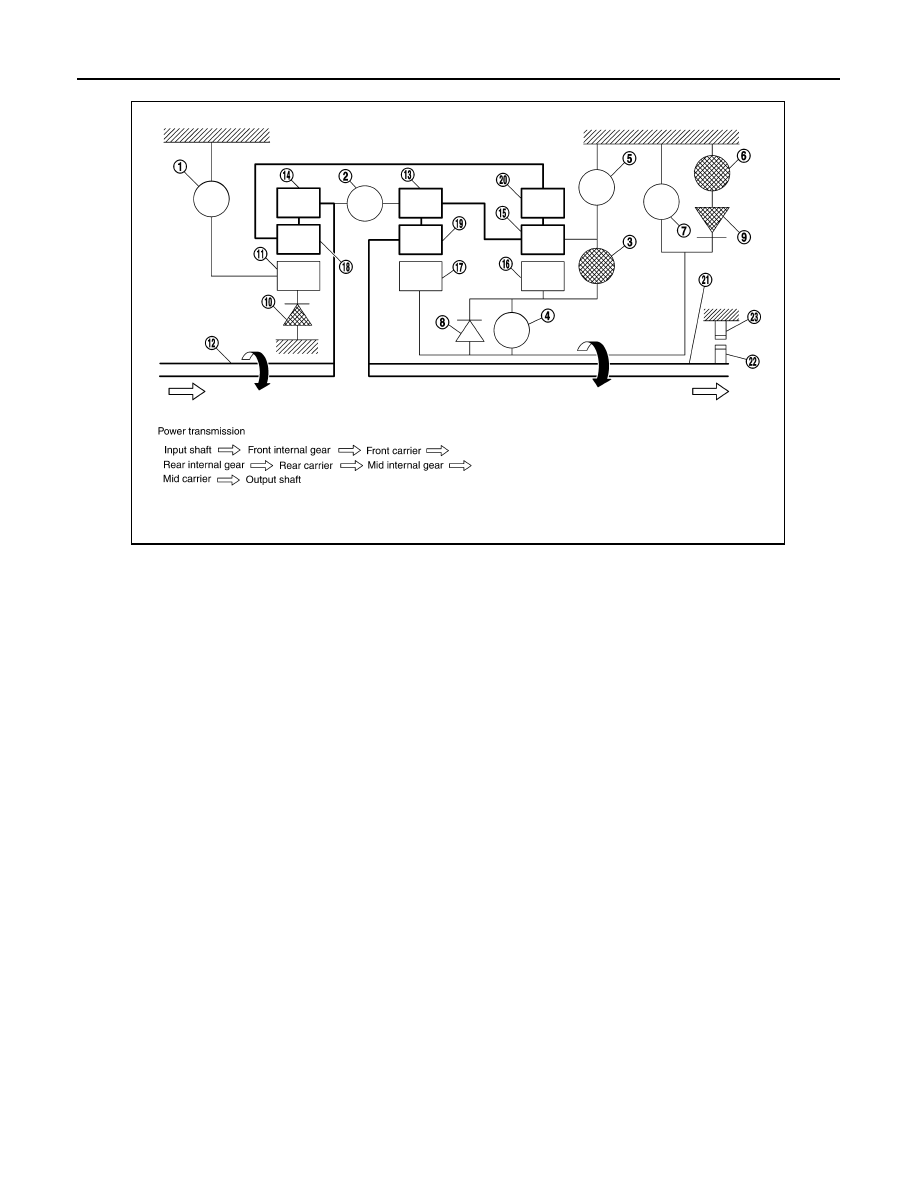

“D”, “M5”, “M4”, “M3” positions (column shift), “D”, “4”, “3” positions (floor shift) 2GR

• The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.

• The 3rd one-way clutch regulates reverse rotation of the front sun gear.

• The direct clutch is coupled and the rear carrier and rear sun gear are connected.

• During deceleration, the mid sun gear turns forward, so the forward one-way clutch idles and engine brake is

not activated.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1513E

TM-18

< SYSTEM DESCRIPTION >

A/T CONTROL SYSTEM

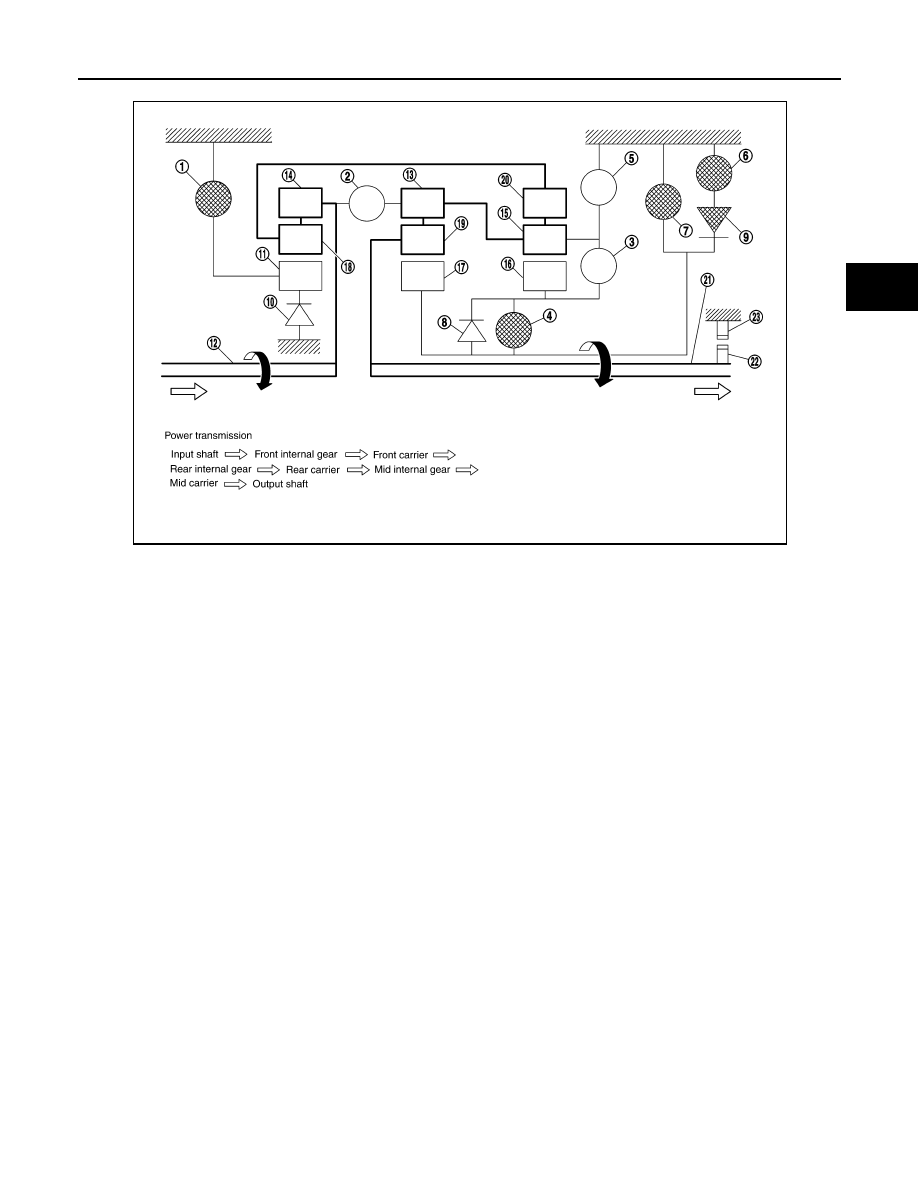

“M2”, “M1” positions (column shift), “2”, “1” positions (floor shift) 2GR

• The front brake fastens the front sun gear.

• The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.

• The direct clutch is coupled, and the rear carrier and rear sun gear are connected.

• The low coast brake fastens the mid sun gear.

• During deceleration, the low coast brake regulates forward rotation of the mid sun gear and the engine brake

functions.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23.  Parking pawl

SCIA1514E
