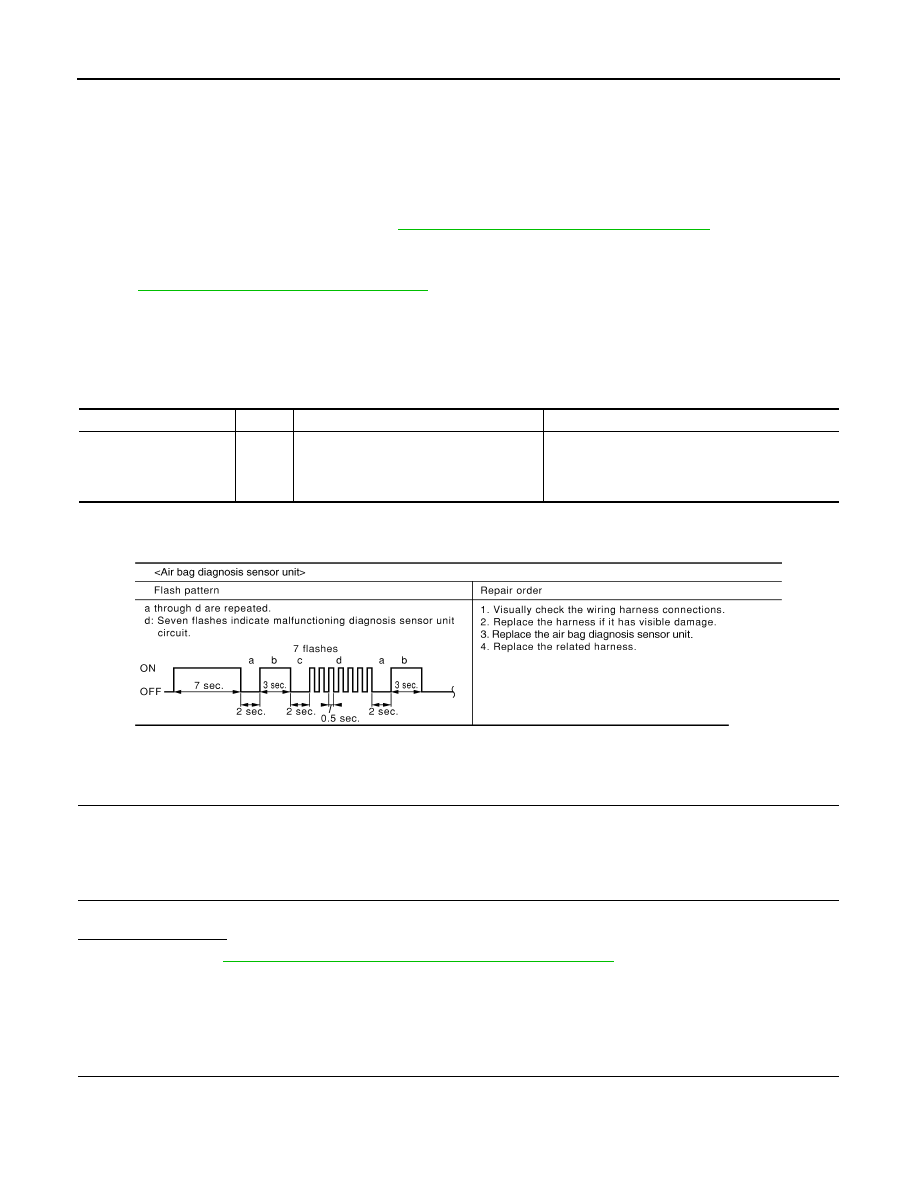

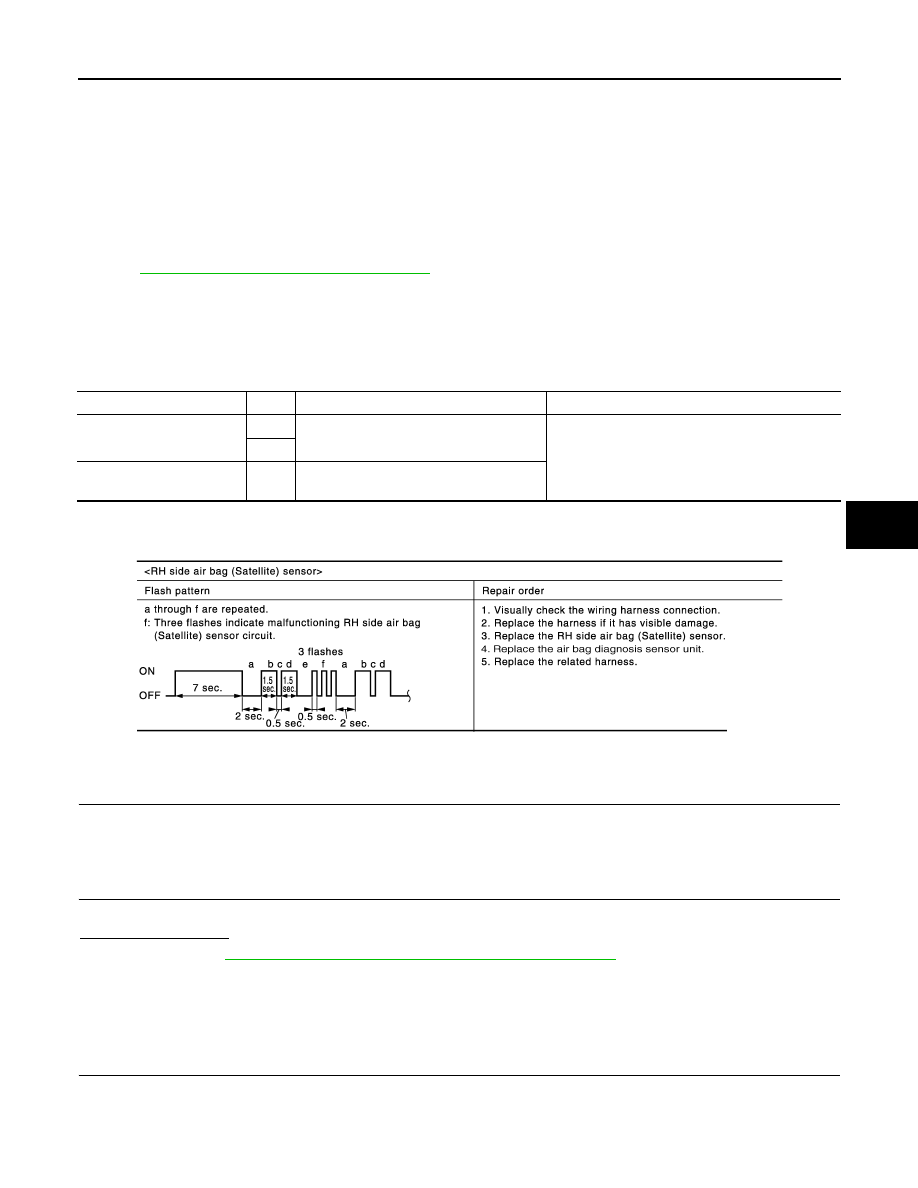

B1113 – B1115 SATELLITE SENSOR RH SRC-47 < DTC/CIRCUIT DIAGNOSIS > C D E F G I J K L M A B SRC N O P B1113 – B1115 SATELLITE SENSOR RH Description INFOID:0000000009882907 DTC B1113 – B1115 SATELLITE SENSOR RH The satellite sensor RH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor the satellite sensor RH for internal failures and it's circuits for communication errors. PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000009882908 DTC DETECTION LOGIC With CONSULT Without CONSULT DTC CONFIRMATION PROCEDURE (With CONSULT) 1. INSPECTION START Turn ignition switch ON. >> GO TO 2. 2. CHECK SELF-DIAG RESULT Check for the DTC on CONSULT. YES >> Refer to SRC-48, "Diagnosis Procedure (Component Diagnosis)" . NO >> Inspection End. DTC CONFIRMATION PROCEDURE (Without CONSULT) NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode. 1. IGNITION SWITCH Turn ignition switch ON. >> GO TO 2 CONSULT name DTC DTC detecting condition Repair order SATELLITE SENS RH [UNIT FAIL] B1113 RH side air bag satellite sensor has mal- functioned. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the RH side air bag satellite sensor. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1114 SATELLITE SENS RH [COMM FAIL] B1115 RH side air bag satellite sensor communi- WHIA0203E |
