DIAGNOSIS AND REPAIR WORK FLOW

SRC-3

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009882856

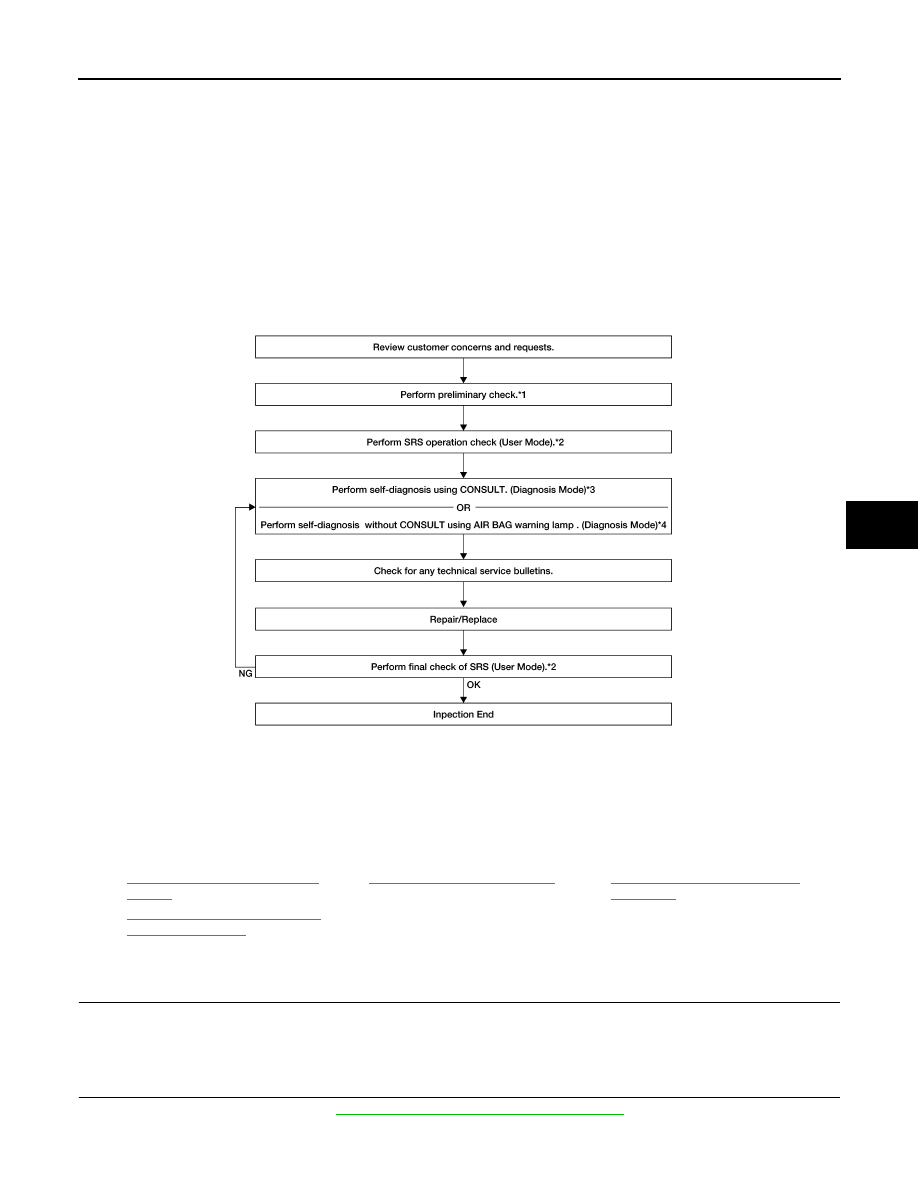

OVERALL SEQUENCE

DETAILED WORK FLOW

1.

CUSTOMER INFORMATION

Get detailed information from the customer about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check.  Refer to

SRC-13, "Trouble Diagnosis Introduction"

.

*1

SRC-13, "Trouble Diagnosis Intro-
duction"

*2

SRC-13, "SRS Operation Check"

*3

SRC-60, "Trouble Diagnosis with
CONSULT"

*4

SRC-15, "Self-Diagnosis Function
(Without CONSULT)"

AWHIA0336GB

SRC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

USER MODE

Perform self-diagnosis using the AIR BAG warning lamp in User mode.  Refer to

SRC-13, "SRS Operation

Check"

.

>> GO TO 4

4.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS.  Refer to

SRC-60, "Trouble Diagnosis with CONSULT"

 (with CONSULT) or

SRC-

62, "Trouble Diagnosis without CONSULT"

 (without CONSULT).

>> GO TO 5

5.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection end.

NO

>> GO TO 4

INTERMITTENTS INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENTS INCIDENT

Inspection Procedure

INFOID:0000000009882857

INTERMITTENT TROUBLE

An intermittent incident may have occurred in the past but is not being detected currently.  This DTC will not be

detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT.

Trouble Diagnosis with CONSULT

INFOID:0000000009882858

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.
Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result SELF-DIAG [PAST] (previously stored in the memory) might not be erased

after repair. Go to DIAGNOSTIC PROCEDURE 3.  Refer to

SRC-15, "Self-Diagnosis Function

(Without CONSULT)"

.

No

>> Go to DIAGNOSTIC PROCEDURE 2.  Refer to

SRC-13, "SRS Operation Check"

.

SRC-6

< SYSTEM DESCRIPTION >

SRS AIR BAG SYSTEM

SYSTEM DESCRIPTION

SRS AIR BAG SYSTEM

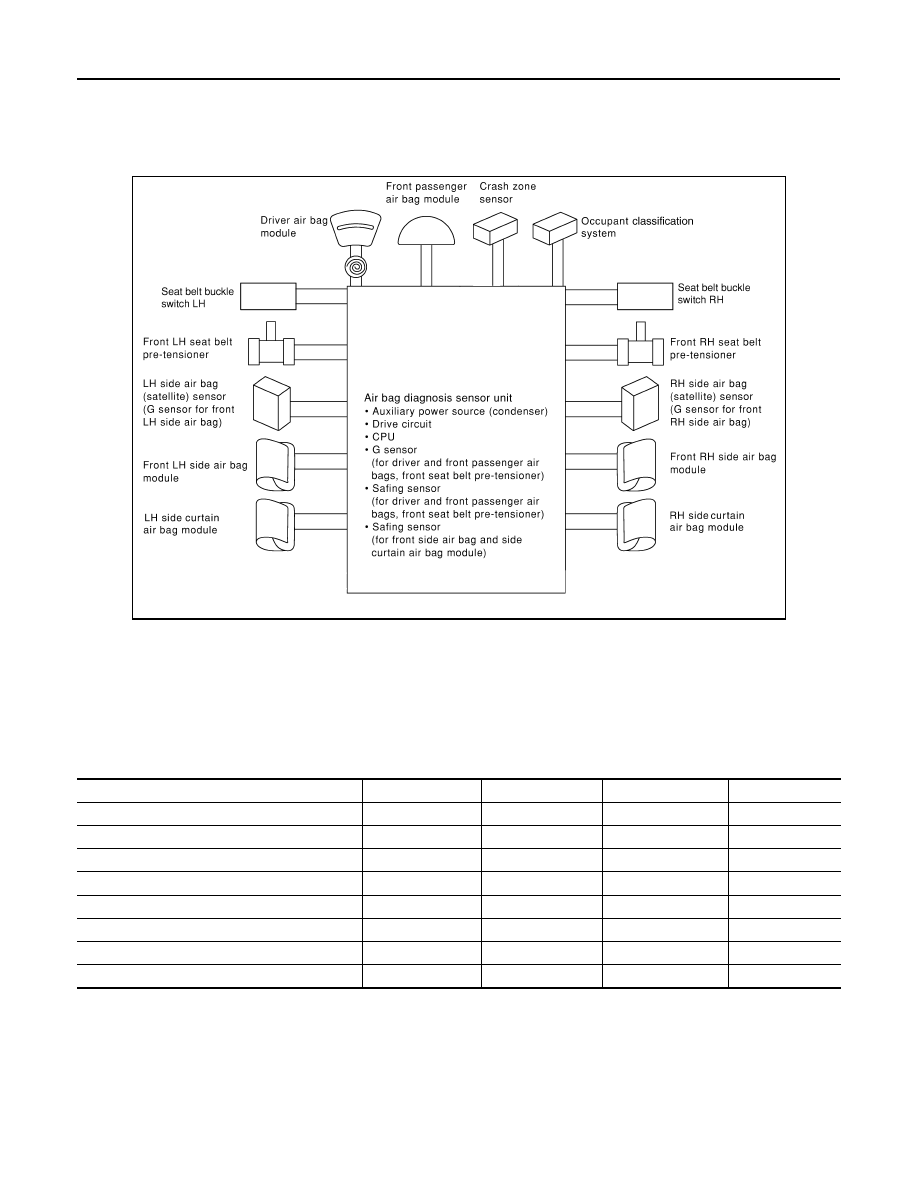

SRS Configuration

INFOID:0000000009882859

The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or

START position.

The collision modes for which supplemental restraint systems are activated are different among the SRS sys-

tems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tension-

ers are activated in a frontal collision but not in a side collision.

SRS configurations for some collision modes are as follows:

WHIA0186E

SRS configuration

Frontal collision

Left side collision

Right side collision

Rollover

Driver air bag module

×

—

—

—

Front passenger air bag module

×

—

—

—

Front LH seat belt pre-tensioner

×

—

—

×

Front RH seat belt pre-tensioner

×

—

—

×

Front LH side air bag module

—

×

—

—

Front RH side air bag module

—

—

×

—

LH side curtain air bag module

—

×

—

×

RH side curtain air bag module

—

—

×

×
