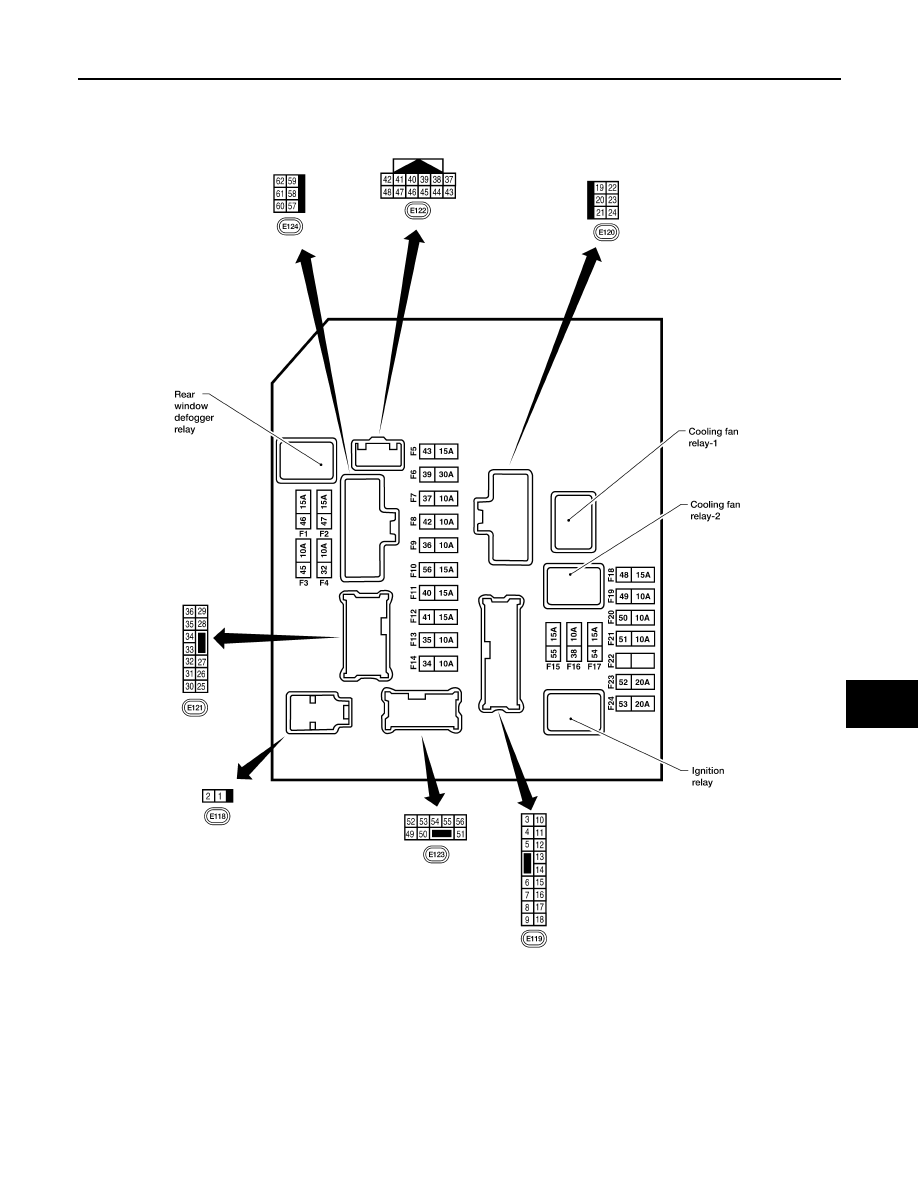

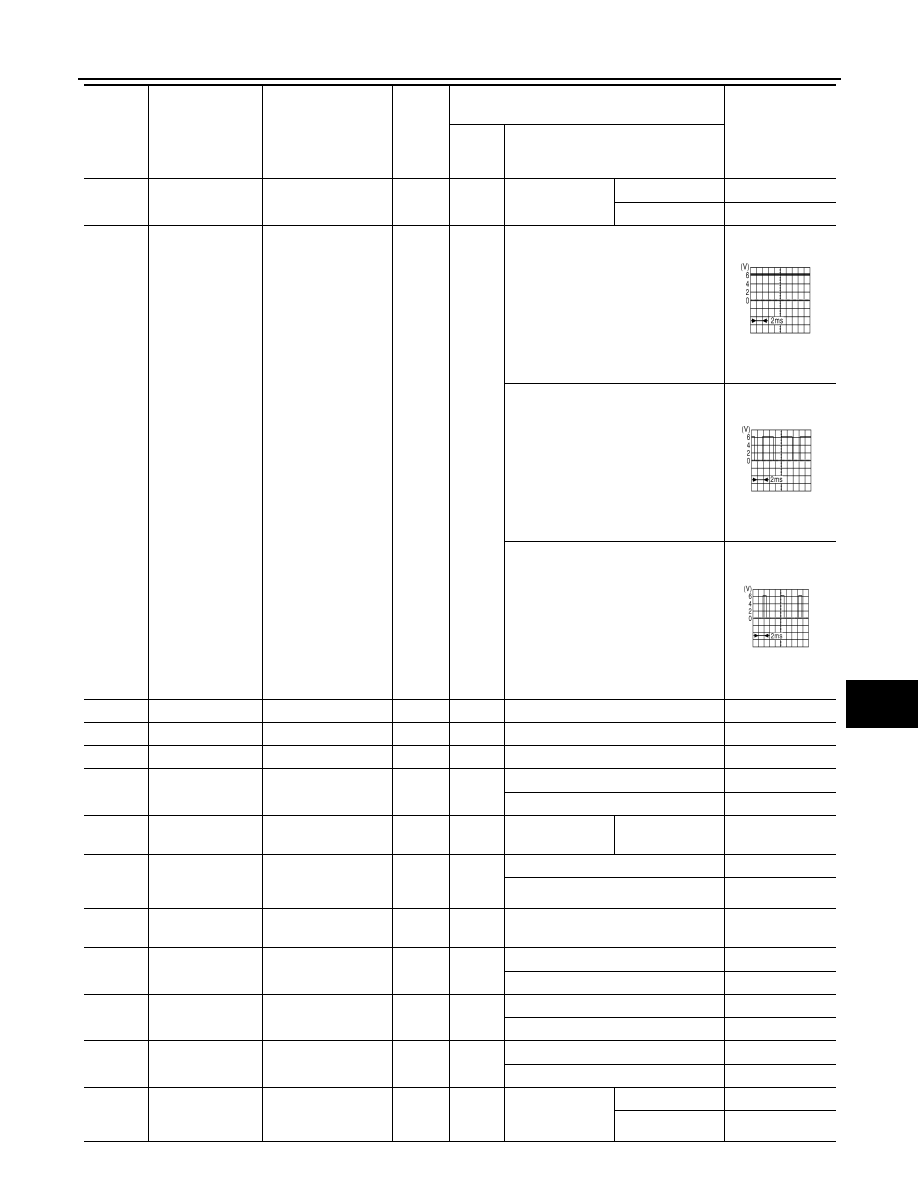

SEC-48 < ECU DIAGNOSIS INFORMATION > IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE Reference Value INFOID:0000000009878906 VALUES ON THE DIAGNOSIS TOOL Monitor Item Condition Value/Status A/C COMP REQ A/C switch OFF Off A/C switch ON On TAIL&CLR REQ Lighting switch OFF Off Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated) On HL LO REQ Lighting switch OFF Off Lighting switch 2ND HI or AUTO (Light is illuminated) On HL HI REQ Lighting switch OFF Off Lighting switch HI On FR FOG REQ Lighting switch 2ND or AUTO (Light Front fog lamp switch OFF Off • Front fog lamp switch ON only) On FR WIP REQ Ignition switch ON Front wiper switch OFF Stop Front wiper switch INT 1LOW Front wiper switch LO Low Front wiper switch HI Hi WIP AUTO STOP Ignition switch ON Front wiper stop position STOP P Any position other than front wiper ACT P WIP PROT Ignition switch ON Front wiper operates normally Off Front wiper stops at fail-safe opera- BLOCK ST RLY REQ Ignition switch OFF or ACC Off Ignition switch START On IGN RLY Ignition switch OFF or ACC Off Ignition switch ON On RR DEF REQ Rear defogger switch OFF Off Rear defogger switch ON On OIL P SW Ignition switch OFF, ACC or engine running Open Ignition switch ON Close DTRL REQ Not operated Off Daytime Running Lights ON On THFT HRN REQ Not operated Off • Panic alarm is activated TEM On HORN CHIRP Not operated Off Door locking with keyfob (horn chirp mode) On |
