RF-12

< DTC/CIRCUIT DIAGNOSIS >

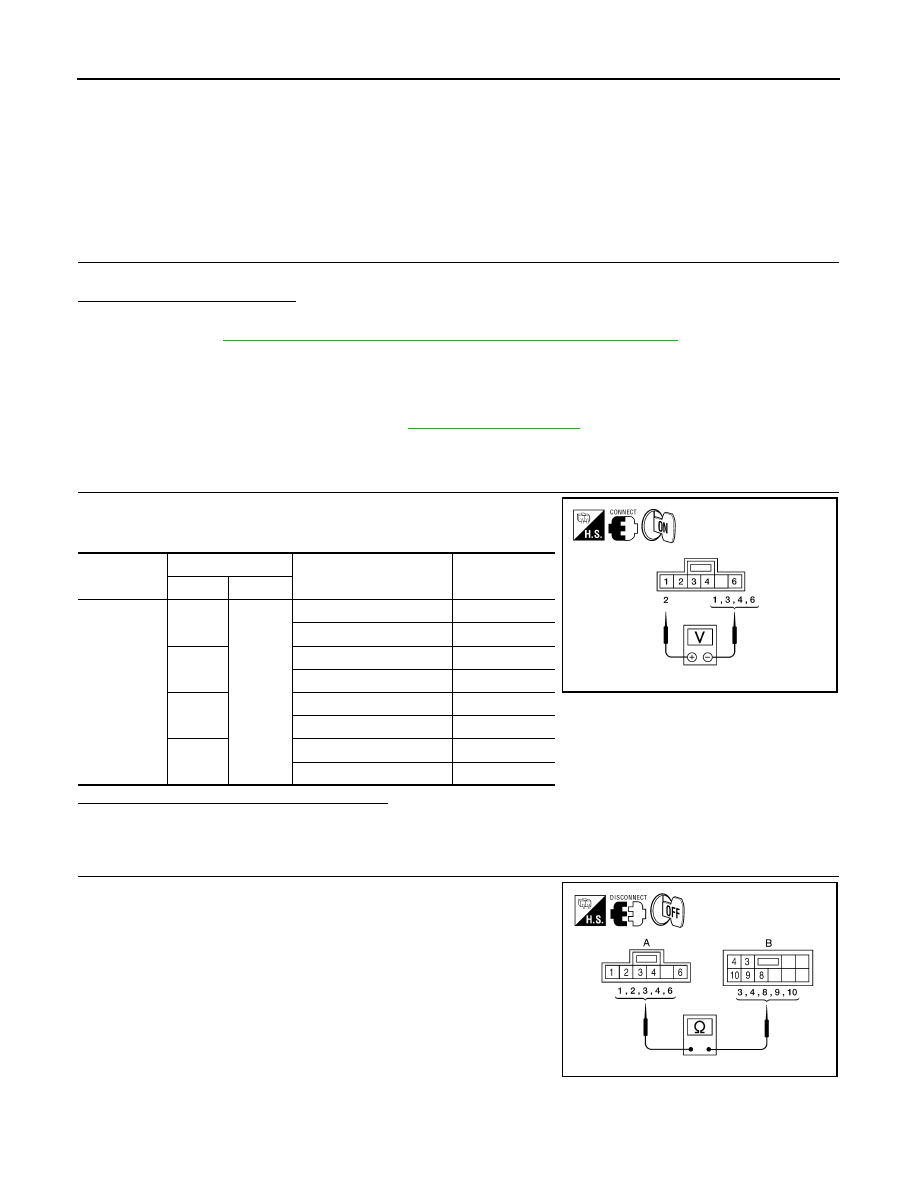

SUNROOF SWITCH CIRCUIT

SUNROOF SWITCH CIRCUIT

Description

INFOID:0000000009879056

The BCM supplies power to the integrated CPU of the sunroof motor assembly. The tilt and slide functions of

the sunroof motor assembly is controlled by the sunroof switch.

Component Function Check

INFOID:0000000009879057

1.

 CHECK SUNROOF MOTOR FUNCTION

Do tilt up/down & slide open/close functions operate normally with sunroof switch?
Is the inspection result normal?

YES

>> Sunroof motor assembly is OK.

NO

>> Refer to

RF-10, "SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009879058

Regarding Wiring Diagram information, refer to

RF-28, "Wiring Diagram"

.

1.

 CHECK SUNROOF SWITCH INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between sunroof switch connector and ground.

Are the voltage measurements as specified?

YES

>> Sunroof switch is operating normally.

NO

>> GO TO 2

2.

 CHECK SUNROOF SWITCH CIRCUITS

1. Turn ignition switch OFF.

2. Disconnect sunroof motor assembly connector R4 and sunroof

switch connector R104.

3. Check continuity between sunroof switch connector R104 (A)

and sunroof motor assembly connector R4 (B).

Connector

Terminals

Sunroof switch position

Voltage (V)

(Approx.)

(+)

(–)

R104

1

2

SLIDE CLOSE

0V

Other than above

Battery voltage

3

SLIDE OPEN

0V

Other than above

Battery voltage

4

TILT UP

0V

Other than above

Battery voltage

6

TILT DOWN

0V

Other than above

Battery voltage

ALKIA1041GB

ALKIA0873ZZ

SUNROOF SWITCH CIRCUIT

RF-13

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

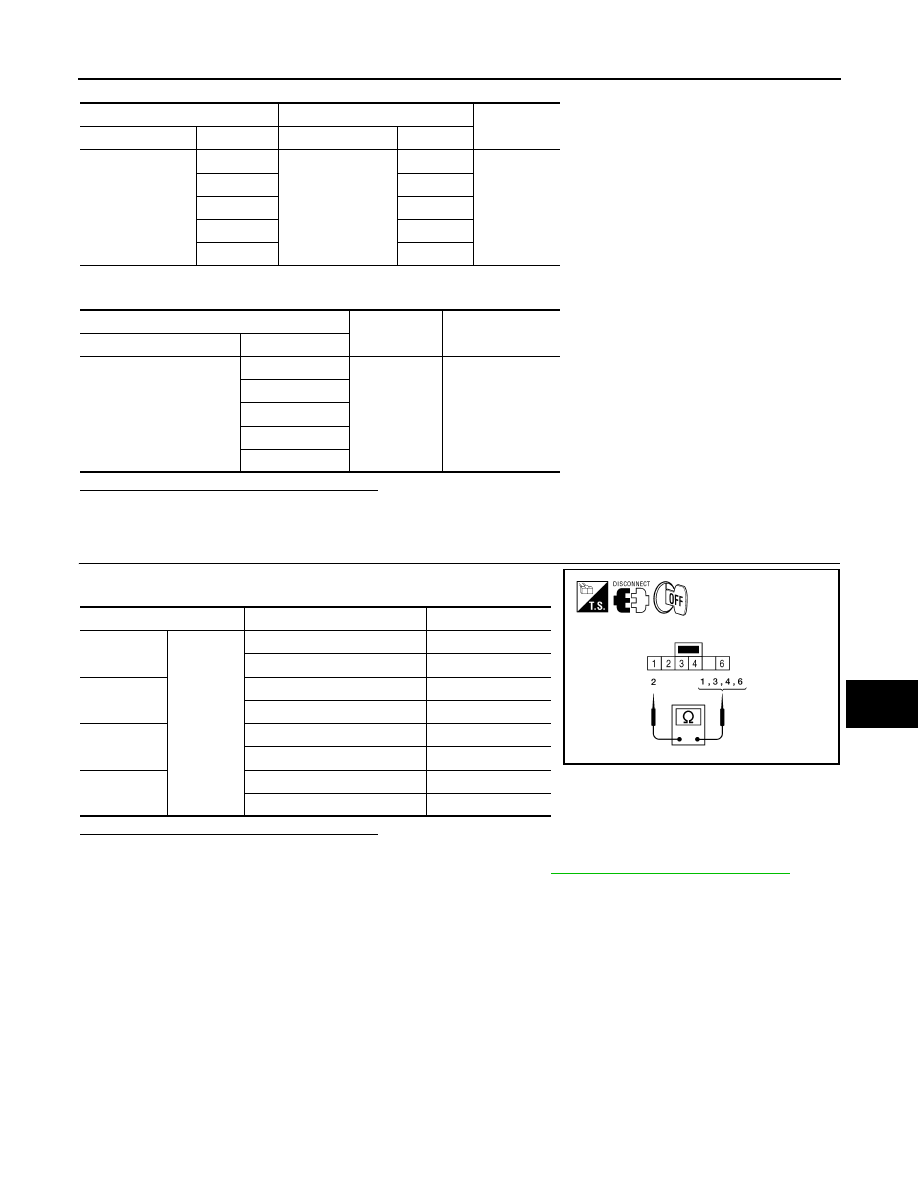

4. Check continuity between sunroof switch connector R104 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

 CHECK SUNROOF SWITCH

1. Check continuity between sunroof switch terminals.

Are the continuity test results as specified?

YES

>> Sunroof switch is operating normally.

NO

>> Replace sunroof switch (map lamp assembly). Refer to

INL-71, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

R104

1

R4

3

Yes

2

8

3

9

4

4

6

10

A

—

Continuity

Connector

Terminal

R104

1

Ground

No

2

3

4

6

Terminals

Sunroof switch position

Continuity

1

2

SLIDE CLOSE

Yes

Other than above

No

3

SLIDE OPEN

Yes

Other than above

No

4

TILT UP

Yes

Other than above

No

6

TILT DOWN

Yes

Other than above

No

ALKIA0874ZZ

RF-14

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

DOOR SWITCH

Description

INFOID:0000000009879059

Detects door open/close condition.

Component Function Check

INFOID:0000000009879060

1.

CHECK FUNCTION

With CONSULT

Check door switches in data monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

RF-14, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009879061

Regarding Wiring Diagram information, refer to

RF-28, "Wiring Diagram"

.

1.

CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT

Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in DATA MONITOR mode with CONSULT. Refer

to

BCS-16, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

• When doors are open:

• When doors are closed:

Without CONSULT

Check voltage between BCM connector M18 or M19 terminals 12, 47 and ground.

Is the inspection result normal?

YES

>> Door switch circuit is OK.

NO

>> GO TO 2

2.

CHECK DOOR SWITCH CIRCUIT

1. Turn ignition switch OFF.

Monitor item

Condition

DOOR SW-DR

CLOSE

→ OPEN: OFF → ON

DOOR SW-AS

DOOR SW-DR

:ON

DOOR SW-AS

:ON

DOOR SW-DR

:OFF

DOOR SW-AS

:OFF

Connector

Item

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M19

Front door

switch LH

47

Ground

Open

↓

Closed

0
↓

Battery voltage

M18

Front door

switch RH

12

DOOR SWITCH

RF-15

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

2. Disconnect door switch and BCM.

3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH) terminal 2 and BCM

connector M18, M19 terminals 12, 47.

4. Check continuity between door switch connector B8 (Front LH),   B108 (Front RH) terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

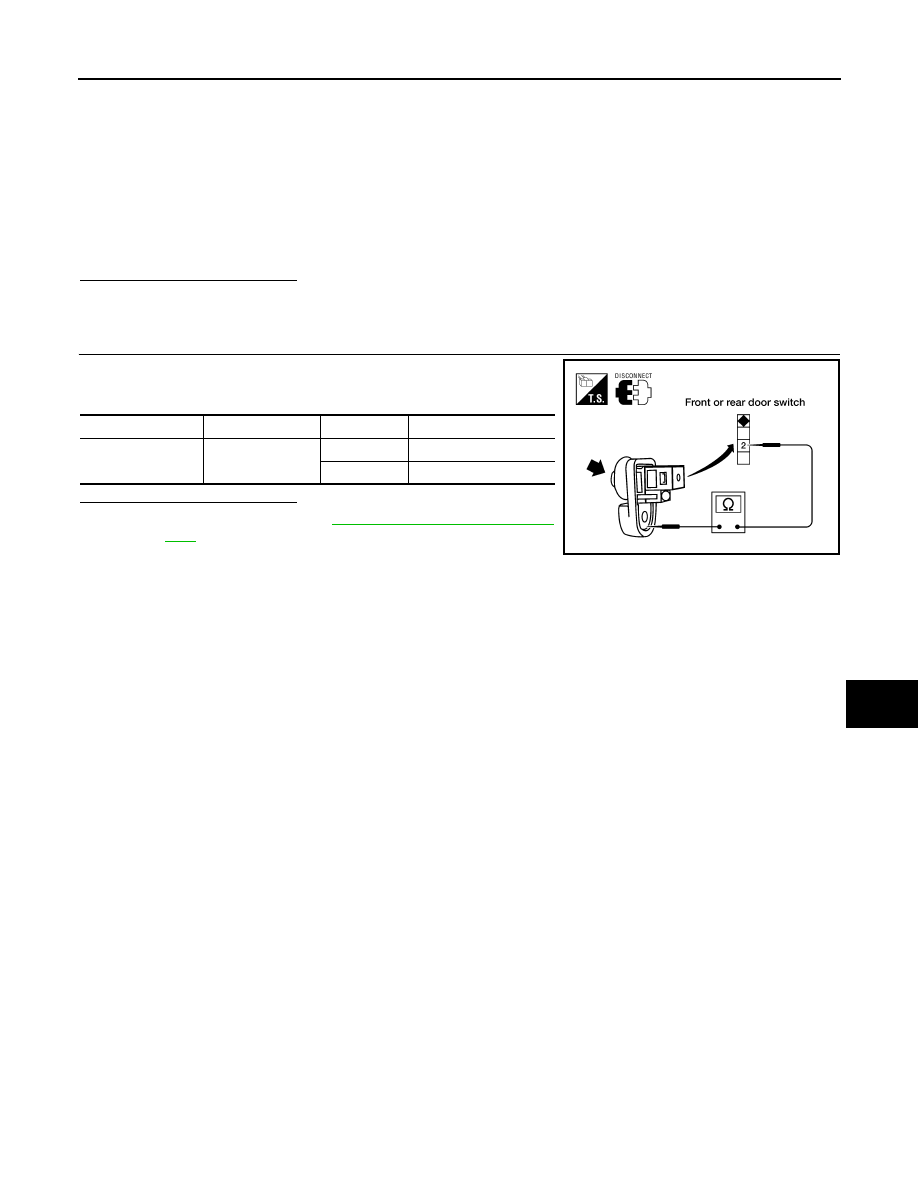

3.

CHECK DOOR SWITCHES

Check continuity between door switch terminal 2 and exposed metal

of switch while pressing and releasing switch.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-52, "Removal and Installa-

tion"

.

NO

>> Replace front door switch.

B8     2 - 47

:Continuity should exist

B108 2 - 12

:Continuity should exist

2 - Ground

:Continuity should not exist

Terminals

Condition

Continuity

Door switch (front)

2 – Ground

Released

Yes

Pressed

No
