REAR POWER WINDOW SWITCH

PWC-117

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

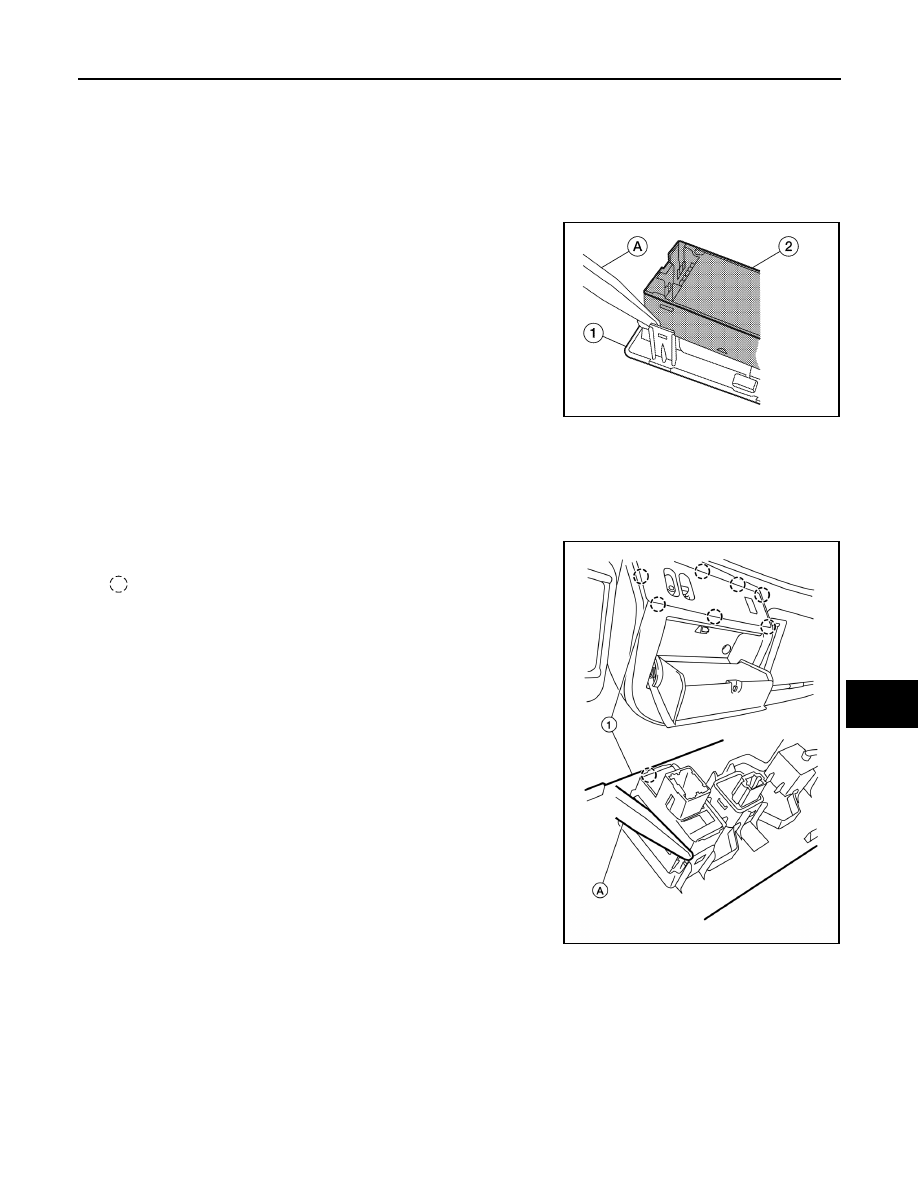

REAR POWER WINDOW SWITCH

Removal and Installation - Rear Door Switch

INFOID:0000000009879042

REMOVAL

1. Remove the rear door switch finisher (1) and rear door switch (2) from the rear door finisher using a suit-

able tool.

• Disconnect the rear door switch harness connector.

2. Release the tabs using suitable tool (A) and remove the switch

(2).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Power Drop Glass Switch

INFOID:0000000009879043

REMOVAL

1. Release the pawls and remove the overhead console switch fin-

isher (1) from overhead console using a suitable tool (A).

: Pawl

2. Release the tabs and remove power drop glass switch from the

overhead console switch finisher (1) using suitable tool (A).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA0860ZZ

ALKIA1936ZZ

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

General Precautions  .................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

BASIC INSPECTION  ....................................

5

AXLE SHAFT  .....................................................

5

On-Vehicle Inspection  ..............................................

5

UNIT REMOVAL AND INSTALLATION .......

6

AXLE OIL SEAL .................................................

6

Removal and Installation  ..........................................

6

AXLE BEARING .................................................

7

Removal and Installation  ..........................................

7

AXLE SHAFT  .....................................................

8

Exploded View ..........................................................

8

Removal and Installation  ..........................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

12

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

12

Axle Bearing  ............................................................

12

RAX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009886180

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

General Precautions

INFOID:0000000009886181

When installing rubber parts, final tightening must be carried out under unladen condition* with tires

on ground.

* Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated posi-

tions.

PREPARATION

RAX-3

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

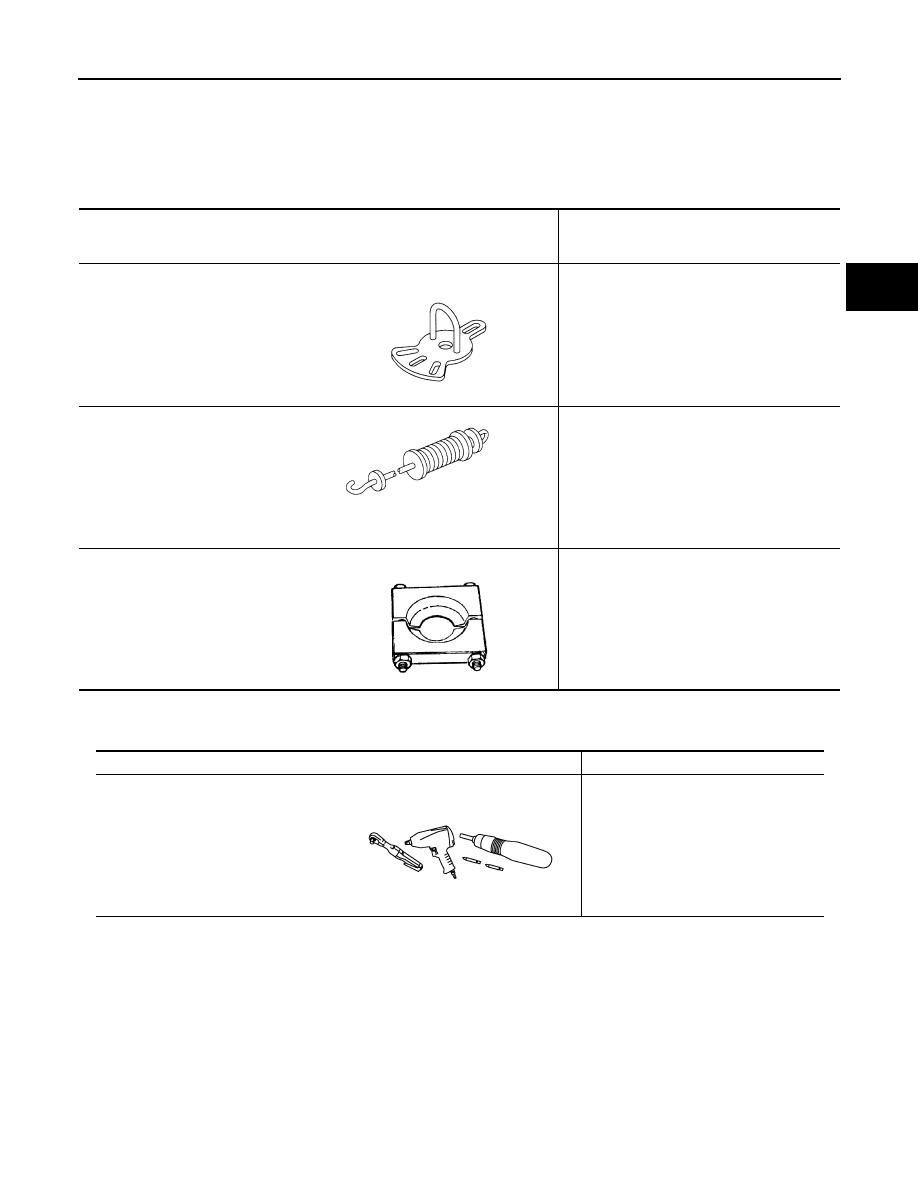

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009886182

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009886183

Tool number
(Kent-Moore No.)
Tool name

Description

KV40101000
(J-25604-01)
Axle stand

Removing axle shaft

ST36230000
(J-25840-A)
Slide hammer

Removing axle shaft

ST30031000
( — )
Bearing splitter

Removing axle shaft bearing

NT159

NT126

ZZA0700D

Tool name

Description

Power tools

Loosening nuts, screws and bolts

PIIB1407E
