DIAGNOSIS AND REPAIR WORKFLOW

PWC-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

>> GO TO 4

4.

 SYMPTOM

Check for symptoms. Refer to

PWC-99, "Diagnosis Procedure"

.

>> GO TO 5

5.

 MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

 SYSTEM OPERATION

Check system operation.

>> GO TO 7

7.

 SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

BCS-42, "DTC Index"

.

Are any DTCs indicated?

YES

>> GO TO 5

NO

>> Inspection End.

PWC-6

< SYSTEM DESCRIPTION >

POWER WINDOW SYSTEM

SYSTEM DESCRIPTION

POWER WINDOW SYSTEM

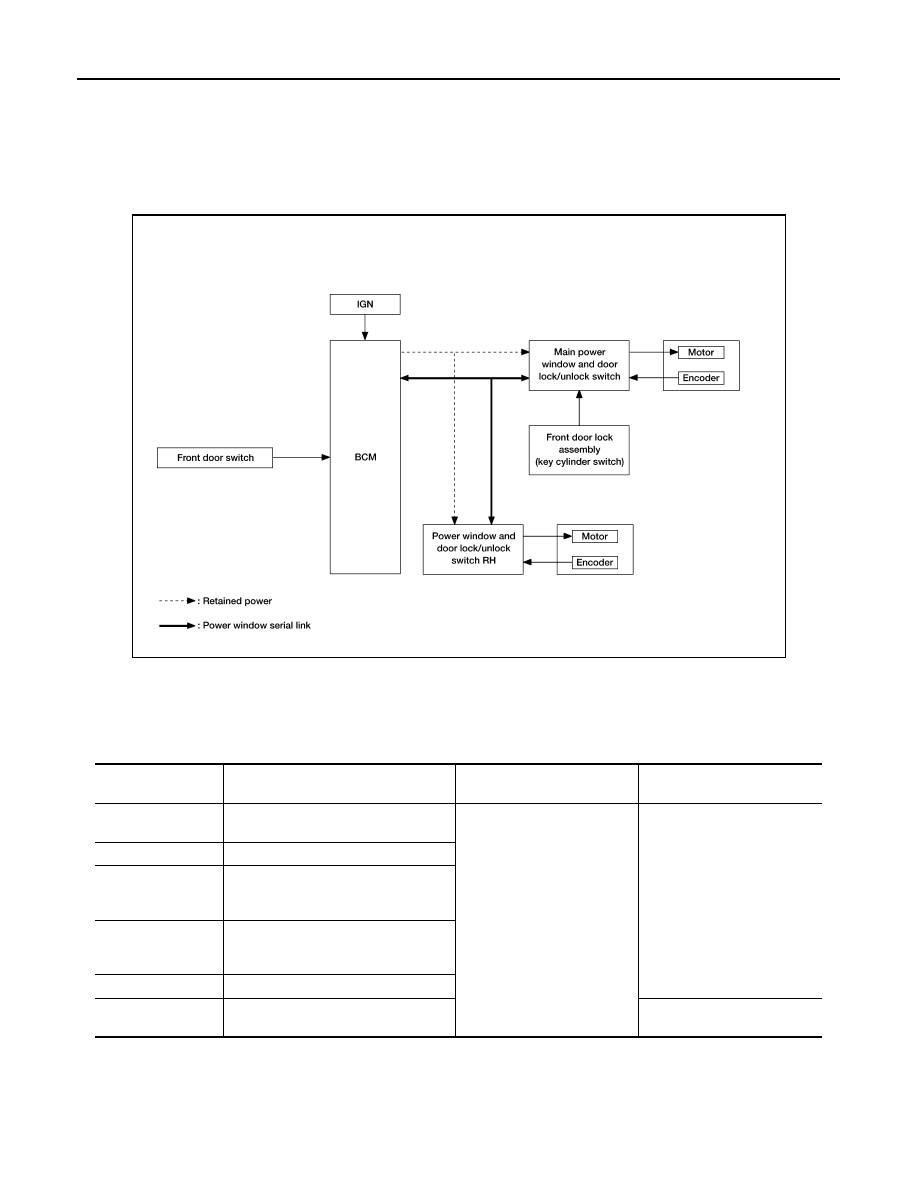

System Diagram

INFOID:0000000009878934

FRONT WINDOW ANTI-PINCH SYSTEM

System Description

INFOID:0000000009878935

POWER WINDOW MAIN SWITCH

INPUT/OUTPUT SIGNAL CHART

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

INPUT/OUTPUT SIGNAL CHART

ALCIA0038GB

Item

Input signal to main power window and

door lock/unlock switch

Main power window and door

lock/unlock switch function

Actuator

Key cylinder switch

LOCK/UNLOCK signal (more than 1.5
seconds over)

Power window control

Front power window motor

Encoder

Encoder pulse signal

Main power window
and door lock/unlock
switch

Front power window motor LH UP/
DOWN signal

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

BCM

RAP signal

Rear power window
switch (Crew Cab)

Rear power window motor UP/DOWN
signal

Rear power window motor

POWER WINDOW SYSTEM

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Main power window and door lock/unlock switch can open/close all windows.

• Power window and door lock unlock switch RH & rear power window switches LH and RH can open/close

the corresponding windows.

REAR POWER DROP GLASS OPERATION (IF EQUIPPED)

• Rear power drop glass system is operable during the retained power operation timer after turning ignition

switch ON and OFF.

• Rear power drop glass switch can open/close the rear power drop glass.

POWER WINDOW AUTO-OPERATION (FRONT LH & RH)

• AUTO UP/DOWN operation can be performed when main power window and door lock/unlock switch &

power window and door lock/unlock switch RH turns to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF.

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→OPEN (door switch ON).

• When ignition switch is ON.

• When timer time passes. (45 seconds)

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock

switch is ON. This inhibits power window switch operation except with the main power window and door lock/

unlock switch.

ANTI-PINCH OPERATION (FRONT LH & RH)

• Pinch foreign material in the door glass during AUTO-UP operation, and it is the anti-pinch function that low-

ers the door glass 150 mm (5.91 in) or 2 seconds when detected.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-

nal if foreign material is trapped in the door glass.

• Power window switch controls to lower the window glass for 150 mm (5.91 in) or 2 seconds after it detects

encoder pulse signal frequency change.

OPERATION CONDITION

• When all door glass AUTO-UP operation is performed (anti-pinch function does not operate just before the

door glass closes and is fully closed).

NOTE:

Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it

may lower.

KEY CYLINDER SWITCH OPERATION

Item

Input signal to front power window

switch

Front power window switch

function

Actuator

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

Power window control

Front power window motor RH

Encoder

Encoder pulse signal

BCM

RAP signal

PWC-8

< SYSTEM DESCRIPTION >

POWER WINDOW SYSTEM

Hold the door key cylinder to the LOCK or UNLOCK direction for more than 1 second to OPEN or CLOSE front

power windows when ignition switch is OFF. In addition, it stops when key position is moved to NEUTRAL

when operating.

OPERATION CONDITION

• Ignition switch OFF.

• Hold door key cylinder to LOCK position for more than 1 second to perform CLOSE operation of the door

glass.

• Hold door key cylinder to UNLOCK position for more than 1 second to perform OPEN operation of the door

glass.

KEYLESS POWER WINDOW DOWN OPERATION (FRONT LH & RH)

Front power windows open when the unlock button on keyfob is activated and kept pressed for more than
3

(NOTE)

 seconds with the ignition switch OFF. The windows keep opening if the unlock button is continuously

pressed.

The power window opening stops when the following operations are performed:

• When the unlock button is kept pressed more than 15 seconds.

• When the ignition switch is turned ON while the power window opening is operated.

• When the unlock button is released.

While retained power operation activate, keyless power window down function cannot be operated.

NOTE:

Keyless power window down operation mode can be changed by “PW DOWN SET” mode in “WORK SUP-

PORT”. Refer to

BCS-18, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

NOTE:

Use CONSULT to change settings.

MODE1 (3sec)/MODE2 (OFF)/MODE3 (5sec)

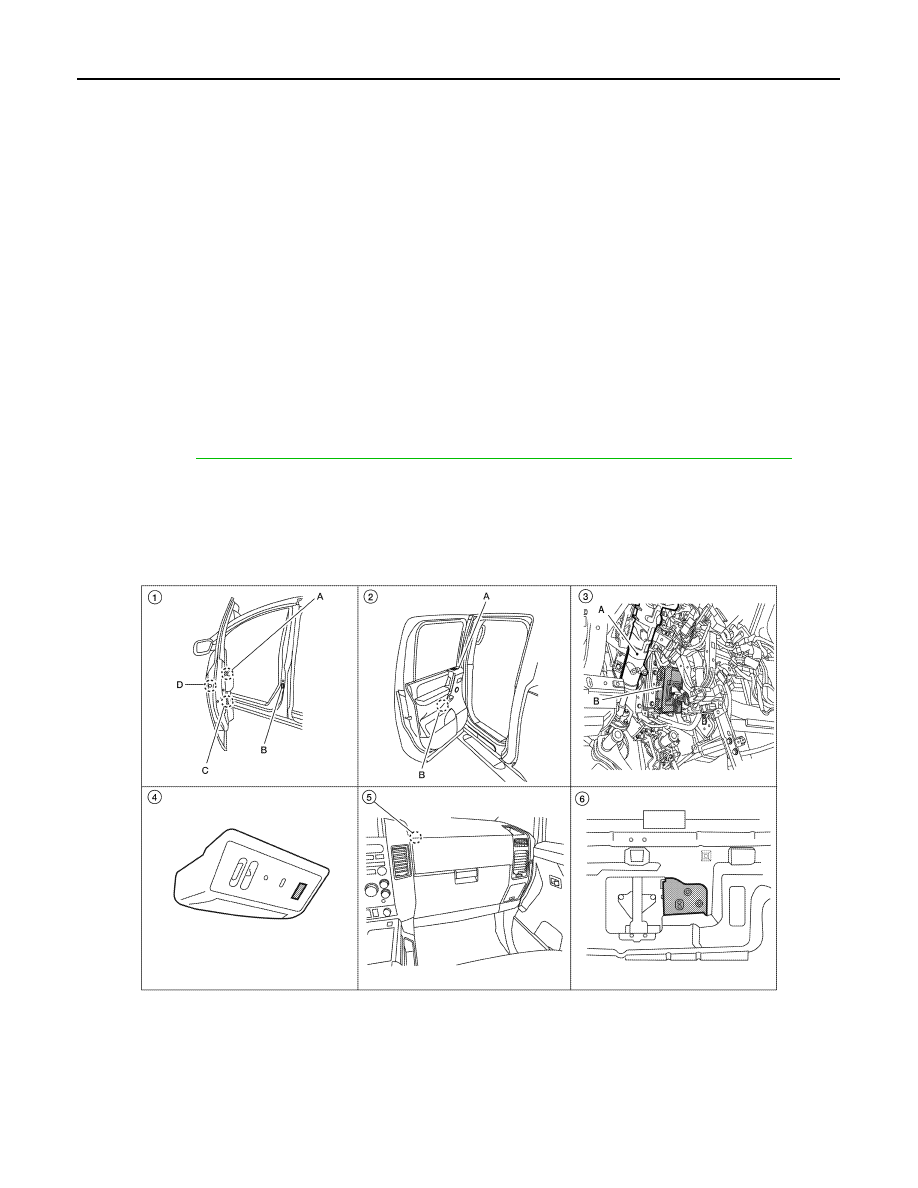

Component Parts Location

INFOID:0000000009878936

AWKIA1326ZZ
